#include <heheuPsiThermo.H>

Inheritance diagram for heheuPsiThermo< BasicPsiThermo, MixtureType >:

Collaboration diagram for heheuPsiThermo< BasicPsiThermo, MixtureType >:

Public Member Functions
	TypeName ("heheuPsiThermo")
	Runtime type information.
	heheuPsiThermo (const fvMesh &, const word &phaseName)
	Construct from mesh and phase name.
	heheuPsiThermo (const fvMesh &, const word &phaseName, const word &dictName)
	Construct from mesh,dictionary,phase name with a single temperature.
virtual	~heheuPsiThermo ()
	Destructor.
virtual void	correct ()
	Update properties.
virtual volScalarField &	heu ()
	Update properties based on T.
virtual const volScalarField &	heu () const
	Unburnt gas enthalpy [J/kg].
virtual const volScalarField &	Tu () const
	Unburnt gas temperature [K].
virtual tmp< scalarField >	heu (const scalarField &p, const scalarField &T, const labelList &cells) const
	Unburnt gas enthalpy for cell-set [J/kg].
virtual tmp< scalarField >	heu (const scalarField &p, const scalarField &T, const label patchi) const
	Unburnt gas enthalpy for patch [J/kg].
virtual tmp< volScalarField >	Tb () const
	Burnt gas temperature [K].
virtual tmp< volScalarField >	psiu () const
	Unburnt gas compressibility [s^2/m^2].
virtual tmp< volScalarField >	psib () const
	Burnt gas compressibility [s^2/m^2].
virtual tmp< volScalarField >	muu () const
	Dynamic viscosity of unburnt gas [kg/ms].
virtual tmp< volScalarField >	mub () const
	Dynamic viscosity of burnt gas [kg/ms].
Public Member Functions inherited from heThermo< BasicPsiThermo, MixtureType >
virtual	~heThermo ()
	Destructor.
virtual MixtureType::basicMixtureType &	composition ()
	Return the composition of the mixture.
virtual word	thermoName () const
	Return the name of the thermo physics.
virtual bool	incompressible () const
	Return true if the equation of state is incompressible.
virtual bool	isochoric () const
	Return true if the equation of state is isochoric.
virtual volScalarField &	he ()
	Enthalpy/Internal energy [J/kg].
virtual tmp< volScalarField >	hc () const
	Chemical enthalpy [J/kg].
virtual tmp< scalarField >	THE (const scalarField &he, const scalarField &p, const scalarField &T0, const labelList &cells) const
	Temperature from enthalpy/internal energy for cell-set.
virtual tmp< scalarField >	Cp (const scalarField &p, const scalarField &T, const label patchi) const
	Heat capacity at constant pressure for patch [J/kg/K].
virtual tmp< scalarField >	Cv (const scalarField &p, const scalarField &T, const label patchi) const
	Heat capacity at constant volume for patch [J/kg/K].
virtual tmp< scalarField >	rhoEoS (const scalarField &p, const scalarField &T, const labelList &cells) const
	Density from pressure and temperature.
virtual tmp< volScalarField >	gamma () const
	Gamma = Cp/Cv [].
virtual tmp< scalarField >	Cpv (const scalarField &p, const scalarField &T, const label patchi) const
	Heat capacity at constant pressure/volume for patch [J/kg/K].
virtual tmp< volScalarField >	CpByCpv () const
	Heat capacity ratio [].
virtual tmp< volScalarField >	W () const
	Molecular weight [kg/kmol].
virtual tmp< volScalarField >	kappa () const
	Thermal diffusivity for temperature of mixture [J/m/s/K].
virtual tmp< volScalarField >	alphahe () const
	Thermal diffusivity for energy of mixture [kg/m/s].
virtual tmp< volScalarField >	kappaEff (const volScalarField &) const
	Effective thermal diffusivity for temperature.
virtual tmp< volScalarField >	alphaEff (const volScalarField &alphat) const
	Effective thermal diffusivity of mixture [kg/m/s].
virtual bool	read ()
	Read thermophysical properties dictionary.

Additional Inherited Members
Protected Member Functions inherited from heThermo< BasicPsiThermo, MixtureType >
void	heBoundaryCorrection (volScalarField &he)
	Correct the enthalpy/internal energy field boundaries.
Protected Attributes inherited from heThermo< BasicPsiThermo, MixtureType >
volScalarField	he_
	Energy field.

Detailed Description

template<class BasicPsiThermo, class MixtureType>
class Foam::heheuPsiThermo< BasicPsiThermo, MixtureType >

Definition at line 48 of file heheuPsiThermo.H.

Constructor & Destructor Documentation

◆ heheuPsiThermo() [1/2]

template<class BasicPsiThermo, class MixtureType>

heheuPsiThermo	(	const fvMesh &	mesh,
		const word &	phaseName )

Construct from mesh and phase name.

Definition at line 234 of file heheuPsiThermo.C.

References forAll, mesh, pp(), and timeName.

Here is the call graph for this function:

◆ heheuPsiThermo() [2/2]

template<class BasicPsiThermo, class MixtureType>

heheuPsiThermo	(	const fvMesh &	mesh,
		const word &	phaseName,
		const word &	dictName )

Construct from mesh,dictionary,phase name with a single temperature.

Definition at line 309 of file heheuPsiThermo.C.

References dictName(), forAll, mesh, pp(), and timeName.

Here is the call graph for this function:

◆ ~heheuPsiThermo()

template<class BasicPsiThermo, class MixtureType>

~heheuPsiThermo ( )

virtual

Destructor.

Definition at line 387 of file heheuPsiThermo.C.

Member Function Documentation

◆ TypeName()

template<class BasicPsiThermo, class MixtureType>

TypeName ( "heheuPsiThermo< BasicPsiThermo, MixtureType >" )

Runtime type information.

References dictName().

Here is the call graph for this function:

◆ correct()

template<class BasicPsiThermo, class MixtureType>

void correct ( )

virtual

Update properties.

Definition at line 394 of file heheuPsiThermo.C.

References DebugInfo, DebugInFunction, and Foam::endl().

Here is the call graph for this function:

◆ heu() [1/4]

template<class BasicPsiThermo, class MixtureType>

virtual volScalarField & heu ( )

inlinevirtual

Update properties based on T.

virtual void correctT();

Unburnt gas enthalpy [J/kg]

Non-const access allowed for transport equations

Definition at line 138 of file heheuPsiThermo.H.

Referenced by heu(), and heu().

Here is the caller graph for this function:

◆ heu() [2/4]

template<class BasicPsiThermo, class MixtureType>

virtual const volScalarField & heu ( ) const

inlinevirtual

Unburnt gas enthalpy [J/kg].

Definition at line 146 of file heheuPsiThermo.H.

◆ Tu()

template<class BasicPsiThermo, class MixtureType>

virtual const volScalarField & Tu ( ) const

inlinevirtual

Unburnt gas temperature [K].

Definition at line 154 of file heheuPsiThermo.H.

Referenced by heu(), and heu().

Here is the caller graph for this function:

◆ heu() [3/4]

template<class BasicPsiThermo, class MixtureType>

Foam::tmp< Foam::scalarField > heu	(	const scalarField &	p,
		const scalarField &	T,
		const labelList &	cells ) const

virtual

Unburnt gas enthalpy for cell-set [J/kg].

Definition at line 420 of file heheuPsiThermo.C.

References cells, forAll, heu(), tmp< T >::New(), p, and Tu().

Here is the call graph for this function:

◆ heu() [4/4]

template<class BasicPsiThermo, class MixtureType>

Foam::tmp< Foam::scalarField > heu	(	const scalarField &	p,
		const scalarField &	T,
		const label	patchi ) const

virtual

Unburnt gas enthalpy for patch [J/kg].

Definition at line 441 of file heheuPsiThermo.C.

References forAll, heu(), tmp< T >::New(), p, and Tu().

Here is the call graph for this function:

◆ Tb()

template<class BasicPsiThermo, class MixtureType>

Foam::tmp< Foam::volScalarField > Tb ( ) const

virtual

Burnt gas temperature [K].

Definition at line 463 of file heheuPsiThermo.C.

References forAll, heThermo< BasicPsiThermo, MixtureType >::he_, GeometricField< scalar, fvPatchField, volMesh >::New(), IOobjectOption::NO_REGISTER, and pp().

Referenced by mub(), and psib().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ psiu()

template<class BasicPsiThermo, class MixtureType>

Foam::tmp< Foam::volScalarField > psiu ( ) const

virtual

Unburnt gas compressibility [s^2/m^2].

Definition at line 512 of file heheuPsiThermo.C.

References forAll, GeometricField< scalar, fvPatchField, volMesh >::New(), IOobjectOption::NO_REGISTER, pp(), and psiu().

Referenced by psiu().

Here is the call graph for this function:

Here is the caller graph for this function:

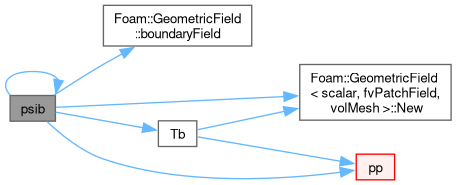

◆ psib()

template<class BasicPsiThermo, class MixtureType>

Foam::tmp< Foam::volScalarField > psib ( ) const

virtual

Burnt gas compressibility [s^2/m^2].

Definition at line 556 of file heheuPsiThermo.C.

References GeometricField< Type, PatchField, GeoMesh >::boundaryField(), forAll, GeometricField< scalar, fvPatchField, volMesh >::New(), IOobjectOption::NO_REGISTER, pp(), psib(), and Tb().

Referenced by psib().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ muu()

template<class BasicPsiThermo, class MixtureType>

Foam::tmp< Foam::volScalarField > muu ( ) const

virtual

Dynamic viscosity of unburnt gas [kg/ms].

Definition at line 601 of file heheuPsiThermo.C.

References forAll, GeometricField< scalar, fvPatchField, volMesh >::New(), IOobjectOption::NO_REGISTER, and pp().

Here is the call graph for this function:

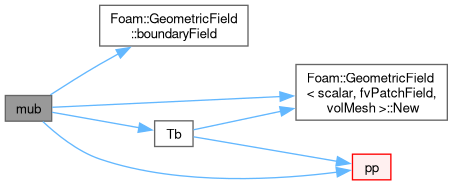

◆ mub()

template<class BasicPsiThermo, class MixtureType>

Foam::tmp< Foam::volScalarField > mub ( ) const

virtual

Dynamic viscosity of burnt gas [kg/ms].

Definition at line 649 of file heheuPsiThermo.C.

References GeometricField< Type, PatchField, GeoMesh >::boundaryField(), forAll, GeometricField< scalar, fvPatchField, volMesh >::New(), IOobjectOption::NO_REGISTER, pp(), and Tb().

Here is the call graph for this function:

The documentation for this class was generated from the following files:

src/thermophysicalModels/reactionThermo/psiuReactionThermo/heheuPsiThermo.H
src/thermophysicalModels/reactionThermo/psiuReactionThermo/heheuPsiThermo.C
