isotropic Class Reference

An isotropic regularisationRadius (same in all spatial directions). More...

#include <regularisationRadiusIsotropic.H>

Inheritance diagram for isotropic:

Collaboration diagram for isotropic:

Public Member Functions
	TypeName ("isotropic")
	Runtime type information.
	isotropic (const fvMesh &mesh, const dictionary &dict, bool adjustWallThickness)
	Construct from components.
virtual	~isotropic ()=default
	Destructor.
virtual void	addRegularisationTerm (fvScalarMatrix &matrix, bool isTopoField) const
	Add a Laplacian term with an isotropic diffusivity.
Public Member Functions inherited from regularisationRadius
	TypeName ("regularisationRadius")
	Runtime type information.
	declareRunTimeSelectionTable (autoPtr, regularisationRadius, dictionary,(const fvMesh &mesh, const dictionary &dict, bool adjustWallThickness),(mesh, dict, adjustWallThickness))
	regularisationRadius (const fvMesh &mesh, const dictionary &dict, bool adjustWallThickness)
	Construct from components.
virtual	~regularisationRadius ()=default
	Destructor.

Protected Member Functions
scalar	computeRadius (const dictionary &dict)
	Compute smoothing radius, if not directly given.

Protected Attributes
scalar	wallThicknessMult_
	Multiplier of the wall thickness, used to obtain the radius for the second regularisation in bi-fluid topO.
dimensionedScalar	radius_
	Smoothing radius of the first regulatisation.
Protected Attributes inherited from regularisationRadius
const fvMesh &	mesh_
const dictionary	dict_

Additional Inherited Members
Static Public Member Functions inherited from regularisationRadius
static autoPtr< regularisationRadius >	New (const fvMesh &mesh, const dictionary &dict, bool adjustWallThickness)
	Construct and return the selected regularisationRadius.

Detailed Description

An isotropic regularisationRadius (same in all spatial directions).

Source files

• regularisationRadiusIsotropic.H
• isotropic.C

Definition at line 49 of file regularisationRadiusIsotropic.H.

Constructor & Destructor Documentation

isotropic()

isotropic	(	const fvMesh &	mesh,
		const dictionary &	dict,
		bool	adjustWallThickness )

Construct from components.

Definition at line 60 of file regularisationRadiusIsotropic.C.

References computeRadius(), DebugInfo, dict, regularisationRadius::dict_, Foam::dimLength, Foam::endl(), mesh, radius_, and Foam::sqrt().

Here is the call graph for this function:

~isotropic()

virtual ~isotropic ( )

virtualdefault

Destructor.

Member Function Documentation

computeRadius()

Foam::scalar computeRadius ( const dictionary & dict )

protected

Compute smoothing radius, if not directly given.

Definition at line 37 of file regularisationRadiusIsotropic.C.

References dict, Foam::endl(), forAll, Foam::gAverage(), Foam::Info, regularisationRadius::mesh_, and Foam::pow().

Referenced by isotropic().

Here is the call graph for this function:

Here is the caller graph for this function:

TypeName()

TypeName

(

"isotropic"

)

Runtime type information.

References dict, and mesh.

addRegularisationTerm()

void addRegularisationTerm ( fvScalarMatrix & matrix, bool isTopoField ) const

virtual

Add a Laplacian term with an isotropic diffusivity.

Implements regularisationRadius.

Definition at line 94 of file regularisationRadiusIsotropic.C.

References field(), Foam::fvm::laplacian(), fvMatrix< Type >::psi(), radius_, and Foam::sqr().

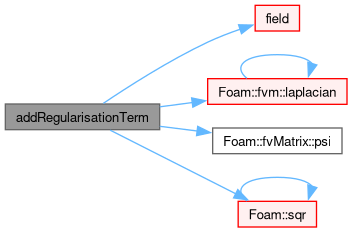

Here is the call graph for this function:

Member Data Documentation

wallThicknessMult_

scalar wallThicknessMult_

protected

Multiplier of the wall thickness, used to obtain the radius for the second regularisation in bi-fluid topO.

Definition at line 77 of file regularisationRadiusIsotropic.H.

radius_

dimensionedScalar radius_

protected

Smoothing radius of the first regulatisation.

Definition at line 82 of file regularisationRadiusIsotropic.H.

Referenced by addRegularisationTerm(), and isotropic().

---

The documentation for this class was generated from the following files:

• src/optimisation/adjointOptimisation/adjoint/optimisation/designVariables/topODesignVariables/regularisation/regularisationRadius/isotropic/regularisationRadiusIsotropic.H
• src/optimisation/adjointOptimisation/adjoint/optimisation/designVariables/topODesignVariables/regularisation/regularisationRadius/isotropic/regularisationRadiusIsotropic.C
