Container class to provide injection data for kinematic parcels. More...

#include <kinematicParcelInjectionData.H>

Inheritance diagram for kinematicParcelInjectionData:

Collaboration diagram for kinematicParcelInjectionData:

Public Member Functions
	TypeName ("kinematicParcelInjectionData")
	Runtime type information.
	kinematicParcelInjectionData ()
	Null constructor.
	kinematicParcelInjectionData (const dictionary &dict)
	Construct from dictionary.
	kinematicParcelInjectionData (Istream &is)
	Construct from Istream.
virtual	~kinematicParcelInjectionData ()
	Destructor.
const point &	x () const
	Return const access to the position.
const vector &	U () const
	Return const access to the velocity.
scalar	d () const
	Return const access to the diameter.
scalar	rho () const
	Return const access to the density.
scalar	mDot () const
	Return const access to the mass flow rate.
point &	x ()
	Return access to the position.
vector &	U ()
	Return access to the velocity.
scalar &	d ()
	Return access to the diameter.
scalar &	rho ()
	Return access to the density.
scalar &	mDot ()
	Return access to the mass flow rate.

Protected Attributes
point	x_
	Position [m].
vector	U_
	Velocity [m/s].
scalar	d_
	Diameter [m].
scalar	rho_
	Density [kg/m3].
scalar	mDot_
	Mass flow rate [kg/s].

Friends
bool	operator== (const kinematicParcelInjectionData &a, const kinematicParcelInjectionData &b)
bool	operator!= (const kinematicParcelInjectionData &a, const kinematicParcelInjectionData &b)
Ostream &	operator<< (Ostream &os, const kinematicParcelInjectionData &data)
	Ostream operator.
Istream &	operator>> (Istream &is, kinematicParcelInjectionData &data)
	Istream operator.

Detailed Description

Container class to provide injection data for kinematic parcels.

Source files

Definition at line 66 of file kinematicParcelInjectionData.H.

Constructor & Destructor Documentation

◆ kinematicParcelInjectionData() [1/3]

kinematicParcelInjectionData ( )

Null constructor.

Definition at line 32 of file kinematicParcelInjectionData.C.

References d_, mDot_, rho_, U_, x_, and Foam::Zero.

Referenced by operator!=, operator<<, operator==, operator>>, thermoParcelInjectionData::thermoParcelInjectionData(), thermoParcelInjectionData::thermoParcelInjectionData(), and thermoParcelInjectionData::thermoParcelInjectionData().

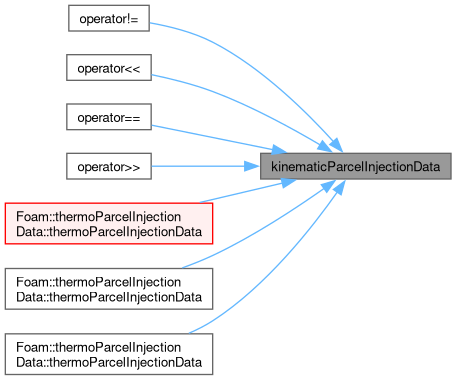

Here is the caller graph for this function:

◆ kinematicParcelInjectionData() [2/3]

kinematicParcelInjectionData ( const dictionary & dict )

Construct from dictionary.

Definition at line 42 of file kinematicParcelInjectionData.C.

References d_, dict, mDot_, rho_, U_, and x_.

◆ kinematicParcelInjectionData() [3/3]

kinematicParcelInjectionData ( Istream & is )

Construct from Istream.

Definition at line 25 of file kinematicParcelInjectionDataIO.C.

References IOstream::check(), d_, FUNCTION_NAME, mDot_, rho_, U_, and x_.

Here is the call graph for this function:

◆ ~kinematicParcelInjectionData()

~kinematicParcelInjectionData ( )

virtual

Destructor.

Definition at line 56 of file kinematicParcelInjectionData.C.

Member Function Documentation

◆ TypeName()

TypeName ( "kinematicParcelInjectionData" )

Runtime type information.

References dict.

◆ x() [1/2]

const Foam::point & x ( ) const

inline

Return const access to the position.

Definition at line 25 of file kinematicParcelInjectionDataI.H.

References x_.

◆ U() [1/2]

const Foam::vector & U ( ) const

inline

Return const access to the velocity.

Definition at line 31 of file kinematicParcelInjectionDataI.H.

References U_.

◆ d() [1/2]

Foam::scalar d ( ) const

inline

Return const access to the diameter.

Definition at line 37 of file kinematicParcelInjectionDataI.H.

References d_.

◆ rho() [1/2]

Foam::scalar rho ( ) const

inline

Return const access to the density.

Definition at line 43 of file kinematicParcelInjectionDataI.H.

References rho_.

◆ mDot() [1/2]

Foam::scalar mDot ( ) const

inline

Return const access to the mass flow rate.

Definition at line 49 of file kinematicParcelInjectionDataI.H.

References mDot_.

◆ x() [2/2]

Foam::point & x ( )

inline

Return access to the position.

Definition at line 55 of file kinematicParcelInjectionDataI.H.

References x_.

◆ U() [2/2]

Foam::vector & U ( )

inline

Return access to the velocity.

Definition at line 61 of file kinematicParcelInjectionDataI.H.

References U_.

◆ d() [2/2]

Foam::scalar & d ( )

inline

Return access to the diameter.

Definition at line 67 of file kinematicParcelInjectionDataI.H.

References d_.

◆ rho() [2/2]

Foam::scalar & rho ( )

inline

Return access to the density.

Definition at line 73 of file kinematicParcelInjectionDataI.H.

References rho_.

◆ mDot() [2/2]

Foam::scalar & mDot ( )

inline

Return access to the mass flow rate.

Definition at line 79 of file kinematicParcelInjectionDataI.H.

References mDot_.

◆ operator==

bool operator==	(	const kinematicParcelInjectionData &	a,
		const kinematicParcelInjectionData &	b )

friend

Definition at line 187 of file kinematicParcelInjectionData.H.

References b, kinematicParcelInjectionData(), and NotImplemented.

◆ operator!=

bool operator!=	(	const kinematicParcelInjectionData &	a,
		const kinematicParcelInjectionData &	b )

friend

Definition at line 198 of file kinematicParcelInjectionData.H.

References b, kinematicParcelInjectionData(), and NotImplemented.

◆ operator<<

Ostream & operator<<	(	Ostream &	os,
		const kinematicParcelInjectionData &	data )

friend

Ostream operator.

References kinematicParcelInjectionData(), and os().

◆ operator>>

Istream & operator>>	(	Istream &	is,
		kinematicParcelInjectionData &	data )

friend

Istream operator.

References kinematicParcelInjectionData().

Member Data Documentation

◆ x_

point x_

protected

Position [m].

Definition at line 75 of file kinematicParcelInjectionData.H.

Referenced by kinematicParcelInjectionData(), kinematicParcelInjectionData(), kinematicParcelInjectionData(), Foam::operator>>(), x(), and x().

◆ U_

vector U_

protected

Velocity [m/s].

Definition at line 80 of file kinematicParcelInjectionData.H.

Referenced by kinematicParcelInjectionData(), kinematicParcelInjectionData(), kinematicParcelInjectionData(), Foam::operator>>(), U(), and U().

◆ d_

scalar d_

protected

Diameter [m].

Definition at line 85 of file kinematicParcelInjectionData.H.

Referenced by d(), d(), kinematicParcelInjectionData(), kinematicParcelInjectionData(), kinematicParcelInjectionData(), and Foam::operator>>().

◆ rho_

scalar rho_

protected

Density [kg/m3].

Definition at line 90 of file kinematicParcelInjectionData.H.

Referenced by kinematicParcelInjectionData(), kinematicParcelInjectionData(), kinematicParcelInjectionData(), Foam::operator>>(), rho(), and rho().

◆ mDot_

scalar mDot_

protected

Mass flow rate [kg/s].

Definition at line 95 of file kinematicParcelInjectionData.H.

Referenced by kinematicParcelInjectionData(), kinematicParcelInjectionData(), kinematicParcelInjectionData(), mDot(), mDot(), and Foam::operator>>().

The documentation for this class was generated from the following files:

src/lagrangian/intermediate/submodels/Kinematic/InjectionModel/KinematicLookupTableInjection/kinematicParcelInjectionData.H
src/lagrangian/intermediate/submodels/Kinematic/InjectionModel/KinematicLookupTableInjection/kinematicParcelInjectionData.C
src/lagrangian/intermediate/submodels/Kinematic/InjectionModel/KinematicLookupTableInjection/kinematicParcelInjectionDataI.H
src/lagrangian/intermediate/submodels/Kinematic/InjectionModel/KinematicLookupTableInjection/kinematicParcelInjectionDataIO.C
