BirdCarreau Class Reference

An incompressible Bird-Carreau non-Newtonian viscosity model. More...

#include <BirdCarreau.H>

Inheritance diagram for BirdCarreau:

Collaboration diagram for BirdCarreau:

Public Member Functions
	TypeName ("BirdCarreau")
	Runtime type information.
	BirdCarreau (const dictionary &viscosityProperties)
	Construct from dictionary (components).
virtual	~BirdCarreau ()=default
	Destructor.
virtual bool	read (const dictionary &viscosityProperties)
	Read transportProperties dictionary.
virtual tmp< volScalarField >	nu (const volScalarField &nu0, const volScalarField &strainRate) const
	Return the laminar viscosity.
Public Member Functions inherited from generalizedNewtonianViscosityModel
	TypeName ("generalizedNewtonianViscosityModel")
	Runtime type information.
	declareRunTimeSelectionTable (autoPtr, generalizedNewtonianViscosityModel, dictionary,(const dictionary &viscosityProperties),(viscosityProperties))
	generalizedNewtonianViscosityModel (const generalizedNewtonianViscosityModel &)=delete
	No copy construct.
void	operator= (const generalizedNewtonianViscosityModel &)=delete
	No copy assignment.
	generalizedNewtonianViscosityModel (const dictionary &viscosityProperties)
	Construct from dictionary (components).
virtual	~generalizedNewtonianViscosityModel ()=default
	Destructor.
const dictionary &	viscosityProperties () const
	Return the phase transport properties dictionary.

Additional Inherited Members
Static Public Member Functions inherited from generalizedNewtonianViscosityModel
static autoPtr< generalizedNewtonianViscosityModel >	New (const dictionary &dict)
	Select a viscosity model.
Protected Attributes inherited from generalizedNewtonianViscosityModel
dictionary	viscosityProperties_

Detailed Description

An incompressible Bird-Carreau non-Newtonian viscosity model.

The Bird-Carreau-Yasuda form is also supported if the optional "a" coefficient is specified. "a" defaults to 2 for the Bird-Carreau model.

Example specification for a polymer:

     viscosityModel BirdCarreau;

     nuInf       0;
     n           0.5;

Source files

• BirdCarreau.H
• BirdCarreau.C

Definition at line 62 of file BirdCarreau.H.

Constructor & Destructor Documentation

BirdCarreau()

BirdCarreau ( const dictionary & viscosityProperties )

explicit

Construct from dictionary (components).

Definition at line 48 of file BirdCarreau.C.

References Foam::dimless, Foam::dimTime, Foam::dimViscosity, generalizedNewtonianViscosityModel::generalizedNewtonianViscosityModel(), Foam::GlobalIOList< Tuple2< scalar, vector > >::typeName, and generalizedNewtonianViscosityModel::viscosityProperties().

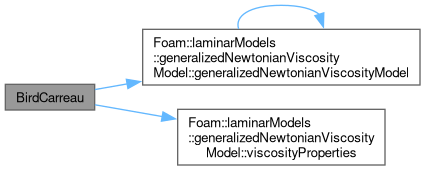

Here is the call graph for this function:

~BirdCarreau()

virtual ~BirdCarreau ( )

virtualdefault

Destructor.

References generalizedNewtonianViscosityModel::viscosityProperties().

Here is the call graph for this function:

Member Function Documentation

TypeName()

TypeName

(

"BirdCarreau"

)

Runtime type information.

References generalizedNewtonianViscosityModel::viscosityProperties().

Here is the call graph for this function:

read()

bool read ( const dictionary & viscosityProperties )

virtual

Read transportProperties dictionary.

Implements generalizedNewtonianViscosityModel.

Definition at line 75 of file BirdCarreau.C.

References Foam::dimless, Foam::GlobalIOList< Tuple2< scalar, vector > >::typeName, generalizedNewtonianViscosityModel::read(), and generalizedNewtonianViscosityModel::viscosityProperties().

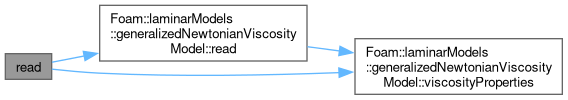

Here is the call graph for this function:

nu()

Foam::tmp< Foam::volScalarField > nu ( const volScalarField & nu0, const volScalarField & strainRate ) const

virtual

Return the laminar viscosity.

Implements generalizedNewtonianViscosityModel.

Definition at line 101 of file BirdCarreau.C.

References Foam::pow().

Here is the call graph for this function:

---

The documentation for this class was generated from the following files:

• src/TurbulenceModels/turbulenceModels/laminar/generalizedNewtonian/generalizedNewtonianViscosityModels/BirdCarreau/BirdCarreau.H
• src/TurbulenceModels/turbulenceModels/laminar/generalizedNewtonian/generalizedNewtonianViscosityModels/BirdCarreau/BirdCarreau.C
