Cross-Power law generalized Newtonian viscosity model. More...

#include <CrossPowerLaw.H>

Inheritance diagram for CrossPowerLaw:

Collaboration diagram for CrossPowerLaw:

Public Member Functions
	TypeName ("CrossPowerLaw")
	Runtime type information.
	CrossPowerLaw (const dictionary &viscosityProperties)
	Construct from dictionary (components).
virtual	~CrossPowerLaw ()=default
	Destructor.
virtual bool	read (const dictionary &viscosityProperties)
	Read transportProperties dictionary.
virtual tmp< volScalarField >	nu (const volScalarField &nu0, const volScalarField &strainRate) const
	Return the laminar viscosity.
Public Member Functions inherited from generalizedNewtonianViscosityModel
	TypeName ("generalizedNewtonianViscosityModel")
	Runtime type information.
	declareRunTimeSelectionTable (autoPtr, generalizedNewtonianViscosityModel, dictionary,(const dictionary &viscosityProperties),(viscosityProperties))
	generalizedNewtonianViscosityModel (const generalizedNewtonianViscosityModel &)=delete
	No copy construct.
void	operator= (const generalizedNewtonianViscosityModel &)=delete
	No copy assignment.
	generalizedNewtonianViscosityModel (const dictionary &viscosityProperties)
	Construct from dictionary (components).
virtual	~generalizedNewtonianViscosityModel ()=default
	Destructor.
const dictionary &	viscosityProperties () const
	Return the phase transport properties dictionary.

Additional Inherited Members
Static Public Member Functions inherited from generalizedNewtonianViscosityModel
static autoPtr< generalizedNewtonianViscosityModel >	New (const dictionary &dict)
	Select a viscosity model.
Protected Attributes inherited from generalizedNewtonianViscosityModel
dictionary	viscosityProperties_

Detailed Description

Cross-Power law generalized Newtonian viscosity model.

The strain rate coefficient can be specified either as the constant m or the critical stress level at the transition to shear thinning tauStar if tauStar is provided:

Kinematic viscosity [m^2/s]

$\‍[ \nu = \nu_\infty + \frac{(\nu_0 - \nu_\infty)}{1 + (m\gamma)^n} \‍]$

or

$\‍[ \nu = \nu_\infty + \frac{(\nu_0 - \nu_\infty)} {1 + \left(\frac{\nu_0\gamma}{\tau^*}\right)^n} \‍]$

Example specification:

     viscosityModel CrossPowerLaw;

     nuInf      10;
     m          0.4;
     n          3;

Source files

Definition at line 79 of file CrossPowerLaw.H.

Constructor & Destructor Documentation

◆ CrossPowerLaw()

CrossPowerLaw ( const dictionary & viscosityProperties )

explicit

Construct from dictionary (components).

Definition at line 49 of file CrossPowerLaw.C.

References Foam::dimless, Foam::dimTime, Foam::dimViscosity, generalizedNewtonianViscosityModel::generalizedNewtonianViscosityModel(), Foam::GlobalIOList< Tuple2< scalar, vector > >::typeName, and generalizedNewtonianViscosityModel::viscosityProperties().

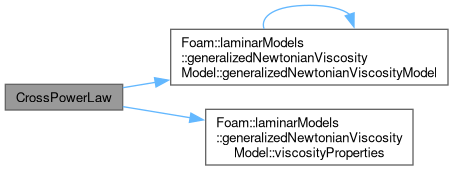

Here is the call graph for this function:

◆ ~CrossPowerLaw()

virtual ~CrossPowerLaw ( )

virtualdefault

Destructor.

References generalizedNewtonianViscosityModel::viscosityProperties().

Here is the call graph for this function:

Member Function Documentation

◆ TypeName()

TypeName ( "CrossPowerLaw" )

Runtime type information.

References generalizedNewtonianViscosityModel::viscosityProperties().

Here is the call graph for this function:

◆ read()

bool read ( const dictionary & viscosityProperties )

virtual

Read transportProperties dictionary.

Implements generalizedNewtonianViscosityModel.

Definition at line 69 of file CrossPowerLaw.C.

References Foam::GlobalIOList< Tuple2< scalar, vector > >::typeName, generalizedNewtonianViscosityModel::read(), and generalizedNewtonianViscosityModel::viscosityProperties().

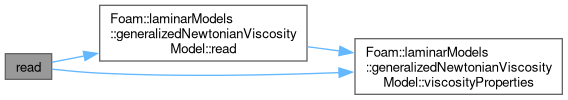

Here is the call graph for this function:

◆ nu()

Foam::tmp< Foam::volScalarField > nu	(	const volScalarField &	nu0,
		const volScalarField &	strainRate ) const

virtual

Return the laminar viscosity.

Implements generalizedNewtonianViscosityModel.

Definition at line 89 of file CrossPowerLaw.C.

References Foam::pow().

Here is the call graph for this function:

The documentation for this class was generated from the following files:

src/TurbulenceModels/turbulenceModels/laminar/generalizedNewtonian/generalizedNewtonianViscosityModels/CrossPowerLaw/CrossPowerLaw.H
src/TurbulenceModels/turbulenceModels/laminar/generalizedNewtonian/generalizedNewtonianViscosityModels/CrossPowerLaw/CrossPowerLaw.C
