Abstract base class for limited surface interpolation schemes. More...

#include <limitedSurfaceInterpolationScheme.H>

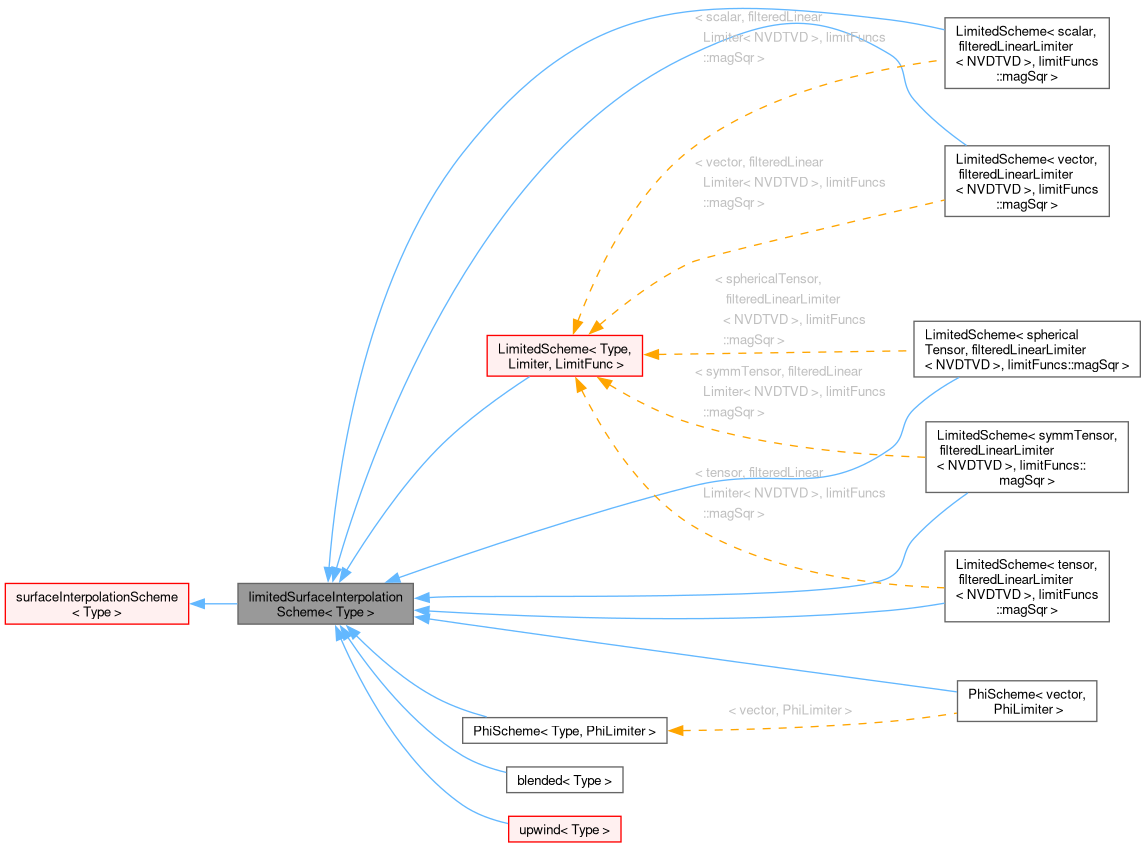

Inheritance diagram for limitedSurfaceInterpolationScheme< Type >:

[legend]

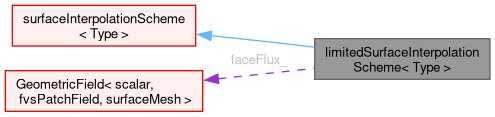

Collaboration diagram for limitedSurfaceInterpolationScheme< Type >:

[legend]

Public Member Functions
	TypeName ("limitedSurfaceInterpolationScheme")
	Runtime type information.
	declareRunTimeSelectionTable (tmp, limitedSurfaceInterpolationScheme, Mesh,(const fvMesh &mesh, Istream &schemeData),(mesh, schemeData))
	declareRunTimeSelectionTable (tmp, limitedSurfaceInterpolationScheme, MeshFlux,(const fvMesh &mesh, const surfaceScalarField &faceFlux, Istream &schemeData),(mesh, faceFlux, schemeData))
	limitedSurfaceInterpolationScheme (const fvMesh &mesh, const surfaceScalarField &faceFlux)
	Construct from mesh and faceFlux.
	limitedSurfaceInterpolationScheme (const fvMesh &mesh, Istream &is)
	Construct from mesh and Istream.
virtual	~limitedSurfaceInterpolationScheme ()
	Destructor.
virtual tmp< surfaceScalarField >	limiter (const GeometricField< Type, fvPatchField, volMesh > &) const =0
	Return the interpolation weighting factors.
tmp< surfaceScalarField >	weights (const GeometricField< Type, fvPatchField, volMesh > &, const surfaceScalarField &CDweights, tmp< surfaceScalarField > tLimiter) const
	Return the interpolation weighting factors for the given field,.
virtual tmp< surfaceScalarField >	weights (const GeometricField< Type, fvPatchField, volMesh > &) const
	Return the interpolation weighting factors for the given field.
virtual tmp< GeometricField< Type, fvsPatchField, surfaceMesh > >	flux (const GeometricField< Type, fvPatchField, volMesh > &) const
	Return the interpolation weighting factors.
Public Member Functions inherited from surfaceInterpolationScheme< Type >
	TypeName ("surfaceInterpolationScheme")
	Runtime type information.
	declareRunTimeSelectionTable (tmp, surfaceInterpolationScheme, Mesh,(const fvMesh &mesh, Istream &schemeData),(mesh, schemeData))
	declareRunTimeSelectionTable (tmp, surfaceInterpolationScheme, MeshFlux,(const fvMesh &mesh, const surfaceScalarField &faceFlux, Istream &schemeData),(mesh, faceFlux, schemeData))
	surfaceInterpolationScheme (const fvMesh &mesh)
	Construct from mesh.
virtual	~surfaceInterpolationScheme ()=default
	Destructor.
const fvMesh &	mesh () const
	Return mesh reference.
virtual bool	corrected () const
	Return true if this scheme uses an explicit correction.
virtual tmp< GeometricField< Type, fvsPatchField, surfaceMesh > >	correction (const GeometricField< Type, fvPatchField, volMesh > &) const
	Return the explicit correction to the face-interpolate.
virtual tmp< GeometricField< typename innerProduct< vector, Type >::type, fvsPatchField, surfaceMesh > >	dotInterpolate (const surfaceVectorField &Sf, const GeometricField< Type, fvPatchField, volMesh > &vf) const
	Return the face-interpolate of the given cell field.
tmp< GeometricField< typename innerProduct< vector, Type >::type, fvsPatchField, surfaceMesh > >	dotInterpolate (const surfaceVectorField &Sf, const tmp< GeometricField< Type, fvPatchField, volMesh > > &) const
	Return the face-interpolate of the given tmp cell field.
virtual tmp< GeometricField< Type, fvsPatchField, surfaceMesh > >	interpolate (const GeometricField< Type, fvPatchField, volMesh > &) const
	Return the face-interpolate of the given cell field.
tmp< GeometricField< Type, fvsPatchField, surfaceMesh > >	interpolate (const tmp< GeometricField< Type, fvPatchField, volMesh > > &) const
	Return the face-interpolate of the given tmp cell field.
template<class SFType>
Foam::tmp< Foam::GeometricField< typename Foam::innerProduct< typename SFType::value_type, Type >::type, Foam::fvsPatchField, Foam::surfaceMesh > >	dotInterpolate (const SFType &Sf, const GeometricField< Type, fvPatchField, volMesh > &vf, const tmp< surfaceScalarField > &tlambdas)
tmp< GeometricField< typename innerProduct< vector, scalar >::type, fvsPatchField, surfaceMesh > >	dotInterpolate (const surfaceVectorField &Sf, const GeometricField< scalar, fvPatchField, volMesh > &) const
Foam::tmp< Foam::GeometricField< typename Foam::innerProduct< Foam::vector, Foam::scalar >::type, Foam::fvsPatchField, Foam::surfaceMesh > >	dotInterpolate (const surfaceVectorField &Sf, const GeometricField< scalar, fvPatchField, volMesh > &) const
Public Member Functions inherited from refCount
constexpr	refCount () noexcept
	Default construct, initializing count to 0.
int	use_count () const noexcept
	Return the current reference count.
bool	unique () const noexcept
	Return true if the reference count is zero.
void	operator++ () noexcept
	Increment the reference count.
void	operator++ (int) noexcept
	Increment the reference count.
void	operator-- () noexcept
	Decrement the reference count.
void	operator-- (int) noexcept
	Decrement the reference count.

Static Public Member Functions
static tmp< limitedSurfaceInterpolationScheme< Type > >	New (const fvMesh &mesh, Istream &schemeData)
	Return new tmp interpolation scheme.
static tmp< limitedSurfaceInterpolationScheme< Type > >	New (const fvMesh &mesh, const surfaceScalarField &faceFlux, Istream &schemeData)
	Return new tmp interpolation scheme.
Static Public Member Functions inherited from surfaceInterpolationScheme< Type >
static tmp< surfaceInterpolationScheme< Type > >	New (const fvMesh &mesh, Istream &schemeData)
	Return new tmp interpolation scheme.
static tmp< surfaceInterpolationScheme< Type > >	New (const fvMesh &mesh, const surfaceScalarField &faceFlux, Istream &schemeData)
	Return new tmp interpolation scheme.
static tmp< GeometricField< Type, fvsPatchField, surfaceMesh > >	interpolate (const GeometricField< Type, fvPatchField, volMesh > &, const tmp< surfaceScalarField > &, const tmp< surfaceScalarField > &)
	Return the face-interpolate of the given cell field.
template<class SFType>
static tmp< GeometricField< typename innerProduct< typename SFType::value_type, Type >::type, fvsPatchField, surfaceMesh > >	dotInterpolate (const SFType &Sf, const GeometricField< Type, fvPatchField, volMesh > &vf, const tmp< surfaceScalarField > &tlambdas)
	Return the face-interpolate of the given cell field.
static tmp< GeometricField< Type, fvsPatchField, surfaceMesh > >	interpolate (const GeometricField< Type, fvPatchField, volMesh > &, const tmp< surfaceScalarField > &)
	Return the face-interpolate of the given cell field.

Protected Attributes
const surfaceScalarField &	faceFlux_

Detailed Description

template<class Type>
class Foam::limitedSurfaceInterpolationScheme< Type >

Abstract base class for limited surface interpolation schemes.

Source files

Definition at line 50 of file limitedSurfaceInterpolationScheme.H.

Constructor & Destructor Documentation

◆ limitedSurfaceInterpolationScheme() [1/2]

template<class Type>

limitedSurfaceInterpolationScheme	(	const fvMesh &	mesh,
		const surfaceScalarField &	faceFlux )

inline

Construct from mesh and faceFlux.

Definition at line 118 of file limitedSurfaceInterpolationScheme.H.

References faceFlux_, and surfaceInterpolationScheme< Type >::mesh().

Here is the call graph for this function:

◆ limitedSurfaceInterpolationScheme() [2/2]

template<class Type>

limitedSurfaceInterpolationScheme	(	const fvMesh &	mesh,
		Istream &	is )

inline

Construct from mesh and Istream.

The name of the flux field is read from the Istream and looked-up from the mesh objectRegistry

Definition at line 135 of file limitedSurfaceInterpolationScheme.H.

References faceFlux_, and surfaceInterpolationScheme< Type >::mesh().

Here is the call graph for this function:

◆ ~limitedSurfaceInterpolationScheme()

template<class Type>

~limitedSurfaceInterpolationScheme ( )

virtual

Destructor.

Definition at line 120 of file limitedSurfaceInterpolationScheme.C.

Member Function Documentation

◆ TypeName()

template<class Type>

TypeName ( "limitedSurfaceInterpolationScheme< Type >" )

Runtime type information.

◆ declareRunTimeSelectionTable() [1/2]

template<class Type>

declareRunTimeSelectionTable	(	tmp	,
		limitedSurfaceInterpolationScheme< Type >	,
		Mesh	,
		(const fvMesh &mesh, Istream &schemeData)	,
		(mesh, schemeData)	)

References surfaceInterpolationScheme< Type >::mesh().

Here is the call graph for this function:

◆ declareRunTimeSelectionTable() [2/2]

template<class Type>

declareRunTimeSelectionTable	(	tmp	,
		limitedSurfaceInterpolationScheme< Type >	,
		MeshFlux	,
		(const fvMesh &mesh, const surfaceScalarField &faceFlux, Istream &schemeData)	,
		(mesh, faceFlux, schemeData)	)

References surfaceInterpolationScheme< Type >::mesh().

Here is the call graph for this function:

◆ New() [1/2]

template<class Type>

Foam::tmp< Foam::limitedSurfaceInterpolationScheme< Type > > New	(	const fvMesh &	mesh,
		Istream &	schemeData )

static

Return new tmp interpolation scheme.

Definition at line 31 of file limitedSurfaceInterpolationScheme.C.

References Foam::endl(), IOstream::eof(), Foam::exit(), Foam::FatalIOError, FatalIOErrorInFunction, FatalIOErrorInLookup, InfoInFunction, and surfaceInterpolationScheme< Type >::mesh().

Referenced by deferredCorrection< Type >::deferredCorrection(), deferredCorrection< Type >::deferredCorrection(), linearUpwindNormal< Type >::linearUpwindNormal(), linearUpwindNormal< Type >::linearUpwindNormal(), linearUpwindV< Type >::linearUpwindV(), linearUpwindV< Type >::linearUpwindV(), and multivariateSelectionScheme< Type >::multivariateSelectionScheme().

Here is the call graph for this function:

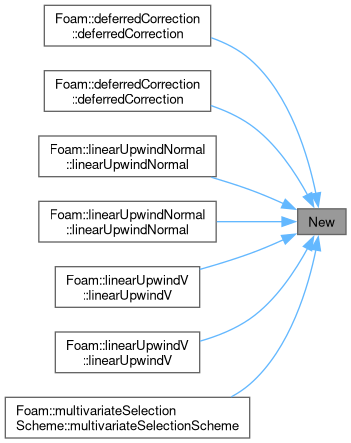

Here is the caller graph for this function:

◆ New() [2/2]

template<class Type>

Foam::tmp< Foam::limitedSurfaceInterpolationScheme< Type > > New	(	const fvMesh &	mesh,
		const surfaceScalarField &	faceFlux,
		Istream &	schemeData )

static

Return new tmp interpolation scheme.

Definition at line 74 of file limitedSurfaceInterpolationScheme.C.

References Foam::endl(), IOstream::eof(), Foam::exit(), Foam::FatalIOError, FatalIOErrorInFunction, FatalIOErrorInLookup, InfoInFunction, and surfaceInterpolationScheme< Type >::mesh().

Here is the call graph for this function:

◆ limiter()

template<class Type>

virtual tmp< surfaceScalarField > limiter ( const GeometricField< Type, fvPatchField, volMesh > & ) const

pure virtual

Return the interpolation weighting factors.

Implemented in blended< Type >, LimitedScheme< Type, Limiter, LimitFunc >, PhiScheme< Type, PhiLimiter >, and upwind< Type >.

Referenced by weights().

Here is the caller graph for this function:

◆ weights() [1/2]

template<class Type>

Foam::tmp< Foam::surfaceScalarField > weights	(	const GeometricField< Type, fvPatchField, volMesh > &	phi,
		const surfaceScalarField &	CDweights,
		tmp< surfaceScalarField >	tLimiter ) const

Return the interpolation weighting factors for the given field,.

by limiting the given weights with the given limiter

Definition at line 129 of file limitedSurfaceInterpolationScheme.C.

References GeometricField< Type, PatchField, GeoMesh >::boundaryField(), GeometricField< Type, PatchField, GeoMesh >::boundaryFieldRef(), faceFlux_, forAll, phi, Foam::pos0(), GeometricField< Type, PatchField, GeoMesh >::primitiveFieldRef(), and tmp< T >::ref().

Referenced by weights().

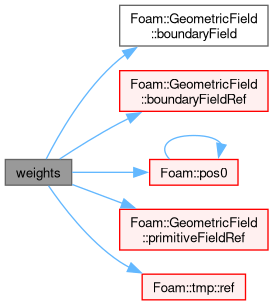

Here is the call graph for this function:

Here is the caller graph for this function:

◆ weights() [2/2]

template<class Type>

Foam::tmp< Foam::surfaceScalarField > weights ( const GeometricField< Type, fvPatchField, volMesh > & phi ) const

virtual

Return the interpolation weighting factors for the given field.

Implements surfaceInterpolationScheme< Type >.

Reimplemented in blended< Type >, LUST< Type >, and upwind< Type >.

Definition at line 172 of file limitedSurfaceInterpolationScheme.C.

References limiter(), mesh, phi, weights(), and surfaceInterpolation::weights().

Here is the call graph for this function:

◆ flux()

template<class Type>

Foam::tmp< Foam::GeometricField< Type, Foam::fvsPatchField, Foam::surfaceMesh > > flux ( const GeometricField< Type, fvPatchField, volMesh > & phi ) const

virtual

Return the interpolation weighting factors.

Definition at line 187 of file limitedSurfaceInterpolationScheme.C.

References faceFlux_, interpolate(), and phi.

Referenced by isoAdvection::advect(), and Foam::MULES::limit().

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

◆ faceFlux_

template<class Type>

const surfaceScalarField& faceFlux_

protected

Definition at line 74 of file limitedSurfaceInterpolationScheme.H.

Referenced by linearUpwind< Type >::correction(), linearUpwind< Type >::correction(), linearUpwindNormal< Type >::correction(), linearUpwindV< Type >::correction(), PureUpwindFitScheme< scalar, linearFitPolynomial, pureUpwindCFCCellToFaceStencilObject >::correction(), flux(), limitedSurfaceInterpolationScheme(), limitedSurfaceInterpolationScheme(), PhiScheme< Type, PhiLimiter >::limiter(), blended< Type >::weights(), weights(), and upwind< Type >::weights().

The documentation for this class was generated from the following files:

src/finiteVolume/interpolation/surfaceInterpolation/limitedSchemes/limitedSurfaceInterpolationScheme/limitedSurfaceInterpolationScheme.H
src/finiteVolume/interpolation/surfaceInterpolation/limitedSchemes/limitedSurfaceInterpolationScheme/limitedSurfaceInterpolationScheme.C
