localMin< Type > Class Template Reference

LocalMin-mean differencing scheme class. More...

#include <localMin.H>

Inheritance diagram for localMin< Type >:

Collaboration diagram for localMin< Type >:

Public Member Functions
	TypeName ("localMin")
	Runtime type information.
	localMin (const fvMesh &mesh)
	Construct from mesh.
	localMin (const fvMesh &mesh, Istream &is)
	Construct from Istream.
	localMin (const fvMesh &mesh, const surfaceScalarField &faceFlux, Istream &is)
	Construct from faceFlux and Istream.
virtual tmp< surfaceScalarField >	weights (const GeometricField< Type, fvPatchField, volMesh > &) const
	Return the interpolation weighting factors.
virtual tmp< GeometricField< Type, fvsPatchField, surfaceMesh > >	interpolate (const GeometricField< Type, fvPatchField, volMesh > &vf) const
	Return the face-interpolate of the given cell field.
Public Member Functions inherited from surfaceInterpolationScheme< Type >
	TypeName ("surfaceInterpolationScheme")
	Runtime type information.
	declareRunTimeSelectionTable (tmp, surfaceInterpolationScheme, Mesh,(const fvMesh &mesh, Istream &schemeData),(mesh, schemeData))
	declareRunTimeSelectionTable (tmp, surfaceInterpolationScheme, MeshFlux,(const fvMesh &mesh, const surfaceScalarField &faceFlux, Istream &schemeData),(mesh, faceFlux, schemeData))
	surfaceInterpolationScheme (const fvMesh &mesh)
	Construct from mesh.
virtual	~surfaceInterpolationScheme ()=default
	Destructor.
const fvMesh &	mesh () const
	Return mesh reference.
virtual bool	corrected () const
	Return true if this scheme uses an explicit correction.
virtual tmp< GeometricField< Type, fvsPatchField, surfaceMesh > >	correction (const GeometricField< Type, fvPatchField, volMesh > &) const
	Return the explicit correction to the face-interpolate.
virtual tmp< GeometricField< typename innerProduct< vector, Type >::type, fvsPatchField, surfaceMesh > >	dotInterpolate (const surfaceVectorField &Sf, const GeometricField< Type, fvPatchField, volMesh > &vf) const
	Return the face-interpolate of the given cell field.
tmp< GeometricField< typename innerProduct< vector, Type >::type, fvsPatchField, surfaceMesh > >	dotInterpolate (const surfaceVectorField &Sf, const tmp< GeometricField< Type, fvPatchField, volMesh > > &) const
	Return the face-interpolate of the given tmp cell field.
tmp< GeometricField< Type, fvsPatchField, surfaceMesh > >	interpolate (const tmp< GeometricField< Type, fvPatchField, volMesh > > &) const
	Return the face-interpolate of the given tmp cell field.
template<class SFType>
Foam::tmp< Foam::GeometricField< typename Foam::innerProduct< typename SFType::value_type, Type >::type, Foam::fvsPatchField, Foam::surfaceMesh > >	dotInterpolate (const SFType &Sf, const GeometricField< Type, fvPatchField, volMesh > &vf, const tmp< surfaceScalarField > &tlambdas)
tmp< GeometricField< typename innerProduct< vector, scalar >::type, fvsPatchField, surfaceMesh > >	dotInterpolate (const surfaceVectorField &Sf, const GeometricField< scalar, fvPatchField, volMesh > &) const
Foam::tmp< Foam::GeometricField< typename Foam::innerProduct< Foam::vector, Foam::scalar >::type, Foam::fvsPatchField, Foam::surfaceMesh > >	dotInterpolate (const surfaceVectorField &Sf, const GeometricField< scalar, fvPatchField, volMesh > &) const
Public Member Functions inherited from refCount
constexpr	refCount () noexcept
	Default construct, initializing count to 0.
int	use_count () const noexcept
	Return the current reference count.
bool	unique () const noexcept
	Return true if the reference count is zero.
void	operator++ () noexcept
	Increment the reference count.
void	operator++ (int) noexcept
	Increment the reference count.
void	operator-- () noexcept
	Decrement the reference count.
void	operator-- (int) noexcept
	Decrement the reference count.

Additional Inherited Members
Static Public Member Functions inherited from surfaceInterpolationScheme< Type >
static tmp< surfaceInterpolationScheme< Type > >	New (const fvMesh &mesh, Istream &schemeData)
	Return new tmp interpolation scheme.
static tmp< surfaceInterpolationScheme< Type > >	New (const fvMesh &mesh, const surfaceScalarField &faceFlux, Istream &schemeData)
	Return new tmp interpolation scheme.
static tmp< GeometricField< Type, fvsPatchField, surfaceMesh > >	interpolate (const GeometricField< Type, fvPatchField, volMesh > &, const tmp< surfaceScalarField > &, const tmp< surfaceScalarField > &)
	Return the face-interpolate of the given cell field.
template<class SFType>
static tmp< GeometricField< typename innerProduct< typename SFType::value_type, Type >::type, fvsPatchField, surfaceMesh > >	dotInterpolate (const SFType &Sf, const GeometricField< Type, fvPatchField, volMesh > &vf, const tmp< surfaceScalarField > &tlambdas)
	Return the face-interpolate of the given cell field.
static tmp< GeometricField< Type, fvsPatchField, surfaceMesh > >	interpolate (const GeometricField< Type, fvPatchField, volMesh > &, const tmp< surfaceScalarField > &)
	Return the face-interpolate of the given cell field.

Detailed Description

template<class Type>
class Foam::localMin< Type >

LocalMin-mean differencing scheme class.

This scheme interpolates 1/field using a scheme specified at run-time and return the reciprocal of the interpolate.

Source files

• localMin.H
• localMin.C

Definition at line 55 of file localMin.H.

Constructor & Destructor Documentation

localMin() [1/3]

template<class Type>

localMin ( const fvMesh & mesh )

inline

Construct from mesh.

Definition at line 80 of file localMin.H.

References surfaceInterpolationScheme< Type >::mesh().

Here is the call graph for this function:

localMin() [2/3]

template<class Type>

localMin ( const fvMesh & mesh, Istream & is )

inline

Construct from Istream.

The name of the flux field is read from the Istream and looked-up from the mesh objectRegistry

Definition at line 91 of file localMin.H.

References surfaceInterpolationScheme< Type >::mesh().

Here is the call graph for this function:

localMin() [3/3]

template<class Type>

localMin ( const fvMesh & mesh, const surfaceScalarField & faceFlux, Istream & is )

inline

Construct from faceFlux and Istream.

Definition at line 103 of file localMin.H.

References surfaceInterpolationScheme< Type >::mesh().

Here is the call graph for this function:

Member Function Documentation

TypeName()

template<class Type>

TypeName

(

"localMin< Type >"

)

Runtime type information.

weights()

template<class Type>

virtual tmp< surfaceScalarField > weights ( const GeometricField< Type, fvPatchField, volMesh > & ) const

inlinevirtual

Return the interpolation weighting factors.

Implements surfaceInterpolationScheme< Type >.

Definition at line 119 of file localMin.H.

References NotImplemented.

interpolate()

template<class Type>

virtual tmp< GeometricField< Type, fvsPatchField, surfaceMesh > > interpolate ( const GeometricField< Type, fvPatchField, volMesh > & vf ) const

inlinevirtual

Return the face-interpolate of the given cell field.

Reimplemented from surfaceInterpolationScheme< Type >.

Definition at line 132 of file localMin.H.

References GeometricField< Type, PatchField, GeoMesh >::boundaryField(), GeometricField< Type, PatchField, GeoMesh >::boundaryFieldRef(), fvPatchFieldBase::coupled(), DimensionedField< Type, GeoMesh >::dimensions(), forAll, DimensionedField< Type, GeoMesh >::mesh(), surfaceInterpolationScheme< Type >::mesh(), Foam::min(), IOobject::name(), fvPatchField< Type >::patchInternalField(), fvPatchField< Type >::patchNeighbourField(), and tmp< T >::ref().

Referenced by ATCModel::computeLimiter().

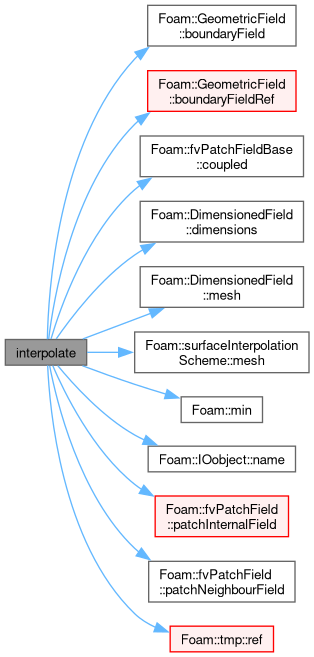

Here is the call graph for this function:

Here is the caller graph for this function:

---

The documentation for this class was generated from the following file:

• src/finiteVolume/interpolation/surfaceInterpolation/schemes/localMin/localMin.H
