lumpedPointController Class Reference

Simple connectivity of point labels to specify a controller for lumped point movement. More...

#include <lumpedPointController.H>

Public Member Functions

 lumpedPointController () noexcept
 Default construct.
 lumpedPointController (const labelUList &pointLabels)
 Copy construct from point ids.
 lumpedPointController (labelList &&pointLabels)
 Move construct from point ids.
 lumpedPointController (const dictionary &dict)
 Construct from dictionary.
 ~lumpedPointController ()=default
 Destructor.
bool empty () const
 No controller points specified?
label size () const
 Number of controller points specified.
const labelList & pointLabels () const
 The controller points.
void remapPointLabels (const label nPoints, const Map< label > &originalIds)
 Check point mapping (the count) or remap the point labels.

Static Public Member Functions

static autoPtr< lumpedPointController > New (const dictionary &dict)
 Factory method.

Detailed Description

Simple connectivity of point labels to specify a controller for lumped point movement.


Dictionary parameters

Property Description Required Default
pointLabels List of point labels yes
Note
If the calling program itself specified a point-label mapping (eg, original ids from FEA), these can be used initially and remapped.
Source files

Definition at line 71 of file lumpedPointController.H.

Constructor & Destructor Documentation

◆ lumpedPointController() [1/4]

lumpedPointController ( )
noexcept

Default construct.

Definition at line 28 of file lumpedPointController.C.

References Foam::noexcept.

◆ lumpedPointController() [2/4]

lumpedPointController ( const labelUList & pointLabels)
explicit

Copy construct from point ids.

Definition at line 34 of file lumpedPointController.C.

References pointLabels().

Here is the call graph for this function:

◆ lumpedPointController() [3/4]

lumpedPointController ( labelList && pointLabels)
explicit

Move construct from point ids.

Definition at line 43 of file lumpedPointController.C.

References pointLabels().

Here is the call graph for this function:

◆ lumpedPointController() [4/4]

lumpedPointController ( const dictionary & dict)
explicit

Construct from dictionary.

Definition at line 52 of file lumpedPointController.C.

References dict.

◆ ~lumpedPointController()

~lumpedPointController ( )
default

Destructor.

Member Function Documentation

◆ New()

autoPtr< lumpedPointController > New ( const dictionary & dict)
inlinestatic

Factory method.

Definition at line 109 of file lumpedPointController.H.

References dict, and autoPtr< T >::New().

Here is the call graph for this function:

◆ empty()

bool empty ( ) const
inline

No controller points specified?

Definition at line 126 of file lumpedPointController.H.

◆ size()

label size ( ) const
inline

Number of controller points specified.

Definition at line 134 of file lumpedPointController.H.

◆ pointLabels()

const labelList & pointLabels ( ) const
inline

The controller points.

Definition at line 142 of file lumpedPointController.H.

Referenced by lumpedPointController(), and lumpedPointController().

Here is the caller graph for this function:

◆ remapPointLabels()

void remapPointLabels ( const label nPoints,
const Map< label > & originalIds )

Check point mapping (the count) or remap the point labels.

Definition at line 63 of file lumpedPointController.C.

References Foam::exit(), Foam::FatalError, FatalErrorInFunction, Foam::flatOutput(), Foam::max(), Foam::min(), Foam::nl, nPoints, and HashTable< T, Key, Hash >::size().

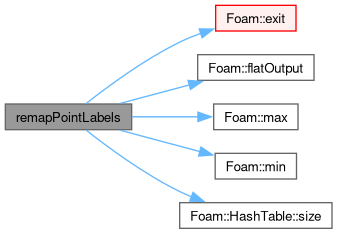

Here is the call graph for this function:
The documentation for this class was generated from the following files:
