manualGAMGProcAgglomeration Class Reference

Manual processor agglomeration of GAMGAgglomerations. More...

#include <manualGAMGProcAgglomeration.H>

Inheritance diagram for manualGAMGProcAgglomeration:
Inheritance graph
[legend]
Collaboration diagram for manualGAMGProcAgglomeration:
Collaboration graph
[legend]

Public Member Functions

 TypeName ("manual")
 Runtime type information.
 manualGAMGProcAgglomeration (const manualGAMGProcAgglomeration &)=delete
 No copy construct.
void operator= (const manualGAMGProcAgglomeration &)=delete
 No copy assignment.
 manualGAMGProcAgglomeration (GAMGAgglomeration &agglom, const dictionary &controlDict)
 Construct given agglomerator and controls.
virtual ~manualGAMGProcAgglomeration ()
 Destructor.
virtual bool agglomerate ()
 Modify agglomeration. Return true if modified.
Public Member Functions inherited from GAMGProcAgglomeration
 TypeName ("GAMGProcAgglomeration")
 Runtime type information.
 declareRunTimeSelectionTable (autoPtr, GAMGProcAgglomeration, GAMGAgglomeration,(GAMGAgglomeration &agglom, const dictionary &controlDict),(agglom, controlDict))
 Runtime selection table for pure geometric agglomerators.
 GAMGProcAgglomeration (const GAMGProcAgglomeration &)=delete
 No copy construct.
void operator= (const GAMGProcAgglomeration &)=delete
 No copy assignment.
 GAMGProcAgglomeration (GAMGAgglomeration &agglom, const dictionary &controlDict)
 Construct given agglomerator and controls.
virtual ~GAMGProcAgglomeration ()
 Destructor. Clears allocated communicators.

Additional Inherited Members

Static Public Member Functions inherited from GAMGProcAgglomeration
static autoPtr< GAMGProcAgglomeration > New (const word &type, GAMGAgglomeration &agglom, const dictionary &controlDict)
 Return the selected agglomerator.
Protected Member Functions inherited from GAMGProcAgglomeration
void printStats (Ostream &os, GAMGAgglomeration &agglom) const
 Debug: write agglomeration info.
bool agglomerate (const label fineLevelIndex, const labelList &procAgglomMap, const labelList &masterProcs, const List< label > &agglomProcIDs, const label procAgglomComm)
 Agglomerate a level. Return true if anything has changed.
void clearCommunicators ()
 Clear/free allocated communicators.
Static Protected Member Functions inherited from GAMGProcAgglomeration
static labelListList globalCellCells (const lduMesh &)
 Debug: calculate global cell-cells.
Protected Attributes inherited from GAMGProcAgglomeration
GAMGAgglomeration & agglom_
 Reference to agglomeration.
DynamicList< label > comms_
 Allocated communicators.

Detailed Description

Manual processor agglomeration of GAMGAgglomerations.

In the GAMG control dictionary:

processorAgglomerator manual; List of level+procagglomeration where procagglomeration is a set of labelLists. Each labelList is a cluster of processor which gets combined onto the first element in the list. processorAgglomeration ( ( 3 //at level 3 ( (0 1) //coarse 0 from 0,1 (and moved onto 0) (3 2) //coarse 1 from 2,3 (and moved onto 3) ) ) ( 6 //at level6 ( (0 1) //coarse 0 from 0,1 (and moved onto 0) ) ) );

Source files

Definition at line 72 of file manualGAMGProcAgglomeration.H.

Constructor & Destructor Documentation

◆ manualGAMGProcAgglomeration() [1/2]

manualGAMGProcAgglomeration ( const manualGAMGProcAgglomeration & )
delete

No copy construct.

References manualGAMGProcAgglomeration().

Referenced by manualGAMGProcAgglomeration(), and operator=().

Here is the call graph for this function:
Here is the caller graph for this function:

◆ manualGAMGProcAgglomeration() [2/2]

manualGAMGProcAgglomeration ( GAMGAgglomeration & agglom,
const dictionary & controlDict )

Construct given agglomerator and controls.

Definition at line 43 of file manualGAMGProcAgglomeration.C.

References controlDict(), and GAMGProcAgglomeration::GAMGProcAgglomeration().

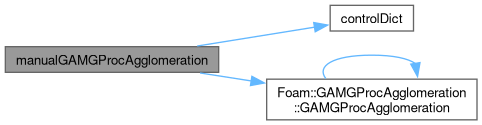

Here is the call graph for this function:

◆ ~manualGAMGProcAgglomeration()

~manualGAMGProcAgglomeration ( )
virtual

Destructor.

Definition at line 56 of file manualGAMGProcAgglomeration.C.

Member Function Documentation

◆ TypeName()

TypeName ( "manual" )

Runtime type information.

◆ operator=()

void operator= ( const manualGAMGProcAgglomeration & )
delete

No copy assignment.

References controlDict(), and manualGAMGProcAgglomeration().

Here is the call graph for this function:

◆ agglomerate()

bool agglomerate ( )
virtual

Modify agglomeration. Return true if modified.

Implements GAMGProcAgglomeration.

Definition at line 62 of file manualGAMGProcAgglomeration.C.

References GAMGProcAgglomeration::agglom_, GAMGProcAgglomeration::agglomerate(), lduMesh::comm(), GAMGProcAgglomeration::comms_, Foam::endl(), Foam::exit(), Foam::FatalError, FatalErrorInFunction, UList< T >::find(), forAll, UList< T >::found(), UPstream::myProcNo(), UPstream::newCommunicator(), Foam::nl, UPstream::nProcs(), Foam::Pout, GAMGProcAgglomeration::printStats(), UList< T >::size(), and WarningInFunction.

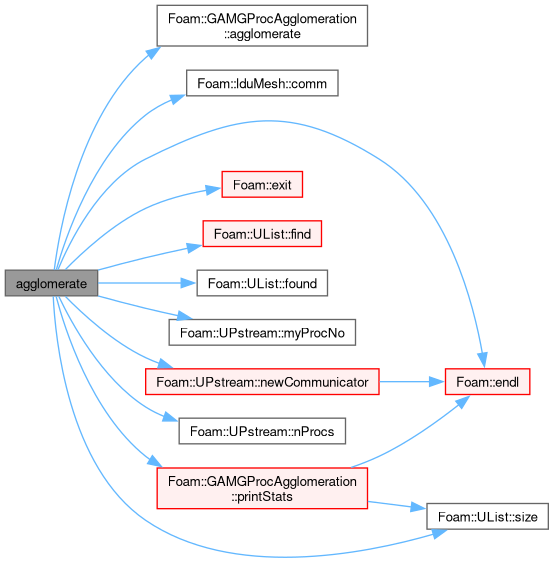

Here is the call graph for this function:
The documentation for this class was generated from the following files:
