motionDiffusivity Class Reference

Abstract base class for cell-centre mesh motion diffusivity. More...

#include <motionDiffusivity.H>

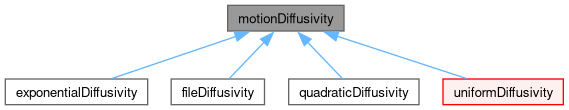

Inheritance diagram for motionDiffusivity:

Public Member Functions
	TypeName ("motionDiffusivity")
	Runtime type information.
	declareRunTimeSelectionTable (autoPtr, motionDiffusivity, Istream,(const fvMesh &mesh, Istream &mdData),(mesh, mdData))
	motionDiffusivity (const fvMesh &mesh)
	Construct for the given fvMesh.
virtual	~motionDiffusivity ()
	Destructor.
const fvMesh &	mesh () const
	Return reference to the mesh.
virtual tmp< surfaceScalarField >	operator() () const =0
	Return diffusivity field.
virtual void	correct ()=0
	Correct the motion diffusivity.

Static Public Member Functions
static autoPtr< motionDiffusivity >	New (const fvMesh &mesh, Istream &mdData)
	Select null constructed.

Detailed Description

Abstract base class for cell-centre mesh motion diffusivity.

Source files

• motionDiffusivity.H
• motionDiffusivity.C

Definition at line 47 of file motionDiffusivity.H.

Constructor & Destructor Documentation

motionDiffusivity()

motionDiffusivity

(

const fvMesh &

mesh

)

Construct for the given fvMesh.

Definition at line 35 of file motionDiffusivity.C.

References mesh().

Referenced by declareRunTimeSelectionTable(), exponentialDiffusivity::exponentialDiffusivity(), fileDiffusivity::fileDiffusivity(), quadraticDiffusivity::quadraticDiffusivity(), and uniformDiffusivity::uniformDiffusivity().

Here is the call graph for this function:

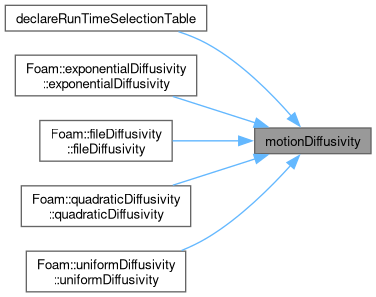

Here is the caller graph for this function:

~motionDiffusivity()

~motionDiffusivity ( )

virtual

Destructor.

Definition at line 72 of file motionDiffusivity.C.

Member Function Documentation

TypeName()

TypeName

(

"motionDiffusivity"

)

Runtime type information.

declareRunTimeSelectionTable()

declareRunTimeSelectionTable	(	autoPtr	,
		motionDiffusivity	,
		Istream	,
		(const fvMesh &mesh, Istream &mdData)	,
		(mesh, mdData)	)

References mesh(), and motionDiffusivity().

Here is the call graph for this function:

New()

Foam::autoPtr< Foam::motionDiffusivity > New ( const fvMesh & mesh, Istream & mdData )

static

Select null constructed.

Definition at line 43 of file motionDiffusivity.C.

References Foam::endl(), Foam::exit(), Foam::FatalIOError, FatalIOErrorInLookup, Foam::Info, and mesh().

Referenced by displacementLaplacianFvMotionSolver::diffusivity(), solidBodyDisplacementLaplacianFvMotionSolver::diffusivity(), exponentialDiffusivity::exponentialDiffusivity(), quadraticDiffusivity::quadraticDiffusivity(), displacementComponentLaplacianFvMotionSolver::updateMesh(), displacementSBRStressFvMotionSolver::updateMesh(), elasticityMotionSolver::updateMesh(), laplacianMotionSolver::updateMesh(), velocityComponentLaplacianFvMotionSolver::updateMesh(), and velocityLaplacianFvMotionSolver::updateMesh().

Here is the call graph for this function:

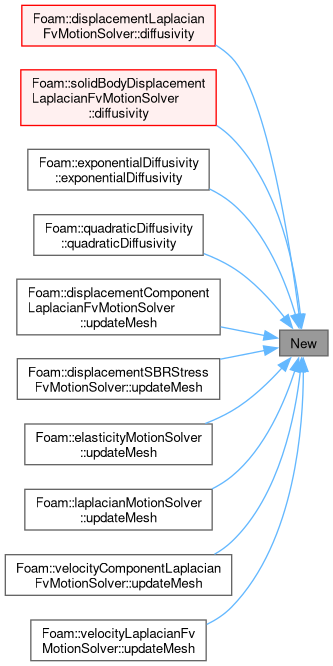

Here is the caller graph for this function:

mesh()

const fvMesh & mesh ( ) const

inline

Return reference to the mesh.

Definition at line 110 of file motionDiffusivity.H.

Referenced by declareRunTimeSelectionTable(), directionalDiffusivity::directionalDiffusivity(), exponentialDiffusivity::exponentialDiffusivity(), fileDiffusivity::fileDiffusivity(), inverseDistanceDiffusivity::inverseDistanceDiffusivity(), inverseFaceDistanceDiffusivity::inverseFaceDistanceDiffusivity(), inversePointDistanceDiffusivity::inversePointDistanceDiffusivity(), inverseVolumeDiffusivity::inverseVolumeDiffusivity(), motionDiffusivity(), motionDirectionalDiffusivity::motionDirectionalDiffusivity(), New(), quadraticDiffusivity::quadraticDiffusivity(), directionalDiffusivity::TypeName(), exponentialDiffusivity::TypeName(), fileDiffusivity::TypeName(), inverseDistanceDiffusivity::TypeName(), inverseFaceDistanceDiffusivity::TypeName(), inversePointDistanceDiffusivity::TypeName(), inverseVolumeDiffusivity::TypeName(), motionDirectionalDiffusivity::TypeName(), quadraticDiffusivity::TypeName(), uniformDiffusivity::TypeName(), and uniformDiffusivity::uniformDiffusivity().

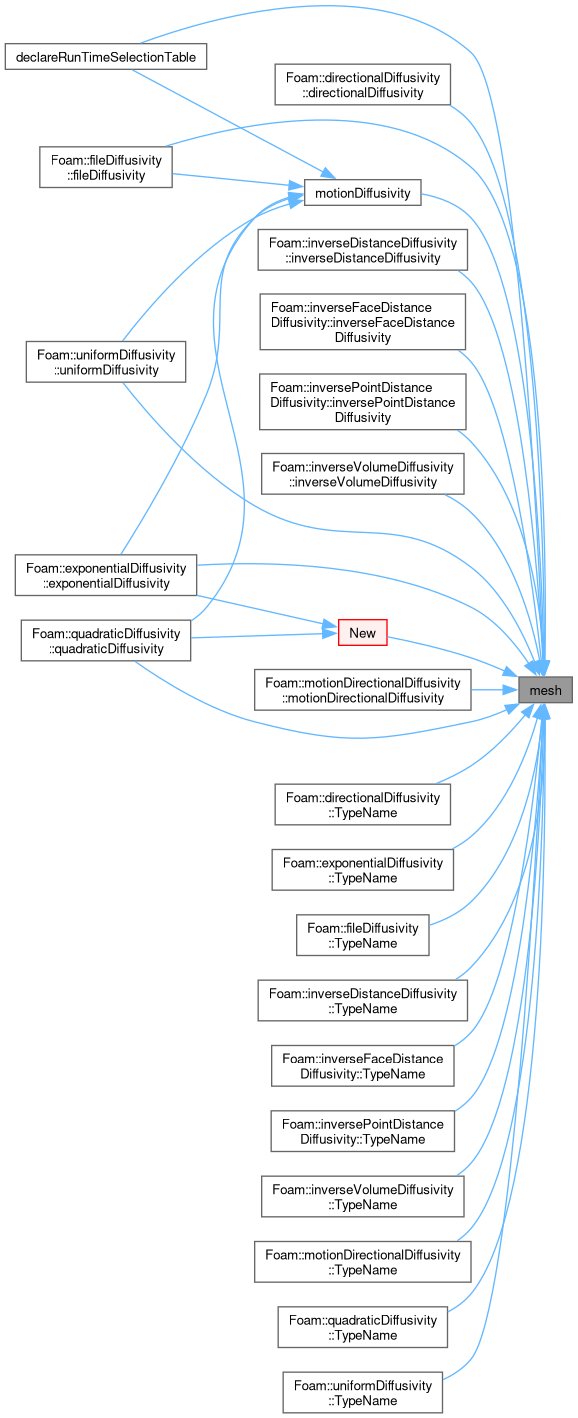

Here is the caller graph for this function:

operator()()

virtual tmp< surfaceScalarField > operator() ( ) const

pure virtual

Return diffusivity field.

Implemented in exponentialDiffusivity, fileDiffusivity, quadraticDiffusivity, and uniformDiffusivity.

correct()

virtual void correct ( )

pure virtual

Correct the motion diffusivity.

Implemented in directionalDiffusivity, exponentialDiffusivity, fileDiffusivity, inverseDistanceDiffusivity, inverseFaceDistanceDiffusivity, inversePointDistanceDiffusivity, inverseVolumeDiffusivity, motionDirectionalDiffusivity, quadraticDiffusivity, and uniformDiffusivity.

---

The documentation for this class was generated from the following files:

• src/fvMotionSolver/motionDiffusivity/motionDiffusivity/motionDiffusivity.H
• src/fvMotionSolver/motionDiffusivity/motionDiffusivity/motionDiffusivity.C
