motionSmootherData Class Reference

#include <motionSmootherData.H>

Inheritance diagram for motionSmootherData:
Inheritance graph
[legend]

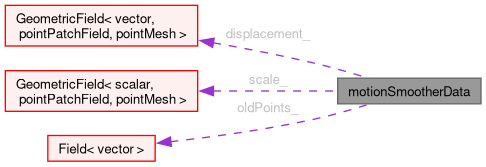

Collaboration diagram for motionSmootherData:
Collaboration graph
[legend]

Public Member Functions

 motionSmootherData (const pointMesh &pMesh)
 Construct read.
 motionSmootherData (const pointVectorField &displacement)
 Construct from pointDisplacement.
pointVectorField & displacement ()
 Reference to displacement field.
const pointVectorField & displacement () const
 Reference to displacement field.
const pointScalarField & scale () const
 Reference to scale field.
const pointField & oldPoints () const
 Starting mesh position.

Protected Attributes

pointVectorField displacement_
 Displacement field.
pointScalarField scale_
 Scale factor for displacement.
pointField oldPoints_
 Starting mesh position.

Detailed Description

Source files

Definition at line 45 of file motionSmootherData.H.

Constructor & Destructor Documentation

◆ motionSmootherData() [1/2]

motionSmootherData ( const pointMesh & pMesh)
explicit

Construct read.

Definition at line 25 of file motionSmootherData.C.

References Foam::dimless, displacement_, oldPoints_, points, scale_, and timeName.

Referenced by motionSmoother::motionSmoother(), and motionSmoother::motionSmoother().

Here is the caller graph for this function:

◆ motionSmootherData() [2/2]

motionSmootherData ( const pointVectorField & displacement)
explicit

Construct from pointDisplacement.

Definition at line 59 of file motionSmootherData.C.

References Foam::dimless, displacement(), displacement_, mesh, oldPoints_, points, scale_, and timeName.

Here is the call graph for this function:

Member Function Documentation

◆ displacement() [1/2]

Foam::pointVectorField & displacement ( )

Reference to displacement field.

Definition at line 95 of file motionSmootherData.C.

References displacement_.

Referenced by motionSmoother::ClassName(), snappySnapDriver::doSnap(), motionSmoother::motionSmoother(), motionSmootherData(), snappySnapDriver::scaleMesh(), and snappySnapDriver::smoothDisplacement().

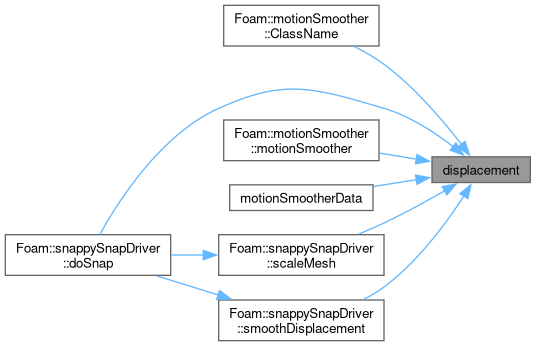

Here is the caller graph for this function:

◆ displacement() [2/2]

const Foam::pointVectorField & displacement ( ) const

Reference to displacement field.

Definition at line 101 of file motionSmootherData.C.

References displacement_.

◆ scale()

const Foam::pointScalarField & scale ( ) const

Reference to scale field.

Definition at line 107 of file motionSmootherData.C.

References scale_.

◆ oldPoints()

const Foam::pointField & oldPoints ( ) const

Starting mesh position.

Definition at line 113 of file motionSmootherData.C.

References oldPoints_.

Member Data Documentation

◆ displacement_

pointVectorField displacement_
protected

Displacement field.

Definition at line 54 of file motionSmootherData.H.

Referenced by displacement(), displacement(), motionSmootherData(), and motionSmootherData().

◆ scale_

pointScalarField scale_
protected

Scale factor for displacement.

Definition at line 59 of file motionSmootherData.H.

Referenced by motionSmootherData(), motionSmootherData(), and scale().

◆ oldPoints_

pointField oldPoints_
protected

Starting mesh position.

Definition at line 64 of file motionSmootherData.H.

Referenced by motionSmootherData(), motionSmootherData(), and oldPoints().

The documentation for this class was generated from the following files:
