multivariateScheme< Type, Scheme > Class Template Reference

Generic multi-variate discretisation scheme class which may be instantiated for any of the NVD, CNVD or NVDV schemes. More...

#include <multivariateScheme.H>

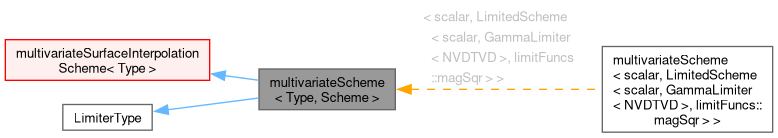

Inheritance diagram for multivariateScheme< Type, Scheme >:

Collaboration diagram for multivariateScheme< Type, Scheme >:

Classes
class	fieldScheme
	surfaceInterpolationScheme sub-class returned by operator(field) More...

Public Member Functions
	TypeName ("multivariateScheme")
	Runtime type information.
	multivariateScheme (const fvMesh &mesh, const typename multivariateSurfaceInterpolationScheme< Type >::fieldTable &fields, const surfaceScalarField &faceFlux, Istream &schemeData)
	Construct for field, faceFlux and Istream.
tmp< surfaceInterpolationScheme< Type > >	operator() (const GeometricField< Type, fvPatchField, volMesh > &field) const
Public Member Functions inherited from multivariateSurfaceInterpolationScheme< Type >
virtual const word &	type () const =0
	Runtime type information.
	declareRunTimeSelectionTable (tmp, multivariateSurfaceInterpolationScheme, Istream,(const fvMesh &mesh, const fieldTable &fields, const surfaceScalarField &faceFlux, Istream &is),(mesh, fields, faceFlux, is))
	multivariateSurfaceInterpolationScheme (const fvMesh &mesh, const fieldTable &fields, const surfaceScalarField &faceFlux, Istream &schemeData)
	Construct for interpolating given field.
virtual	~multivariateSurfaceInterpolationScheme ()=default
	Destructor.
const fvMesh &	mesh () const
	Return mesh reference.
const fieldTable &	fields () const
	Return fields to be interpolated.
Public Member Functions inherited from refCount
constexpr	refCount () noexcept
	Default construct, initializing count to 0.
int	use_count () const noexcept
	Return the current reference count.
bool	unique () const noexcept
	Return true if the reference count is zero.
void	operator++ () noexcept
	Increment the reference count.
void	operator++ (int) noexcept
	Increment the reference count.
void	operator-- () noexcept
	Decrement the reference count.
void	operator-- (int) noexcept
	Decrement the reference count.

Additional Inherited Members
Static Public Member Functions inherited from multivariateSurfaceInterpolationScheme< Type >
static tmp< multivariateSurfaceInterpolationScheme< Type > >	New (const fvMesh &mesh, const fieldTable &fields, const surfaceScalarField &faceFlux, Istream &schemeData)
	Return a pointer to a new gradScheme created on freestore.

Detailed Description

template<class Type, class Scheme>
class Foam::multivariateScheme< Type, Scheme >

Generic multi-variate discretisation scheme class which may be instantiated for any of the NVD, CNVD or NVDV schemes.

Source files

• multivariateScheme.H
• multivariateScheme.C

Definition at line 49 of file multivariateScheme.H.

Constructor & Destructor Documentation

multivariateScheme()

template<class Type, class Scheme>

multivariateScheme	(	const fvMesh &	mesh,
		const typename multivariateSurfaceInterpolationScheme< Type >::fieldTable &	fields,
		const surfaceScalarField &	faceFlux,
		Istream &	schemeData )

Construct for field, faceFlux and Istream.

Definition at line 29 of file multivariateScheme.C.

References HashTable< T, Key, Hash >::cbegin(), Foam::dimless, multivariateSurfaceInterpolationScheme< Type >::fields(), Foam::limiter(), multivariateSurfaceInterpolationScheme< Type >::mesh(), Foam::min(), timeName, and upwind< Type >::weights().

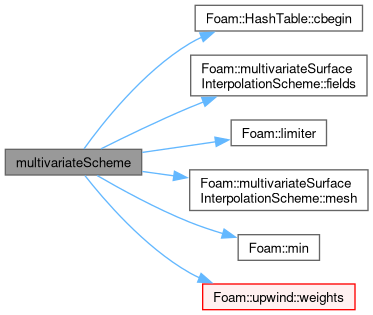

Here is the call graph for this function:

Member Function Documentation

TypeName()

template<class Type, class Scheme>

TypeName

(

"multivariateScheme< Type, Scheme >"

)

Runtime type information.

operator()()

template<class Type, class Scheme>

tmp< surfaceInterpolationScheme< Type > > operator() ( const GeometricField< Type, fvPatchField, volMesh > & field ) const

inlinevirtual

Implements multivariateSurfaceInterpolationScheme< Type >.

Definition at line 142 of file multivariateScheme.H.

---

The documentation for this class was generated from the following files:

• src/finiteVolume/interpolation/surfaceInterpolation/multivariateSchemes/multivariateScheme/multivariateScheme.H
• src/finiteVolume/interpolation/surfaceInterpolation/multivariateSchemes/multivariateScheme/multivariateScheme.C
