outletStabilised< Type > Class Template Reference

Outlet-stabilised interpolation scheme which applies upwind differencing to the faces of the cells adjacent to outlets. More...

#include <outletStabilised.H>

Inheritance diagram for outletStabilised< Type >:

Collaboration diagram for outletStabilised< Type >:

Public Member Functions
	TypeName ("outletStabilised")
	Runtime type information.
	outletStabilised (const fvMesh &mesh, Istream &is)
	Construct from mesh and Istream.
	outletStabilised (const fvMesh &mesh, const surfaceScalarField &faceFlux, Istream &is)
	Construct from mesh, faceFlux and Istream.
tmp< surfaceScalarField >	weights (const GeometricField< Type, fvPatchField, volMesh > &vf) const
	Return the interpolation weighting factors.
virtual bool	corrected () const
	Return true if this scheme uses an explicit correction.
virtual tmp< GeometricField< Type, fvsPatchField, surfaceMesh > >	correction (const GeometricField< Type, fvPatchField, volMesh > &vf) const
	Return the explicit correction to the face-interpolate.
Public Member Functions inherited from surfaceInterpolationScheme< Type >
	TypeName ("surfaceInterpolationScheme")
	Runtime type information.
	declareRunTimeSelectionTable (tmp, surfaceInterpolationScheme, Mesh,(const fvMesh &mesh, Istream &schemeData),(mesh, schemeData))
	declareRunTimeSelectionTable (tmp, surfaceInterpolationScheme, MeshFlux,(const fvMesh &mesh, const surfaceScalarField &faceFlux, Istream &schemeData),(mesh, faceFlux, schemeData))
	surfaceInterpolationScheme (const fvMesh &mesh)
	Construct from mesh.
virtual	~surfaceInterpolationScheme ()=default
	Destructor.
const fvMesh &	mesh () const
	Return mesh reference.
virtual tmp< GeometricField< typename innerProduct< vector, Type >::type, fvsPatchField, surfaceMesh > >	dotInterpolate (const surfaceVectorField &Sf, const GeometricField< Type, fvPatchField, volMesh > &vf) const
	Return the face-interpolate of the given cell field.
tmp< GeometricField< typename innerProduct< vector, Type >::type, fvsPatchField, surfaceMesh > >	dotInterpolate (const surfaceVectorField &Sf, const tmp< GeometricField< Type, fvPatchField, volMesh > > &) const
	Return the face-interpolate of the given tmp cell field.
virtual tmp< GeometricField< Type, fvsPatchField, surfaceMesh > >	interpolate (const GeometricField< Type, fvPatchField, volMesh > &) const
	Return the face-interpolate of the given cell field.
tmp< GeometricField< Type, fvsPatchField, surfaceMesh > >	interpolate (const tmp< GeometricField< Type, fvPatchField, volMesh > > &) const
	Return the face-interpolate of the given tmp cell field.
template<class SFType>
Foam::tmp< Foam::GeometricField< typename Foam::innerProduct< typename SFType::value_type, Type >::type, Foam::fvsPatchField, Foam::surfaceMesh > >	dotInterpolate (const SFType &Sf, const GeometricField< Type, fvPatchField, volMesh > &vf, const tmp< surfaceScalarField > &tlambdas)
tmp< GeometricField< typename innerProduct< vector, scalar >::type, fvsPatchField, surfaceMesh > >	dotInterpolate (const surfaceVectorField &Sf, const GeometricField< scalar, fvPatchField, volMesh > &) const
Foam::tmp< Foam::GeometricField< typename Foam::innerProduct< Foam::vector, Foam::scalar >::type, Foam::fvsPatchField, Foam::surfaceMesh > >	dotInterpolate (const surfaceVectorField &Sf, const GeometricField< scalar, fvPatchField, volMesh > &) const
Public Member Functions inherited from refCount
constexpr	refCount () noexcept
	Default construct, initializing count to 0.
int	use_count () const noexcept
	Return the current reference count.
bool	unique () const noexcept
	Return true if the reference count is zero.
void	operator++ () noexcept
	Increment the reference count.
void	operator++ (int) noexcept
	Increment the reference count.
void	operator-- () noexcept
	Decrement the reference count.
void	operator-- (int) noexcept
	Decrement the reference count.

Additional Inherited Members
Static Public Member Functions inherited from surfaceInterpolationScheme< Type >
static tmp< surfaceInterpolationScheme< Type > >	New (const fvMesh &mesh, Istream &schemeData)
	Return new tmp interpolation scheme.
static tmp< surfaceInterpolationScheme< Type > >	New (const fvMesh &mesh, const surfaceScalarField &faceFlux, Istream &schemeData)
	Return new tmp interpolation scheme.
static tmp< GeometricField< Type, fvsPatchField, surfaceMesh > >	interpolate (const GeometricField< Type, fvPatchField, volMesh > &, const tmp< surfaceScalarField > &, const tmp< surfaceScalarField > &)
	Return the face-interpolate of the given cell field.
template<class SFType>
static tmp< GeometricField< typename innerProduct< typename SFType::value_type, Type >::type, fvsPatchField, surfaceMesh > >	dotInterpolate (const SFType &Sf, const GeometricField< Type, fvPatchField, volMesh > &vf, const tmp< surfaceScalarField > &tlambdas)
	Return the face-interpolate of the given cell field.
static tmp< GeometricField< Type, fvsPatchField, surfaceMesh > >	interpolate (const GeometricField< Type, fvPatchField, volMesh > &, const tmp< surfaceScalarField > &)
	Return the face-interpolate of the given cell field.

Detailed Description

template<class Type>
class Foam::outletStabilised< Type >

Outlet-stabilised interpolation scheme which applies upwind differencing to the faces of the cells adjacent to outlets.

This is particularly useful to stabilise the velocity at entrainment boundaries for LES cases using linear or other centred differencing schemes.

Source files

• outletStabilised.H
• outletStabilised.C

Definition at line 61 of file outletStabilised.H.

Constructor & Destructor Documentation

outletStabilised() [1/2]

template<class Type>

outletStabilised ( const fvMesh & mesh, Istream & is )

inline

Construct from mesh and Istream.

Definition at line 97 of file outletStabilised.H.

References surfaceInterpolationScheme< Type >::mesh(), and surfaceInterpolationScheme< Type >::New().

Here is the call graph for this function:

outletStabilised() [2/2]

template<class Type>

outletStabilised ( const fvMesh & mesh, const surfaceScalarField & faceFlux, Istream & is )

inline

Construct from mesh, faceFlux and Istream.

Definition at line 121 of file outletStabilised.H.

References surfaceInterpolationScheme< Type >::mesh(), and surfaceInterpolationScheme< Type >::New().

Here is the call graph for this function:

Member Function Documentation

TypeName()

template<class Type>

TypeName

(

"outletStabilised< Type >"

)

Runtime type information.

weights()

template<class Type>

tmp< surfaceScalarField > weights ( const GeometricField< Type, fvPatchField, volMesh > & vf ) const

inlinevirtual

Return the interpolation weighting factors.

Implements surfaceInterpolationScheme< Type >.

Definition at line 142 of file outletStabilised.H.

References GeometricField< Type, PatchField, GeoMesh >::boundaryField(), cells, forAll, Foam::isA(), surfaceInterpolationScheme< Type >::mesh(), Foam::pos0(), and tmp< T >::ref().

Here is the call graph for this function:

corrected()

template<class Type>

virtual bool corrected ( ) const

inlinevirtual

Return true if this scheme uses an explicit correction.

Reimplemented from surfaceInterpolationScheme< Type >.

Definition at line 188 of file outletStabilised.H.

Referenced by correction().

Here is the caller graph for this function:

correction()

template<class Type>

virtual tmp< GeometricField< Type, fvsPatchField, surfaceMesh > > correction ( const GeometricField< Type, fvPatchField, volMesh > & vf ) const

inlinevirtual

Return the explicit correction to the face-interpolate.

set to zero on the near-boundary faces where upwind is applied

Reimplemented from surfaceInterpolationScheme< Type >.

Definition at line 199 of file outletStabilised.H.

References GeometricField< Type, PatchField, GeoMesh >::boundaryField(), cells, corrected(), forAll, Foam::isA(), surfaceInterpolationScheme< Type >::mesh(), tmp< T >::ref(), and Foam::Zero.

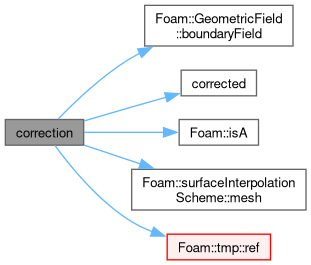

Here is the call graph for this function:

---

The documentation for this class was generated from the following file:

• src/finiteVolume/interpolation/surfaceInterpolation/schemes/outletStabilised/outletStabilised.H
