A series of straight line segments, which can also be interpreted as a series of control points for splines, etc. More...

#include <polyLine.H>

Inheritance diagram for polyLine:

Inheritance graph

[legend]

Collaboration diagram for polyLine:

Collaboration graph

[legend]

Public Member Functions
	polyLine (const pointField &points, const bool notImplementedClosed=false)
	Construct from components.
	polyLine (const point &start, const pointField &intermediate, const point &end, const bool notImplementedClosed=false)
	Construct from begin, intermediate, end points.
const pointField &	points () const noexcept
	Return const-access to the control-points.
label	nSegments () const noexcept
	The number of line segments.
point	position (const scalar) const
	The point position corresponding to the curve parameter.
point	position (const label segment, const scalar) const
	The point position corresponding to the local parameter.
scalar	length () const noexcept
	The length of the curve.

Static Public Member Functions
static tmp< pointField >	concat (const point &start, const pointField &intermediate, const point &end)
	Concatenate begin, intermediate and end points.

Protected Member Functions
void	calcParam ()
	Precalculate the rational cumulative parameter value and the line-length.
label	localParameter (scalar &lambda) const
	Return the line segment and the local parameter [0..1] corresponding to the global lambda [0..1].

Protected Attributes
pointField	points_
	The control points or ends of each segments.
scalar	lineLength_
	The real (total) line length.
scalarList	param_
	The rational (0-1) cumulative parameter value for each point.

Detailed Description

A series of straight line segments, which can also be interpreted as a series of control points for splines, etc.

A future implementation could also handle a closed polyLine.

Source files

Definition at line 51 of file polyLine.H.

Constructor & Destructor Documentation

◆ polyLine() [1/2]

polyLine	(	const pointField &	points,
		const bool	notImplementedClosed = false )

explicit

Construct from components.

Parameters

points The poly-line points

Definition at line 77 of file polyLine.C.

References calcParam(), lineLength_, p, param_, and points_.

Referenced by BSpline::BSpline(), BSplineEdge::BSplineEdge(), BSplineEdge::BSplineEdge(), CatmullRomSpline::CatmullRomSpline(), polyLine(), polyLineEdge::polyLineEdge(), polyLineEdge::polyLineEdge(), splineEdge::splineEdge(), and splineEdge::splineEdge().

Here is the call graph for this function:

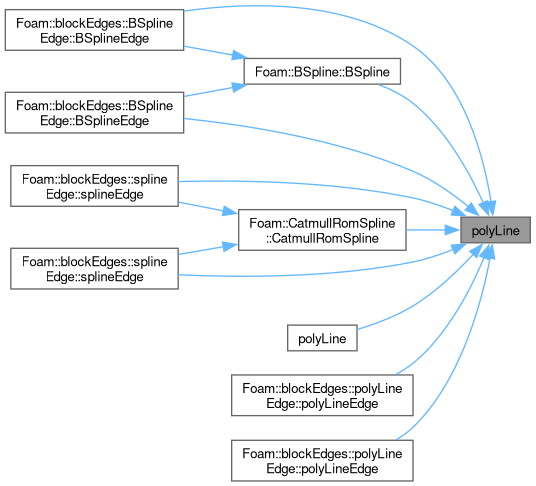

Here is the caller graph for this function:

◆ polyLine() [2/2]

polyLine	(	const point &	start,
		const pointField &	intermediate,
		const point &	end,
		const bool	notImplementedClosed = false )

Construct from begin, intermediate, end points.

Parameters

start	The start point
intermediate	The intermediate points
end	The end point

Definition at line 87 of file polyLine.C.

References calcParam(), concat(), lineLength_, param_, points_, and polyLine().

Here is the call graph for this function:

Member Function Documentation

◆ calcParam()

void calcParam ( )

protected

Precalculate the rational cumulative parameter value and the line-length.

Definition at line 50 of file polyLine.C.

References lineLength_, Foam::mag(), param_, and points_.

Referenced by polyLine(), and polyLine().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ localParameter()

Foam::label localParameter ( scalar & lambda ) const

protected

Return the line segment and the local parameter [0..1] corresponding to the global lambda [0..1].

Definition at line 117 of file polyLine.C.

References lambda(), nSegments(), and param_.

Referenced by BSpline::position(), CatmullRomSpline::position(), and position().

Here is the call graph for this function:

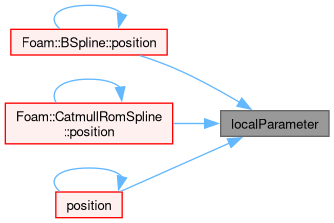

Here is the caller graph for this function:

◆ concat()

Foam::tmp< Foam::pointField > concat	(	const point &	start,
		const pointField &	intermediate,
		const point &	end )

static

Concatenate begin, intermediate and end points.

Parameters

start	The start point
intermediate	The intermediate points
end	The end point

Definition at line 27 of file polyLine.C.

References UList< T >::first(), tmp< T >::New(), p0, and UList< T >::size().

Referenced by blockEdge::appendEndPoints(), BSplineEdge::BSplineEdge(), BSplineEdge::BSplineEdge(), polyLine(), splineEdge::splineEdge(), and splineEdge::splineEdge().

Here is the call graph for this function:

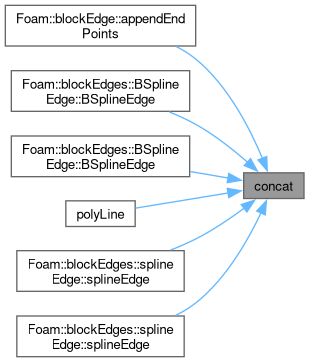

Here is the caller graph for this function:

◆ points()

const Foam::pointField & points ( ) const

noexcept

Return const-access to the control-points.

Definition at line 105 of file polyLine.C.

References Foam::noexcept, and points_.

Referenced by BSplineEdge::BSplineEdge(), BSplineEdge::BSplineEdge(), BSplineEdge::BSplineEdge(), polyLineEdge::polyLineEdge(), polyLineEdge::polyLineEdge(), polyLineEdge::polyLineEdge(), splineEdge::splineEdge(), splineEdge::splineEdge(), splineEdge::splineEdge(), BSplineEdge::TypeName(), polyLineEdge::TypeName(), and splineEdge::TypeName().

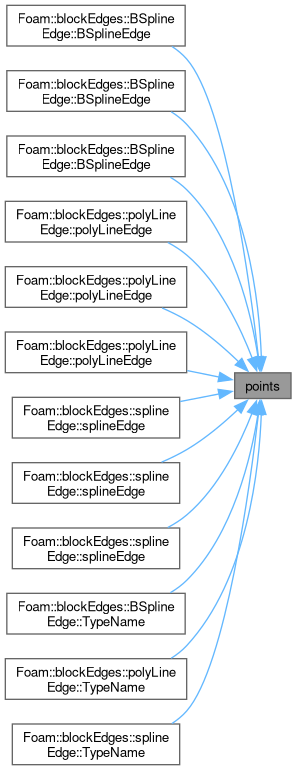

Here is the caller graph for this function:

◆ nSegments()

Foam::label nSegments ( ) const

noexcept

The number of line segments.

Definition at line 111 of file polyLine.C.

References Foam::noexcept, and points_.

Referenced by CatmullRomSpline::length(), localParameter(), BSpline::position(), CatmullRomSpline::position(), and position().

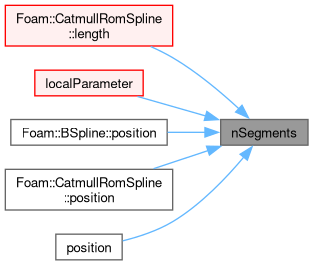

Here is the caller graph for this function:

◆ position() [1/2]

Foam::point position ( const scalar mu ) const

The point position corresponding to the curve parameter.

0 <= lambda <= 1

Definition at line 151 of file polyLine.C.

References lambda(), localParameter(), mu, points_, and position().

Referenced by polyLineEdge::position(), and position().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ position() [2/2]

Foam::point position	(	const label	segment,
		const scalar	mu ) const

The point position corresponding to the local parameter.

0 <= lambda <= 1 on the given segment

Definition at line 169 of file polyLine.C.

References mu, nSegments(), p0, and points_.

Here is the call graph for this function:

◆ length()

Foam::scalar length ( ) const

noexcept

The length of the curve.

Definition at line 203 of file polyLine.C.

References lineLength_, and Foam::noexcept.

Member Data Documentation

◆ points_

pointField points_

protected

The control points or ends of each segments.

Definition at line 60 of file polyLine.H.

Referenced by calcParam(), nSegments(), points(), polyLine(), polyLine(), position(), and position().

◆ lineLength_

scalar lineLength_

protected

The real (total) line length.

Definition at line 65 of file polyLine.H.

Referenced by calcParam(), polyLineEdge::length(), length(), polyLine(), and polyLine().

◆ param_

scalarList param_

protected

The rational (0-1) cumulative parameter value for each point.

Definition at line 70 of file polyLine.H.

Referenced by calcParam(), localParameter(), polyLine(), and polyLine().

The documentation for this class was generated from the following files:

src/mesh/blockMesh/blockEdges/polyLineEdge/polyLine.H
src/mesh/blockMesh/blockEdges/polyLineEdge/polyLine.C
