Updateable mesh geometry + checking routines. More...

#include <primitiveMeshGeometry.H>

Public Member Functions
	ClassName ("primitiveMeshGeometry")
	primitiveMeshGeometry (const primitiveMesh &)
	Construct from mesh.
const primitiveMesh &	mesh () const
const vectorField &	faceAreas () const
const vectorField &	faceCentres () const
const vectorField &	cellCentres () const
const scalarField &	cellVolumes () const
void	correct ()
	Take over properties from mesh.
void	correct (const pointField &p, const labelList &changedFaces)
	Recalculate on selected faces. Recalculates cell properties.
labelList	affectedCells (const labelList &changedFaces) const
	Helper function: get affected cells from faces.
bool	checkFaceDotProduct (const bool report, const scalar orthWarn, const labelList &checkFaces, labelHashSet *setPtr) const
bool	checkFacePyramids (const bool report, const scalar minPyrVol, const pointField &p, const labelList &checkFaces, labelHashSet *setPtr) const
bool	checkFaceSkewness (const bool report, const scalar internalSkew, const scalar boundarySkew, const labelList &checkFaces, labelHashSet *setPtr) const
bool	checkFaceWeights (const bool report, const scalar warnWeight, const labelList &checkFaces, labelHashSet *setPtr) const
bool	checkFaceAngles (const bool report, const scalar maxDeg, const pointField &p, const labelList &checkFaces, labelHashSet *setPtr) const
bool	checkFaceTwist (const bool report, const scalar minTwist, const pointField &p, const labelList &checkFaces, labelHashSet *setPtr) const
bool	checkFaceArea (const bool report, const scalar minArea, const labelList &checkFaces, labelHashSet *setPtr) const
bool	checkCellDeterminant (const bool report, const scalar warnDet, const labelList &checkFaces, const labelList &affectedCells, labelHashSet *setPtr) const

Static Public Member Functions
static bool	checkFaceDotProduct (const bool report, const scalar orthWarn, const primitiveMesh &, const vectorField &cellCentres, const vectorField &faceAreas, const labelList &checkFaces, labelHashSet *setPtr)
static bool	checkFacePyramids (const bool report, const scalar minPyrVol, const primitiveMesh &, const vectorField &cellCentres, const pointField &p, const labelList &checkFaces, labelHashSet *)
static bool	checkFaceSkewness (const bool report, const scalar internalSkew, const scalar boundarySkew, const primitiveMesh &mesh, const vectorField &cellCentres, const vectorField &faceCentres, const vectorField &faceAreas, const labelList &checkFaces, labelHashSet *setPtr)
static bool	checkFaceWeights (const bool report, const scalar warnWeight, const primitiveMesh &mesh, const vectorField &cellCentres, const vectorField &faceCentres, const vectorField &faceAreas, const labelList &checkFaces, labelHashSet *setPtr)
static bool	checkFaceAngles (const bool report, const scalar maxDeg, const primitiveMesh &mesh, const vectorField &faceAreas, const pointField &p, const labelList &checkFaces, labelHashSet *setPtr)
static bool	checkFaceTwist (const bool report, const scalar minTwist, const primitiveMesh &, const vectorField &faceAreas, const vectorField &faceCentres, const pointField &p, const labelList &checkFaces, labelHashSet *setPtr)
static bool	checkFaceArea (const bool report, const scalar minArea, const primitiveMesh &, const vectorField &faceAreas, const labelList &checkFaces, labelHashSet *setPtr)
static bool	checkCellDeterminant (const bool report, const scalar minDet, const primitiveMesh &, const vectorField &faceAreas, const labelList &checkFaces, const labelList &affectedCells, labelHashSet *setPtr)

Detailed Description

Updateable mesh geometry + checking routines.

Source files

Definition at line 47 of file primitiveMeshGeometry.H.

Constructor & Destructor Documentation

◆ primitiveMeshGeometry()

primitiveMeshGeometry ( const primitiveMesh & mesh )

Construct from mesh.

Definition at line 206 of file primitiveMeshGeometry.C.

References correct(), and mesh().

Here is the call graph for this function:

Member Function Documentation

◆ ClassName()

ClassName ( "primitiveMeshGeometry" )

◆ mesh()

const primitiveMesh & mesh ( ) const

inline

Definition at line 113 of file primitiveMeshGeometry.H.

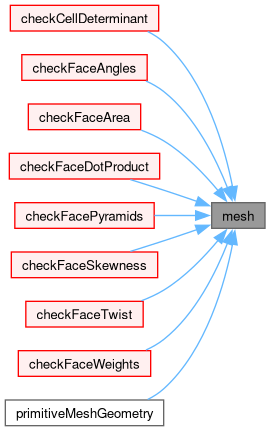

Referenced by checkCellDeterminant(), checkFaceAngles(), checkFaceArea(), checkFaceDotProduct(), checkFacePyramids(), checkFaceSkewness(), checkFaceTwist(), checkFaceWeights(), and primitiveMeshGeometry().

Here is the caller graph for this function:

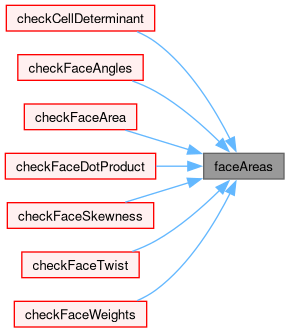

◆ faceAreas()

const vectorField & faceAreas ( ) const

inline

Definition at line 118 of file primitiveMeshGeometry.H.

Referenced by checkCellDeterminant(), checkFaceAngles(), checkFaceArea(), checkFaceDotProduct(), checkFaceSkewness(), checkFaceTwist(), and checkFaceWeights().

Here is the caller graph for this function:

◆ faceCentres()

const vectorField & faceCentres ( ) const

inline

Definition at line 122 of file primitiveMeshGeometry.H.

Referenced by checkFaceSkewness(), checkFaceTwist(), and checkFaceWeights().

Here is the caller graph for this function:

◆ cellCentres()

const vectorField & cellCentres ( ) const

inline

Definition at line 126 of file primitiveMeshGeometry.H.

Referenced by checkFaceDotProduct(), checkFacePyramids(), checkFaceSkewness(), and checkFaceWeights().

Here is the caller graph for this function:

◆ cellVolumes()

const scalarField & cellVolumes ( ) const

inline

Definition at line 130 of file primitiveMeshGeometry.H.

◆ correct() [1/2]

void correct ( )

Take over properties from mesh.

Definition at line 219 of file primitiveMeshGeometry.C.

Referenced by primitiveMeshGeometry().

Here is the caller graph for this function:

◆ correct() [2/2]

void correct	(	const pointField &	p,
		const labelList &	changedFaces )

Recalculate on selected faces. Recalculates cell properties.

on owner and neighbour of these cells.

Definition at line 228 of file primitiveMeshGeometry.C.

References affectedCells(), and p.

Here is the call graph for this function:

◆ affectedCells()

Foam::labelList affectedCells ( const labelList & changedFaces ) const

Helper function: get affected cells from faces.

Definition at line 181 of file primitiveMeshGeometry.C.

References affectedCells(), and UList< T >::size().

Referenced by affectedCells(), checkCellDeterminant(), checkCellDeterminant(), and correct().

Here is the call graph for this function:

Here is the caller graph for this function:

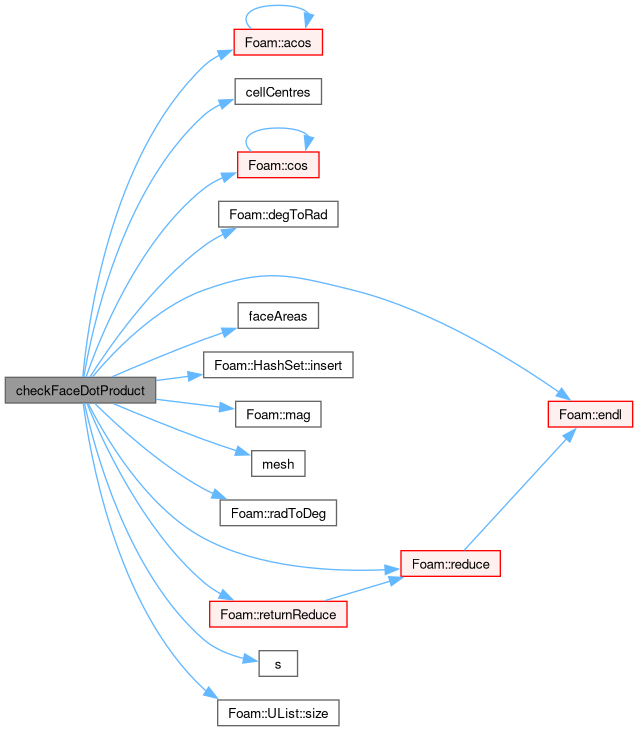

◆ checkFaceDotProduct() [1/2]

bool checkFaceDotProduct	(	const bool	report,
		const scalar	orthWarn,
		const primitiveMesh &	mesh,
		const vectorField &	cellCentres,
		const vectorField &	faceAreas,
		const labelList &	checkFaces,
		labelHashSet *	setPtr )

static

Definition at line 241 of file primitiveMeshGeometry.C.

References Foam::acos(), cellCentres(), Foam::cos(), Foam::degToRad(), Foam::endl(), faceAreas(), forAll, Foam::Info, HashSet< Key, Hash >::insert(), Foam::mag(), mesh(), Foam::Pout, Foam::radToDeg(), Foam::reduce(), Foam::returnReduce(), s(), SeriousErrorInFunction, UList< T >::size(), and WarningInFunction.

Referenced by checkFaceDotProduct().

Here is the call graph for this function:

Here is the caller graph for this function:

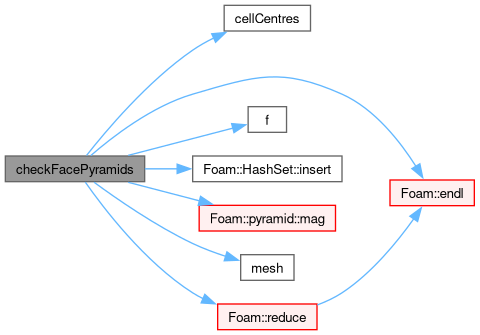

◆ checkFacePyramids() [1/2]

bool checkFacePyramids	(	const bool	report,
		const scalar	minPyrVol,
		const primitiveMesh &	mesh,
		const vectorField &	cellCentres,
		const pointField &	p,
		const labelList &	checkFaces,
		labelHashSet *	setPtr )

static

Definition at line 381 of file primitiveMeshGeometry.C.

References cellCentres(), Foam::endl(), f(), Foam::Info, HashSet< Key, Hash >::insert(), pyramid< Point, PointRef, PolygonRef >::mag(), mesh(), p, Foam::Pout, Foam::reduce(), and SeriousErrorInFunction.

Referenced by checkFacePyramids().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ checkFaceSkewness() [1/2]

bool checkFaceSkewness	(	const bool	report,
		const scalar	internalSkew,
		const scalar	boundarySkew,
		const primitiveMesh &	mesh,
		const vectorField &	cellCentres,
		const vectorField &	faceCentres,
		const vectorField &	faceAreas,
		const labelList &	checkFaces,
		labelHashSet *	setPtr )

static

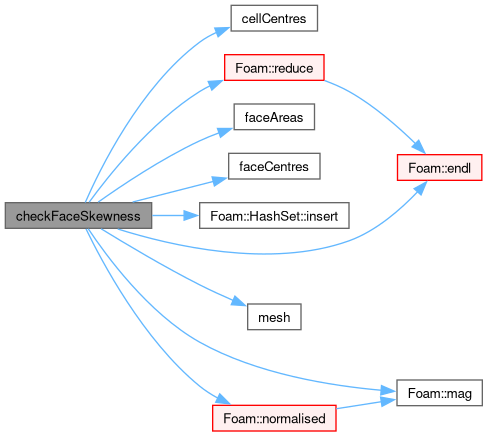

Definition at line 489 of file primitiveMeshGeometry.C.

References cellCentres(), Foam::endl(), faceAreas(), faceCentres(), Foam::Info, HashSet< Key, Hash >::insert(), Foam::mag(), mesh(), Foam::nl, Foam::normalised(), Foam::Pout, Foam::reduce(), and WarningInFunction.

Referenced by checkFaceSkewness().

Here is the call graph for this function:

Here is the caller graph for this function:

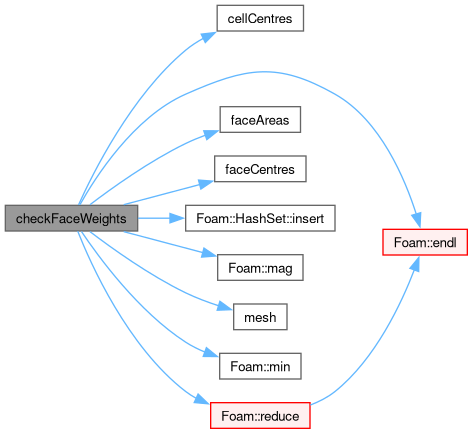

◆ checkFaceWeights() [1/2]

bool checkFaceWeights	(	const bool	report,
		const scalar	warnWeight,
		const primitiveMesh &	mesh,
		const vectorField &	cellCentres,
		const vectorField &	faceCentres,
		const vectorField &	faceAreas,
		const labelList &	checkFaces,
		labelHashSet *	setPtr )

static

Definition at line 624 of file primitiveMeshGeometry.C.

References cellCentres(), Foam::endl(), faceAreas(), faceCentres(), Foam::Info, HashSet< Key, Hash >::insert(), Foam::mag(), mesh(), Foam::min(), Foam::nl, Foam::Pout, Foam::reduce(), and WarningInFunction.

Referenced by checkFaceWeights().

Here is the call graph for this function:

Here is the caller graph for this function:

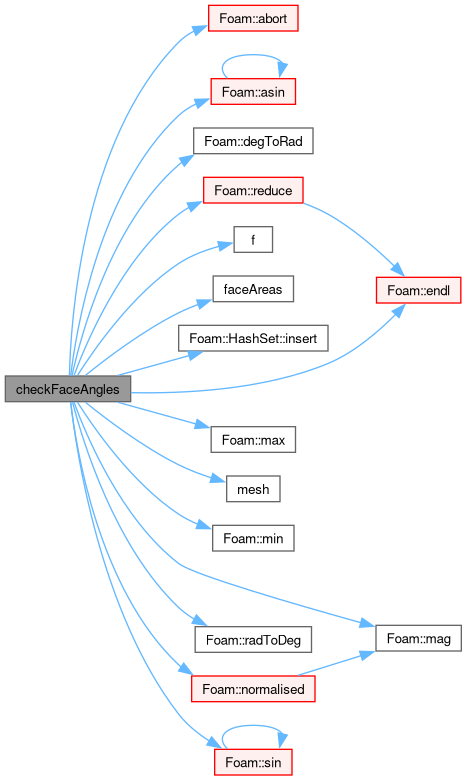

◆ checkFaceAngles() [1/2]

bool checkFaceAngles	(	const bool	report,
		const scalar	maxDeg,
		const primitiveMesh &	mesh,
		const vectorField &	faceAreas,
		const pointField &	p,
		const labelList &	checkFaces,
		labelHashSet *	setPtr )

static

Definition at line 706 of file primitiveMeshGeometry.C.

References Foam::abort(), Foam::asin(), Foam::degToRad(), Foam::endl(), f(), faceAreas(), Foam::FatalError, FatalErrorInFunction, forAll, Foam::Info, HashSet< Key, Hash >::insert(), Foam::mag(), Foam::max(), mesh(), Foam::min(), Foam::normalised(), p, Foam::radToDeg(), Foam::reduce(), Foam::sin(), and WarningInFunction.

Referenced by checkFaceAngles().

Here is the call graph for this function:

Here is the caller graph for this function:

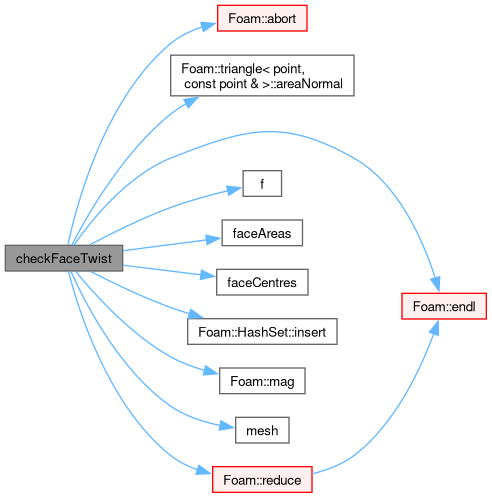

◆ checkFaceTwist() [1/2]

bool checkFaceTwist	(	const bool	report,
		const scalar	minTwist,
		const primitiveMesh &	mesh,
		const vectorField &	faceAreas,
		const vectorField &	faceCentres,
		const pointField &	p,
		const labelList &	checkFaces,
		labelHashSet *	setPtr )

static

Definition at line 959 of file primitiveMeshGeometry.C.

References Foam::abort(), triangle< point, const point & >::areaNormal(), Foam::endl(), f(), faceAreas(), faceCentres(), Foam::FatalError, FatalErrorInFunction, forAll, Foam::Info, HashSet< Key, Hash >::insert(), Foam::mag(), mesh(), Foam::nl, p, Foam::reduce(), and WarningInFunction.

Referenced by checkFaceTwist().

Here is the call graph for this function:

Here is the caller graph for this function:

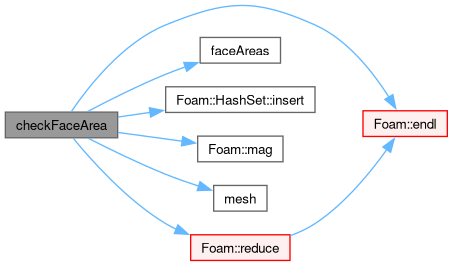

◆ checkFaceArea() [1/2]

bool checkFaceArea	(	const bool	report,
		const scalar	minArea,
		const primitiveMesh &	mesh,
		const vectorField &	faceAreas,
		const labelList &	checkFaces,
		labelHashSet *	setPtr )

static

Definition at line 1063 of file primitiveMeshGeometry.C.

References Foam::endl(), faceAreas(), Foam::Info, HashSet< Key, Hash >::insert(), Foam::mag(), mesh(), Foam::nl, Foam::reduce(), and WarningInFunction.

Referenced by checkFaceArea().

Here is the call graph for this function:

Here is the caller graph for this function:

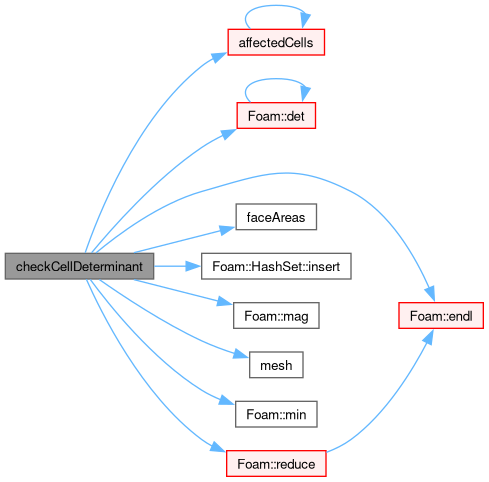

◆ checkCellDeterminant() [1/2]

bool checkCellDeterminant	(	const bool	report,
		const scalar	minDet,
		const primitiveMesh &	mesh,
		const vectorField &	faceAreas,
		const labelList &	checkFaces,
		const labelList &	affectedCells,
		labelHashSet *	setPtr )

static

Definition at line 1120 of file primitiveMeshGeometry.C.

References affectedCells(), cells, Foam::det(), Foam::endl(), faceAreas(), forAll, Foam::Info, HashSet< Key, Hash >::insert(), Foam::mag(), mesh(), Foam::min(), Foam::nl, Foam::reduce(), WarningInFunction, and Foam::Zero.

Referenced by checkCellDeterminant().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ checkFaceDotProduct() [2/2]

bool checkFaceDotProduct	(	const bool	report,
		const scalar	orthWarn,
		const labelList &	checkFaces,
		labelHashSet *	setPtr ) const

Definition at line 1219 of file primitiveMeshGeometry.C.

References checkFaceDotProduct().

Here is the call graph for this function:

◆ checkFacePyramids() [2/2]

bool checkFacePyramids	(	const bool	report,
		const scalar	minPyrVol,
		const pointField &	p,
		const labelList &	checkFaces,
		labelHashSet *	setPtr ) const

Definition at line 1240 of file primitiveMeshGeometry.C.

References checkFacePyramids(), and p.

Here is the call graph for this function:

◆ checkFaceSkewness() [2/2]

bool checkFaceSkewness	(	const bool	report,
		const scalar	internalSkew,
		const scalar	boundarySkew,
		const labelList &	checkFaces,
		labelHashSet *	setPtr ) const

Definition at line 1262 of file primitiveMeshGeometry.C.

References checkFaceSkewness().

Here is the call graph for this function:

◆ checkFaceWeights() [2/2]

bool checkFaceWeights	(	const bool	report,
		const scalar	warnWeight,
		const labelList &	checkFaces,
		labelHashSet *	setPtr ) const

Definition at line 1286 of file primitiveMeshGeometry.C.

References checkFaceWeights().

Here is the call graph for this function:

◆ checkFaceAngles() [2/2]

bool checkFaceAngles	(	const bool	report,
		const scalar	maxDeg,
		const pointField &	p,
		const labelList &	checkFaces,
		labelHashSet *	setPtr ) const

Definition at line 1308 of file primitiveMeshGeometry.C.

References checkFaceAngles(), and p.

Here is the call graph for this function:

◆ checkFaceTwist() [2/2]

bool checkFaceTwist	(	const bool	report,
		const scalar	minTwist,
		const pointField &	p,
		const labelList &	checkFaces,
		labelHashSet *	setPtr ) const

Definition at line 1353 of file primitiveMeshGeometry.C.

References checkFaceTwist(), and p.

Here is the call graph for this function:

◆ checkFaceArea() [2/2]

bool checkFaceArea	(	const bool	report,
		const scalar	minArea,
		const labelList &	checkFaces,
		labelHashSet *	setPtr ) const

Definition at line 1376 of file primitiveMeshGeometry.C.

References checkFaceArea().

Here is the call graph for this function:

◆ checkCellDeterminant() [2/2]

bool checkCellDeterminant	(	const bool	report,
		const scalar	warnDet,
		const labelList &	checkFaces,
		const labelList &	affectedCells,
		labelHashSet *	setPtr ) const

Definition at line 1396 of file primitiveMeshGeometry.C.

References affectedCells(), and checkCellDeterminant().

Here is the call graph for this function:

The documentation for this class was generated from the following files:

src/meshTools/primitiveMeshGeometry/primitiveMeshGeometry.H
src/meshTools/primitiveMeshGeometry/primitiveMeshGeometry.C

Public Member Functions

Static Public Member Functions

Detailed Description

Constructor & Destructor Documentation

◆ primitiveMeshGeometry()

Member Function Documentation

◆ ClassName()

◆ mesh()

◆ faceAreas()

◆ faceCentres()

◆ cellCentres()

◆ cellVolumes()

◆ correct() [1/2]

◆ correct() [2/2]

◆ affectedCells()

◆ checkFaceDotProduct() [1/2]

◆ checkFacePyramids() [1/2]

◆ checkFaceSkewness() [1/2]

◆ checkFaceWeights() [1/2]

◆ checkFaceAngles() [1/2]

◆ checkFaceTwist() [1/2]

◆ checkFaceArea() [1/2]

◆ checkCellDeterminant() [1/2]

◆ checkFaceDotProduct() [2/2]

◆ checkFacePyramids() [2/2]

◆ checkFaceSkewness() [2/2]

◆ checkFaceWeights() [2/2]

◆ checkFaceAngles() [2/2]

◆ checkFaceTwist() [2/2]

◆ checkFaceArea() [2/2]

◆ checkCellDeterminant() [2/2]
