profileModel Class Reference

Base class for profile models for handling aerofoil lift and drag polar diagrams. More...

#include <profileModel.H>

Inheritance diagram for profileModel:

Collaboration diagram for profileModel:

Public Member Functions
	TypeName ("profileModel")
	Runtime type information.
	declareRunTimeSelectionTable (autoPtr, profileModel, dictionary,(const dictionary &dict, const word &modelName),(dict, modelName))
	profileModel (const dictionary &dict, const word &modelName)
	Constructor.
virtual	~profileModel ()=default
	Destructor.
const word &	name () const
	Return const access to the source name.
virtual void	Cdl (const scalar alpha, scalar &Cd, scalar &Cl) const =0
	Return the Cd and Cl for a given angle-of-attack.

Static Public Member Functions
static autoPtr< profileModel >	New (const dictionary &dict)
	Return a reference to the selected fvOption model.

Protected Member Functions
bool	readFromFile () const
	Return true if file name is set.

Protected Attributes
const dictionary	dict_
	Coefficients dictionary.
const word	name_
	Name of profile model.
fileName	fName_
	File name (optional).

Detailed Description

Base class for profile models for handling aerofoil lift and drag polar diagrams.

Usage

Minimal example by using constant/fvOptions: rotorDiskSource1 { Mandatory/Optional (inherited) entries ...

Mandatory entries (runtime modifiable) profiles { Mandatory entries (runtime modifiable) <profile1> { type <profileModel>;

Mandatory/Optional (inherited) entries ... } ... <profileN> { ... }

Optional entries (runtime modifiable) file <fileName>; } }

where the entries mean:

Property	Description	Type	Reqd	Dflt
type	Profile model - see below	word	yes	-
file	Name of file containing profile characteristics	word	no	-

Options for the type entry:

      lookup    | Polar data is linearly interpolated based on angle of attack
      series    | Polar data is computed as sum of cosine series

See also

• Foam::fv::rotorDiskSource
• Foam::lookupProfile
• Foam::seriesProfile

Source files

• profileModel.H
• profileModel.C
• profileModelList.C

Definition at line 116 of file profileModel.H.

Constructor & Destructor Documentation

profileModel()

profileModel	(	const dictionary &	dict,
		const word &	modelName )

Constructor.

Definition at line 44 of file profileModel.C.

References dict, dict_, fName_, name(), and name_.

Referenced by declareRunTimeSelectionTable(), lookupProfile::lookupProfile(), and seriesProfile::seriesProfile().

Here is the call graph for this function:

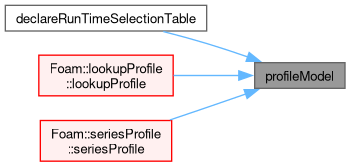

Here is the caller graph for this function:

~profileModel()

virtual ~profileModel ( )

virtualdefault

Destructor.

Member Function Documentation

readFromFile()

bool readFromFile ( ) const

protected

Return true if file name is set.

Definition at line 36 of file profileModel.C.

References fName_.

Referenced by lookupProfile::lookupProfile(), and seriesProfile::seriesProfile().

Here is the caller graph for this function:

TypeName()

TypeName

(

"profileModel"

)

Runtime type information.

declareRunTimeSelectionTable()

declareRunTimeSelectionTable	(	autoPtr	,
		profileModel	,
		dictionary	,
		(const dictionary &dict, const word &modelName)	,
		(dict, modelName)	)

References dict, and profileModel().

Here is the call graph for this function:

New()

Foam::autoPtr< Foam::profileModel > New ( const dictionary & dict )

static

Return a reference to the selected fvOption model.

Definition at line 60 of file profileModel.C.

References dict, Foam::endl(), Foam::exit(), Foam::FatalIOError, FatalIOErrorInLookup, and Foam::Info.

Referenced by profileModelList::profileModelList().

Here is the call graph for this function:

Here is the caller graph for this function:

name()

const Foam::word & name

(

)

const

Return const access to the source name.

Definition at line 54 of file profileModel.C.

References name_.

Referenced by profileModelList::connectBlades(), and profileModel().

Here is the caller graph for this function:

Cdl()

virtual void Cdl ( const scalar alpha, scalar & Cd, scalar & Cl ) const

pure virtual

Return the Cd and Cl for a given angle-of-attack.

Implemented in lookupProfile, and seriesProfile.

References alpha.

Member Data Documentation

dict_

const dictionary dict_

protected

Coefficients dictionary.

Definition at line 125 of file profileModel.H.

Referenced by profileModel().

name_

const word name_

protected

Name of profile model.

Definition at line 130 of file profileModel.H.

Referenced by name(), and profileModel().

fName_

fileName fName_

protected

File name (optional).

Definition at line 135 of file profileModel.H.

Referenced by lookupProfile::lookupProfile(), profileModel(), readFromFile(), and seriesProfile::seriesProfile().

---

The documentation for this class was generated from the following files:

• src/fvOptions/sources/derived/rotorDiskSource/profileModel/profileModel.H
• src/fvOptions/sources/derived/rotorDiskSource/profileModel/profileModel.C
