Radiation intensity for a ray in a given direction. More...

#include <radiativeIntensityRay.H>

Collaboration diagram for radiativeIntensityRay:

[legend]

Public Member Functions
	radiativeIntensityRay (const fvDOM &dom, const fvMesh &mesh, const scalar phi, const scalar theta, const scalar deltaPhi, const scalar deltaTheta, const label lambda, const absorptionEmissionModel &absEmmModel_, const blackBodyEmission &blackBody, const label rayId)
	Construct form components.
	~radiativeIntensityRay ()
	Destructor.
scalar	correct ()
	Update radiative intensity on i direction.
void	init (const scalar phi, const scalar theta, const scalar deltaPhi, const scalar deltaTheta, const scalar lambda)
	Initialise the ray in i direction.
void	addIntensity ()
	Add radiative intensities from all the bands.
const volScalarField &	I () const
	Return intensity.
const volScalarField &	qr () const
	Return const access to the boundary heat flux.
volScalarField &	qr ()
	Return non-const access to the boundary heat flux.
volScalarField &	qin ()
	Return non-const access to the boundary incident heat flux.
volScalarField &	qem ()
	Return non-const access to the boundary emitted heat flux.
const volScalarField &	qin () const
	Return const access to the boundary incident heat flux.
const volScalarField &	qem () const
	Return const access to the boundary emitted heat flux.
const vector &	d () const
	Return direction.
const vector &	dAve () const
	Return the average vector inside the solid angle.
vector &	d ()
	Return direction.
vector &	dAve ()
	Return the average vector inside the solid angle.
scalar	nLambda () const
	Return the number of bands.
scalar	phi () const
	Return the phi angle.
scalar	theta () const
	Return the theta angle.
scalar	omega () const
	Return the solid angle.
const volScalarField &	ILambda (const label lambdaI) const
	Return the radiative intensity for a given wavelength.

Static Public Attributes
static const word	intensityPrefix

Detailed Description

Radiation intensity for a ray in a given direction.

Source files

Definition at line 53 of file radiativeIntensityRay.H.

Constructor & Destructor Documentation

◆ radiativeIntensityRay()

radiativeIntensityRay	(	const fvDOM &	dom,
		const fvMesh &	mesh,
		const scalar	phi,
		const scalar	theta,
		const scalar	deltaPhi,
		const scalar	deltaTheta,
		const label	lambda,
		const absorptionEmissionModel &	absEmmModel_,
		const blackBodyEmission &	blackBody,
		const label	rayId )

Construct form components.

Definition at line 35 of file radiativeIntensityRay.C.

References IOobjectOption::AUTO_WRITE, Foam::cos(), Foam::dimMass, Foam::dimTime, forAll, intensityPrefix, mesh, IOobjectOption::MUST_READ, Foam::name(), name, VectorSpace< Form, Cmpt, Ncmpts >::nComponents, nLambda(), IOobjectOption::NO_READ, IOobjectOption::NO_WRITE, phi(), Foam::pow3(), IOobjectOption::readOpt(), autoPtr< T >::reset(), Foam::rotationTensor(), Foam::sin(), theta(), timeName, IOobject::typeHeaderOk(), Foam::Zero, and VectorSpace< Form, Cmpt, Ncmpts >::zero.

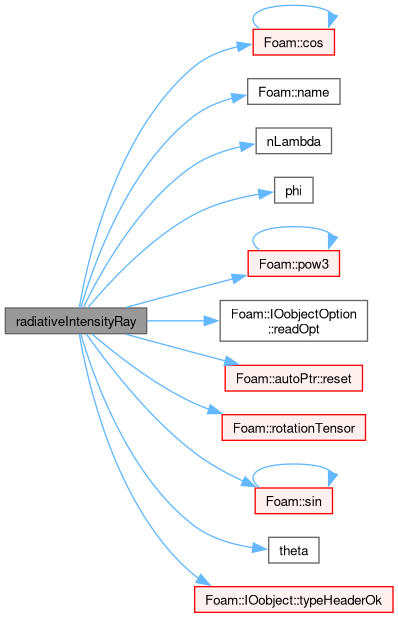

Here is the call graph for this function:

◆ ~radiativeIntensityRay()

~radiativeIntensityRay ( )

Destructor.

Definition at line 241 of file radiativeIntensityRay.C.

Member Function Documentation

◆ correct()

Foam::scalar correct ( )

Update radiative intensity on i direction.

Definition at line 247 of file radiativeIntensityRay.C.

References Foam::fvm::div(), forAll, SolverPerformance< Type >::initialResidual(), k, Foam::max(), Foam::constant::mathematical::pi(), fvMatrix< Type >::relax(), solve(), fvMatrix< Type >::solver(), and Foam::fvm::Sp().

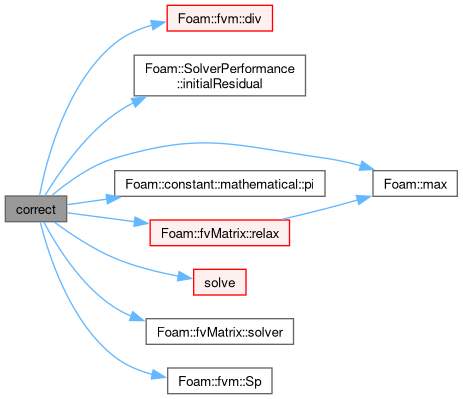

Here is the call graph for this function:

◆ init()

void init	(	const scalar	phi,
		const scalar	theta,
		const scalar	deltaPhi,
		const scalar	deltaTheta,
		const scalar	lambda )

Initialise the ray in i direction.

References lambda(), phi(), and theta().

Here is the call graph for this function:

◆ addIntensity()

void addIntensity ( )

Add radiative intensities from all the bands.

Definition at line 294 of file radiativeIntensityRay.C.

References forAll, and Foam::Zero.

◆ I()

const Foam::volScalarField & I ( ) const

inline

Return intensity.

Definition at line 22 of file radiativeIntensityRayI.H.

◆ qr() [1/2]

const Foam::volScalarField & qr ( ) const

inline

Return const access to the boundary heat flux.

Definition at line 29 of file radiativeIntensityRayI.H.

Referenced by greyDiffusiveRadiationMixedFvPatchScalarField::updateCoeffs(), and wideBandDiffusiveRadiationMixedFvPatchScalarField::updateCoeffs().

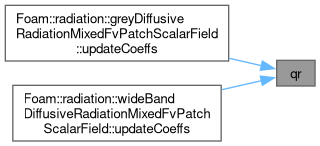

Here is the caller graph for this function:

◆ qr() [2/2]

Foam::volScalarField & qr ( )

inline

Return non-const access to the boundary heat flux.

Definition at line 35 of file radiativeIntensityRayI.H.

◆ qin() [1/2]

Foam::volScalarField & qin ( )

inline

Return non-const access to the boundary incident heat flux.

Definition at line 47 of file radiativeIntensityRayI.H.

Referenced by greyDiffusiveRadiationMixedFvPatchScalarField::updateCoeffs(), and wideBandDiffusiveRadiationMixedFvPatchScalarField::updateCoeffs().

Here is the caller graph for this function:

◆ qem() [1/2]

Foam::volScalarField & qem ( )

inline

Return non-const access to the boundary emitted heat flux.

Definition at line 60 of file radiativeIntensityRayI.H.

Referenced by greyDiffusiveRadiationMixedFvPatchScalarField::updateCoeffs(), and wideBandDiffusiveRadiationMixedFvPatchScalarField::updateCoeffs().

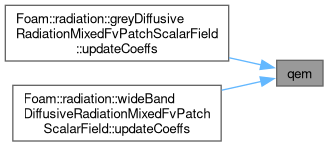

Here is the caller graph for this function:

◆ qin() [2/2]

const Foam::volScalarField & qin ( ) const

inline

Return const access to the boundary incident heat flux.

Definition at line 40 of file radiativeIntensityRayI.H.

◆ qem() [2/2]

const Foam::volScalarField & qem ( ) const

inline

Return const access to the boundary emitted heat flux.

Definition at line 53 of file radiativeIntensityRayI.H.

◆ d() [1/2]

const Foam::vector & d ( ) const

inline

Return direction.

Definition at line 66 of file radiativeIntensityRayI.H.

◆ dAve() [1/2]

const Foam::vector & dAve ( ) const

inline

Return the average vector inside the solid angle.

Definition at line 72 of file radiativeIntensityRayI.H.

Referenced by greyDiffusiveRadiationMixedFvPatchScalarField::updateCoeffs(), and wideBandDiffusiveRadiationMixedFvPatchScalarField::updateCoeffs().

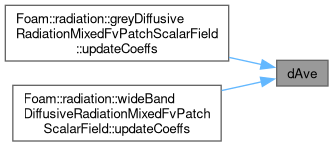

Here is the caller graph for this function:

◆ d() [2/2]

Foam::vector & d ( )

inline

Return direction.

Definition at line 78 of file radiativeIntensityRayI.H.

◆ dAve() [2/2]

Foam::vector & dAve ( )

inline

Return the average vector inside the solid angle.

Definition at line 84 of file radiativeIntensityRayI.H.

◆ nLambda()

Foam::scalar nLambda ( ) const

inline

Return the number of bands.

Definition at line 90 of file radiativeIntensityRayI.H.

Referenced by radiativeIntensityRay().

Here is the caller graph for this function:

◆ phi()

Foam::scalar phi ( ) const

inline

Return the phi angle.

Definition at line 96 of file radiativeIntensityRayI.H.

Referenced by init(), and radiativeIntensityRay().

Here is the caller graph for this function:

◆ theta()

Foam::scalar theta ( ) const

inline

Return the theta angle.

Definition at line 102 of file radiativeIntensityRayI.H.

Referenced by init(), and radiativeIntensityRay().

Here is the caller graph for this function:

◆ omega()

Foam::scalar omega ( ) const

inline

Return the solid angle.

Definition at line 108 of file radiativeIntensityRayI.H.

◆ ILambda()

const Foam::volScalarField & ILambda ( const label lambdaI ) const

inline

Return the radiative intensity for a given wavelength.

Definition at line 115 of file radiativeIntensityRayI.H.

Member Data Documentation

◆ intensityPrefix

const Foam::word intensityPrefix

static

Definition at line 57 of file radiativeIntensityRay.H.

Referenced by radiativeIntensityRay().

The documentation for this class was generated from the following files:

src/thermophysicalModels/radiation/radiationModels/fvDOM/radiativeIntensityRay/radiativeIntensityRay.H
src/thermophysicalModels/radiation/radiationModels/fvDOM/radiativeIntensityRay/radiativeIntensityRay.C
src/thermophysicalModels/radiation/radiationModels/fvDOM/radiativeIntensityRay/radiativeIntensityRayI.H
