wallAbsorptionEmissionModel Class Reference

Based class for wall absorption emission models. More...

#include <wallAbsorptionEmissionModel.H>

Inheritance diagram for wallAbsorptionEmissionModel:

Collaboration diagram for wallAbsorptionEmissionModel:

Public Member Functions
	TypeName ("wallAbsorptionEmissionModel")
	Runtime type information.
	declareRunTimeSelectionTable (autoPtr, wallAbsorptionEmissionModel, dictionary,(const dictionary &dict, const polyPatch &pp),(dict, pp))
	wallAbsorptionEmissionModel (const dictionary &dict, const polyPatch &pp)
	Construct from components.
virtual	~wallAbsorptionEmissionModel ()
	Destructor.
virtual tmp< scalarField >	e (const label bandI=0, const vectorField *incomingDirection=nullptr, const scalarField *T=nullptr) const =0
	Return emissivity on patch.
virtual scalar	e (const label faceI, const label bandI=0, const vector dir=Zero, const scalar T=0) const =0
	Return emissivity on face.
virtual tmp< scalarField >	a (const label bandI=0, const vectorField *incomingDirection=nullptr, const scalarField *T=nullptr) const =0
	Return absorptivity on patch.
virtual scalar	a (const label faceI, const label bandI=0, const vector dir=Zero, const scalar T=0) const =0
	Return absorptivity on face.
virtual bool	isGrey () const =0
	Is Grey.
virtual label	nBands () const =0
	Number of bands.

Static Public Member Functions
static autoPtr< wallAbsorptionEmissionModel >	New (const dictionary &dict, const polyPatch &pp)

Protected Attributes
const polyPatch &	pp_
	Reference to the polyPatch.

Detailed Description

Based class for wall absorption emission models.

Definition at line 46 of file wallAbsorptionEmissionModel.H.

Constructor & Destructor Documentation

wallAbsorptionEmissionModel()

wallAbsorptionEmissionModel	(	const dictionary &	dict,
		const polyPatch &	pp )

Construct from components.

Definition at line 38 of file wallAbsorptionEmissionModel.C.

References pp(), and pp_.

Referenced by constantAbsorption::constantAbsorption(), declareRunTimeSelectionTable(), multiBandAbsorption::multiBandAbsorption(), and solidAbsorption::solidAbsorption().

Here is the call graph for this function:

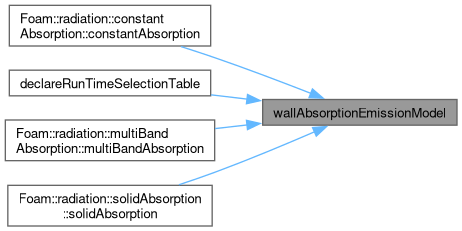

Here is the caller graph for this function:

~wallAbsorptionEmissionModel()

~wallAbsorptionEmissionModel ( )

virtual

Destructor.

Definition at line 50 of file wallAbsorptionEmissionModel.C.

Member Function Documentation

TypeName()

TypeName

(

"wallAbsorptionEmissionModel"

)

Runtime type information.

declareRunTimeSelectionTable()

declareRunTimeSelectionTable	(	autoPtr	,
		wallAbsorptionEmissionModel	,
		dictionary	,
		(const dictionary &dict, const polyPatch &pp)	,
		(dict, pp)	)

References dict, pp(), and wallAbsorptionEmissionModel().

Here is the call graph for this function:

New()

Foam::autoPtr< Foam::radiation::wallAbsorptionEmissionModel > New ( const dictionary & dict, const polyPatch & pp )

static

Definition at line 26 of file wallAbsorptionEmissionModelNew.C.

References dict, Foam::exit(), Foam::FatalIOError, FatalIOErrorInLookup, and pp().

Referenced by constantAbsorption::constantAbsorption(), opaqueDiffusive::opaqueDiffusive(), opaqueReflective::opaqueReflective(), and transparent::transparent().

Here is the call graph for this function:

Here is the caller graph for this function:

e() [1/2]

virtual tmp< scalarField > e ( const label bandI = 0, const vectorField * incomingDirection = nullptr, const scalarField * T = nullptr ) const

pure virtual

Return emissivity on patch.

Implemented in constantAbsorption, multiBandAbsorption, and solidAbsorption.

References Foam::T().

Here is the call graph for this function:

e() [2/2]

virtual scalar e ( const label faceI, const label bandI = 0, const vector dir = Zero, const scalar T = 0 ) const

pure virtual

Return emissivity on face.

Implemented in constantAbsorption, multiBandAbsorption, and solidAbsorption.

References Foam::T(), and Foam::Zero.

Here is the call graph for this function:

a() [1/2]

virtual tmp< scalarField > a ( const label bandI = 0, const vectorField * incomingDirection = nullptr, const scalarField * T = nullptr ) const

pure virtual

Return absorptivity on patch.

Implemented in constantAbsorption, multiBandAbsorption, and solidAbsorption.

References Foam::T().

Here is the call graph for this function:

a() [2/2]

virtual scalar a ( const label faceI, const label bandI = 0, const vector dir = Zero, const scalar T = 0 ) const

pure virtual

Return absorptivity on face.

Implemented in constantAbsorption, multiBandAbsorption, and solidAbsorption.

References Foam::T(), and Foam::Zero.

Here is the call graph for this function:

isGrey()

virtual bool isGrey ( ) const

pure virtual

Is Grey.

Implemented in constantAbsorption, multiBandAbsorption, and solidAbsorption.

nBands()

virtual label nBands ( ) const

pure virtual

Number of bands.

Implemented in constantAbsorption, multiBandAbsorption, and solidAbsorption.

Member Data Documentation

pp_

const polyPatch& pp_

protected

Reference to the polyPatch.

Definition at line 56 of file wallAbsorptionEmissionModel.H.

Referenced by constantAbsorption::a(), multiBandAbsorption::a(), solidAbsorption::a(), constantAbsorption::e(), multiBandAbsorption::e(), solidAbsorption::e(), and wallAbsorptionEmissionModel().

---

The documentation for this class was generated from the following files:

• src/thermophysicalModels/radiation/submodels/wallAbsorptionEmissionModel/wallAbsorptionEmissionModel/wallAbsorptionEmissionModel.H
• src/thermophysicalModels/radiation/submodels/wallAbsorptionEmissionModel/wallAbsorptionEmissionModel/wallAbsorptionEmissionModel.C
• src/thermophysicalModels/radiation/submodels/wallAbsorptionEmissionModel/wallAbsorptionEmissionModel/wallAbsorptionEmissionModelNew.C
