wallTransmissivityModel Class Reference

Base class for wall transmissivity models. More...

#include <wallTransmissivityModel.H>

Inheritance diagram for wallTransmissivityModel:

Collaboration diagram for wallTransmissivityModel:

Public Member Functions
	TypeName ("wallTransmissivityModel")
	Runtime type information.
	declareRunTimeSelectionTable (autoPtr, wallTransmissivityModel, dictionary,(const dictionary &dict, const polyPatch &pp),(dict, pp))
	wallTransmissivityModel (const dictionary &dict, const polyPatch &pp)
	Construct from components.
virtual	~wallTransmissivityModel ()=default
	Destructor.
virtual tmp< scalarField >	t (const label bandI=0, const vectorField *incomingDirection=nullptr, const scalarField *T=nullptr) const =0
	Return transmissivity.
virtual scalar	t (const label faceI, const label bandI=0, const vector dir=Zero, const scalar T=0) const =0
	Return transmissivity on face.
virtual bool	isGrey () const =0
	Is Grey.
virtual label	nBands () const =0
	Number of bands.

Static Public Member Functions
static autoPtr< wallTransmissivityModel >	New (const dictionary &dict, const polyPatch &pp)

Protected Attributes
const polyPatch &	pp_
	Reference to the polyPatch.

Detailed Description

Base class for wall transmissivity models.

Definition at line 46 of file wallTransmissivityModel.H.

Constructor & Destructor Documentation

wallTransmissivityModel()

wallTransmissivityModel	(	const dictionary &	dict,
		const polyPatch &	pp )

Construct from components.

Definition at line 38 of file wallTransmissivityModel.C.

References pp(), and pp_.

Referenced by constantTransmissivity::constantTransmissivity(), declareRunTimeSelectionTable(), and multiBandTransmissivity::multiBandTransmissivity().

Here is the call graph for this function:

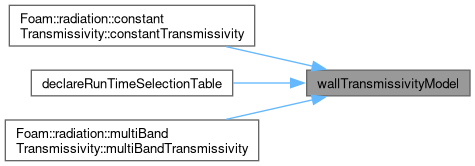

Here is the caller graph for this function:

~wallTransmissivityModel()

virtual ~wallTransmissivityModel ( )

virtualdefault

Destructor.

Member Function Documentation

TypeName()

TypeName

(

"wallTransmissivityModel"

)

Runtime type information.

declareRunTimeSelectionTable()

declareRunTimeSelectionTable	(	autoPtr	,
		wallTransmissivityModel	,
		dictionary	,
		(const dictionary &dict, const polyPatch &pp)	,
		(dict, pp)	)

References dict, pp(), and wallTransmissivityModel().

Here is the call graph for this function:

New()

Foam::autoPtr< Foam::radiation::wallTransmissivityModel > New ( const dictionary & dict, const polyPatch & pp )

static

Definition at line 26 of file wallTransmissivityModelNew.C.

References dict, Foam::exit(), Foam::FatalIOError, FatalIOErrorInLookup, and pp().

Referenced by constantTransmissivity::constantTransmissivity().

Here is the call graph for this function:

Here is the caller graph for this function:

t() [1/2]

virtual tmp< scalarField > t ( const label bandI = 0, const vectorField * incomingDirection = nullptr, const scalarField * T = nullptr ) const

pure virtual

Return transmissivity.

Implemented in constantTransmissivity, and multiBandTransmissivity.

References Foam::T().

Here is the call graph for this function:

t() [2/2]

virtual scalar t ( const label faceI, const label bandI = 0, const vector dir = Zero, const scalar T = 0 ) const

pure virtual

Return transmissivity on face.

Implemented in constantTransmissivity, and multiBandTransmissivity.

References Foam::T(), and Foam::Zero.

Here is the call graph for this function:

isGrey()

virtual bool isGrey ( ) const

pure virtual

Is Grey.

Implemented in constantTransmissivity, and multiBandTransmissivity.

nBands()

virtual label nBands ( ) const

pure virtual

Number of bands.

Implemented in constantTransmissivity, and multiBandTransmissivity.

Member Data Documentation

pp_

const polyPatch& pp_

protected

Reference to the polyPatch.

Definition at line 56 of file wallTransmissivityModel.H.

Referenced by constantTransmissivity::t(), multiBandTransmissivity::t(), and wallTransmissivityModel().

---

The documentation for this class was generated from the following files:

• src/thermophysicalModels/radiation/submodels/wallTransmissivityModel/wallTransmissivityModel/wallTransmissivityModel.H
• src/thermophysicalModels/radiation/submodels/wallTransmissivityModel/wallTransmissivityModel/wallTransmissivityModel.C
• src/thermophysicalModels/radiation/submodels/wallTransmissivityModel/wallTransmissivityModel/wallTransmissivityModelNew.C
