Computes a single-mesh resolution index according to Celik et al.'s index using Kolmogorov length scale, which is used as a LES/DES quality/post verification metric that does not require any experimental or DNS data. More...

#include <CelikEtaIndex.H>

Inheritance diagram for CelikEtaIndex:

[legend]

Collaboration diagram for CelikEtaIndex:

[legend]

Public Member Functions
	TypeName ("CelikEtaIndex")
	Runtime type information.
	CelikEtaIndex (const word &name, const fvMesh &mesh, const dictionary &dict)
	Construct from components.
	CelikEtaIndex (const CelikEtaIndex &)=delete
	No copy construct.
void	operator= (const CelikEtaIndex &)=delete
	No copy assignment.
virtual	~CelikEtaIndex ()=default
virtual bool	read (const dictionary &dict)
	Read the function-object dictionary.
virtual bool	execute ()
	Execute the function-object operations.
virtual bool	write ()
	Write the function-object results.
Public Member Functions inherited from resolutionIndexModel
	TypeName ("resolutionIndexModel")
	Runtime type information.
	declareRunTimeSelectionTable (autoPtr, resolutionIndexModel, dictionary,(const word &name, const fvMesh &mesh, const dictionary &dict),(name, mesh, dict))
	resolutionIndexModel (const word &name, const fvMesh &mesh, const dictionary &dict)
	Construct from components.
	resolutionIndexModel (const resolutionIndexModel &)=delete
	No copy construct.
void	operator= (const resolutionIndexModel &)=delete
	No copy assignment.
virtual	~resolutionIndexModel ()=default
	Destructor.
const fvMesh &	mesh () const noexcept
	Return const reference to the mesh.
const word &	resultName () const noexcept
	Return const reference to the result name.

Additional Inherited Members
Static Public Member Functions inherited from resolutionIndexModel
static autoPtr< resolutionIndexModel >	New (const word &name, const fvMesh &mesh, const dictionary &dict)
	Return a reference to the selected resolutionIndex model.
Protected Member Functions inherited from resolutionIndexModel
template<class GeoFieldType>
GeoFieldType &	getOrReadField (const word &fieldName) const
	Return requested field from the object registry or read+register the field to the object registry.
tmp< volScalarField >	V () const
	Return cell volume field.

Detailed Description

Computes a single-mesh resolution index according to Celik et al.'s index using Kolmogorov length scale, which is used as a LES/DES quality/post verification metric that does not require any experimental or DNS data.

$\‍[ \Gamma_{Celik,\eta}(\mathbf{x}, t) = \frac{1}{1 + \alpha_\eta \left(\frac{h}{\eta_{eff}}\right)^m} \‍]$

with

$\‍[ \eta_{eff} = \left(\frac{\nu^3}{\epsilon}\right)^{1/4} \‍]$

$\‍[ \epsilon = \nu_{eff} \frac{k_{sgs}}{C_k \Delta^2} \‍]$

$\‍[ \nu_{eff} = \nu_{num} + \nu_{sgs} + \nu \‍]$

$\‍[ \nu_{num} = {sgn}(k_{num}) C_\nu \Delta \sqrt{k_{num}} \‍]$

$\‍[ k_{num} = C_n \left(\frac{h}{\Delta}\right)^2 k_{sgs} \‍]$

where

$\Gamma_{Celik,\eta}(\mathbf{x}, t)$	=	Celik et al.'s index [-]
$\alpha_\eta$	=	Empirical constant [-]
	=	Characteristic length scale with $h = V^{1/3}$ [m]
	=	Cell volume [m^3]
$\eta_{eff}$	=	Kolmogorov length scale [m]
	=	Empirical exponent [-]
$\nu$	=	Kinematic viscosity of fluid [m^2/s]
$\epsilon$	=	Kinetic energy dissipation rate [m^2/s^3]
$\nu_{eff}$	=	Effective eddy viscosity [m^2/s]
$\nu_{num}$	=	Numerical eddy viscosity [m^2/s]
$\nu_{sgs}$	=	Subgrid-scale eddy viscosity [m^2/s]
$k_{num}$	=	Numerical turbulent kinetic energy [m^2/s^2]
$C_\nu$	=	Empirical constant [-]
$\Delta$	=	Filter length scale [m]
$k_{sgs}$	=	Subgrid-scale turbulent kinetic energy [m^2/s^2]
	=	Empirical constant [-]
	=	Empirical constant [-]

References:

        Governing equations (tag:CCY):
            Celik, I. B., Cehreli Z. N., Yavuz I. (2005).
            Index of resolution quality for large eddy simulations.
            Journal of Fluids Engineering. 127:949–958.
            DOI:10.1115/1.1990201

        Governing equations (tag:CKJ):
            Celik, I., Klein, M., & Janicka, J. (2009).
            Assessment measures for engineering LES applications.
            Journal of fluids engineering, 131(3).
            DOI:10.1115/1.3059703

Usage

Minimal example by using system/controlDict.functions:

resolutionIndexFO
{
    // Inherited entries
    ...
    model       CelikEtaIndex;

    // Optional entries
    alphaEta    <scalar>;
    m           <scalar>;
    Cnu         <scalar>;
    Cn          <scalar>;
    Ck          <scalar>;
    k           <word>;
    delta       <word>;
    nu          <word>;
    nut         <word>;
}

where the entries mean:

Property	Description	Type	Reqd	Deflt
`model`	Model name: CelikEtaIndex	word	yes	-
`alphaEta`	Empirical constant	scalar	no	0.05
`m`	Empirical exponent	scalar	no	0.5
`Cnu`	Empirical constant	scalar	no	0.1
`Cn`	Empirical constant	scalar	no	1.0
`Ck`	Empirical constant	scalar	no	0.0376
`k`	Name of subgrid-scale turbulent kinetic energy field	word	no	k
`delta`	Name of filter field	word	no	delta
`nu`	Name of kinematic viscosity field	word	no	nu
`nut`	Name of subgrid-scale eddy viscosity field	word	no	nut

Source files

Definition at line 287 of file CelikEtaIndex.H.

Constructor & Destructor Documentation

◆ CelikEtaIndex() [1/2]

CelikEtaIndex	(	const word &	name,
		const fvMesh &	mesh,
		const dictionary &	dict )

Construct from components.

Definition at line 103 of file CelikEtaIndex.C.

References dict, resolutionIndexModel::mesh(), Foam::name(), read(), and resolutionIndexModel::resolutionIndexModel().

Referenced by CelikEtaIndex(), and operator=().

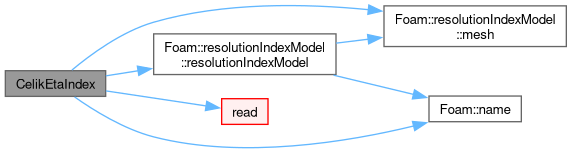

Here is the call graph for this function:

Here is the caller graph for this function:

◆ CelikEtaIndex() [2/2]

CelikEtaIndex ( const CelikEtaIndex & )

delete

No copy construct.

References CelikEtaIndex().

Here is the call graph for this function:

◆ ~CelikEtaIndex()

virtual ~CelikEtaIndex ( )

virtualdefault

References dict.

Member Function Documentation

◆ TypeName()

TypeName ( "CelikEtaIndex" )

Runtime type information.

References dict, resolutionIndexModel::mesh(), and Foam::name().

Here is the call graph for this function:

◆ operator=()

void operator= ( const CelikEtaIndex & )

delete

No copy assignment.

References CelikEtaIndex().

Here is the call graph for this function:

◆ read()

bool read ( const dictionary & dict )

virtual

Read the function-object dictionary.

Reimplemented from resolutionIndexModel.

Definition at line 127 of file CelikEtaIndex.C.

References dict, and resolutionIndexModel::read().

Referenced by CelikEtaIndex().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ execute()

bool execute ( )

virtual

Execute the function-object operations.

Implements resolutionIndexModel.

Definition at line 149 of file CelikEtaIndex.C.

References Foam::cbrt(), resolutionIndexModel::getOrReadField(), Foam::pow(), resolutionIndexModel::resultName(), and resolutionIndexModel::V().

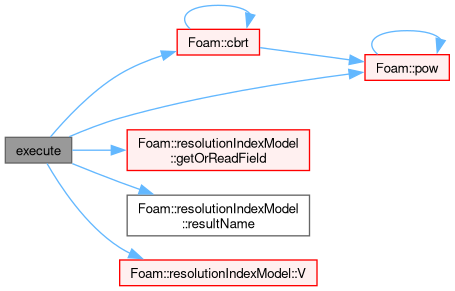

Here is the call graph for this function:

◆ write()

bool write ( )

virtual

Write the function-object results.

Implements resolutionIndexModel.

Definition at line 166 of file CelikEtaIndex.C.

References Foam::endl(), resolutionIndexModel::getOrReadField(), Foam::Info, resolutionIndexModel::resultName(), and Foam::tab.

Here is the call graph for this function:

The documentation for this class was generated from the following files:

src/functionObjects/field/resolutionIndex/resolutionIndexModels/CelikEtaIndex/CelikEtaIndex.H
src/functionObjects/field/resolutionIndex/resolutionIndexModels/CelikEtaIndex/CelikEtaIndex.C
