Transport package using Sutherland's formula. More...

#include <sutherlandTransport.H>

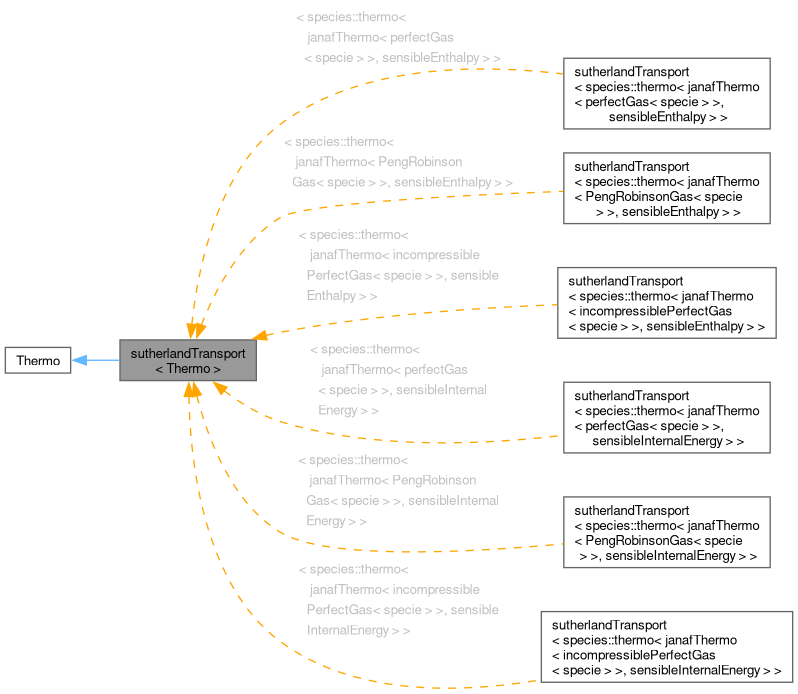

Inheritance diagram for sutherlandTransport< Thermo >:

[legend]

Collaboration diagram for sutherlandTransport< Thermo >:

Public Member Functions
	sutherlandTransport (const Thermo &t, const scalar As, const scalar Ts)
	Construct from components.
	sutherlandTransport (const Thermo &t, const scalar mu1, const scalar T1, const scalar mu2, const scalar T2)
	Construct from two viscosities.
	sutherlandTransport (const word &, const sutherlandTransport &)
	Construct as named copy.
	sutherlandTransport (const dictionary &dict)
	Construct from dictionary.
	sutherlandTransport (const Thermo &t, const dictionary &dict)
	Construct from base thermo and dictionary.
autoPtr< sutherlandTransport >	clone () const
	Construct and return a clone.
scalar	mu (const scalar p, const scalar T) const
	Dynamic viscosity [kg/ms].
scalar	kappa (const scalar p, const scalar T) const
	Thermal conductivity [W/mK].
scalar	alphah (const scalar p, const scalar T) const
	Thermal diffusivity of enthalpy [kg/ms].
void	write (Ostream &os) const
	Write to Ostream.
void	operator+= (const sutherlandTransport &)
void	operator*= (const scalar)

Static Public Member Functions
static autoPtr< sutherlandTransport >	New (const dictionary &dict)
static word	typeName ()
	Return the instantiated type name.

Friends
sutherlandTransport	operator+ (const sutherlandTransport &, const sutherlandTransport &)
sutherlandTransport	operator* (const scalar, const sutherlandTransport &)
Ostream &	operator<< (Ostream &, const sutherlandTransport &)

Detailed Description

template<class Thermo>
class Foam::sutherlandTransport< Thermo >

Transport package using Sutherland's formula.

Templated into a given thermodynamics package (needed for thermal conductivity).

Dynamic viscosity [kg/m.s]

$\‍[ \mu = A_s \frac{\sqrt{T}}{1 + T_s / T} \‍]$

Source files

Definition at line 84 of file sutherlandTransport.H.

Constructor & Destructor Documentation

◆ sutherlandTransport() [1/5]

template<class Thermo>

sutherlandTransport	(	const Thermo &	t,
		const scalar	As,
		const scalar	Ts )

inline

Construct from components.

Definition at line 45 of file sutherlandTransportI.H.

Referenced by operator+=(), and sutherlandTransport().

Here is the caller graph for this function:

◆ sutherlandTransport() [2/5]

template<class Thermo>

sutherlandTransport	(	const Thermo &	t,
		const scalar	mu1,
		const scalar	T1,
		const scalar	mu2,
		const scalar	T2 )

inline

Construct from two viscosities.

Definition at line 59 of file sutherlandTransportI.H.

◆ sutherlandTransport() [3/5]

template<class Thermo>

sutherlandTransport	(	const word &	name,
		const sutherlandTransport< Thermo > &	st )

inline

Construct as named copy.

Definition at line 73 of file sutherlandTransportI.H.

References Foam::name(), and sutherlandTransport().

Here is the call graph for this function:

◆ sutherlandTransport() [4/5]

template<class Thermo>

sutherlandTransport ( const dictionary & dict )

explicit

Construct from dictionary.

Definition at line 40 of file sutherlandTransport.C.

References dict.

◆ sutherlandTransport() [5/5]

template<class Thermo>

sutherlandTransport	(	const Thermo &	t,
		const dictionary &	dict )

Construct from base thermo and dictionary.

Definition at line 49 of file sutherlandTransport.C.

References dict.

Member Function Documentation

◆ clone()

template<class Thermo>

Foam::autoPtr< Foam::sutherlandTransport< Thermo > > clone ( ) const

inline

Construct and return a clone.

Definition at line 87 of file sutherlandTransportI.H.

References Foam::New().

Here is the call graph for this function:

◆ New()

template<class Thermo>

Foam::autoPtr< Foam::sutherlandTransport< Thermo > > New ( const dictionary & dict )

inlinestatic

Definition at line 95 of file sutherlandTransportI.H.

References dict, and Foam::New().

Here is the call graph for this function:

◆ typeName()

template<class Thermo>

word typeName ( )

inlinestatic

Return the instantiated type name.

Definition at line 169 of file sutherlandTransport.H.

◆ mu()

template<class Thermo>

Foam::scalar mu	(	const scalar	p,
		const scalar	T ) const

inline

Dynamic viscosity [kg/ms].

Definition at line 107 of file sutherlandTransportI.H.

References p, Foam::sqrt(), and Foam::T().

Here is the call graph for this function:

◆ kappa()

template<class Thermo>

Foam::scalar kappa	(	const scalar	p,
		const scalar	T ) const

inline

Thermal conductivity [W/mK].

Definition at line 118 of file sutherlandTransportI.H.

References Cv, mu, p, R, and Foam::T().

Referenced by alphah().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ alphah()

template<class Thermo>

Foam::scalar alphah	(	const scalar	p,
		const scalar	T ) const

inline

Thermal diffusivity of enthalpy [kg/ms].

Definition at line 129 of file sutherlandTransportI.H.

References Cp, kappa(), p, and Foam::T().

Here is the call graph for this function:

◆ write()

template<class Thermo>

void write ( Ostream & os ) const

Write to Ostream.

Definition at line 64 of file sutherlandTransport.C.

References specie::name(), and os().

Here is the call graph for this function:

◆ operator+=()

template<class Thermo>

void operator+= ( const sutherlandTransport< Thermo > & )

inline

Definition at line 143 of file sutherlandTransportI.H.

References Foam::mag(), sutherlandTransport(), and Y.

Here is the call graph for this function:

◆ operator*=()

template<class Thermo>

void operator*= ( const scalar s )

inline

Definition at line 164 of file sutherlandTransportI.H.

References s().

Here is the call graph for this function:

◆ operator+

template<class Thermo>

sutherlandTransport operator+	(	const sutherlandTransport< Thermo > &	,
		const sutherlandTransport< Thermo > &	)

friend

◆ operator*

template<class Thermo>

sutherlandTransport operator*	(	const scalar	,
		const sutherlandTransport< Thermo > &	)

friend

◆ operator<<

template<class Thermo>

Ostream & operator<<	(	Ostream &	,
		const sutherlandTransport< Thermo > &	)

friend

The documentation for this class was generated from the following files:

src/thermophysicalModels/specie/transport/sutherland/sutherlandTransport.H
src/thermophysicalModels/specie/transport/sutherland/sutherlandTransport.C
src/thermophysicalModels/specie/transport/sutherland/sutherlandTransportI.H
