thermophysicalFunction Class Reference

Abstract base class for thermo-physical functions. More...

#include <thermophysicalFunction.H>

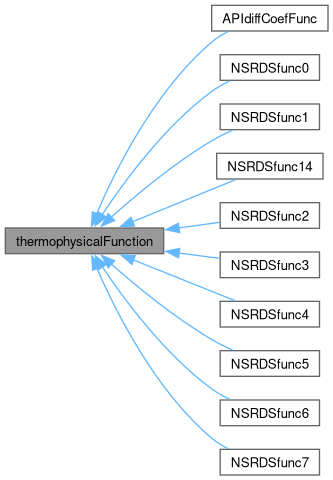

Inheritance diagram for thermophysicalFunction:

Public Member Functions
	TypeName ("thermophysicalFunction")
	Runtime type information.
	declareRunTimeSelectionTable (autoPtr, thermophysicalFunction, Istream,(Istream &is),(is))
	declareRunTimeSelectionTable (autoPtr, thermophysicalFunction, dictionary,(const dictionary &dict),(dict))
	thermophysicalFunction ()
	Construct null.
virtual	~thermophysicalFunction ()=default
	Destructor.
virtual scalar	f (scalar p, scalar T) const =0
	Evaluate the function and return the result.
virtual void	writeData (Ostream &os) const =0
	Write the function coefficients.

Static Public Member Functions
static autoPtr< thermophysicalFunction >	New (Istream &is)
	Return pointer to new thermophysicalFunction created from input.
static autoPtr< thermophysicalFunction >	New (const dictionary &dict)
	Return pointer to new thermophysicalFunction created from dict.

Friends
Ostream &	operator<< (Ostream &os, const thermophysicalFunction &f)

Detailed Description

Abstract base class for thermo-physical functions.

Definition at line 47 of file thermophysicalFunction.H.

Constructor & Destructor Documentation

thermophysicalFunction()

thermophysicalFunction ( )

inline

Construct null.

Definition at line 84 of file thermophysicalFunction.H.

Referenced by declareRunTimeSelectionTable(), declareRunTimeSelectionTable(), and operator<<.

Here is the caller graph for this function:

~thermophysicalFunction()

virtual ~thermophysicalFunction ( )

virtualdefault

Destructor.

Member Function Documentation

TypeName()

TypeName

(

"thermophysicalFunction"

)

Runtime type information.

declareRunTimeSelectionTable() [1/2]

declareRunTimeSelectionTable	(	autoPtr	,
		thermophysicalFunction	,
		Istream	,
		(Istream &is)	,
		(is)	)

References thermophysicalFunction().

Here is the call graph for this function:

declareRunTimeSelectionTable() [2/2]

declareRunTimeSelectionTable	(	autoPtr	,
		thermophysicalFunction	,
		dictionary	,
		(const dictionary &dict)	,
		(dict)	)

References dict, and thermophysicalFunction().

Here is the call graph for this function:

New() [1/2]

Foam::autoPtr< Foam::thermophysicalFunction > New ( Istream & is )

static

Return pointer to new thermophysicalFunction created from input.

Definition at line 37 of file thermophysicalFunction.C.

References Foam::abort(), DebugInFunction, Foam::endl(), Foam::FatalError, and FatalErrorInLookup.

Here is the call graph for this function:

New() [2/2]

Foam::autoPtr< Foam::thermophysicalFunction > New ( const dictionary & dict )

static

Return pointer to new thermophysicalFunction created from dict.

Definition at line 62 of file thermophysicalFunction.C.

References Foam::abort(), DebugInFunction, dict, Foam::endl(), Foam::FatalIOError, and FatalIOErrorInLookup.

Here is the call graph for this function:

f()

virtual scalar f ( scalar p, scalar T ) const

pure virtual

Evaluate the function and return the result.

Implemented in APIdiffCoefFunc, NSRDSfunc0, NSRDSfunc14, NSRDSfunc1, NSRDSfunc2, NSRDSfunc3, NSRDSfunc4, NSRDSfunc5, NSRDSfunc6, and NSRDSfunc7.

References p, and Foam::T().

Referenced by operator<<.

Here is the call graph for this function:

Here is the caller graph for this function:

writeData()

virtual void writeData ( Ostream & os ) const

pure virtual

Write the function coefficients.

Implemented in APIdiffCoefFunc, NSRDSfunc0, NSRDSfunc14, NSRDSfunc1, NSRDSfunc2, NSRDSfunc3, NSRDSfunc4, NSRDSfunc5, NSRDSfunc6, and NSRDSfunc7.

References os().

Here is the call graph for this function:

Friends And Related Symbol Documentation

operator<<

Ostream & operator<< ( Ostream & os, const thermophysicalFunction & f )

friend

Definition at line 119 of file thermophysicalFunction.H.

References f(), os(), and thermophysicalFunction().

---

The documentation for this class was generated from the following files:

• src/thermophysicalModels/thermophysicalProperties/thermophysicalFunctions/thermophysicalFunction/thermophysicalFunction.H
• src/thermophysicalModels/thermophysicalProperties/thermophysicalFunctions/thermophysicalFunction/thermophysicalFunction.C
