partitioningModel Class Reference

Base class for wall heat flux partitioning models. More...

#include <partitioningModel.H>

Inheritance diagram for partitioningModel:

Public Member Functions
	TypeName ("partitioningModel")
	Runtime type information.
	declareRunTimeSelectionTable (autoPtr, partitioningModel, dictionary,(const dictionary &dict),(dict))
	Declare runtime construction.
	partitioningModel ()=default
	Default construct.
virtual	~partitioningModel ()=default
	Destructor.
virtual tmp< scalarField >	fLiquid (const scalarField &alphaLiquid) const =0
	Calculate and return the wall heat-flux partitioning.
virtual void	write (Ostream &os) const
	Write.

Static Public Member Functions
static autoPtr< partitioningModel >	New (const dictionary &dict)
	Select default constructed.

Detailed Description

Base class for wall heat flux partitioning models.

Source files

• partitioningModel.H
• partitioningModel.C

Definition at line 51 of file partitioningModel.H.

Constructor & Destructor Documentation

partitioningModel()

partitioningModel ( )

default

Default construct.

References dict.

Referenced by cosine::cosine(), declareRunTimeSelectionTable(), Lavieville::Lavieville(), linear::linear(), and phaseFraction::phaseFraction().

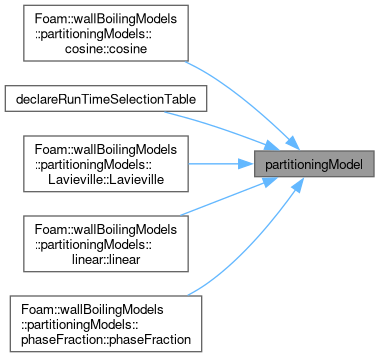

Here is the caller graph for this function:

~partitioningModel()

virtual ~partitioningModel ( )

virtualdefault

Destructor.

Member Function Documentation

TypeName()

TypeName

(

"partitioningModel"

)

Runtime type information.

declareRunTimeSelectionTable()

declareRunTimeSelectionTable	(	autoPtr	,
		partitioningModel	,
		dictionary	,
		(const dictionary &dict)	,
		(dict)	)

Declare runtime construction.

References dict, and partitioningModel().

Here is the call graph for this function:

New()

Foam::autoPtr< Foam::wallBoilingModels::partitioningModel > New ( const dictionary & dict )

static

Select default constructed.

Definition at line 39 of file partitioningModel.C.

References Foam::abort(), dict, Foam::endl(), Foam::FatalIOError, FatalIOErrorInLookup, and Foam::Info.

Referenced by alphatWallBoilingWallFunctionFvPatchScalarField::alphatWallBoilingWallFunctionFvPatchScalarField().

Here is the call graph for this function:

Here is the caller graph for this function:

fLiquid()

virtual tmp< scalarField > fLiquid ( const scalarField & alphaLiquid ) const

pure virtual

Calculate and return the wall heat-flux partitioning.

Implemented in cosine, Lavieville, linear, and phaseFraction.

References os().

Here is the call graph for this function:

write()

void write ( Ostream & os ) const

virtual

Write.

Reimplemented in cosine, Lavieville, and linear.

Definition at line 68 of file partitioningModel.C.

References os(), and Foam::type().

Referenced by cosine::write(), Lavieville::write(), and linear::write().

Here is the call graph for this function:

Here is the caller graph for this function:

---

The documentation for this class was generated from the following files:

• src/phaseSystemModels/reactingEuler/multiphaseSystem/derivedFvPatchFields/wallBoilingSubModels/partitioningModels/partitioningModel/partitioningModel.H
• src/phaseSystemModels/reactingEuler/multiphaseSystem/derivedFvPatchFields/wallBoilingSubModels/partitioningModels/partitioningModel/partitioningModel.C
