Multi-faceZone based blending differencing scheme. More...

#include <zoneBlended.H>

Inheritance diagram for zoneBlended< Type >:

[legend]

Collaboration diagram for zoneBlended< Type >:

[legend]

Public Member Functions
	TypeName ("zoneBlended")
	Runtime type information.
	zoneBlended (const fvMesh &mesh, Istream &is)
	Construct from mesh and Istream.
	zoneBlended (const fvMesh &mesh, const surfaceScalarField &faceFlux, Istream &is)
	Construct from mesh, faceFlux and Istream.
virtual tmp< surfaceScalarField >	blendingFactor (const VolumeField &vf) const
	Return the face-based blending factor.
tmp< surfaceScalarField >	weights (const VolumeField &vf) const
	Return the interpolation weighting factors.
tmp< SurfaceField >	interpolate (const VolumeField &vf) const
	Return the face-interpolate of the given cell field.
virtual bool	corrected () const
	Return true if this scheme uses an explicit correction.
virtual tmp< SurfaceField >	correction (const VolumeField &vf) const
	Return the explicit correction to the face-interpolate for the given field.
Public Member Functions inherited from surfaceInterpolationScheme< Type >
	TypeName ("surfaceInterpolationScheme")
	Runtime type information.
	declareRunTimeSelectionTable (tmp, surfaceInterpolationScheme, Mesh,(const fvMesh &mesh, Istream &schemeData),(mesh, schemeData))
	declareRunTimeSelectionTable (tmp, surfaceInterpolationScheme, MeshFlux,(const fvMesh &mesh, const surfaceScalarField &faceFlux, Istream &schemeData),(mesh, faceFlux, schemeData))
	surfaceInterpolationScheme (const fvMesh &mesh)
	Construct from mesh.
virtual	~surfaceInterpolationScheme ()=default
	Destructor.
const fvMesh &	mesh () const
	Return mesh reference.
virtual tmp< surfaceScalarField >	weights (const GeometricField< Type, fvPatchField, volMesh > &) const =0
	Return the interpolation weighting factors for the given field.
virtual tmp< GeometricField< Type, fvsPatchField, surfaceMesh > >	correction (const GeometricField< Type, fvPatchField, volMesh > &) const
	Return the explicit correction to the face-interpolate.
virtual tmp< GeometricField< typename innerProduct< vector, Type >::type, fvsPatchField, surfaceMesh > >	dotInterpolate (const surfaceVectorField &Sf, const GeometricField< Type, fvPatchField, volMesh > &vf) const
	Return the face-interpolate of the given cell field.
tmp< GeometricField< typename innerProduct< vector, Type >::type, fvsPatchField, surfaceMesh > >	dotInterpolate (const surfaceVectorField &Sf, const tmp< GeometricField< Type, fvPatchField, volMesh > > &) const
	Return the face-interpolate of the given tmp cell field.
virtual tmp< GeometricField< Type, fvsPatchField, surfaceMesh > >	interpolate (const GeometricField< Type, fvPatchField, volMesh > &) const
	Return the face-interpolate of the given cell field.
tmp< GeometricField< Type, fvsPatchField, surfaceMesh > >	interpolate (const tmp< GeometricField< Type, fvPatchField, volMesh > > &) const
	Return the face-interpolate of the given tmp cell field.
template<class SFType>
Foam::tmp< Foam::GeometricField< typename Foam::innerProduct< typename SFType::value_type, Type >::type, Foam::fvsPatchField, Foam::surfaceMesh > >	dotInterpolate (const SFType &Sf, const GeometricField< Type, fvPatchField, volMesh > &vf, const tmp< surfaceScalarField > &tlambdas)
tmp< GeometricField< typename innerProduct< vector, scalar >::type, fvsPatchField, surfaceMesh > >	dotInterpolate (const surfaceVectorField &Sf, const GeometricField< scalar, fvPatchField, volMesh > &) const
Foam::tmp< Foam::GeometricField< typename Foam::innerProduct< Foam::vector, Foam::scalar >::type, Foam::fvsPatchField, Foam::surfaceMesh > >	dotInterpolate (const surfaceVectorField &Sf, const GeometricField< scalar, fvPatchField, volMesh > &) const
Public Member Functions inherited from refCount
constexpr	refCount () noexcept
	Default construct, initializing count to 0.
int	use_count () const noexcept
	Return the current reference count.
bool	unique () const noexcept
	Return true if the reference count is zero.
void	operator++ () noexcept
	Increment the reference count.
void	operator++ (int) noexcept
	Increment the reference count.
void	operator-- () noexcept
	Decrement the reference count.
void	operator-- (int) noexcept
	Decrement the reference count.
Public Member Functions inherited from blendedSchemeBase< Type >
	blendedSchemeBase ()=default
	Constructor.
virtual	~blendedSchemeBase ()=default
	Destructor.
virtual tmp< surfaceScalarField >	blendingFactor (const GeometricField< Type, fvPatchField, volMesh > &vf) const =0
	Return the face-based blending factor.

Additional Inherited Members
Static Public Member Functions inherited from surfaceInterpolationScheme< Type >
static tmp< surfaceInterpolationScheme< Type > >	New (const fvMesh &mesh, Istream &schemeData)
	Return new tmp interpolation scheme.
static tmp< surfaceInterpolationScheme< Type > >	New (const fvMesh &mesh, const surfaceScalarField &faceFlux, Istream &schemeData)
	Return new tmp interpolation scheme.
static tmp< GeometricField< Type, fvsPatchField, surfaceMesh > >	interpolate (const GeometricField< Type, fvPatchField, volMesh > &, const tmp< surfaceScalarField > &, const tmp< surfaceScalarField > &)
	Return the face-interpolate of the given cell field.
template<class SFType>
static tmp< GeometricField< typename innerProduct< typename SFType::value_type, Type >::type, fvsPatchField, surfaceMesh > >	dotInterpolate (const SFType &Sf, const GeometricField< Type, fvPatchField, volMesh > &vf, const tmp< surfaceScalarField > &tlambdas)
	Return the face-interpolate of the given cell field.
static tmp< GeometricField< Type, fvsPatchField, surfaceMesh > >	interpolate (const GeometricField< Type, fvPatchField, volMesh > &, const tmp< surfaceScalarField > &)
	Return the face-interpolate of the given cell field.

Detailed Description

template<class Type>
class Foam::zoneBlended< Type >

Multi-faceZone based blending differencing scheme.

Schemes are set in dictonary format according to:

divSchemes
{
    .
    .
    div(phi,U)      Gauss zoneBlended
    {
        default         defaultScheme;
        faceZone1       scheme1;
        faceZone2       scheme2;
        ...
        faceZoneN       schemeN;
    }
    .
    .
}

The default entry specifies the background scheme; additional schemes can be set per faceZone, e.g. scheme1 is applied to facZone1, scheme2 is applied to facZone2 etc.

Usage: Example of the zoneBlended scheme to use linearUpwind as the background scheme and upwind in faceZone1:

divSchemes
{
    .
    .
    div(phi,U)      Gauss zoneBlended
    {
        default         linearUpwind grad(U);
        faceZone1       upwind;
    };
    .
    .
}

Source files

Definition at line 97 of file zoneBlended.H.

Constructor & Destructor Documentation

◆ zoneBlended() [1/2]

template<class Type>

zoneBlended	(	const fvMesh &	mesh,
		Istream &	is )

inline

Construct from mesh and Istream.

The name of the flux field is read from the Istream and looked-up from the mesh objectRegistry

Definition at line 197 of file zoneBlended.H.

References dict, and surfaceInterpolationScheme< Type >::mesh().

Here is the call graph for this function:

◆ zoneBlended() [2/2]

template<class Type>

zoneBlended	(	const fvMesh &	mesh,
		const surfaceScalarField &	faceFlux,
		Istream &	is )

inline

Construct from mesh, faceFlux and Istream.

Definition at line 213 of file zoneBlended.H.

References dict, and surfaceInterpolationScheme< Type >::mesh().

Here is the call graph for this function:

Member Function Documentation

◆ TypeName()

template<class Type>

TypeName ( "zoneBlended< Type >" )

Runtime type information.

◆ blendingFactor()

template<class Type>

virtual tmp< surfaceScalarField > blendingFactor ( const VolumeField & vf ) const

inlinevirtual

Return the face-based blending factor.

Definition at line 236 of file zoneBlended.H.

References Foam::dimless, Pair< T >::first(), DimensionedField< Type, GeoMesh >::mesh(), surfaceInterpolationScheme< Type >::mesh(), Foam::name(), GeometricField< scalar, fvsPatchField, surfaceMesh >::New(), pbm, and Pair< T >::second().

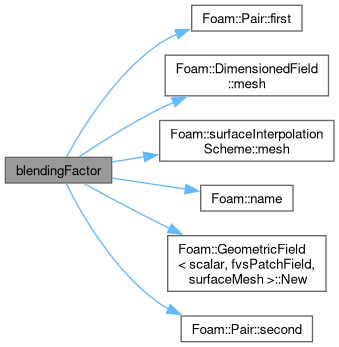

Here is the call graph for this function:

◆ weights()

template<class Type>

tmp< surfaceScalarField > weights ( const VolumeField & vf ) const

inline

Return the interpolation weighting factors.

Definition at line 281 of file zoneBlended.H.

References Foam::dimless, DimensionedField< Type, GeoMesh >::mesh(), surfaceInterpolationScheme< Type >::mesh(), GeometricField< scalar, fvsPatchField, surfaceMesh >::New(), and weights().

Referenced by interpolate(), and weights().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ interpolate()

template<class Type>

tmp< SurfaceField > interpolate ( const VolumeField & vf ) const

inline

Return the face-interpolate of the given cell field.

with explicit correction

Definition at line 314 of file zoneBlended.H.

References surfaceInterpolationScheme< Type >::interpolate(), and weights().

Here is the call graph for this function:

◆ corrected()

template<class Type>

virtual bool corrected ( ) const

inlinevirtual

Return true if this scheme uses an explicit correction.

Reimplemented from surfaceInterpolationScheme< Type >.

Definition at line 328 of file zoneBlended.H.

◆ correction()

template<class Type>

virtual tmp< SurfaceField > correction ( const VolumeField & vf ) const

inlinevirtual

Return the explicit correction to the face-interpolate for the given field.

Definition at line 338 of file zoneBlended.H.

References DimensionedField< Type, GeoMesh >::dimensions(), DimensionedField< Type, GeoMesh >::mesh(), surfaceInterpolationScheme< Type >::mesh(), GeometricField< Type, fvsPatchField, surfaceMesh >::New(), and Foam::Zero.

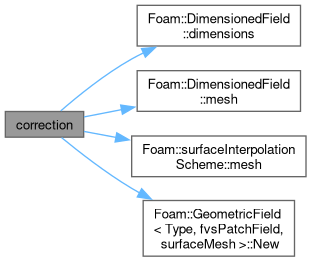

Here is the call graph for this function:

The documentation for this class was generated from the following files:

src/finiteVolume/interpolation/surfaceInterpolation/schemes/zoneBlended/zoneBlended.H
src/finiteVolume/interpolation/surfaceInterpolation/schemes/zoneBlended/zoneBlendedTemplates.C
