externalCoupledTemperatureMixedFvPatchScalarField Class Reference

#include <externalCoupledTemperatureMixedFvPatchScalarField.H>

Inheritance diagram for externalCoupledTemperatureMixedFvPatchScalarField:

Collaboration diagram for externalCoupledTemperatureMixedFvPatchScalarField:

Public Member Functions
	TypeName ("externalCoupledTemperature")
	Runtime type information.
	externalCoupledTemperatureMixedFvPatchScalarField (const fvPatch &, const DimensionedField< scalar, volMesh > &)
	Construct from patch and internal field.
	externalCoupledTemperatureMixedFvPatchScalarField (const fvPatch &, const DimensionedField< scalar, volMesh > &, const dictionary &)
	Construct from patch, internal field and dictionary.
	externalCoupledTemperatureMixedFvPatchScalarField (const externalCoupledTemperatureMixedFvPatchScalarField &, const fvPatch &, const DimensionedField< scalar, volMesh > &, const fvPatchFieldMapper &)
	Construct by mapping given.
	externalCoupledTemperatureMixedFvPatchScalarField (const externalCoupledTemperatureMixedFvPatchScalarField &)
	Construct as copy.
	externalCoupledTemperatureMixedFvPatchScalarField (const externalCoupledTemperatureMixedFvPatchScalarField &, const DimensionedField< scalar, volMesh > &)
	Construct as copy setting internal field reference.
virtual tmp< fvPatchField< scalar > >	clone () const
	Return a clone.
virtual tmp< fvPatchField< scalar > >	clone (const DimensionedField< scalar, volMesh > &iF) const
	Clone with an internal field reference.
virtual	~externalCoupledTemperatureMixedFvPatchScalarField ()=default
	Destructor.
virtual void	writeHeader (Ostream &os) const
	Write header.
virtual void	writeData (Ostream &os) const
	Write data.
virtual void	readData (Istream &is)
	Read data.
virtual void	write (Ostream &os) const
	Write.

Detailed Description

Definition at line 145 of file externalCoupledTemperatureMixedFvPatchScalarField.H.

Constructor & Destructor Documentation

externalCoupledTemperatureMixedFvPatchScalarField() [1/5]

externalCoupledTemperatureMixedFvPatchScalarField	(	const fvPatch &	p,
		const DimensionedField< scalar, volMesh > &	iF )

Construct from patch and internal field.

Definition at line 75 of file externalCoupledTemperatureMixedFvPatchScalarField.C.

References p.

Referenced by externalCoupledTemperatureMixedFvPatchScalarField(), externalCoupledTemperatureMixedFvPatchScalarField(), externalCoupledTemperatureMixedFvPatchScalarField(), and TypeName().

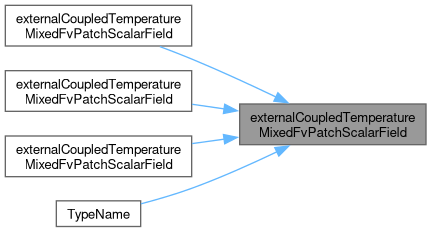

Here is the caller graph for this function:

externalCoupledTemperatureMixedFvPatchScalarField() [2/5]

externalCoupledTemperatureMixedFvPatchScalarField	(	const fvPatch &	p,
		const DimensionedField< scalar, volMesh > &	iF,
		const dictionary &	dict )

Construct from patch, internal field and dictionary.

Definition at line 105 of file externalCoupledTemperatureMixedFvPatchScalarField.C.

References dict, if(), and p.

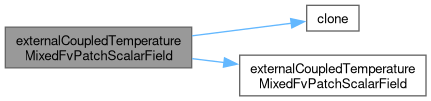

Here is the call graph for this function:

externalCoupledTemperatureMixedFvPatchScalarField() [3/5]

externalCoupledTemperatureMixedFvPatchScalarField	(	const externalCoupledTemperatureMixedFvPatchScalarField &	rhs,
		const fvPatch &	p,
		const DimensionedField< scalar, volMesh > &	iF,
		const fvPatchFieldMapper &	mapper )

Construct by mapping given.

externalCoupledTemperatureMixedFvPatchScalarField onto a new patch

Definition at line 89 of file externalCoupledTemperatureMixedFvPatchScalarField.C.

References clone(), externalCoupledTemperatureMixedFvPatchScalarField(), and p.

Here is the call graph for this function:

externalCoupledTemperatureMixedFvPatchScalarField() [4/5]

externalCoupledTemperatureMixedFvPatchScalarField

(

const externalCoupledTemperatureMixedFvPatchScalarField &

rhs

)

Construct as copy.

Definition at line 167 of file externalCoupledTemperatureMixedFvPatchScalarField.C.

References clone(), and externalCoupledTemperatureMixedFvPatchScalarField().

Here is the call graph for this function:

externalCoupledTemperatureMixedFvPatchScalarField() [5/5]

externalCoupledTemperatureMixedFvPatchScalarField	(	const externalCoupledTemperatureMixedFvPatchScalarField &	rhs,
		const DimensionedField< scalar, volMesh > &	iF )

Construct as copy setting internal field reference.

Definition at line 180 of file externalCoupledTemperatureMixedFvPatchScalarField.C.

References clone(), and externalCoupledTemperatureMixedFvPatchScalarField().

Here is the call graph for this function:

~externalCoupledTemperatureMixedFvPatchScalarField()

virtual ~externalCoupledTemperatureMixedFvPatchScalarField ( )

virtualdefault

Destructor.

References os(), readData(), and writeHeader().

Here is the call graph for this function:

Member Function Documentation

TypeName()

TypeName

(

"externalCoupledTemperature"

)

Runtime type information.

References externalCoupledTemperatureMixedFvPatchScalarField().

Here is the call graph for this function:

clone() [1/2]

virtual tmp< fvPatchField< scalar > > clone ( ) const

inlinevirtual

Return a clone.

Definition at line 260 of file externalCoupledTemperatureMixedFvPatchScalarField.H.

Referenced by externalCoupledTemperatureMixedFvPatchScalarField(), externalCoupledTemperatureMixedFvPatchScalarField(), and externalCoupledTemperatureMixedFvPatchScalarField().

Here is the caller graph for this function:

clone() [2/2]

virtual tmp< fvPatchField< scalar > > clone ( const DimensionedField< scalar, volMesh > & iF ) const

inlinevirtual

Clone with an internal field reference.

Definition at line 268 of file externalCoupledTemperatureMixedFvPatchScalarField.H.

writeHeader()

void writeHeader ( Ostream & os ) const

virtual

Write header.

Definition at line 57 of file externalCoupledTemperatureMixedFvPatchScalarField.C.

References os().

Referenced by ~externalCoupledTemperatureMixedFvPatchScalarField().

Here is the call graph for this function:

Here is the caller graph for this function:

writeData()

void writeData ( Ostream & os ) const

virtual

Write data.

Definition at line 196 of file externalCoupledTemperatureMixedFvPatchScalarField.C.

References e, FatalErrorInFunction, forAll, and os().

Here is the call graph for this function:

readData()

void readData ( Istream & is )

virtual

Read data.

Definition at line 298 of file externalCoupledTemperatureMixedFvPatchScalarField.C.

References forAll.

Referenced by ~externalCoupledTemperatureMixedFvPatchScalarField().

Here is the caller graph for this function:

write()

void write ( Ostream & os ) const

virtual

Write.

Definition at line 322 of file externalCoupledTemperatureMixedFvPatchScalarField.C.

References os(), and mixedFvPatchField< Type >::write().

Here is the call graph for this function:

---

The documentation for this class was generated from the following files:

• src/functionObjects/field/externalCoupled/externalCoupledTemperatureMixed/externalCoupledTemperatureMixedFvPatchScalarField.H
• src/functionObjects/field/externalCoupled/externalCoupledTemperatureMixed/externalCoupledTemperatureMixedFvPatchScalarField.C
