exprTraits.H File Reference

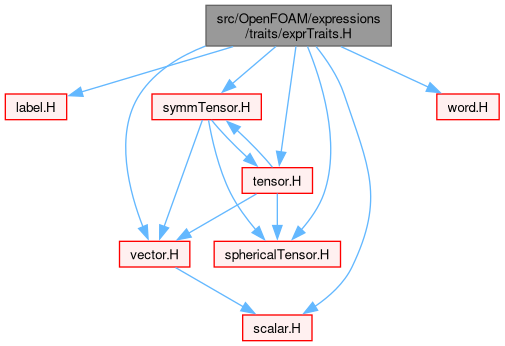

Include dependency graph for exprTraits.H:

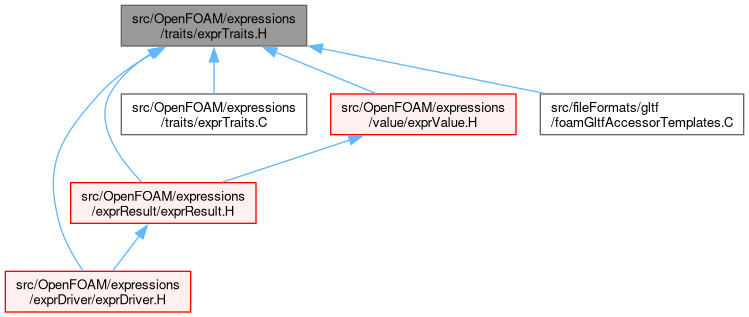

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
class	exprTypeTraits< Type >
	Simple type identifiers for polymorphic expression values. The definitions are similar to std::integral_constant in that they provide value, value_type (and name). More...
struct	exprTypeTraits< bool >
	bool expression traits More...
struct	exprTypeTraits<::Foam::label >
	label expression traits More...
struct	exprTypeTraits<::Foam::scalar >
	scalar expression traits More...
struct	exprTypeTraits<::Foam::vector >
	vector expression traits More...
struct	exprTypeTraits<::Foam::tensor >
	tensor expression traits More...
struct	exprTypeTraits<::Foam::sphericalTensor >
	sphericalTensor expression traits More...
struct	exprTypeTraits<::Foam::symmTensor >
	symmTensor expression traits More...
struct	nameOp< expressions::valueTypeCode >
	A word representation of a valueTypeCode. Empty for expressions::valueTypeCode::INVALID. More...

Namespaces
namespace	Foam::expressions
	A namespace for expression-related classes/traits etc.
namespace	Foam::expressions::Detail
	A namespace for implementation details related to expressions.
namespace	Foam
	Namespace for OpenFOAM.

Macros
#define	defineExprTypeTraits(Type, Name, Rank, NumCmpts)

Enumerations
enum class	valueTypeCode : unsigned char {   NONE = 0 , INVALID , type_bool , type_label ,   type_scalar , type_vector , type_sphericalTensor , type_symmTensor ,   type_tensor }
	An enumeration of known and expected expression value types. More...

Functions
valueTypeCode	valueTypeCodeOf (const word &dataTypeName, const expressions::valueTypeCode deflt=expressions::valueTypeCode::INVALID)
	From string to valueTypeCode (if any).
::Foam::direction	nComponents (const expressions::valueTypeCode) noexcept
	The number of components associated with given valueTypeCode.
::Foam::direction	rank (const expressions::valueTypeCode) noexcept
	The vector-space rank associated with given valueTypeCode.
word	name (const expressions::valueTypeCode typeCode)
	A word representation of a valueTypeCode. Empty for expressions::valueTypeCode::INVALID.

Detailed Description

Original source file exprTraits.H

Definition in file exprTraits.H.

Macro Definition Documentation

defineExprTypeTraits

#define defineExprTypeTraits	(		Type,
			Name,
			Rank,
			NumCmpts )

Value:

                                   \
template<>                                                                \
struct exprTypeTraits<Type>                                               \
{                                                                         \
    typedef Type value_type;                                              \
    static constexpr const char* const name = #Name ;                     \
    static constexpr                                                      \
        ::Foam::expressions::valueTypeCode value =                        \
        ::Foam::expressions::valueTypeCode::type_##Name ;                 \
    static constexpr ::Foam::direction rank = Rank ;                      \
    static constexpr ::Foam::direction nComponents = NumCmpts ;           \
};

Definition at line 161 of file exprTraits.H.
