Various bit-wise operations and adaptor methods for containers that are somewhat similar to bitSet (eg, boolList, labelHashSet). More...

Classes
struct	bitInfo
	An (unsigned) integral type adapter, for output of bit values. More...

Functions
unsigned int	count (const UList< bool > &bools, const bool val=true)
	Count number of 'true' entries.
bool	all (const UList< bool > &bools)
	True if all entries are 'true' or if the list is empty.
bool	any (const UList< bool > &bools)
	True if any entries are 'true'.
bool	none (const UList< bool > &bools)
	True if no entries are 'true'.
void	set (List< bool > &bools, const labelUList &locations)
	Set the listed locations (assign 'true').
void	set (List< bool > &bools, const labelRange &range)
	Set the specified range 'on' in a boolList.
void	set (labelHashSet &hashset, const labelRange &range)
	Set the specified range in a labelHashSet.
void	set (bitSet &bitset, const labelRange &range)
	Forward to bitSet::set(labelRange).
void	unset (List< bool > &bools, const labelUList &locations)
	Unset the listed locations (assign 'false').
void	unset (List< bool > &bools, const labelRange &range)
	Unset the specified range 'on' in a boolList.
void	unset (labelHashSet &hashset, const labelRange &range)
	Unset the specified range in a labelHashSet.
void	unset (bitSet &bitset, const labelRange &range)
	Forward to bitSet::unset(labelRange).
List< bool >	select (const label n, const labelUList &locations)
	Construct a selection list of bools (all false) with the given pre-size, subsequently add specified locations as true, auto-vivify entries if needed.
List< bool >	select (const labelUList &locations)
	Construct an auto-sized selection list of bools (all false), and populate the specified locations as true.
unsigned int	count (const bitSet &bitset, const bool on=true)
	Forward to bitSet::count().
List< label >	toc (const UList< bool > &bools)
	Return the (sorted) values corresponding to 'true' entries.
List< label >	sortedToc (const UList< bool > &bools)
	Return the (sorted) values corresponding to 'true' entries.
List< label >	toc (const bitSet &bitset)
	Forward to bitSet::toc(), the sorted values of the 'on' entries.
List< label >	sortedToc (const bitSet &bitset)
	Forward to bitSet::sortedToc(), the sorted values of the 'on' entries.
List< label >	toc (const labelHashSet &hashset)
	Forward to labelHashSet::sortedToc(), the sorted values of the 'on' entries.
List< label >	sortedToc (const labelHashSet &hashset)
	Forward to labelHashSet::sortedToc(), the sorted values of the 'on' entries.
template<class UIntType>
unsigned int	bit_count (UIntType x)
	Count arbitrary number of bits (of an integral type).
template<>
unsigned int	bit_count (uint32_t x)
	Count bits in a 32-bit value (Hamming weight method).
template<>
unsigned int	bit_count (uint64_t x)
	Count bits in a 64-bit value (Hamming weight method).
template<class UIntType, unsigned BitWidth>
UIntType	repeat_value (unsigned val)
	Repeat a value of the given BitWidth into the destination output type.
template<class UIntType>
Ostream &	print (Ostream &os, UIntType value, char off='0', char on='1')
	Print 0/1 bits in the (unsigned) integral type.

Detailed Description

Various bit-wise operations and adaptor methods for containers that are somewhat similar to bitSet (eg, boolList, labelHashSet).

The population count uses the Hamming weight (http://en.wikipedia.org/wiki/Hamming_weight).

Function Documentation

◆ count() [1/2]

unsigned int count	(	const UList< bool > &	bools,
		const bool	val = true )

inline

Count number of 'true' entries.

Parameters

val	can be set to false to count the number of false values instead For compatibility with bitSet::count()

Definition at line 73 of file BitOps.H.

References UList< T >::begin(), and UList< T >::end().

Referenced by geometric::add(), decompositionMethod::decompose(), and toc().

Here is the call graph for this function:

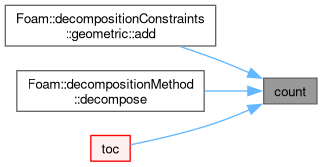

Here is the caller graph for this function:

◆ all()

bool all ( const UList< bool > & bools )

inline

True if all entries are 'true' or if the list is empty.

For compatibility with bitSet::all()

Definition at line 83 of file BitOps.H.

References UList< T >::all().

Here is the call graph for this function:

◆ any()

bool any ( const UList< bool > & bools )

inline

True if any entries are 'true'.

For compatibility with bitSet::any()

Definition at line 90 of file BitOps.H.

References UList< T >::any().

Here is the call graph for this function:

◆ none()

bool none ( const UList< bool > & bools )

inline

True if no entries are 'true'.

For compatibility with bitSet::none()

Definition at line 97 of file BitOps.H.

References UList< T >::none().

Here is the call graph for this function:

◆ set() [1/4]

void set	(	List< bool > &	bools,
		const labelUList &	locations )

Set the listed locations (assign 'true').

Does auto-vivify for non-existent entries.

For compatibility with bitSet::set(labelUList)

Definition at line 35 of file BitOps.C.

References UList< T >::begin(), UList< T >::end(), Foam::max(), List< T >::resize(), and UList< T >::size().

Referenced by select(), and select().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ set() [2/4]

void set	(	List< bool > &	bools,
		const labelRange &	range )

Set the specified range 'on' in a boolList.

For compatibility with bitSet::set(labelRange)

Definition at line 57 of file BitOps.C.

References labelRange::adjust(), IntRange< IntType >::empty(), IntRange< IntType >::end_value(), range, List< T >::resize(), List< T >::set(), and UList< T >::size().

Here is the call graph for this function:

◆ set() [3/4]

void set	(	labelHashSet &	hashset,
		const labelRange &	range )

Set the specified range in a labelHashSet.

For compatibility with bitSet::set(labelRange)

Definition at line 86 of file BitOps.C.

References labelRange::adjust(), range, and HashSet< Key, Hash >::set().

Here is the call graph for this function:

◆ set() [4/4]

void set	(	bitSet &	bitset,
		const labelRange &	range )

Forward to bitSet::set(labelRange).

Definition at line 98 of file BitOps.C.

References range, and bitSet::set().

Here is the call graph for this function:

◆ unset() [1/4]

void unset	(	List< bool > &	bools,
		const labelUList &	locations )

Unset the listed locations (assign 'false').

No auto-vivify non-existent entries.

For compatibility with bitSet::set(labelUList)

Definition at line 104 of file BitOps.C.

References UList< T >::unset().

Here is the call graph for this function:

◆ unset() [2/4]

void unset	(	List< bool > &	bools,
		const labelRange &	range )

Unset the specified range 'on' in a boolList.

For compatibility with bitSet::unset(labelRange)

Definition at line 114 of file BitOps.C.

References range, and UList< T >::unset().

Here is the call graph for this function:

◆ unset() [3/4]

void unset	(	labelHashSet &	hashset,
		const labelRange &	range )

Unset the specified range in a labelHashSet.

For compatibility with bitSet::unset(labelRange)

Definition at line 123 of file BitOps.C.

References range, and HashSet< Key, Hash >::unset().

Here is the call graph for this function:

◆ unset() [4/4]

void unset	(	bitSet &	bitset,
		const labelRange &	range )

Forward to bitSet::unset(labelRange).

Definition at line 132 of file BitOps.C.

References range, and bitSet::unset().

Here is the call graph for this function:

◆ select() [1/2]

Foam::List< bool > select	(	const label	n,
		const labelUList &	locations )

Construct a selection list of bools (all false) with the given pre-size, subsequently add specified locations as true, auto-vivify entries if needed.

Similar to bitSet construction from locations

Returns: a List of bools

Definition at line 138 of file BitOps.C.

References n, and set().

Here is the call graph for this function:

◆ select() [2/2]

Foam::List< bool > select ( const labelUList & locations )

Construct an auto-sized selection list of bools (all false), and populate the specified locations as true.

Similar to bitSet construction from locations

Returns: a List of bools

Definition at line 152 of file BitOps.C.

References set().

Here is the call graph for this function:

◆ count() [2/2]

unsigned int count	(	const bitSet &	bitset,
		const bool	on = true )

Forward to bitSet::count().

Definition at line 28 of file BitOps.C.

References bitSet::count().

Here is the call graph for this function:

◆ toc() [1/3]

Foam::List< Foam::label > toc ( const UList< bool > & bools )

Return the (sorted) values corresponding to 'true' entries.

Similar to bitSet::toc()

Returns: a List of labels

Definition at line 163 of file BitOps.C.

References b, count(), and UList< T >::size().

Referenced by sortedToc().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ sortedToc() [1/3]

Foam::List< Foam::label > sortedToc ( const UList< bool > & bools )

Return the (sorted) values corresponding to 'true' entries.

Returns: a List of labels

Definition at line 200 of file BitOps.C.

References toc().

Here is the call graph for this function:

◆ toc() [2/3]

Foam::List< Foam::label > toc ( const bitSet & bitset )

Forward to bitSet::toc(), the sorted values of the 'on' entries.

Returns: a List of labels

Definition at line 206 of file BitOps.C.

References bitSet::toc().

Here is the call graph for this function:

◆ sortedToc() [2/3]

Foam::List< Foam::label > sortedToc ( const bitSet & bitset )

Forward to bitSet::sortedToc(), the sorted values of the 'on' entries.

Returns: a List of labels

Definition at line 212 of file BitOps.C.

References bitSet::sortedToc().

Here is the call graph for this function:

◆ toc() [3/3]

Foam::List< Foam::label > toc ( const labelHashSet & hashset )

Forward to labelHashSet::sortedToc(), the sorted values of the 'on' entries.

Returns: a List of labels

Definition at line 218 of file BitOps.C.

References HashTable< T, Key, Hash >::sortedToc().

Here is the call graph for this function:

◆ sortedToc() [3/3]

Foam::List< Foam::label > sortedToc ( const labelHashSet & hashset )

Forward to labelHashSet::sortedToc(), the sorted values of the 'on' entries.

Returns: a List of labels

Definition at line 224 of file BitOps.C.

References HashTable< T, Key, Hash >::sortedToc().

Here is the call graph for this function:

◆ bit_count() [1/3]

template<class UIntType>

unsigned int bit_count ( UIntType x )

inline

Count arbitrary number of bits (of an integral type).

Definition at line 242 of file BitOps.H.

References n, and x.

Referenced by bitSet::count().

Here is the caller graph for this function:

◆ bit_count() [2/3]

template<>

unsigned int bit_count ( uint32_t x )

inline

Count bits in a 32-bit value (Hamming weight method).

Definition at line 256 of file BitOps.H.

References x.

◆ bit_count() [3/3]

template<>

unsigned int bit_count ( uint64_t x )

inline

Count bits in a 64-bit value (Hamming weight method).

Definition at line 269 of file BitOps.H.

References x.

◆ repeat_value()

template<class UIntType, unsigned BitWidth>

UIntType repeat_value ( unsigned val )

inline

Repeat a value of the given BitWidth into the destination output type.

Note: when BitWidth is 1, it is better to do directly.
(val ? ~0u : 0u)

Definition at line 289 of file BitOps.H.

Referenced by PackedList< Width >::repeated_value().

Here is the caller graph for this function:

◆ print()

template<class UIntType>

Ostream & print	(	Ostream &	os,
		UIntType	value,
		char	off = '0',
		char	on = '1' )

inline

Print 0/1 bits in the (unsigned) integral type.

Definition at line 320 of file BitOps.H.

References IOstreamOption::BINARY, and os().

Referenced by Foam::operator<<(), and PackedList< Width >::printBits().

Here is the call graph for this function:

Here is the caller graph for this function:

Classes

Functions

Detailed Description

Function Documentation

◆ count() [1/2]

◆ all()

◆ any()

◆ none()

◆ set() [1/4]

◆ set() [2/4]

◆ set() [3/4]

◆ set() [4/4]

◆ unset() [1/4]

◆ unset() [2/4]

◆ unset() [3/4]

◆ unset() [4/4]

◆ select() [1/2]

◆ select() [2/2]

◆ count() [2/2]

◆ toc() [1/3]

◆ sortedToc() [1/3]

◆ toc() [2/3]

◆ sortedToc() [2/3]

◆ toc() [3/3]

◆ sortedToc() [3/3]

◆ bit_count() [1/3]

◆ bit_count() [2/3]

◆ bit_count() [3/3]

◆ repeat_value()

◆ print()
