cut.H File Reference

Functions for cutting triangles and tetrahedra. Generic operations are applied to each half of a cut. More...

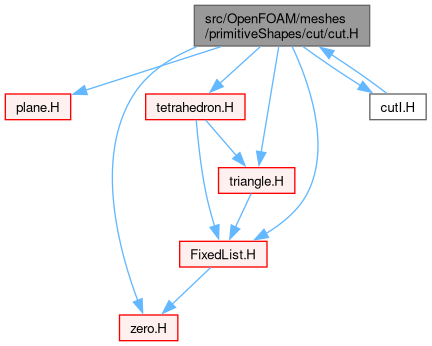

Include dependency graph for cut.H:

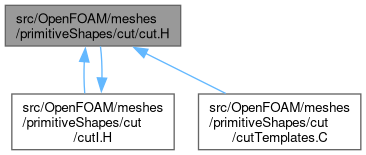

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
class	uniformOp< Type >
class	noOp
class	areaOp
class	volumeOp
class	areaIntegrateOp< Type >
class	volumeIntegrateOp< Type >
class	listOp< N >
class	listOp< N >::result
	Result class. More...
class	appendOp< Container >
class	opAddResult< Op, Op >
class	opAddResult< noOp, noOp >
class	opAddResult< noOp, Op >
class	opAddResult< Op, noOp >

Namespaces
namespace	Foam
	Namespace for OpenFOAM.
namespace	Foam::cut

Typedefs
typedef listOp< 3 >	listTriOp
typedef listOp< 4 >	listTetOp

Functions
template<class AboveOp, class BelowOp>
cut::opAddResult< AboveOp, BelowOp >::type	triCut (const FixedList< point, 3 > &tri, const FixedList< scalar, 3 > &level, const AboveOp &aboveOp, const BelowOp &belowOp)
	Cut a triangle along the zero plane defined by the given levels.
template<class AboveOp, class BelowOp>
cut::opAddResult< AboveOp, BelowOp >::type	triCut (const FixedList< point, 3 > &tri, const plane &pln, const AboveOp &aboveOp, const BelowOp &belowOp)
	As above, but with a plane specifying the location of the cut.
template<class AboveOp, class BelowOp>
cut::opAddResult< AboveOp, BelowOp >::type	tetCut (const FixedList< point, 4 > &tet, const FixedList< scalar, 4 > &level, const AboveOp &aboveOp, const BelowOp &belowOp)
	As triCut, but for a tetrahedron.
template<class AboveOp, class BelowOp>
cut::opAddResult< AboveOp, BelowOp >::type	tetCut (const FixedList< point, 4 > &tet, const plane &pln, const AboveOp &aboveOp, const BelowOp &belowOp)
	As above, but with a plane specifying the location of the cut.

Detailed Description

Functions for cutting triangles and tetrahedra. Generic operations are applied to each half of a cut.

Original source file cut.H

Source files

• cut.H
• cutI.H
• cutTemplates.C

Definition in file cut.H.
