UPstream_alias_dataType< T > Struct Template Reference

Explicit handling of data type aliases. This is necessary since different systems map things like 'unsigned long' differently but we restrict ourselves to int32/int64 types. More...

#include <UPstreamTraits.H>

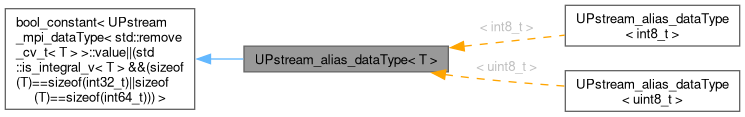

Inheritance diagram for UPstream_alias_dataType< T >:

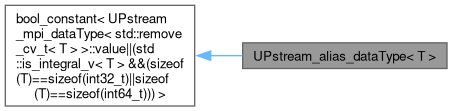

Collaboration diagram for UPstream_alias_dataType< T >:

Public Types
using	base

Static Public Attributes
static constexpr auto	datatype_id

Detailed Description

template<class T>
struct Foam::UPstream_alias_dataType< T >

Explicit handling of data type aliases. This is necessary since different systems map things like 'unsigned long' differently but we restrict ourselves to int32/int64 types.

Note that this trait serves as the single pass-through point when needing to reference UPstream_mpi_dataType elsewhere

Definition at line 229 of file UPstreamTraits.H.

Member Typedef Documentation

base

template<class T>

using base

Initial value:

std::conditional_t
   <
       UPstream_mpi_dataType<std::remove_cv_t<T>>::value,
       std::remove_cv_t<T>,
       std::conditional_t
       <
           (
               std::is_integral_v<T>
            && (sizeof(T) == sizeof(int32_t) || sizeof(T) == sizeof(int64_t))
           ),
           std::conditional_t
           <
               (sizeof(T) == sizeof(int32_t)),
               std::conditional_t<std::is_signed_v<T>, int32_t, uint32_t>,
               std::conditional_t<std::is_signed_v<T>, int64_t, uint64_t>
           >,
           char
       >
   >

Definition at line 242 of file UPstreamTraits.H.

Member Data Documentation

datatype_id

template<class T>

auto datatype_id

staticconstexpr

Initial value:

                              =
UPstream_mpi_dataType<base>::datatype_id

Definition at line 262 of file UPstreamTraits.H.

---

The documentation for this struct was generated from the following file:

• src/OpenFOAM/db/IOstreams/Pstreams/UPstreamTraits.H
