Templated atomization model class. More...

#include <AtomizationModel.H>

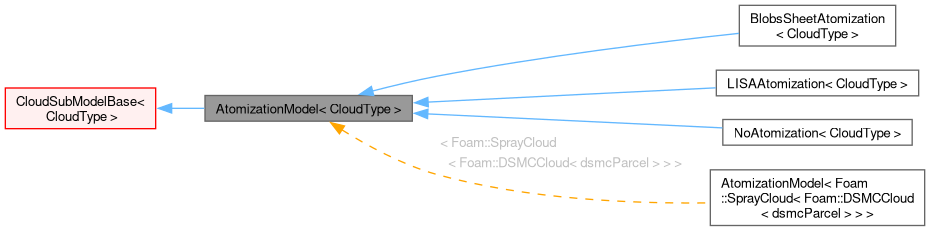

Inheritance diagram for AtomizationModel< CloudType >:

[legend]

Collaboration diagram for AtomizationModel< CloudType >:

Public Member Functions
	TypeName ("atomizationModel")
	Runtime type information.
	declareRunTimeSelectionTable (autoPtr, AtomizationModel, dictionary,(const dictionary &dict, CloudType &owner),(dict, owner))
	Declare runtime constructor selection table.
	AtomizationModel (CloudType &owner)
	Construct null from owner.
	AtomizationModel (const dictionary &dict, CloudType &owner, const word &type)
	Construct from dictionary.
	AtomizationModel (const AtomizationModel< CloudType > &am)
	Construct copy.
virtual autoPtr< AtomizationModel< CloudType > >	clone () const =0
	Construct and return a clone.
virtual	~AtomizationModel ()
	Destructor.
scalar	Taverage (const scalar &Tliq, const scalar &Tc) const
	Average temperature calculation.
virtual scalar	initLiquidCore () const =0
	Initial value of liquidCore.
virtual bool	calcChi () const =0
	Flag to indicate if chi needs to be calculated.
virtual void	update (const scalar dt, scalar &d, scalar &liquidCore, scalar &tc, const scalar rho, const scalar mu, const scalar sigma, const scalar volFlowRate, const scalar rhoAv, const scalar Urel, const vector &pos, const vector &injectionPos, const scalar pAmbient, const scalar chi, Random &rndGen) const =0
Public Member Functions inherited from CloudSubModelBase< CloudType >
	CloudSubModelBase (CloudType &owner)
	Construct null from owner cloud.
	CloudSubModelBase (CloudType &owner, const dictionary &dict, const word &baseName, const word &modelType, const word &dictExt="Coeffs")
	Construct from owner cloud without name.
	CloudSubModelBase (const word &modelName, CloudType &owner, const dictionary &dict, const word &baseName, const word &modelType)
	Construct from owner cloud with name.
	CloudSubModelBase (const CloudSubModelBase< CloudType > &smb)
	Construct as copy.
virtual	~CloudSubModelBase ()=default
	Destructor.
const CloudType &	owner () const
	Return const access to the owner cloud.
virtual bool	writeTime () const
	Flag to indicate when to write a property.
virtual fileName	localPath () const
	Output directory.
CloudType &	owner ()
	Return non-const access to the owner cloud for manipulation.
virtual void	info ()
	Write to info.
virtual void	write (Ostream &os) const
	Write to os.
Public Member Functions inherited from subModelBase
	subModelBase (dictionary &properties)
	Construct null.
	subModelBase (dictionary &properties, const dictionary &dict, const word &baseName, const word &modelType, const word &dictExt="Coeffs")
	Construct from components without name.
	subModelBase (const word &modelName, dictionary &properties, const dictionary &dict, const word &baseName, const word &modelType)
	Construct from components with name.
	subModelBase (const subModelBase &smb)
	Construct as copy.
virtual	~subModelBase ()=default
	Destructor.
const word &	modelName () const
	Return const access to the name of the sub-model.
const dictionary &	dict () const
	Return const access to the cloud dictionary.
const word &	baseName () const
	Return const access to the base name of the sub-model.
const word &	modelType () const
	Return const access to the sub-model type.
const dictionary &	coeffDict () const
	Return const access to the coefficients dictionary.
const dictionary &	properties () const
	Return const access to the properties dictionary.
virtual bool	defaultCoeffs (const bool printMsg) const
	Returns true if defaultCoeffs is true and outputs on printMsg.
virtual bool	active () const
	Return the model 'active' status - default active = true.
virtual void	cacheFields (const bool store)
	Cache dependent sub-model fields.
template<class Type>
Type	getBaseProperty (const word &entryName, const Type &defaultValue=Type(Zero)) const
	Retrieve generic property from the base model.
template<class Type>
void	getBaseProperty (const word &entryName, Type &value) const
	Retrieve generic property from the base model.
template<class Type>
void	setBaseProperty (const word &entryName, const Type &value)
	Add generic property to the base model.
bool	getModelDict (const word &entryName, dictionary &dict) const
	Retrieve dictionary, return true if set.
template<class Type>
bool	getModelProperty (const word &entryName, Type &value) const
	Retrieve generic property from the sub-model.
template<class Type>
Type	getModelProperty (const word &entryName, const Type &defaultValue=Type(Zero)) const
	Retrieve generic property from the sub-model.
template<class Type>
void	setModelProperty (const word &entryName, const Type &value)
	Add generic property to the sub-model.

Static Public Member Functions
static autoPtr< AtomizationModel< CloudType > >	New (const dictionary &dict, CloudType &owner)
	Selector.

Additional Inherited Members
Public Types inherited from CloudSubModelBase< CloudType >
typedef CloudType	cloudType
	Type of cloud this model was instantiated for.
Public Attributes inherited from subModelBase
bool	log
	Flag to write log into Info.
Protected Member Functions inherited from subModelBase
bool	inLine () const
	Flag to indicate whether data is/was read in-line.
Protected Attributes inherited from CloudSubModelBase< CloudType >
CloudType &	owner_
	Reference to the cloud.
Protected Attributes inherited from subModelBase
const word	modelName_
	Name of the sub-model.
dictionary &	properties_
	Reference to properties dictionary e.g. for restart.
const dictionary	dict_
	Copy of dictionary used during construction.
const word	baseName_
	Name of the sub-model base class.
const word	modelType_
	Type of the sub-model.
const dictionary	coeffDict_
	Coefficients dictionary.

Detailed Description

template<class CloudType>
class Foam::AtomizationModel< CloudType >

Templated atomization model class.

Source files

Definition at line 54 of file AtomizationModel.H.

Constructor & Destructor Documentation

◆ AtomizationModel() [1/3]

template<class CloudType>

AtomizationModel ( CloudType & owner )

Construct null from owner.

Definition at line 26 of file AtomizationModel.C.

References CloudSubModelBase< CloudType >::CloudSubModelBase(), and CloudSubModelBase< CloudType >::owner().

Referenced by AtomizationModel(), BlobsSheetAtomization< CloudType >::BlobsSheetAtomization(), BlobsSheetAtomization< CloudType >::BlobsSheetAtomization(), declareRunTimeSelectionTable(), LISAAtomization< CloudType >::LISAAtomization(), LISAAtomization< CloudType >::LISAAtomization(), NoAtomization< CloudType >::NoAtomization(), and NoAtomization< CloudType >::NoAtomization().

Here is the call graph for this function:

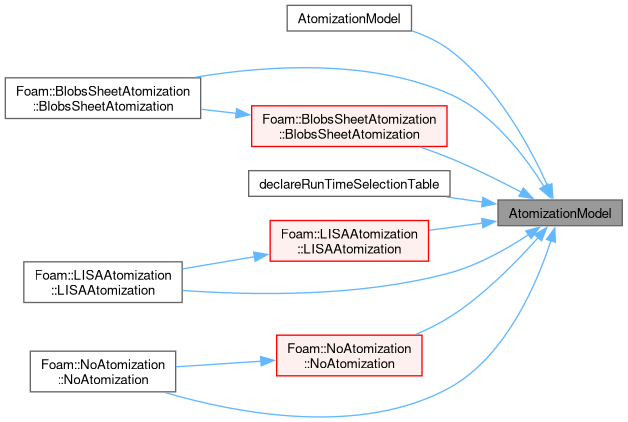

Here is the caller graph for this function:

◆ AtomizationModel() [2/3]

template<class CloudType>

AtomizationModel	(	const dictionary &	dict,
		CloudType &	owner,
		const word &	type )

Construct from dictionary.

Definition at line 46 of file AtomizationModel.C.

References CloudSubModelBase< CloudType >::CloudSubModelBase(), subModelBase::dict(), Foam::GlobalIOList< Tuple2< scalar, vector > >::typeName, and CloudSubModelBase< CloudType >::owner().

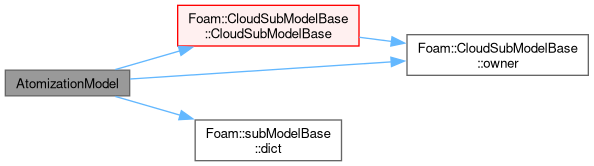

Here is the call graph for this function:

◆ AtomizationModel() [3/3]

template<class CloudType>

AtomizationModel ( const AtomizationModel< CloudType > & am )

Construct copy.

Definition at line 36 of file AtomizationModel.C.

References AtomizationModel(), and CloudSubModelBase< CloudType >::CloudSubModelBase().

Here is the call graph for this function:

◆ ~AtomizationModel()

template<class CloudType>

~AtomizationModel ( )

virtual

Destructor.

Definition at line 60 of file AtomizationModel.C.

Member Function Documentation

◆ TypeName()

template<class CloudType>

TypeName ( "atomizationModel" )

Runtime type information.

◆ declareRunTimeSelectionTable()

template<class CloudType>

declareRunTimeSelectionTable	(	autoPtr	,
		AtomizationModel< CloudType >	,
		dictionary	,
		(const dictionary &dict, CloudType &owner)	,
		(dict, owner)	)

Declare runtime constructor selection table.

References AtomizationModel(), subModelBase::dict(), and CloudSubModelBase< CloudType >::owner().

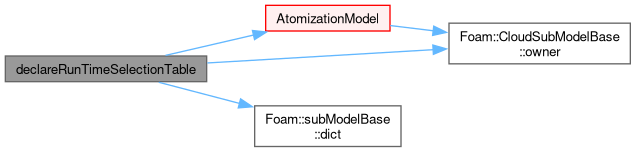

Here is the call graph for this function:

◆ clone()

template<class CloudType>

virtual autoPtr< AtomizationModel< CloudType > > clone ( ) const

pure virtual

Construct and return a clone.

Implemented in BlobsSheetAtomization< CloudType >, LISAAtomization< CloudType >, and NoAtomization< CloudType >.

References subModelBase::dict(), and CloudSubModelBase< CloudType >::owner().

Here is the call graph for this function:

◆ New()

template<class CloudType>

Foam::autoPtr< Foam::AtomizationModel< CloudType > > New	(	const dictionary &	dict,
		CloudType &	owner )

static

Selector.

Definition at line 28 of file AtomizationModelNew.C.

References subModelBase::dict(), Foam::endl(), Foam::exit(), Foam::FatalIOError, FatalIOErrorInLookup, Foam::Info, subModelBase::modelType(), and CloudSubModelBase< CloudType >::owner().

Here is the call graph for this function:

◆ Taverage()

template<class CloudType>

Foam::scalar Taverage	(	const scalar &	Tliq,
		const scalar &	Tc ) const

Average temperature calculation.

Definition at line 67 of file AtomizationModel.C.

◆ initLiquidCore()

template<class CloudType>

virtual scalar initLiquidCore ( ) const

pure virtual

Initial value of liquidCore.

Implemented in BlobsSheetAtomization< CloudType >, LISAAtomization< CloudType >, and NoAtomization< CloudType >.

◆ calcChi()

template<class CloudType>

virtual bool calcChi ( ) const

pure virtual

Flag to indicate if chi needs to be calculated.

Implemented in BlobsSheetAtomization< CloudType >, LISAAtomization< CloudType >, and NoAtomization< CloudType >.

◆ update()

template<class CloudType>

virtual void update	(	const scalar	dt,
		scalar &	d,
		scalar &	liquidCore,
		scalar &	tc,
		const scalar	rho,
		const scalar	mu,
		const scalar	sigma,
		const scalar	volFlowRate,
		const scalar	rhoAv,
		const scalar	Urel,
		const vector &	pos,
		const vector &	injectionPos,
		const scalar	pAmbient,
		const scalar	chi,
		Random &	rndGen ) const

pure virtual

Implemented in BlobsSheetAtomization< CloudType >, LISAAtomization< CloudType >, and NoAtomization< CloudType >.

References mu, Foam::pos(), rho, rndGen, sigma(), and Urel.

Here is the call graph for this function:

The documentation for this class was generated from the following files:

src/lagrangian/spray/clouds/Templates/SprayCloud/SprayCloud.H
src/lagrangian/spray/submodels/AtomizationModel/AtomizationModel/AtomizationModel.H
src/lagrangian/spray/submodels/AtomizationModel/AtomizationModel/AtomizationModel.C
src/lagrangian/spray/submodels/AtomizationModel/AtomizationModel/AtomizationModelNew.C
