subModelBase Class Reference

Base class for generic sub-models requiring to be read from dictionary. Provides a mechanism to read and write properties from a dictionary to enable clean re-starts. Used by, e.g. clou dsub-models. More...

#include <subModelBase.H>

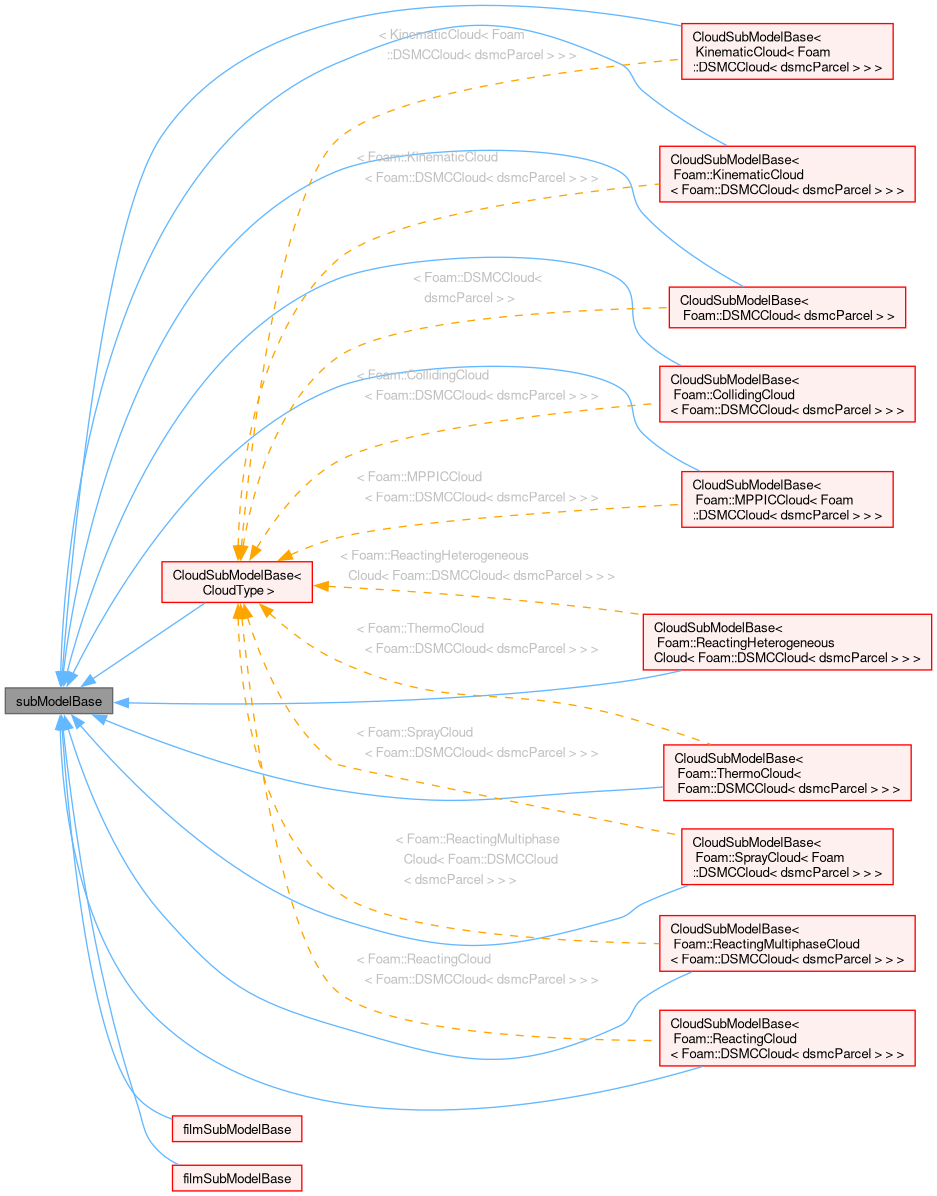

Inheritance diagram for subModelBase:

Collaboration diagram for subModelBase:

Public Member Functions
	subModelBase (dictionary &properties)
	Construct null.
	subModelBase (dictionary &properties, const dictionary &dict, const word &baseName, const word &modelType, const word &dictExt="Coeffs")
	Construct from components without name.
	subModelBase (const word &modelName, dictionary &properties, const dictionary &dict, const word &baseName, const word &modelType)
	Construct from components with name.
	subModelBase (const subModelBase &smb)
	Construct as copy.
virtual	~subModelBase ()=default
	Destructor.
const word &	modelName () const
	Return const access to the name of the sub-model.
const dictionary &	dict () const
	Return const access to the cloud dictionary.
const word &	baseName () const
	Return const access to the base name of the sub-model.
const word &	modelType () const
	Return const access to the sub-model type.
const dictionary &	coeffDict () const
	Return const access to the coefficients dictionary.
const dictionary &	properties () const
	Return const access to the properties dictionary.
virtual bool	defaultCoeffs (const bool printMsg) const
	Returns true if defaultCoeffs is true and outputs on printMsg.
virtual bool	active () const
	Return the model 'active' status - default active = true.
virtual void	cacheFields (const bool store)
	Cache dependent sub-model fields.
virtual bool	writeTime () const
	Flag to indicate when to write a property.
virtual fileName	localPath () const
	Output directory.
template<class Type>
Type	getBaseProperty (const word &entryName, const Type &defaultValue=Type(Zero)) const
	Retrieve generic property from the base model.
template<class Type>
void	getBaseProperty (const word &entryName, Type &value) const
	Retrieve generic property from the base model.
template<class Type>
void	setBaseProperty (const word &entryName, const Type &value)
	Add generic property to the base model.
bool	getModelDict (const word &entryName, dictionary &dict) const
	Retrieve dictionary, return true if set.
template<class Type>
bool	getModelProperty (const word &entryName, Type &value) const
	Retrieve generic property from the sub-model.
template<class Type>
Type	getModelProperty (const word &entryName, const Type &defaultValue=Type(Zero)) const
	Retrieve generic property from the sub-model.
template<class Type>
void	setModelProperty (const word &entryName, const Type &value)
	Add generic property to the sub-model.
virtual void	write (Ostream &os) const
	Write.

Public Attributes
bool	log
	Flag to write log into Info.

Protected Member Functions
bool	inLine () const
	Flag to indicate whether data is/was read in-line.

Protected Attributes
const word	modelName_
	Name of the sub-model.
dictionary &	properties_
	Reference to properties dictionary e.g. for restart.
const dictionary	dict_
	Copy of dictionary used during construction.
const word	baseName_
	Name of the sub-model base class.
const word	modelType_
	Type of the sub-model.
const dictionary	coeffDict_
	Coefficients dictionary.

Detailed Description

Base class for generic sub-models requiring to be read from dictionary. Provides a mechanism to read and write properties from a dictionary to enable clean re-starts. Used by, e.g. clou dsub-models.

Source files

• subModelBase.H
• subModelBase.C

Definition at line 50 of file subModelBase.H.

Constructor & Destructor Documentation

subModelBase() [1/4]

subModelBase

(

dictionary &

properties

)

Construct null.

Definition at line 34 of file subModelBase.C.

References baseName_, coeffDict_, dict_, log, modelName_, modelType_, properties(), and properties_.

Referenced by CloudSubModelBase< CloudType >::CloudSubModelBase(), CloudSubModelBase< CloudType >::CloudSubModelBase(), CloudSubModelBase< CloudType >::CloudSubModelBase(), CloudSubModelBase< Foam::CollidingCloud< Foam::DSMCCloud< dsmcParcel > > >::CloudSubModelBase(), filmSubModelBase::filmSubModelBase(), filmSubModelBase::filmSubModelBase(), filmSubModelBase::filmSubModelBase(), filmSubModelBase::filmSubModelBase(), filmSubModelBase::filmSubModelBase(), filmSubModelBase::filmSubModelBase(), and subModelBase().

Here is the call graph for this function:

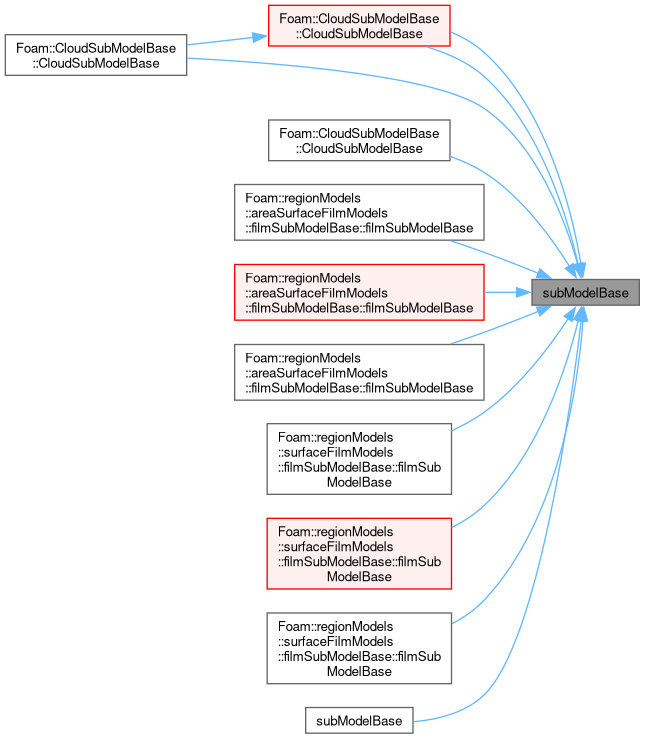

Here is the caller graph for this function:

subModelBase() [2/4]

subModelBase	(	dictionary &	properties,
		const dictionary &	dict,
		const word &	baseName,
		const word &	modelType,
		const word &	dictExt = "Coeffs" )

Construct from components without name.

Definition at line 46 of file subModelBase.C.

References baseName(), baseName_, coeffDict_, dict(), dict_, log, modelName_, modelType(), modelType_, properties(), and properties_.

Here is the call graph for this function:

subModelBase() [3/4]

subModelBase	(	const word &	modelName,
		dictionary &	properties,
		const dictionary &	dict,
		const word &	baseName,
		const word &	modelType )

Construct from components with name.

Definition at line 65 of file subModelBase.C.

References baseName(), baseName_, coeffDict_, dict(), dict_, log, modelName(), modelName_, modelType(), modelType_, properties(), and properties_.

Here is the call graph for this function:

subModelBase() [4/4]

subModelBase

(

const subModelBase &

smb

)

Construct as copy.

Definition at line 84 of file subModelBase.C.

References baseName_, coeffDict_, dict_, log, modelName_, modelType_, properties_, and subModelBase().

Here is the call graph for this function:

~subModelBase()

virtual ~subModelBase ( )

virtualdefault

Destructor.

References dict(), os(), and Foam::Zero.

Here is the call graph for this function:

Member Function Documentation

inLine()

bool inLine ( ) const

protected

Flag to indicate whether data is/was read in-line.

Referenced by getModelDict(), getModelProperty(), and setModelProperty().

Here is the caller graph for this function:

modelName()

const Foam::word & modelName

(

)

const

Return const access to the name of the sub-model.

Definition at line 98 of file subModelBase.C.

References modelName_.

Referenced by CellZoneInjection< CloudType >::CellZoneInjection(), PatchInteractionFields< CloudType >::clearOrReset(), CloudFunctionObject< CloudType >::CloudFunctionObject(), CloudSubModelBase< CloudType >::CloudSubModelBase(), CloudSubModelBase< Foam::CollidingCloud< Foam::DSMCCloud< dsmcParcel > > >::CloudSubModelBase(), ConeInjection< CloudType >::ConeInjection(), ConeNozzleInjection< CloudType >::ConeNozzleInjection(), CloudFunctionObject< CloudType >::declareRunTimeSelectionTable(), InjectionModel< CloudType >::declareRunTimeSelectionTable(), FaceInteraction< CloudType >::FaceInteraction(), FacePostProcessing< CloudType >::FacePostProcessing(), FieldActivatedInjection< CloudType >::FieldActivatedInjection(), filmSubModelBase::filmSubModelBase(), filmSubModelBase::filmSubModelBase(), FreezeParticles< CloudType >::FreezeParticles(), HeatTransferCoeff< CloudType >::HeatTransferCoeff(), InflationInjection< CloudType >::InflationInjection(), InjectionModel< CloudType >::info(), InjectedParticleDistributionInjection< CloudType >::InjectedParticleDistributionInjection(), InjectedParticleInjection< CloudType >::InjectedParticleInjection(), InjectionModel< CloudType >::InjectionModel(), KinematicLookupTableInjection< CloudType >::KinematicLookupTableInjection(), KinematicReynoldsNumber< CloudType >::KinematicReynoldsNumber(), KinematicWeberNumber< CloudType >::KinematicWeberNumber(), ManualInjection< CloudType >::ManualInjection(), CloudFunctionObject< CloudType >::New(), InjectionModel< CloudType >::New(), NusseltNumber< CloudType >::NusseltNumber(), HeatTransferCoeff< CloudType >::operator=(), KinematicReynoldsNumber< CloudType >::operator=(), KinematicWeberNumber< CloudType >::operator=(), NusseltNumber< CloudType >::operator=(), ParticleDose< CloudType >::operator=(), ThermoReynoldsNumber< CloudType >::operator=(), ORourkeCollision< CloudType >::ORourkeCollision(), ParticleCollector< CloudType >::ParticleCollector(), ParticleDose< CloudType >::ParticleDose(), ParticleErosion< CloudType >::ParticleErosion(), ParticleHistogram< CloudType >::ParticleHistogram(), ParticlePostProcessing< CloudType >::ParticlePostProcessing(), ParticleTracks< CloudType >::ParticleTracks(), ParticleTrap< CloudType >::ParticleTrap(), ParticleZoneInfo< CloudType >::ParticleZoneInfo(), PatchCollisionDensity< CloudType >::PatchCollisionDensity(), PatchFlowRateInjection< CloudType >::PatchFlowRateInjection(), PatchInjection< CloudType >::PatchInjection(), PatchInteractionFields< CloudType >::PatchInteractionFields(), RemoveParcels< CloudType >::postEvolve(), ReactingLookupTableInjection< CloudType >::ReactingLookupTableInjection(), ReactingMultiphaseLookupTableInjection< CloudType >::ReactingMultiphaseLookupTableInjection(), ReactingWeberNumber< CloudType >::ReactingWeberNumber(), RemoveParcels< CloudType >::RemoveParcels(), InjectionModel< Foam::KinematicCloud< Foam::DSMCCloud< dsmcParcel > > >::setNumberOfParticles(), subModelBase(), ThermoLookupTableInjection< CloudType >::ThermoLookupTableInjection(), ThermoReynoldsNumber< CloudType >::ThermoReynoldsNumber(), CellZoneInjection< CloudType >::TypeName(), ConeInjection< CloudType >::TypeName(), ConeNozzleInjection< CloudType >::TypeName(), FaceInteraction< CloudType >::TypeName(), FacePostProcessing< CloudType >::TypeName(), FieldActivatedInjection< CloudType >::TypeName(), FreezeParticles< CloudType >::TypeName(), InflationInjection< CloudType >::TypeName(), InjectedParticleDistributionInjection< CloudType >::TypeName(), InjectedParticleInjection< CloudType >::TypeName(), KinematicLookupTableInjection< CloudType >::TypeName(), ManualInjection< CloudType >::TypeName(), ORourkeCollision< CloudType >::TypeName(), ParticleCollector< CloudType >::TypeName(), ParticleErosion< CloudType >::TypeName(), ParticleHistogram< CloudType >::TypeName(), ParticlePostProcessing< CloudType >::TypeName(), ParticleTracks< CloudType >::TypeName(), ParticleTrap< CloudType >::TypeName(), ParticleZoneInfo< CloudType >::TypeName(), PatchCollisionDensity< CloudType >::TypeName(), PatchFlowRateInjection< CloudType >::TypeName(), PatchInjection< CloudType >::TypeName(), PatchInteractionFields< CloudType >::TypeName(), ReactingLookupTableInjection< CloudType >::TypeName(), ReactingMultiphaseLookupTableInjection< CloudType >::TypeName(), ReactingWeberNumber< CloudType >::TypeName(), RemoveParcels< CloudType >::TypeName(), ThermoLookupTableInjection< CloudType >::TypeName(), VoidFraction< CloudType >::TypeName(), VoidFraction< CloudType >::VoidFraction(), CloudFunctionObject< CloudType >::~CloudFunctionObject(), and InjectionModel< CloudType >::~InjectionModel().

dict()

const Foam::dictionary & dict

(

)

const

Return const access to the cloud dictionary.

Definition at line 104 of file subModelBase.C.

References dict_.

Referenced by ArrheniusViscosity::ArrheniusViscosity(), AtomizationModel< CloudType >::AtomizationModel(), BlobsSheetAtomization< CloudType >::BlobsSheetAtomization(), BreakupModel< CloudType >::BreakupModel(), BrunDrippingInjection::BrunDrippingInjection(), BrunDrippingInjection::BrunDrippingInjection(), CellZoneInjection< CloudType >::CellZoneInjection(), AtomizationModel< CloudType >::clone(), BreakupModel< CloudType >::clone(), CollisionModel< CloudType >::clone(), CompositionModel< CloudType >::clone(), DampingModel< CloudType >::clone(), DevolatilisationModel< CloudType >::clone(), DispersionModel< CloudType >::clone(), IsotropyModel< CloudType >::clone(), PackingModel< CloudType >::clone(), StochasticCollisionModel< CloudType >::clone(), CloudFunctionObject< CloudType >::CloudFunctionObject(), CloudSubModelBase< CloudType >::CloudSubModelBase(), CloudSubModelBase< CloudType >::CloudSubModelBase(), CloudSubModelBase< Foam::CollidingCloud< Foam::DSMCCloud< dsmcParcel > > >::CloudSubModelBase(), CollisionModel< CloudType >::CollisionModel(), CompositionModel< CloudType >::CompositionModel(), ConeInjection< CloudType >::ConeInjection(), ConeNozzleInjection< CloudType >::ConeNozzleInjection(), constantFilmThermo::constantFilmThermo(), constantHeatTransfer::constantHeatTransfer(), constantRadiation::constantRadiation(), ConstantRateDevolatilisation< CloudType >::ConstantRateDevolatilisation(), constantViscosity::constantViscosity(), contactAngleForce::contactAngleForce(), contactAngleForce::contactAngleForce(), COxidationDiffusionLimitedRate< CloudType >::COxidationDiffusionLimitedRate(), COxidationHurtMitchell< CloudType >::COxidationHurtMitchell(), COxidationIntrinsicRate< CloudType >::COxidationIntrinsicRate(), COxidationKineticDiffusionLimitedRate< CloudType >::COxidationKineticDiffusionLimitedRate(), COxidationMurphyShaddix< CloudType >::COxidationMurphyShaddix(), curvatureSeparation::curvatureSeparation(), DampingModel< CloudType >::DampingModel(), AtomizationModel< CloudType >::declareRunTimeSelectionTable(), BreakupModel< CloudType >::declareRunTimeSelectionTable(), CloudFunctionObject< CloudType >::declareRunTimeSelectionTable(), CollisionModel< CloudType >::declareRunTimeSelectionTable(), CompositionModel< CloudType >::declareRunTimeSelectionTable(), DampingModel< CloudType >::declareRunTimeSelectionTable(), DevolatilisationModel< CloudType >::declareRunTimeSelectionTable(), DispersionModel< CloudType >::declareRunTimeSelectionTable(), HeatTransferModel< CloudType >::declareRunTimeSelectionTable(), HeterogeneousReactingModel< CloudType >::declareRunTimeSelectionTable(), InjectionModel< CloudType >::declareRunTimeSelectionTable(), IsotropyModel< CloudType >::declareRunTimeSelectionTable(), PackingModel< CloudType >::declareRunTimeSelectionTable(), PatchInteractionModel< CloudType >::declareRunTimeSelectionTable(), PhaseChangeModel< CloudType >::declareRunTimeSelectionTable(), force::declareRunTimeSelectionTable(), injectionModel::declareRunTimeSelectionTable(), filmRadiationModel::declareRunTimeSelectionTable(), filmThermoModel::declareRunTimeSelectionTable(), filmTurbulenceModel::declareRunTimeSelectionTable(), filmViscosityModel::declareRunTimeSelectionTable(), force::declareRunTimeSelectionTable(), heatTransferModel::declareRunTimeSelectionTable(), injectionModel::declareRunTimeSelectionTable(), phaseChangeModel::declareRunTimeSelectionTable(), transferModel::declareRunTimeSelectionTable(), StochasticCollisionModel< CloudType >::declareRunTimeSelectionTable(), SurfaceFilmModel< CloudType >::declareRunTimeSelectionTable(), SurfaceReactionModel< CloudType >::declareRunTimeSelectionTable(), DevolatilisationModel< CloudType >::DevolatilisationModel(), DispersionModel< CloudType >::DispersionModel(), distributionContactAngleForce::distributionContactAngleForce(), drippingInjection::drippingInjection(), dynamicContactAngleForce::dynamicContactAngleForce(), ETAB< CloudType >::ETAB(), Explicit< CloudType >::Explicit(), FaceInteraction< CloudType >::FaceInteraction(), FacePostProcessing< CloudType >::FacePostProcessing(), FieldActivatedInjection< CloudType >::FieldActivatedInjection(), filmRadiationModel::filmRadiationModel(), filmSeparation::filmSeparation(), filmSubModelBase::filmSubModelBase(), filmSubModelBase::filmSubModelBase(), filmSubModelBase::filmSubModelBase(), filmSubModelBase::filmSubModelBase(), filmThermoModel::filmThermoModel(), filmTurbulenceModel::filmTurbulenceModel(), filmViscosityModel::filmViscosityModel(), force::force(), force::force(), FreezeParticles< CloudType >::FreezeParticles(), function1Viscosity::function1Viscosity(), getModelDict(), HeatTransferCoeff< CloudType >::HeatTransferCoeff(), HeatTransferModel< CloudType >::HeatTransferModel(), heatTransferModel::heatTransferModel(), HeterogeneousReactingModel< CloudType >::HeterogeneousReactingModel(), Implicit< CloudType >::Implicit(), InflationInjection< CloudType >::InflationInjection(), InjectedParticleDistributionInjection< CloudType >::info(), liquidFilmThermo::initLiquid(), InjectedParticleDistributionInjection< CloudType >::InjectedParticleDistributionInjection(), InjectedParticleInjection< CloudType >::InjectedParticleInjection(), InjectionModel< CloudType >::InjectionModel(), injectionModel::injectionModel(), injectionModel::injectionModel(), injectionModelList::injectionModelList(), injectionModelList::injectionModelList(), IsotropyModel< CloudType >::IsotropyModel(), KinematicLookupTableInjection< CloudType >::KinematicLookupTableInjection(), KinematicReynoldsNumber< CloudType >::KinematicReynoldsNumber(), KinematicSurfaceFilm< CloudType >::KinematicSurfaceFilm(), KinematicWeberNumber< CloudType >::KinematicWeberNumber(), laminar::laminar(), LiquidEvapFuchsKnudsen< CloudType >::LiquidEvapFuchsKnudsen(), LiquidEvaporation< CloudType >::LiquidEvaporation(), LiquidEvaporationBoil< CloudType >::LiquidEvaporationBoil(), liquidFilmThermo::liquidFilmThermo(), liquidViscosity::liquidViscosity(), LISAAtomization< CloudType >::LISAAtomization(), LocalInteraction< CloudType >::LocalInteraction(), ManualInjection< CloudType >::ManualInjection(), mappedConvectiveHeatTransfer::mappedConvectiveHeatTransfer(), MUCSheterogeneousRate< CloudType >::MUCSheterogeneousRate(), MultiInteraction< CloudType >::MultiInteraction(), AtomizationModel< CloudType >::New(), BreakupModel< CloudType >::New(), CloudFunctionObject< CloudType >::New(), CollisionModel< CloudType >::New(), CompositionModel< CloudType >::New(), DampingModel< CloudType >::New(), DevolatilisationModel< CloudType >::New(), DispersionModel< CloudType >::New(), HeatTransferModel< CloudType >::New(), HeterogeneousReactingModel< CloudType >::New(), InjectionModel< CloudType >::New(), InjectionModel< CloudType >::New(), IsotropyModel< CloudType >::New(), PackingModel< CloudType >::New(), PatchInteractionModel< CloudType >::New(), PhaseChangeModel< CloudType >::New(), force::New(), injectionModel::New(), filmRadiationModel::New(), filmThermoModel::New(), filmTurbulenceModel::New(), filmViscosityModel::New(), force::New(), heatTransferModel::New(), injectionModel::New(), phaseChangeModel::New(), transferModel::New(), StochasticCollisionModel< CloudType >::New(), SurfaceFilmModel< CloudType >::New(), SurfaceReactionModel< CloudType >::New(), NoAtomization< CloudType >::NoAtomization(), NoCollision< CloudType >::NoCollision(), NoDamping< CloudType >::NoDamping(), NoIsotropy< CloudType >::NoIsotropy(), NoPacking< CloudType >::NoPacking(), noRadiation::noRadiation(), NoStochasticCollision< CloudType >::NoStochasticCollision(), NusseltNumber< CloudType >::NusseltNumber(), HeatTransferCoeff< CloudType >::operator=(), HeatTransferModel< CloudType >::operator=(), KinematicReynoldsNumber< CloudType >::operator=(), KinematicWeberNumber< CloudType >::operator=(), NusseltNumber< CloudType >::operator=(), ParticleDose< CloudType >::operator=(), RanzMarshall< CloudType >::operator=(), ThermoReynoldsNumber< CloudType >::operator=(), ORourkeCollision< CloudType >::ORourkeCollision(), PackingModel< CloudType >::PackingModel(), PairCollision< CloudType >::PairCollision(), ParticleCollector< CloudType >::ParticleCollector(), ParticleDose< CloudType >::ParticleDose(), ParticleErosion< CloudType >::ParticleErosion(), ParticleHistogram< CloudType >::ParticleHistogram(), ParticlePostProcessing< CloudType >::ParticlePostProcessing(), ParticleTracks< CloudType >::ParticleTracks(), ParticleTrap< CloudType >::ParticleTrap(), ParticleZoneInfo< CloudType >::ParticleZoneInfo(), PatchCollisionDensity< CloudType >::PatchCollisionDensity(), PatchFlowRateInjection< CloudType >::PatchFlowRateInjection(), PatchInjection< CloudType >::PatchInjection(), patchInjection::patchInjection(), PatchInteractionFields< CloudType >::PatchInteractionFields(), PatchInteractionModel< CloudType >::PatchInteractionModel(), PatchInteractionModel< Foam::KinematicCloud< Foam::DSMCCloud< dsmcParcel > > >::PatchInteractionModel(), perturbedTemperatureDependentContactAngleForce::perturbedTemperatureDependentContactAngleForce(), PhaseChangeModel< CloudType >::PhaseChangeModel(), phaseChangeModel::phaseChangeModel(), PilchErdman< CloudType >::PilchErdman(), primaryRadiation::primaryRadiation(), RanzMarshall< CloudType >::RanzMarshall(), ReactingLookupTableInjection< CloudType >::ReactingLookupTableInjection(), ReactingMultiphaseLookupTableInjection< CloudType >::ReactingMultiphaseLookupTableInjection(), ReactingWeberNumber< CloudType >::ReactingWeberNumber(), Rebound< CloudType >::Rebound(), RecycleInteraction< CloudType >::RecycleInteraction(), ReitzDiwakar< CloudType >::ReitzDiwakar(), ReitzKHRT< CloudType >::ReitzKHRT(), Relaxation< CloudType >::Relaxation(), RemoveParcels< CloudType >::RemoveParcels(), SHF< CloudType >::SHF(), SingleKineticRateDevolatilisation< CloudType >::SingleKineticRateDevolatilisation(), SingleMixtureFraction< CloudType >::SingleMixtureFraction(), SinglePhaseMixture< CloudType >::SinglePhaseMixture(), solidification::solidification(), standardPhaseChange::standardPhaseChange(), standardRadiation::standardRadiation(), StandardWallInteraction< CloudType >::StandardWallInteraction(), Stochastic< CloudType >::Stochastic(), StochasticCollisionModel< CloudType >::StochasticCollisionModel(), subModelBase(), subModelBase(), SuppressionCollision< CloudType >::SuppressionCollision(), SurfaceFilmModel< CloudType >::SurfaceFilmModel(), SurfaceReactionModel< CloudType >::SurfaceReactionModel(), TAB< CloudType >::TAB(), temperatureDependentContactAngleForce::temperatureDependentContactAngleForce(), thermocapillaryForce::thermocapillaryForce(), ThermoLookupTableInjection< CloudType >::ThermoLookupTableInjection(), ThermoReynoldsNumber< CloudType >::ThermoReynoldsNumber(), thixotropicViscosity::thixotropicViscosity(), transferModel::transferModel(), transferModelList::transferModelList(), BlobsSheetAtomization< CloudType >::TypeName(), CellZoneInjection< CloudType >::TypeName(), ConeInjection< CloudType >::TypeName(), ConeNozzleInjection< CloudType >::TypeName(), ConstantRateDevolatilisation< CloudType >::TypeName(), COxidationDiffusionLimitedRate< CloudType >::TypeName(), COxidationHurtMitchell< CloudType >::TypeName(), COxidationIntrinsicRate< CloudType >::TypeName(), COxidationKineticDiffusionLimitedRate< CloudType >::TypeName(), COxidationMurphyShaddix< CloudType >::TypeName(), NoDamping< CloudType >::TypeName(), Relaxation< CloudType >::TypeName(), DispersionRASModel< CloudType >::TypeName(), FaceInteraction< CloudType >::TypeName(), FacePostProcessing< CloudType >::TypeName(), FieldActivatedInjection< CloudType >::TypeName(), FreezeParticles< CloudType >::TypeName(), InflationInjection< CloudType >::TypeName(), InjectedParticleDistributionInjection< CloudType >::TypeName(), InjectedParticleInjection< CloudType >::TypeName(), NoIsotropy< CloudType >::TypeName(), Stochastic< CloudType >::TypeName(), KinematicLookupTableInjection< CloudType >::TypeName(), KinematicSurfaceFilm< CloudType >::TypeName(), LiquidEvapFuchsKnudsen< CloudType >::TypeName(), LiquidEvaporation< CloudType >::TypeName(), LiquidEvaporationBoil< CloudType >::TypeName(), LocalInteraction< CloudType >::TypeName(), ManualInjection< CloudType >::TypeName(), MUCSheterogeneousRate< CloudType >::TypeName(), MultiInteraction< CloudType >::TypeName(), NoAtomization< CloudType >::TypeName(), NoCollision< CloudType >::TypeName(), NoComposition< CloudType >::TypeName(), NoDispersion< CloudType >::TypeName(), NoheterogeneousReacting< CloudType >::TypeName(), NoInteraction< CloudType >::TypeName(), NoStochasticCollision< CloudType >::TypeName(), NoSurfaceReaction< CloudType >::TypeName(), ORourkeCollision< CloudType >::TypeName(), Explicit< CloudType >::TypeName(), Implicit< CloudType >::TypeName(), NoPacking< CloudType >::TypeName(), PairCollision< CloudType >::TypeName(), ParticleCollector< CloudType >::TypeName(), ParticleErosion< CloudType >::TypeName(), ParticleHistogram< CloudType >::TypeName(), ParticlePostProcessing< CloudType >::TypeName(), ParticleTracks< CloudType >::TypeName(), ParticleTrap< CloudType >::TypeName(), ParticleZoneInfo< CloudType >::TypeName(), PatchCollisionDensity< CloudType >::TypeName(), PatchFlowRateInjection< CloudType >::TypeName(), PatchInjection< CloudType >::TypeName(), PatchInteractionFields< CloudType >::TypeName(), ReactingLookupTableInjection< CloudType >::TypeName(), ReactingMultiphaseLookupTableInjection< CloudType >::TypeName(), ReactingWeberNumber< CloudType >::TypeName(), Rebound< CloudType >::TypeName(), RecycleInteraction< CloudType >::TypeName(), BrunDrippingInjection::TypeName(), contactAngleForce::TypeName(), dynamicContactAngleForce::TypeName(), filmSeparation::TypeName(), ArrheniusViscosity::TypeName(), constantFilmThermo::TypeName(), constantHeatTransfer::TypeName(), constantRadiation::TypeName(), constantViscosity::TypeName(), curvatureSeparation::TypeName(), distributionContactAngleForce::TypeName(), drippingInjection::TypeName(), function1Viscosity::TypeName(), laminar::TypeName(), liquidFilmThermo::TypeName(), liquidViscosity::TypeName(), mappedConvectiveHeatTransfer::TypeName(), noPhaseChange::TypeName(), noRadiation::TypeName(), patchInjection::TypeName(), perturbedTemperatureDependentContactAngleForce::TypeName(), primaryRadiation::TypeName(), solidification::TypeName(), standardPhaseChange::TypeName(), standardRadiation::TypeName(), temperatureDependentContactAngleForce::TypeName(), thermocapillaryForce::TypeName(), thixotropicViscosity::TypeName(), waxSolventEvaporation::TypeName(), waxSolventViscosity::TypeName(), RemoveParcels< CloudType >::TypeName(), SingleKineticRateDevolatilisation< CloudType >::TypeName(), SingleMixtureFraction< CloudType >::TypeName(), SinglePhaseMixture< CloudType >::TypeName(), StandardWallInteraction< CloudType >::TypeName(), SuppressionCollision< CloudType >::TypeName(), TAB< CloudType >::TypeName(), ThermoLookupTableInjection< CloudType >::TypeName(), VoidFraction< CloudType >::TypeName(), VoFPatchTransfer::VoFPatchTransfer(), VoidFraction< CloudType >::VoidFraction(), waxSolventEvaporation::waxSolventEvaporation(), waxSolventViscosity::waxSolventViscosity(), CloudFunctionObject< CloudType >::~CloudFunctionObject(), HeatTransferModel< CloudType >::~HeatTransferModel(), HeterogeneousReactingModel< CloudType >::~HeterogeneousReactingModel(), InjectionModel< CloudType >::~InjectionModel(), PatchInteractionModel< CloudType >::~PatchInteractionModel(), PhaseChangeModel< CloudType >::~PhaseChangeModel(), ~subModelBase(), SurfaceFilmModel< CloudType >::~SurfaceFilmModel(), and SurfaceReactionModel< CloudType >::~SurfaceReactionModel().

baseName()

const Foam::word & baseName

(

)

const

Return const access to the base name of the sub-model.

Definition at line 110 of file subModelBase.C.

References baseName_.

Referenced by CloudSubModelBase< CloudType >::CloudSubModelBase(), CloudSubModelBase< CloudType >::CloudSubModelBase(), CloudSubModelBase< Foam::CollidingCloud< Foam::DSMCCloud< dsmcParcel > > >::CloudSubModelBase(), filmSubModelBase::filmSubModelBase(), filmSubModelBase::filmSubModelBase(), filmSubModelBase::filmSubModelBase(), filmSubModelBase::filmSubModelBase(), subModelBase(), and subModelBase().

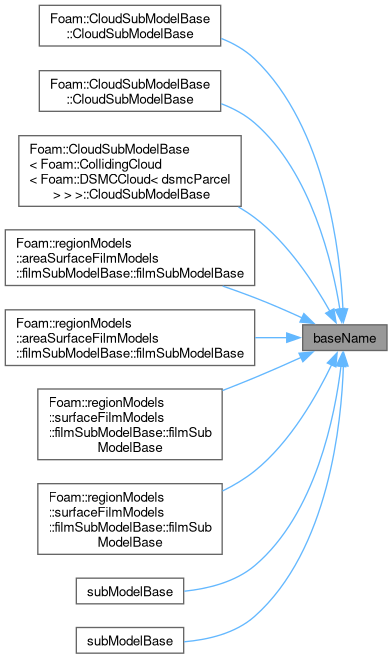

Here is the caller graph for this function:

modelType()

const Foam::word & modelType

(

)

const

Return const access to the sub-model type.

Definition at line 116 of file subModelBase.C.

References modelType_.

Referenced by CloudSubModelBase< CloudType >::CloudSubModelBase(), CloudSubModelBase< Foam::CollidingCloud< Foam::DSMCCloud< dsmcParcel > > >::CloudSubModelBase(), InjectionModel< CloudType >::declareRunTimeSelectionTable(), force::declareRunTimeSelectionTable(), injectionModel::declareRunTimeSelectionTable(), filmRadiationModel::declareRunTimeSelectionTable(), filmThermoModel::declareRunTimeSelectionTable(), filmTurbulenceModel::declareRunTimeSelectionTable(), filmViscosityModel::declareRunTimeSelectionTable(), force::declareRunTimeSelectionTable(), heatTransferModel::declareRunTimeSelectionTable(), injectionModel::declareRunTimeSelectionTable(), phaseChangeModel::declareRunTimeSelectionTable(), transferModel::declareRunTimeSelectionTable(), filmRadiationModel::filmRadiationModel(), filmSubModelBase::filmSubModelBase(), filmSubModelBase::filmSubModelBase(), filmSubModelBase::filmSubModelBase(), filmSubModelBase::filmSubModelBase(), filmThermoModel::filmThermoModel(), filmTurbulenceModel::filmTurbulenceModel(), filmSubModelBase::filmType(), filmViscosityModel::filmViscosityModel(), force::force(), force::force(), heatTransferModel::heatTransferModel(), InjectionModel< CloudType >::InjectionModel(), injectionModel::injectionModel(), injectionModel::injectionModel(), AtomizationModel< CloudType >::New(), BreakupModel< CloudType >::New(), CollisionModel< CloudType >::New(), CompositionModel< CloudType >::New(), DampingModel< CloudType >::New(), DevolatilisationModel< CloudType >::New(), DispersionModel< CloudType >::New(), HeatTransferModel< CloudType >::New(), HeterogeneousReactingModel< CloudType >::New(), InjectionModel< CloudType >::New(), InjectionModel< CloudType >::New(), IsotropyModel< CloudType >::New(), PackingModel< CloudType >::New(), PatchInteractionModel< CloudType >::New(), PhaseChangeModel< CloudType >::New(), force::New(), injectionModel::New(), filmRadiationModel::New(), filmThermoModel::New(), filmTurbulenceModel::New(), filmViscosityModel::New(), force::New(), heatTransferModel::New(), injectionModel::New(), phaseChangeModel::New(), transferModel::New(), StochasticCollisionModel< CloudType >::New(), SurfaceFilmModel< CloudType >::New(), SurfaceReactionModel< CloudType >::New(), phaseChangeModel::phaseChangeModel(), subModelBase(), subModelBase(), transferModel::transferModel(), PatchInteractionModel< CloudType >::writeFileHeader(), and InjectionModel< CloudType >::~InjectionModel().

coeffDict()

const Foam::dictionary & coeffDict

(

)

const

Return const access to the coefficients dictionary.

Definition at line 122 of file subModelBase.C.

References coeffDict_.

Referenced by LiquidEvapFuchsKnudsen< CloudType >::activityCoeff(), BlobsSheetAtomization< CloudType >::BlobsSheetAtomization(), BreakupModel< CloudType >::BreakupModel(), CellZoneInjection< CloudType >::CellZoneInjection(), CompositionModel< CloudType >::CompositionModel(), ConeInjection< CloudType >::ConeInjection(), ConeNozzleInjection< CloudType >::ConeNozzleInjection(), ConstantRateDevolatilisation< CloudType >::ConstantRateDevolatilisation(), COxidationDiffusionLimitedRate< CloudType >::COxidationDiffusionLimitedRate(), COxidationHurtMitchell< CloudType >::COxidationHurtMitchell(), COxidationIntrinsicRate< CloudType >::COxidationIntrinsicRate(), COxidationKineticDiffusionLimitedRate< CloudType >::COxidationKineticDiffusionLimitedRate(), COxidationMurphyShaddix< CloudType >::COxidationMurphyShaddix(), DampingModel< CloudType >::DampingModel(), ETAB< CloudType >::ETAB(), Explicit< CloudType >::Explicit(), FaceInteraction< CloudType >::FaceInteraction(), FacePostProcessing< CloudType >::FacePostProcessing(), FieldActivatedInjection< CloudType >::FieldActivatedInjection(), HeatTransferModel< CloudType >::HeatTransferModel(), HeterogeneousReactingModel< CloudType >::HeterogeneousReactingModel(), Implicit< CloudType >::Implicit(), InflationInjection< CloudType >::InflationInjection(), KinematicSurfaceFilm< CloudType >::init(), InjectedParticleDistributionInjection< CloudType >::InjectedParticleDistributionInjection(), InjectedParticleInjection< CloudType >::InjectedParticleInjection(), InjectionModel< CloudType >::InjectionModel(), IsotropyModel< CloudType >::IsotropyModel(), KinematicLookupTableInjection< CloudType >::KinematicLookupTableInjection(), KinematicSurfaceFilm< CloudType >::KinematicSurfaceFilm(), LiquidEvapFuchsKnudsen< CloudType >::LiquidEvapFuchsKnudsen(), LiquidEvaporation< CloudType >::LiquidEvaporation(), LiquidEvaporationBoil< CloudType >::LiquidEvaporationBoil(), LISAAtomization< CloudType >::LISAAtomization(), LocalInteraction< CloudType >::LocalInteraction(), ManualInjection< CloudType >::ManualInjection(), MUCSheterogeneousRate< CloudType >::MUCSheterogeneousRate(), MultiInteraction< CloudType >::MultiInteraction(), ORourkeCollision< CloudType >::ORourkeCollision(), PackingModel< CloudType >::PackingModel(), PairCollision< CloudType >::PairCollision(), ParticleCollector< CloudType >::ParticleCollector(), ParticleDose< CloudType >::ParticleDose(), ParticleErosion< CloudType >::ParticleErosion(), ParticleHistogram< CloudType >::ParticleHistogram(), ParticlePostProcessing< CloudType >::ParticlePostProcessing(), ParticleTracks< CloudType >::ParticleTracks(), ParticleTrap< CloudType >::ParticleTrap(), ParticleZoneInfo< CloudType >::ParticleZoneInfo(), PatchFlowRateInjection< CloudType >::PatchFlowRateInjection(), PatchInjection< CloudType >::PatchInjection(), PatchInteractionFields< CloudType >::PatchInteractionFields(), PatchInteractionModel< Foam::KinematicCloud< Foam::DSMCCloud< dsmcParcel > > >::PatchInteractionModel(), PhaseChangeModel< CloudType >::PhaseChangeModel(), PilchErdman< CloudType >::PilchErdman(), RanzMarshall< CloudType >::RanzMarshall(), ReactingLookupTableInjection< CloudType >::ReactingLookupTableInjection(), ReactingMultiphaseLookupTableInjection< CloudType >::ReactingMultiphaseLookupTableInjection(), Rebound< CloudType >::Rebound(), RecycleInteraction< CloudType >::RecycleInteraction(), ReitzDiwakar< CloudType >::ReitzDiwakar(), ReitzKHRT< CloudType >::ReitzKHRT(), RemoveParcels< CloudType >::RemoveParcels(), SHF< CloudType >::SHF(), SingleKineticRateDevolatilisation< CloudType >::SingleKineticRateDevolatilisation(), SingleMixtureFraction< CloudType >::SingleMixtureFraction(), StandardWallInteraction< CloudType >::StandardWallInteraction(), SuppressionCollision< CloudType >::SuppressionCollision(), SurfaceFilmModel< CloudType >::SurfaceFilmModel(), TAB< CloudType >::TAB(), ThermoLookupTableInjection< CloudType >::ThermoLookupTableInjection(), TrajectoryCollision< CloudType >::TrajectoryCollision(), FacePostProcessing< CloudType >::write(), and ParticleCollector< CloudType >::write().

properties()

const Foam::dictionary & properties

(

)

const

Return const access to the properties dictionary.

Definition at line 128 of file subModelBase.C.

References properties_.

Referenced by CompositionModel< Foam::ReactingCloud< Foam::DSMCCloud< dsmcParcel > > >::Hc(), CompositionModel< Foam::ReactingCloud< Foam::DSMCCloud< dsmcParcel > > >::rho(), subModelBase(), subModelBase(), and subModelBase().

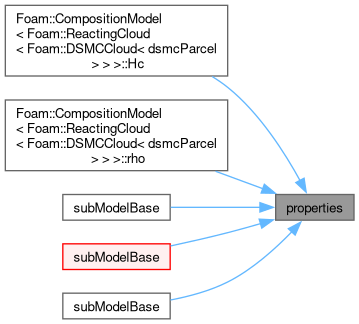

Here is the caller graph for this function:

defaultCoeffs()

bool defaultCoeffs ( const bool printMsg ) const

virtual

Returns true if defaultCoeffs is true and outputs on printMsg.

Definition at line 134 of file subModelBase.C.

References coeffDict_, Foam::decrIndent(), Foam::endl(), Foam::incrIndent(), Foam::indent(), and Foam::Info.

Referenced by ETAB< CloudType >::ETAB(), PilchErdman< CloudType >::PilchErdman(), ReitzDiwakar< CloudType >::ReitzDiwakar(), and ReitzKHRT< CloudType >::ReitzKHRT().

Here is the call graph for this function:

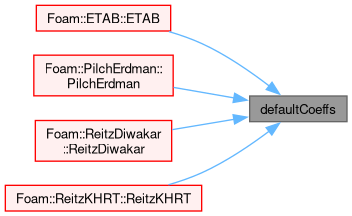

Here is the caller graph for this function:

active()

bool active ( ) const

virtual

Return the model 'active' status - default active = true.

Reimplemented in NoDamping< CloudType >, NoIsotropy< CloudType >, MultiInteraction< CloudType >, NoAtomization< CloudType >, NoBreakup< CloudType >, NoCollision< CloudType >, NoDevolatilisation< CloudType >, NoDispersion< CloudType >, NoHeatTransfer< CloudType >, NoheterogeneousReacting< CloudType >, NoInjection< CloudType >, NoInteraction< CloudType >, NoPhaseChange< CloudType >, NoStochasticCollision< CloudType >, NoSurfaceFilm< CloudType >, NoSurfaceReaction< CloudType >, NoPacking< CloudType >, and noPhaseChange.

Definition at line 149 of file subModelBase.C.

Referenced by phaseChangeModel::correct(), InjectionModel< CloudType >::inject(), SurfaceFilmModel< CloudType >::inject(), InjectionModel< CloudType >::injectSteadyState(), CloudSubModelBase< Foam::CollidingCloud< Foam::DSMCCloud< dsmcParcel > > >::owner(), StochasticCollisionModel< CloudType >::update(), filmSubModelBase::writeTime(), and writeTime().

Here is the caller graph for this function:

cacheFields()

void cacheFields ( const bool store )

virtual

Cache dependent sub-model fields.

Reimplemented in Relaxation< CloudType >, DispersionRASModel< CloudType >, GradientDispersionRAS< CloudType >, Explicit< CloudType >, and Implicit< CloudType >.

Definition at line 155 of file subModelBase.C.

Referenced by Explicit< CloudType >::cacheFields(), and Implicit< CloudType >::cacheFields().

Here is the caller graph for this function:

writeTime()

bool writeTime ( ) const

virtual

Flag to indicate when to write a property.

Reimplemented in CloudSubModelBase< CloudType >, CloudSubModelBase< Foam::CollidingCloud< Foam::DSMCCloud< dsmcParcel > > >, CloudSubModelBase< Foam::DSMCCloud< dsmcParcel > >, CloudSubModelBase< Foam::KinematicCloud< Foam::DSMCCloud< dsmcParcel > > >, CloudSubModelBase< Foam::MPPICCloud< Foam::DSMCCloud< dsmcParcel > > >, CloudSubModelBase< Foam::ReactingCloud< Foam::DSMCCloud< dsmcParcel > > >, CloudSubModelBase< Foam::ReactingHeterogeneousCloud< Foam::DSMCCloud< dsmcParcel > > >, CloudSubModelBase< Foam::ReactingMultiphaseCloud< Foam::DSMCCloud< dsmcParcel > > >, CloudSubModelBase< Foam::SprayCloud< Foam::DSMCCloud< dsmcParcel > > >, CloudSubModelBase< Foam::ThermoCloud< Foam::DSMCCloud< dsmcParcel > > >, CloudSubModelBase< KinematicCloud< Foam::DSMCCloud< dsmcParcel > > >, filmSubModelBase, and filmSubModelBase.

Definition at line 159 of file subModelBase.C.

References active().

Here is the call graph for this function:

localPath()

Foam::fileName localPath ( ) const

virtual

Output directory.

Reimplemented in CloudSubModelBase< CloudType >, CloudSubModelBase< Foam::CollidingCloud< Foam::DSMCCloud< dsmcParcel > > >, CloudSubModelBase< Foam::DSMCCloud< dsmcParcel > >, CloudSubModelBase< Foam::KinematicCloud< Foam::DSMCCloud< dsmcParcel > > >, CloudSubModelBase< Foam::MPPICCloud< Foam::DSMCCloud< dsmcParcel > > >, CloudSubModelBase< Foam::ReactingCloud< Foam::DSMCCloud< dsmcParcel > > >, CloudSubModelBase< Foam::ReactingHeterogeneousCloud< Foam::DSMCCloud< dsmcParcel > > >, CloudSubModelBase< Foam::ReactingMultiphaseCloud< Foam::DSMCCloud< dsmcParcel > > >, CloudSubModelBase< Foam::SprayCloud< Foam::DSMCCloud< dsmcParcel > > >, CloudSubModelBase< Foam::ThermoCloud< Foam::DSMCCloud< dsmcParcel > > >, and CloudSubModelBase< KinematicCloud< Foam::DSMCCloud< dsmcParcel > > >.

Definition at line 165 of file subModelBase.C.

References baseName_, and modelName_.

getBaseProperty() [1/2]

template<class Type>

Type getBaseProperty	(	const word &	entryName,
		const Type &	defaultValue = Type(Zero) ) const

Retrieve generic property from the base model.

Definition at line 24 of file subModelBaseTemplates.C.

References baseName_, properties_, and dictionary::readIfPresent().

Referenced by DevolatilisationModel< CloudType >::info(), HeterogeneousReactingModel< CloudType >::info(), PatchInteractionModel< CloudType >::info(), PhaseChangeModel< CloudType >::info(), injectionModelList::info(), transferModelList::info(), and SurfaceReactionModel< CloudType >::info().

Here is the call graph for this function:

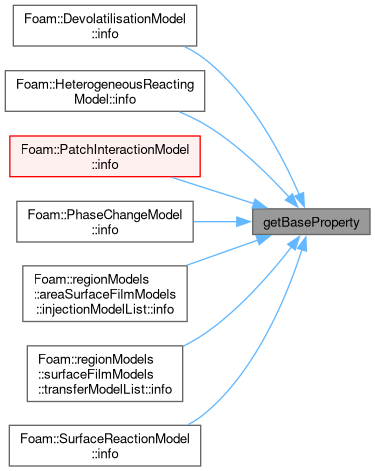

Here is the caller graph for this function:

getBaseProperty() [2/2]

template<class Type>

void getBaseProperty	(	const word &	entryName,
		Type &	value ) const

Retrieve generic property from the base model.

Definition at line 43 of file subModelBaseTemplates.C.

References baseName_, properties_, and dictionary::readIfPresent().

Here is the call graph for this function:

setBaseProperty()

template<class Type>

void setBaseProperty	(	const word &	entryName,
		const Type &	value )

Add generic property to the base model.

Definition at line 58 of file subModelBaseTemplates.C.

References dictionary::add(), baseName_, dictionary, and properties_.

Referenced by DevolatilisationModel< CloudType >::info(), HeterogeneousReactingModel< CloudType >::info(), PhaseChangeModel< CloudType >::info(), injectionModelList::info(), transferModelList::info(), and SurfaceReactionModel< CloudType >::info().

Here is the call graph for this function:

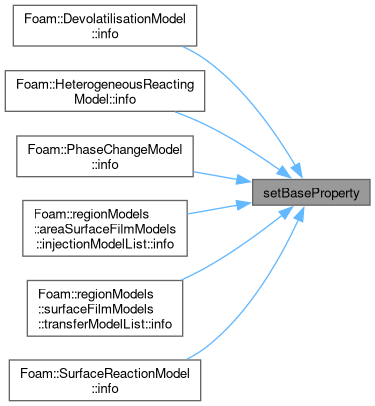

Here is the caller graph for this function:

getModelDict()

bool getModelDict	(	const word &	entryName,
		dictionary &	dict ) const

Retrieve dictionary, return true if set.

Definition at line 176 of file subModelBase.C.

References baseName_, dict(), dictionary::found(), inLine(), modelName_, modelType_, properties_, dictionary::subDict(), and dictionary::subOrEmptyDict().

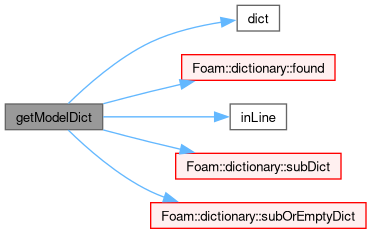

Here is the call graph for this function:

getModelProperty() [1/2]

template<class Type>

bool getModelProperty	(	const word &	entryName,
		Type &	value ) const

Retrieve generic property from the sub-model.

Return true if found

Definition at line 78 of file subModelBaseTemplates.C.

References baseName_, dictionary::found(), inLine(), modelName_, modelType_, properties_, dictionary::readIfPresent(), and dictionary::subDict().

Referenced by ConeNozzleInjection< CloudType >::ConeNozzleInjection(), injectionModel::correct(), patchInjection::correct(), phaseChangeModel::correct(), transferModel::correct(), getModelProperty(), KinematicSurfaceFilm< CloudType >::info(), LocalInteraction< CloudType >::info(), RecycleInteraction< CloudType >::info(), phaseChangeModel::info(), StandardWallInteraction< CloudType >::info(), SurfaceFilmModel< CloudType >::info(), injectionModel::injectedMassTotal(), InjectedParticleDistributionInjection< CloudType >::InjectedParticleDistributionInjection(), InjectedParticleInjection< CloudType >::InjectedParticleInjection(), InjectionModel< CloudType >::InjectionModel(), InjectionModel< CloudType >::InjectionModel(), InjectionModel< Foam::KinematicCloud< Foam::DSMCCloud< dsmcParcel > > >::InjectionModel(), ParticleZoneInfo< CloudType >::ParticleZoneInfo(), patchInjection::patchInjectedMassTotals(), RemoveParcels< CloudType >::RemoveParcels(), transferModel::transferredMassTotal(), FaceInteraction< CloudType >::write(), and ParticleCollector< CloudType >::write().

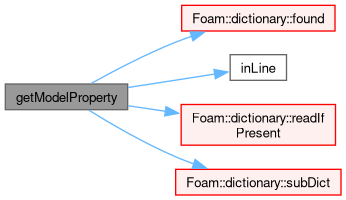

Here is the call graph for this function:

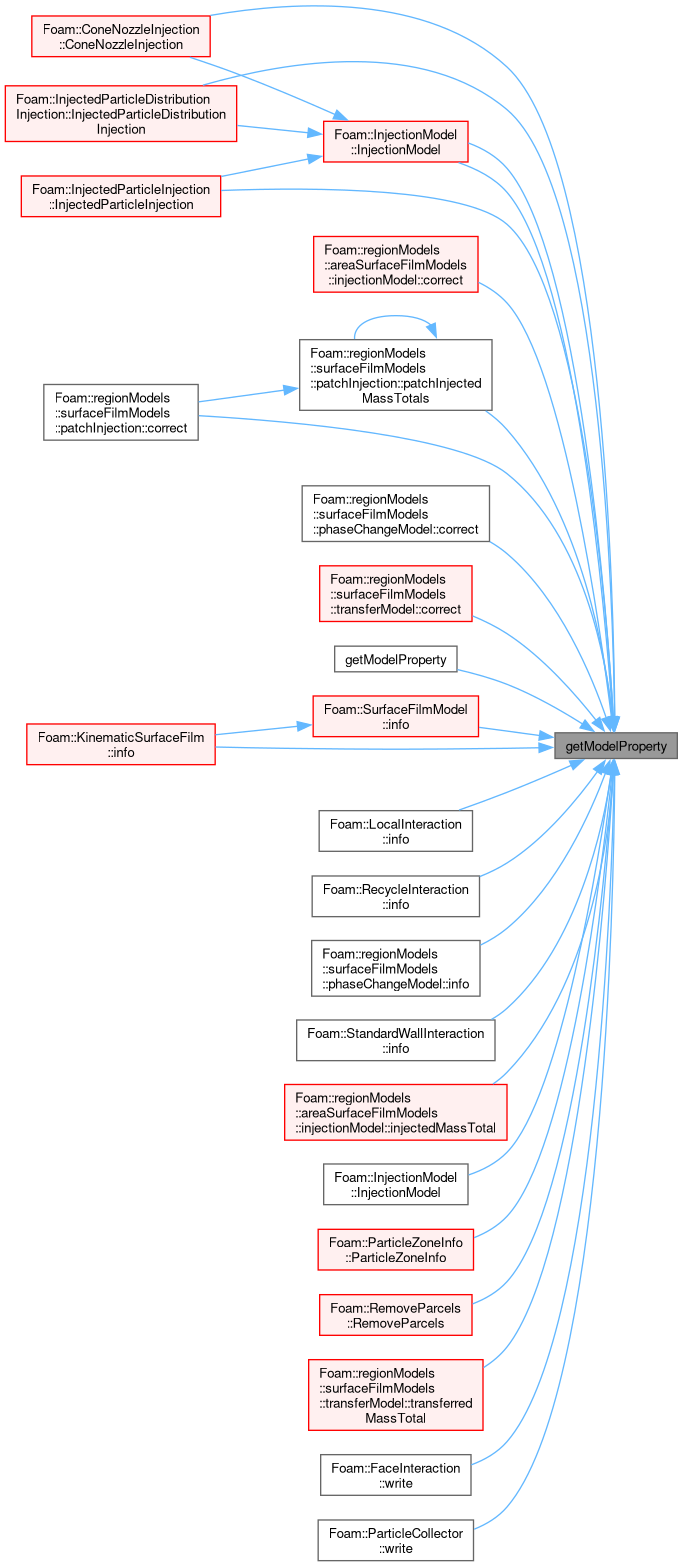

Here is the caller graph for this function:

getModelProperty() [2/2]

template<class Type>

Type getModelProperty	(	const word &	entryName,
		const Type &	defaultValue = Type(Zero) ) const

Retrieve generic property from the sub-model.

Definition at line 103 of file subModelBaseTemplates.C.

References getModelProperty().

Here is the call graph for this function:

setModelProperty()

template<class Type>

void setModelProperty	(	const word &	entryName,
		const Type &	value )

Add generic property to the sub-model.

Definition at line 116 of file subModelBaseTemplates.C.

References dictionary::add(), baseName_, dictionary, dictionary::found(), inLine(), modelName_, modelType_, properties_, and dictionary::subDict().

Referenced by injectionModel::correct(), patchInjection::correct(), phaseChangeModel::correct(), transferModel::correct(), ConeNozzleInjection< CloudType >::info(), InjectedParticleDistributionInjection< CloudType >::info(), InjectedParticleInjection< CloudType >::info(), InjectionModel< CloudType >::info(), KinematicSurfaceFilm< CloudType >::info(), LocalInteraction< CloudType >::info(), RecycleInteraction< CloudType >::info(), StandardWallInteraction< CloudType >::info(), SurfaceFilmModel< CloudType >::info(), FaceInteraction< CloudType >::write(), ParticleCollector< CloudType >::write(), ParticleZoneInfo< CloudType >::write(), and RemoveParcels< CloudType >::write().

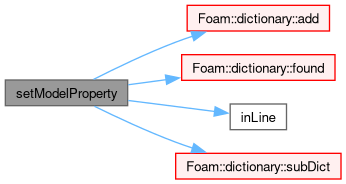

Here is the call graph for this function:

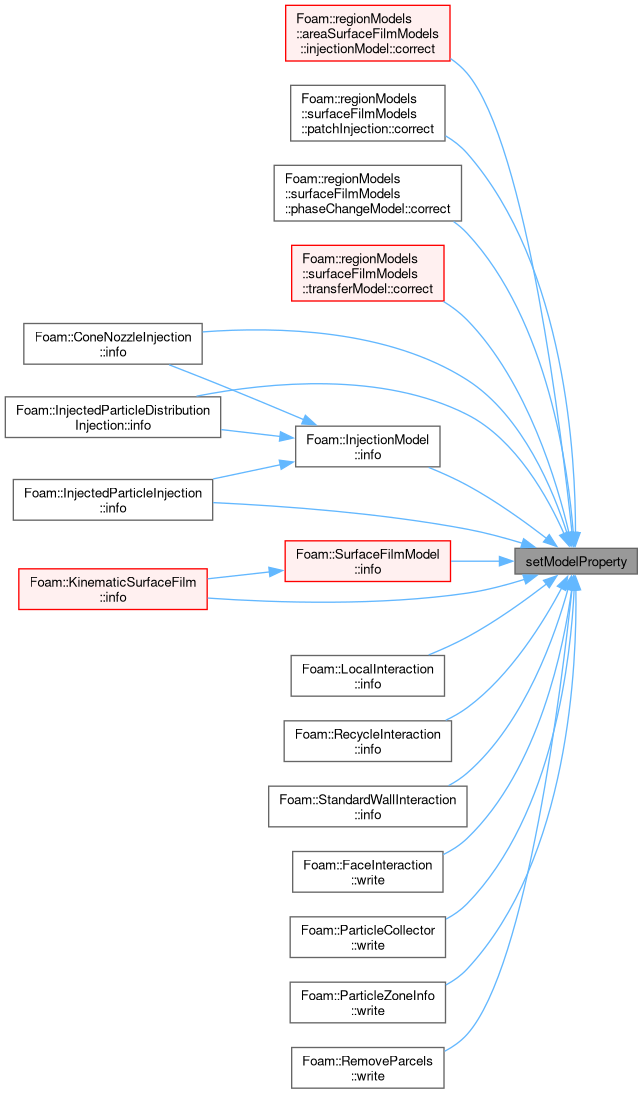

Here is the caller graph for this function:

write()

void write ( Ostream & os ) const

virtual

Write.

Reimplemented in CloudSubModelBase< CloudType >, CloudSubModelBase< Foam::CollidingCloud< Foam::DSMCCloud< dsmcParcel > > >, CloudSubModelBase< Foam::DSMCCloud< dsmcParcel > >, CloudSubModelBase< Foam::KinematicCloud< Foam::DSMCCloud< dsmcParcel > > >, CloudSubModelBase< Foam::MPPICCloud< Foam::DSMCCloud< dsmcParcel > > >, CloudSubModelBase< Foam::ReactingCloud< Foam::DSMCCloud< dsmcParcel > > >, CloudSubModelBase< Foam::ReactingHeterogeneousCloud< Foam::DSMCCloud< dsmcParcel > > >, CloudSubModelBase< Foam::ReactingMultiphaseCloud< Foam::DSMCCloud< dsmcParcel > > >, CloudSubModelBase< Foam::SprayCloud< Foam::DSMCCloud< dsmcParcel > > >, CloudSubModelBase< Foam::ThermoCloud< Foam::DSMCCloud< dsmcParcel > > >, CloudSubModelBase< KinematicCloud< Foam::DSMCCloud< dsmcParcel > > >, and DispersionRASModel< CloudType >.

Definition at line 204 of file subModelBase.C.

References coeffDict_, and os().

Referenced by CloudSubModelBase< Foam::CollidingCloud< Foam::DSMCCloud< dsmcParcel > > >::info().

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

modelName_

const word modelName_

protected

Name of the sub-model.

Definition at line 67 of file subModelBase.H.

Referenced by getModelDict(), getModelProperty(), CloudSubModelBase< CloudType >::localPath(), CloudSubModelBase< Foam::CollidingCloud< Foam::DSMCCloud< dsmcParcel > > >::localPath(), localPath(), modelName(), setModelProperty(), subModelBase(), subModelBase(), subModelBase(), and subModelBase().

properties_

dictionary& properties_

protected

Reference to properties dictionary e.g. for restart.

Definition at line 72 of file subModelBase.H.

Referenced by getBaseProperty(), getBaseProperty(), getModelDict(), getModelProperty(), properties(), setBaseProperty(), setModelProperty(), subModelBase(), subModelBase(), subModelBase(), and subModelBase().

dict_

const dictionary dict_

protected

Copy of dictionary used during construction.

Definition at line 77 of file subModelBase.H.

Referenced by dict(), subModelBase(), subModelBase(), subModelBase(), and subModelBase().

baseName_

const word baseName_

protected

Name of the sub-model base class.

Definition at line 82 of file subModelBase.H.

Referenced by baseName(), getBaseProperty(), getBaseProperty(), getModelDict(), getModelProperty(), localPath(), setBaseProperty(), setModelProperty(), subModelBase(), subModelBase(), subModelBase(), and subModelBase().

modelType_

const word modelType_

protected

Type of the sub-model.

Definition at line 87 of file subModelBase.H.

Referenced by getModelDict(), getModelProperty(), modelType(), setModelProperty(), subModelBase(), subModelBase(), subModelBase(), and subModelBase().

coeffDict_

const dictionary coeffDict_

protected

Coefficients dictionary.

Definition at line 92 of file subModelBase.H.

Referenced by ArrheniusViscosity::ArrheniusViscosity(), BrunDrippingInjection::BrunDrippingInjection(), BrunDrippingInjection::BrunDrippingInjection(), coeffDict(), constantFilmThermo::constantFilmThermo(), constantHeatTransfer::constantHeatTransfer(), constantRadiation::constantRadiation(), constantViscosity::constantViscosity(), contactAngleForce::contactAngleForce(), contactAngleForce::contactAngleForce(), constantFilmThermo::Cp(), curvatureSeparation::curvatureSeparation(), constantFilmThermo::D(), defaultCoeffs(), distributionContactAngleForce::distributionContactAngleForce(), drippingInjection::drippingInjection(), dynamicContactAngleForce::dynamicContactAngleForce(), filmSeparation::filmSeparation(), function1Viscosity::function1Viscosity(), constantFilmThermo::hl(), constantFilmThermo::kappa(), laminar::laminar(), liquidFilmThermo::liquidFilmThermo(), constantFilmThermo::mu(), patchInjection::patchInjection(), perturbedTemperatureDependentContactAngleForce::perturbedTemperatureDependentContactAngleForce(), constantFilmThermo::pv(), constantFilmThermo::rho(), constantFilmThermo::sigma(), solidification::solidification(), standardPhaseChange::standardPhaseChange(), standardRadiation::standardRadiation(), subModelBase(), subModelBase(), subModelBase(), subModelBase(), constantFilmThermo::Tb(), temperatureDependentContactAngleForce::temperatureDependentContactAngleForce(), thixotropicViscosity::thixotropicViscosity(), constantFilmThermo::W(), waxSolventEvaporation::waxSolventEvaporation(), waxSolventViscosity::waxSolventViscosity(), and write().

log

bool log

Flag to write log into Info.

Definition at line 110 of file subModelBase.H.

Referenced by CloudSubModelBase< CloudType >::CloudSubModelBase(), CloudSubModelBase< CloudType >::CloudSubModelBase(), CloudSubModelBase< CloudType >::CloudSubModelBase(), CloudSubModelBase< Foam::CollidingCloud< Foam::DSMCCloud< dsmcParcel > > >::CloudSubModelBase(), CloudSubModelBase< CloudType >::info(), subModelBase(), subModelBase(), subModelBase(), and subModelBase().

---

The documentation for this class was generated from the following files:

• src/OpenFOAM/primitives/subModelBase/subModelBase.H
• src/OpenFOAM/primitives/subModelBase/subModelBase.C
• src/OpenFOAM/primitives/subModelBase/subModelBaseTemplates.C
