fvMatrix, internal parts and dimensions only. No upper/lower/boundaryCoeffs More...

#include <fvMatrixExpression.H>

Inheritance diagram for fvMatrixInternal< E1, E2 >:

Collaboration diagram for fvMatrixInternal< E1, E2 >:

Public Types
typedef E1::value_type	value_type
	Type to return for internal field.
typedef E1	DiagExpr
	Type to return for containers.
typedef E1	UpperExpr
typedef E1	LowerExpr
typedef GeometricField< value_type, fvPatchField, volMesh >	FaceFluxExpr
typedef E2	SourceExpr

Public Member Functions
	fvMatrixInternal (const dimensionSet &dimensions, const DiagExpr &diag, const SourceExpr &source)
	fvMatrixInternal (const dimensionSet &dimensions, const DiagExpr &&diag, const SourceExpr &&source)
auto	diag () const
auto	upper () const
auto	lower () const
auto	source () const
auto	internalCoeffs (const label i) const
auto	boundaryCoeffs (const label i) const
auto	faceFluxCorrection () const
Public Member Functions inherited from fvMatrixExpression< fvMatrixInternal< E1, E2 >, E1, E1, E1, GeometricField< E1::value_type, fvPatchField, volMesh >, E2 >
	fvMatrixExpression (const bool hasDiag, const bool hasUpper, const bool hasLower, const bool hasFaceFluxCorrection, const dimensionSet &dimensions)
E1	diag () const
E1	upper () const
E1	lower () const
bool	hasDiag () const
bool	hasUpper () const
bool	hasLower () const
bool	diagonal () const
bool	symmetric () const
bool	asymmetric () const
bool	hasFaceFluxCorrection () const
E2	source ()
E1	internalCoeffs (const label i)
E1	boundaryCoeffs (const label i)
GeometricField< E1::value_type, fvPatchField, volMesh >	faceFluxCorrection () const
const dimensionSet &	dimensions () const noexcept
Matrix &	evaluate (Matrix &m) const
	Helper to evaluate (=construct) an fvMatrix.

Static Public Attributes
static constexpr bool	is_leaf = false
Static Public Attributes inherited from fvMatrixExpression< fvMatrixInternal< E1, E2 >, E1, E1, E1, GeometricField< E1::value_type, fvPatchField, volMesh >, E2 >
static constexpr bool	is_leaf

Additional Inherited Members
Protected Attributes inherited from fvMatrixExpression< fvMatrixInternal< E1, E2 >, E1, E1, E1, GeometricField< E1::value_type, fvPatchField, volMesh >, E2 >
const bool	hasDiag_
const bool	hasUpper_
const bool	hasLower_
const bool	hasFaceFluxCorrection_
dimensionSet	dimensions_

Detailed Description

template<class E1, class E2>
class Foam::Expression::fvMatrixInternal< E1, E2 >

fvMatrix, internal parts and dimensions only. No upper/lower/boundaryCoeffs

etc. Used for source manipulation.

Definition at line 1196 of file fvMatrixExpression.H.

Member Typedef Documentation

◆ value_type

template<class E1, class E2>

typedef E1::value_type value_type

Type to return for internal field.

Definition at line 1215 of file fvMatrixExpression.H.

◆ DiagExpr

template<class E1, class E2>

typedef E1 DiagExpr

Type to return for containers.

Definition at line 1220 of file fvMatrixExpression.H.

◆ UpperExpr

template<class E1, class E2>

typedef E1 UpperExpr

Definition at line 1221 of file fvMatrixExpression.H.

◆ LowerExpr

template<class E1, class E2>

typedef E1 LowerExpr

Definition at line 1222 of file fvMatrixExpression.H.

◆ FaceFluxExpr

template<class E1, class E2>

typedef GeometricField<value_type, fvPatchField, volMesh> FaceFluxExpr

Definition at line 1224 of file fvMatrixExpression.H.

◆ SourceExpr

template<class E1, class E2>

typedef E2 SourceExpr

Definition at line 1225 of file fvMatrixExpression.H.

Constructor & Destructor Documentation

◆ fvMatrixInternal() [1/2]

template<class E1, class E2>

fvMatrixInternal	(	const dimensionSet &	dimensions,
		const DiagExpr &	diag,
		const SourceExpr &	source )

inline

Definition at line 1237 of file fvMatrixExpression.H.

References diag(), fvMatrixExpression< fvMatrixInternal< E1, E2 >, E1, E1, E1, GeometricField< E1::value_type, fvPatchField, volMesh >, E2 >::dimensions(), fvMatrixExpression< fvMatrixInternal< E1, E2 >, E1, E1, E1, GeometricField< E1::value_type, fvPatchField, volMesh >, E2 >::fvMatrixExpression(), fvMatrixInternal(), and source().

Referenced by fvMatrixInternal(), and fvMatrixInternal().

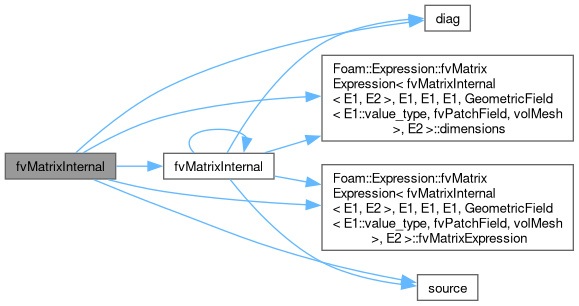

Here is the call graph for this function:

Here is the caller graph for this function:

◆ fvMatrixInternal() [2/2]

template<class E1, class E2>

fvMatrixInternal	(	const dimensionSet &	dimensions,
		const DiagExpr &&	diag,
		const SourceExpr &&	source )

inline

Definition at line 1274 of file fvMatrixExpression.H.

References diag(), fvMatrixExpression< fvMatrixInternal< E1, E2 >, E1, E1, E1, GeometricField< E1::value_type, fvPatchField, volMesh >, E2 >::dimensions(), fvMatrixExpression< fvMatrixInternal< E1, E2 >, E1, E1, E1, GeometricField< E1::value_type, fvPatchField, volMesh >, E2 >::fvMatrixExpression(), fvMatrixInternal(), and source().

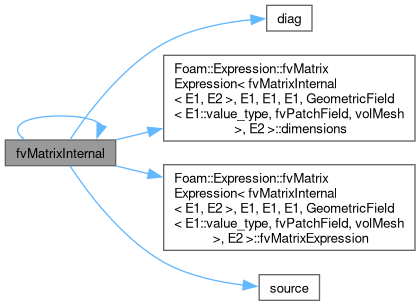

Here is the call graph for this function:

Member Function Documentation

◆ diag()

template<class E1, class E2>

auto diag ( ) const

inline

Definition at line 1304 of file fvMatrixExpression.H.

Referenced by fvMatrixInternal(), and fvMatrixInternal().

Here is the caller graph for this function:

◆ upper()

template<class E1, class E2>

auto upper ( ) const

inline

Definition at line 1309 of file fvMatrixExpression.H.

References List< T >::null().

Here is the call graph for this function:

◆ lower()

template<class E1, class E2>

auto lower ( ) const

inline

Definition at line 1314 of file fvMatrixExpression.H.

References List< T >::null().

Here is the call graph for this function:

◆ source()

template<class E1, class E2>

auto source ( ) const

inline

Definition at line 1322 of file fvMatrixExpression.H.

Referenced by fvMatrixInternal(), and fvMatrixInternal().

Here is the caller graph for this function:

◆ internalCoeffs()

template<class E1, class E2>

auto internalCoeffs ( const label i ) const

inline

Definition at line 1327 of file fvMatrixExpression.H.

References List< T >::null().

Here is the call graph for this function:

◆ boundaryCoeffs()

template<class E1, class E2>

auto boundaryCoeffs ( const label i ) const

inline

Definition at line 1332 of file fvMatrixExpression.H.

References List< T >::null().

Here is the call graph for this function:

◆ faceFluxCorrection()

template<class E1, class E2>

auto faceFluxCorrection ( ) const

inline

Definition at line 1337 of file fvMatrixExpression.H.

References GeometricField< Type, PatchField, GeoMesh >::null().

Here is the call graph for this function:

Member Data Documentation

◆ is_leaf

template<class E1, class E2>

bool is_leaf = false

staticconstexpr

Definition at line 1210 of file fvMatrixExpression.H.

The documentation for this class was generated from the following file:

src/finiteVolume/expressionTemplates/fvMatrixExpression.H
