FDICSmoother Class Reference

Simplified diagonal-based incomplete Cholesky smoother for symmetric matrices. More...

#include <FDICSmoother.H>

Inheritance diagram for FDICSmoother:
Inheritance graph
[legend]
Collaboration diagram for FDICSmoother:
Collaboration graph
[legend]

Public Member Functions

 TypeName ("FDIC")
 Runtime type information.
 FDICSmoother (const word &fieldName, const lduMatrix &matrix, const FieldField< Field, scalar > &interfaceBouCoeffs, const FieldField< Field, scalar > &interfaceIntCoeffs, const lduInterfaceFieldPtrsList &interfaces, const dictionary &solverControls)
 Construct from matrix components.
void smooth (solveScalarField &psi, const scalarField &source, const direction cmpt, const label nSweeps) const
 Smooth the solution for a given number of sweeps.
virtual void scalarSmooth (solveScalarField &psi, const solveScalarField &source, const direction cmpt, const label nSweeps) const
 Smooth the solution for a given number of sweeps.
Public Member Functions inherited from lduMatrix::smoother
virtual const word & type () const =0
 Runtime type information.
 declareRunTimeSelectionTable (autoPtr, smoother, symMatrix,(const word &fieldName, const lduMatrix &matrix, const FieldField< Field, scalar > &interfaceBouCoeffs, const FieldField< Field, scalar > &interfaceIntCoeffs, const lduInterfaceFieldPtrsList &interfaces, const dictionary &solverControls),(fieldName, matrix, interfaceBouCoeffs, interfaceIntCoeffs, interfaces, solverControls))
 declareRunTimeSelectionTable (autoPtr, smoother, asymMatrix,(const word &fieldName, const lduMatrix &matrix, const FieldField< Field, scalar > &interfaceBouCoeffs, const FieldField< Field, scalar > &interfaceIntCoeffs, const lduInterfaceFieldPtrsList &interfaces, const dictionary &solverControls),(fieldName, matrix, interfaceBouCoeffs, interfaceIntCoeffs, interfaces, solverControls))
 smoother (const word &fieldName, const lduMatrix &matrix, const FieldField< Field, scalar > &interfaceBouCoeffs, const FieldField< Field, scalar > &interfaceIntCoeffs, const lduInterfaceFieldPtrsList &interfaces)
 Construct for given field name, matrix etc.
virtual ~smoother ()=default
 Destructor.
const word & fieldName () const noexcept
const lduMatrix & matrix () const noexcept
const FieldField< Field, scalar > & interfaceBouCoeffs () const noexcept
const FieldField< Field, scalar > & interfaceIntCoeffs () const noexcept
const lduInterfaceFieldPtrsList & interfaces () const noexcept

Additional Inherited Members

Static Public Member Functions inherited from lduMatrix::smoother
static word getName (const dictionary &)
 Find the smoother name (directly or from a sub-dictionary).
static autoPtr< smoother > New (const word &fieldName, const lduMatrix &matrix, const FieldField< Field, scalar > &interfaceBouCoeffs, const FieldField< Field, scalar > &interfaceIntCoeffs, const lduInterfaceFieldPtrsList &interfaces, const dictionary &solverControls)
 Return a new smoother.
Protected Attributes inherited from lduMatrix::smoother
word fieldName_
const lduMatrix & matrix_
const FieldField< Field, scalar > & interfaceBouCoeffs_
const FieldField< Field, scalar > & interfaceIntCoeffs_
const lduInterfaceFieldPtrsList & interfaces_

Detailed Description

Simplified diagonal-based incomplete Cholesky smoother for symmetric matrices.

To improve efficiency, the residual is evaluated after every nSweeps sweeps.

Source files

Definition at line 51 of file FDICSmoother.H.

Constructor & Destructor Documentation

◆ FDICSmoother()

FDICSmoother ( const word & fieldName,
const lduMatrix & matrix,
const FieldField< Field, scalar > & interfaceBouCoeffs,
const FieldField< Field, scalar > & interfaceIntCoeffs,
const lduInterfaceFieldPtrsList & interfaces,
const dictionary & solverControls )

Construct from matrix components.

Definition at line 39 of file FDICSmoother.C.

References DICPreconditioner::calcReciprocalD(), Foam::diag(), lduMatrix::smoother::fieldName(), lduMatrix::smoother::interfaceBouCoeffs(), lduMatrix::smoother::interfaceIntCoeffs(), lduMatrix::smoother::interfaces(), lduMatrix::smoother::matrix(), lduMatrix::smoother::matrix_, and lduMatrix::smoother::smoother().

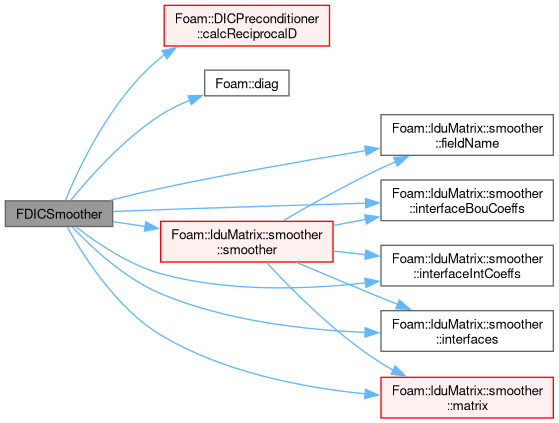

Here is the call graph for this function:

Member Function Documentation

◆ TypeName()

TypeName ( "FDIC" )

Runtime type information.

References lduMatrix::smoother::fieldName(), lduMatrix::smoother::interfaceBouCoeffs(), lduMatrix::smoother::interfaceIntCoeffs(), lduMatrix::smoother::interfaces(), lduMatrix::smoother::matrix(), and psi.

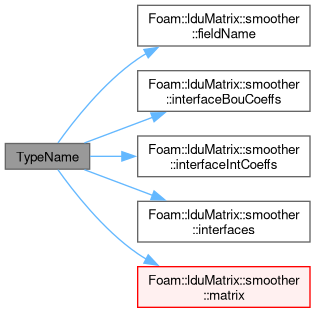

Here is the call graph for this function:

◆ smooth()

void smooth ( solveScalarField & psi,
const scalarField & source,
const direction cmpt,
const label nSweeps ) const
virtual

Smooth the solution for a given number of sweeps.

Implements lduMatrix::smoother.

Definition at line 89 of file FDICSmoother.C.

References UList< T >::begin(), forAll, lduMatrix::smoother::interfaceBouCoeffs_, lduMatrix::smoother::interfaces_, lduMatrix::smoother::matrix_, and psi.

Referenced by scalarSmooth().

Here is the call graph for this function:
Here is the caller graph for this function:

◆ scalarSmooth()

void scalarSmooth ( solveScalarField & psi,
const solveScalarField & source,
const direction cmpt,
const label nSweeps ) const
virtual

Smooth the solution for a given number of sweeps.

Implements lduMatrix::smoother.

Definition at line 143 of file FDICSmoother.C.

References psi, and smooth().

Here is the call graph for this function:
The documentation for this class was generated from the following files:
