A field of fields is a PtrList of fields with reference counting. More...

#include <FieldField.H>

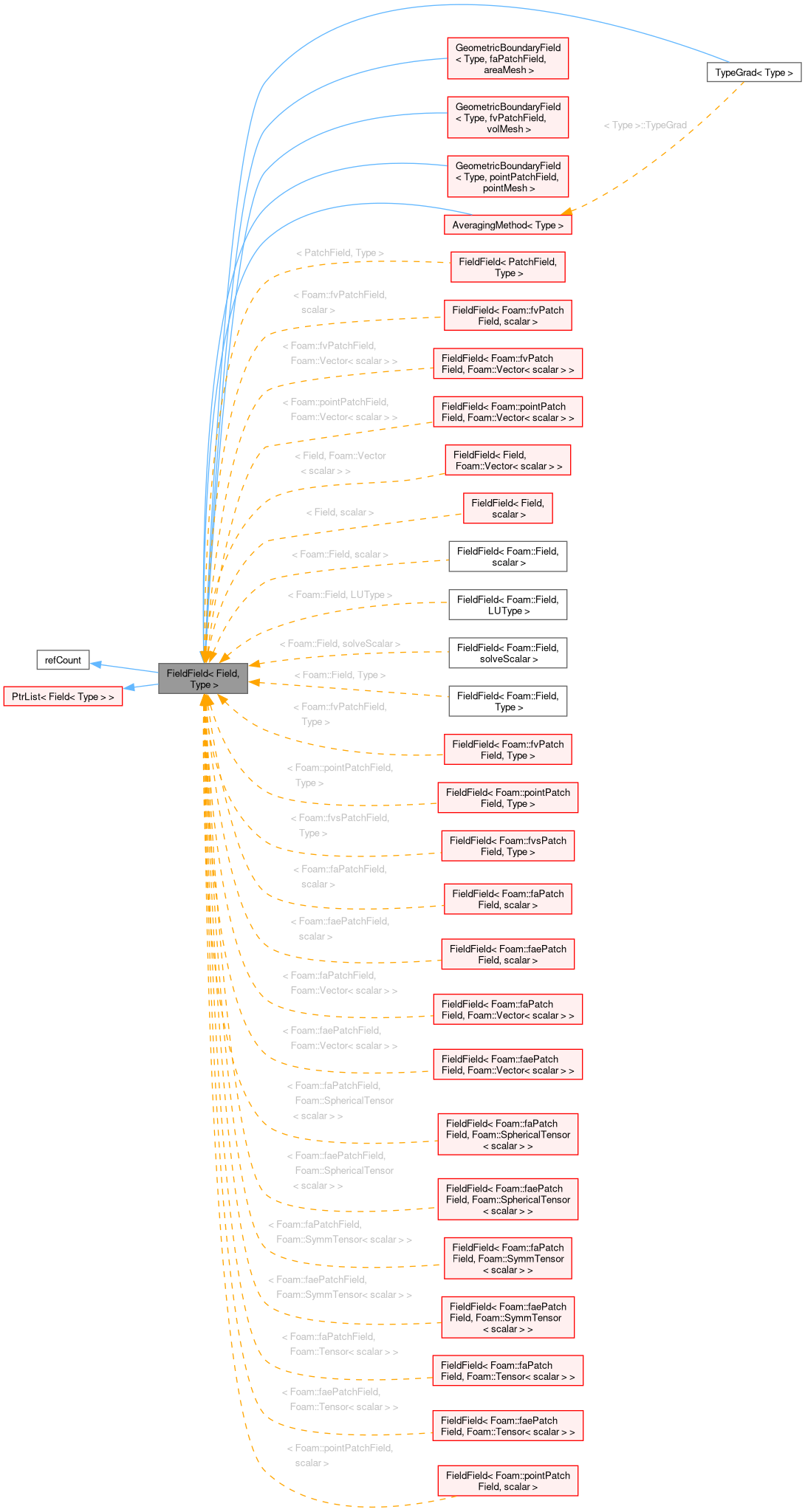

Inheritance diagram for FieldField< Field, Type >:

[legend]

Collaboration diagram for FieldField< Field, Type >:

[legend]

Public Types
typedef pTraits< Type >::cmptType	cmptType
	Component type.
Public Types inherited from UPtrList< Field< Type > >
typedef Field< Type >	value_type
	Type of values the list contains.
typedef Field< Type > &	reference
	A non-const reference to the value_type.
typedef const Field< Type > &	const_reference
	A const reference to the value_type.

Public Member Functions
constexpr	FieldField () noexcept
	Construct null.
	FieldField (const label size)
	Construct given size.
	FieldField (const word &type, const FieldField< Field, Type > &ff)
	Clone construct with new type.
	FieldField (const FieldField< Field, Type > &ff)
	Copy construct, cloning each element.
	FieldField (FieldField< Field, Type > &&ff)
	Move construct.
	FieldField (FieldField< Field, Type > &ff, bool reuse)
	Construct as copy or re-use as specified.
	FieldField (const PtrList< Field< Type > > &list)
	Copy construct from PtrList.
	FieldField (PtrList< Field< Type > > &&list)
	Move construct from PtrList.
	FieldField (const tmp< FieldField< Field, Type > > &tf)
	Move/copy construct from tmp<FieldField>.
	FieldField (Istream &is)
	Construct from Istream.
tmp< FieldField< Field, Type > >	clone () const
	Clone.
void	negate ()
	Negate this field. See notes in Field.
void	normalise ()
	Normalise this field. See notes in Field.
tmp< FieldField< Field, cmptType > >	component (const direction) const
	Return a component field of the field.
void	replace (const direction, const FieldField< Field, cmptType > &)
	Replace a component field of the field.
void	replace (const direction, const cmptType &)
	Replace a component field of the field.
void	clamp_min (const Type &lower)
	Impose lower (floor) clamp on the field values (in-place).
void	clamp_min (const FieldField< Field, Type > &lower)
	Impose lower (floor) clamp on the field values (in-place).
void	clamp_max (const Type &upper)
	Impose upper (ceiling) clamp on the field values (in-place).
void	clamp_max (const FieldField< Field, Type > &upper)
	Impose upper (ceiling) clamp on the field values (in-place).
void	clamp_range (const Type &lower, const Type &upper)
	Clamp field values (in-place) to the specified range.
void	clamp_range (const MinMax< Type > &range)
	Clamp field values (in-place) to the specified range.
tmp< FieldField< Field, Type > >	T () const
	Return the field transpose (only defined for second rank tensors).
const Type &	operator[] (const labelPair &index) const
	Const access to a single field element via (fieldi, elemi).
Type &	operator[] (const labelPair &index)
	Non-const access to a single field element via (fieldi, elemi).
void	operator= (const FieldField< Field, Type > &)
	Copy assignment.
void	operator= (FieldField< Field, Type > &&)
	Move assignment.
void	operator= (const tmp< FieldField< Field, Type > > &)
	Move or clone assignment.
void	operator= (const Type &val)
	Assign uniform value.
void	operator= (Foam::zero)
	Assign uniform zero.
void	operator+= (const FieldField< Field, Type > &)
void	operator+= (const tmp< FieldField< Field, Type > > &)
void	operator-= (const FieldField< Field, Type > &)
void	operator-= (const tmp< FieldField< Field, Type > > &)
void	operator*= (const FieldField< Field, scalar > &)
void	operator*= (const tmp< FieldField< Field, scalar > > &)
void	operator/= (const FieldField< Field, scalar > &)
void	operator/= (const tmp< FieldField< Field, scalar > > &)
void	operator+= (const Type &)
void	operator-= (const Type &)
void	operator*= (const scalar &)
void	operator/= (const scalar &)
Public Member Functions inherited from refCount
constexpr	refCount () noexcept
	Default construct, initializing count to 0.
int	use_count () const noexcept
	Return the current reference count.
bool	unique () const noexcept
	Return true if the reference count is zero.
void	operator++ () noexcept
	Increment the reference count.
void	operator++ (int) noexcept
	Increment the reference count.
void	operator-- () noexcept
	Decrement the reference count.
void	operator-- (int) noexcept
	Decrement the reference count.
Public Member Functions inherited from PtrList< Field< Type > >
Foam::PtrList< Field< Type > >	clone (Args &&... args) const
constexpr	PtrList () noexcept
	Default construct.
	~PtrList ()
	Destructor. Frees all pointers.
const Field< Type > *	set (const label i) const
	Return const pointer to element (can be nullptr), or nullptr for out-of-range access (ie, with bounds checking).
void	clear ()
	Clear the PtrList. Delete allocated entries and set size to zero.
void	free ()
	Free memory and nullify all entries. Does not change the list size.
void	resize (const label newLen)
	Adjust size of PtrList.
void	resize_null (const label newLen)
	Set the addressed list to the given size, deleting all existing entries. Afterwards the list contains all `nullptr` entries.
Field< Type > &	emplace_back (Args &&... args)
	Construct and append an element to the end of the list, return reference to the new list element.
void	push_back (Field< Type > *ptr)
	Append an element to the end of the list.
Field< Type > &	emplace_set (const label i, Args &&... args)
	Construct and set a new element at given position, (discard old element at that location).
Field< Type > &	emplace (const label i, Args &&... args)
	Same as emplace_set().
Field< Type > &	try_emplace (const label i, Args &&... args)
	Like emplace_set() but will not overwrite an occupied (non-null) location.
autoPtr< Field< Type > >	release (const label i)
	Release ownership of the pointer at the given position.
void	transfer (PtrList< Field< Type > > &list)
	Transfer into this list and annul the argument list.
void	operator= (const UPtrList< Field< Type > > &list)
	Copy assignment.
void	setSize (const label n)
	Same as resize().
void	append (autoPtr< Field< Type > > &ptr)
	Move append an element to the end of the list.
Public Member Functions inherited from UPtrList< Field< Type > >
bool	empty () const noexcept
	True if the list is empty (ie, size() is zero).
label	size () const noexcept
	The number of entries in the list.
label	capacity () const noexcept
	Size of the underlying storage.
label	count_nonnull () const noexcept
	The number of non-nullptr entries in the list.
Field< Type > &	front ()
	Reference to the first element of the list.
Field< Type > &	back ()
	Reference to the last element of the list.
const Field< Type > *	test (const label i) const
	Return const pointer to element (can be nullptr), or nullptr for out-of-range access (ie, with bounds checking).
const Field< Type > *	get (const label i) const
	Return const pointer to element (can be nullptr), or nullptr for out-of-range access (ie, with bounds checking).
const Field< Type > *	set (const label i) const
	Return const pointer to element (can be nullptr), or nullptr for out-of-range access (ie, with bounds checking).
void	clear ()
	Set list size to zero.
void	free ()
	Nullify all entries. Does not change the list size.
void	resize (const label newLen)
	Change the size of the list. Any new entries are `nullptr`.
void	resize_null (const label newLen)
	Set the list to the given size and set all entries to `nullptr`.
label	squeezeNull ()
	Squeeze out nullptr entries in the list of pointers after which any null pointers will be at the end of the list.
void	push_back (Field< Type > *ptr)
	Append an element to the end of the list.
void	swap (UPtrList< Field< Type > > &list) noexcept
	Swap content.
void	transfer (UPtrList< Field< Type > > &list)
	Transfer contents into this list and annul the argument.
void	reorder (const labelUList &oldToNew, const bool check=false)
	Reorder elements. Reordering must be unique (ie, shuffle).
void	sortOrder (const labelUList &order, const bool check=false)
	Reorder elements according to new order mapping (newToOld). Reordering must be unique (ie, shuffle).
void	checkNonNull () const
	Check and raise FatalError if any nullptr exists in the list.
const Field< Type > &	at (const label i) const
	Return const reference to the element at given position. FatalError for bounds problem or nullptr.
const Field< Type > &	operator[] (const label i) const
	Return const reference to the element at given position. FatalError for bounds problem or nullptr. Same as at().
	FOAM_DEPRECATED_FOR (2022-09, "get(), set() or test() methods") const Field< Type > *operator()(const label i) const
	Deprecated(2022-09) - same as get().
void	operator= (const UPtrList< Field< Type > > &list)
	Copy assignment (shallow copies addresses).
Ostream &	printAddresses (Ostream &os) const
	Print pointer addresses to Ostream (debugging only).
Ostream &	writeList (Ostream &os, const bool trimNull=false) const
	Write UPtrList to Ostream, optionally ignoring null entries.
Field< Type > **	begin_ptr () noexcept
	Iterator to begin of raw pointers traversal (use with caution).
Field< Type > **	end_ptr () noexcept
	Iterator beyond end of raw pointers traversal (use with caution).
iterator	begin ()
	Return iterator to begin traversal of non-nullptr entries.
iterator	end () noexcept
	Return iterator beyond end of UPtrList traversal.
const_iterator	cbegin () const
	Return const_iterator to begin traversal of non-nullptr entries.
const_iterator	cend () const noexcept
	Return const_iterator beyond end of UPtrList traversal.
void	setSize (const label n)
	Alias for resize().
Field< Type > &	first ()
	Reference to the first element of the list.
Field< Type > &	last ()
	Return reference to the last element of the list.
void	append (Field< Type > *ptr)
	Append an element to the end of the list.
label	count () const noexcept
	The number of non-nullptr entries in the list.

Static Public Member Functions
template<class Type2>
static tmp< FieldField< Field, Type > >	NewCalculatedType (const FieldField< Field, Type2 > &ff)
	Return a pointer to a new calculatedFvPatchFieldField created on.

Friends
Ostream &	operator (Ostream &, const FieldField< Field, Type > &)
Ostream &	operator (Ostream &, const tmp< FieldField< Field, Type > > &)

Additional Inherited Members
Protected Member Functions inherited from PtrList< Field< Type > >
void	readIstream (Istream &is, const INew &inew)
	Read from Istream using Istream constructor class.
Protected Member Functions inherited from UPtrList< Field< Type > >
void	setAddressableSize (const label n) noexcept
	Adjust addressable size.
label	find_next (label pos) const
	The next non-null entry after the specified position.
	UPtrList (Detail::PtrListDetail< Field< Type > > &&ptrs) noexcept
	Low-level move construct.
Protected Attributes inherited from UPtrList< Field< Type > >
Detail::PtrListDetail< Field< Type > >	ptrs_
	The list of pointers.

Detailed Description

template<template< class > class Field, class Type>
class Foam::FieldField< Field, Type >

A field of fields is a PtrList of fields with reference counting.

Source files

Definition at line 73 of file FieldField.H.

Member Typedef Documentation

◆ cmptType

template<template< class > class Field, class Type>

typedef pTraits<Type>::cmptType cmptType

Component type.

Definition at line 83 of file FieldField.H.

Constructor & Destructor Documentation

◆ FieldField() [1/10]

template<template< class > class Field, class Type>

FieldField ( )

constexprnoexcept

Construct null.

Used for temporary fields which are initialised after construction

Definition at line 101 of file FieldField.C.

References Foam::noexcept, and PtrList< Field< Type > >::PtrList().

Referenced by AveragingMethod< Type >::AveragingMethod(), AveragingMethod< Type >::AveragingMethod(), Basic< Type >::Basic(), Basic< Type >::Basic(), clamp_max(), clamp_min(), Dual< Type >::Dual(), Dual< Type >::Dual(), FieldField(), FieldField(), FieldField(), FieldField(), Moment< Type >::Moment(), Moment< Type >::Moment(), NewCalculatedType(), operator, operator, GeometricBoundaryField< Type, faPatchField, areaMesh >::operator!=(), TypeGrad< Type >::operator*=(), TypeGrad< Type >::operator+=(), TypeGrad< Type >::operator/=(), operator=(), operator=(), operator=(), GeometricBoundaryField< Type, faPatchField, areaMesh >::operator=(), TypeGrad< Type >::operator=(), GeometricBoundaryField< Type, faPatchField, areaMesh >::operator==(), and replace().

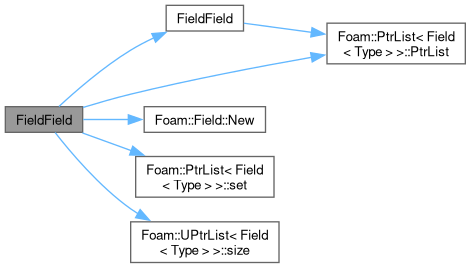

Here is the call graph for this function:

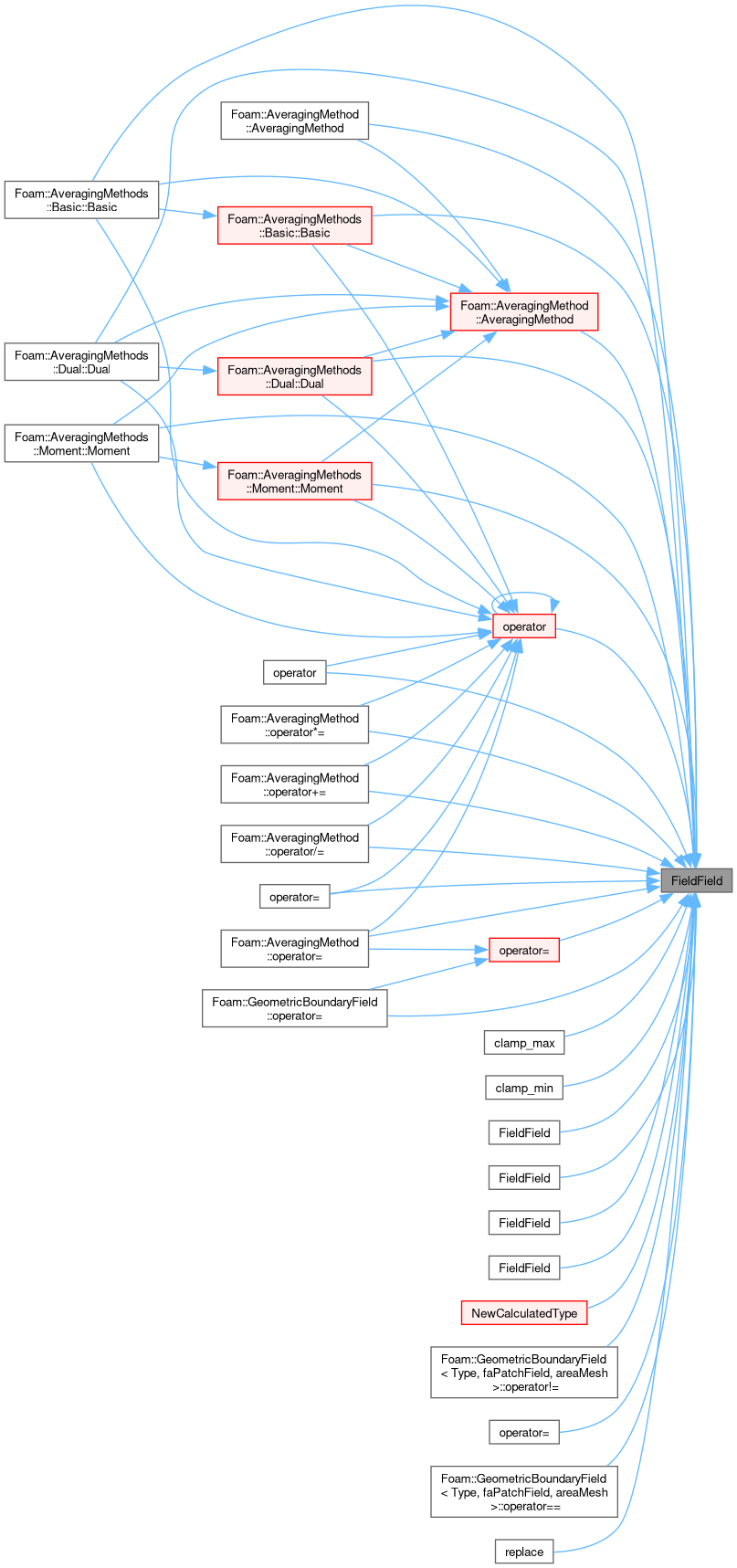

Here is the caller graph for this function:

◆ FieldField() [2/10]

template<template< class > class Field, class Type>

FieldField ( const label size )

explicit

Construct given size.

Used for temporary fields which are initialised after construction

Definition at line 108 of file FieldField.C.

References PtrList< Field< Type > >::PtrList(), and UPtrList< Field< Type > >::size().

Here is the call graph for this function:

◆ FieldField() [3/10]

template<template< class > class Field, class Type>

FieldField	(	const word &	type,
		const FieldField< Field, Type > &	ff )

Clone construct with new type.

Definition at line 115 of file FieldField.C.

References FieldField(), forAll, Field< Type >::New(), PtrList< Field< Type > >::PtrList(), PtrList< Field< Type > >::set(), and UPtrList< Field< Type > >::size().

Here is the call graph for this function:

◆ FieldField() [4/10]

template<template< class > class Field, class Type>

FieldField ( const FieldField< Field, Type > & ff )

Copy construct, cloning each element.

Definition at line 131 of file FieldField.C.

References FieldField(), and PtrList< Field< Type > >::PtrList().

Here is the call graph for this function:

◆ FieldField() [5/10]

template<template< class > class Field, class Type>

FieldField ( FieldField< Field, Type > && ff )

Move construct.

Definition at line 138 of file FieldField.C.

References FieldField(), and PtrList< Field< Type > >::PtrList().

Here is the call graph for this function:

◆ FieldField() [6/10]

template<template< class > class Field, class Type>

FieldField	(	FieldField< Field, Type > &	ff,
		bool	reuse )

Construct as copy or re-use as specified.

Definition at line 145 of file FieldField.C.

◆ FieldField() [7/10]

template<template< class > class Field, class Type>

FieldField ( const PtrList< Field< Type > > & list )

Copy construct from PtrList.

Definition at line 152 of file FieldField.C.

References PtrList< Field< Type > >::PtrList().

Here is the call graph for this function:

◆ FieldField() [8/10]

template<template< class > class Field, class Type>

FieldField ( PtrList< Field< Type > > && list )

Move construct from PtrList.

Definition at line 159 of file FieldField.C.

References PtrList< Field< Type > >::PtrList().

Here is the call graph for this function:

◆ FieldField() [9/10]

template<template< class > class Field, class Type>

FieldField ( const tmp< FieldField< Field, Type > > & tf )

Move/copy construct from tmp<FieldField>.

Definition at line 166 of file FieldField.C.

References FieldField(), and PtrList< Field< Type > >::PtrList().

Here is the call graph for this function:

◆ FieldField() [10/10]

template<template< class > class Field, class Type>

FieldField ( Istream & is )

Construct from Istream.

Definition at line 175 of file FieldField.C.

References PtrList< Field< Type > >::PtrList().

Here is the call graph for this function:

Member Function Documentation

◆ clone()

template<template< class > class Field, class Type>

tmp< FieldField< Field, Type > > clone ( ) const

Clone.

Definition at line 182 of file FieldField.C.

References Foam::New().

Here is the call graph for this function:

◆ NewCalculatedType()

template<template< class > class Field, class Type>

template<class Type2>

tmp< FieldField< Field, Type > > NewCalculatedType ( const FieldField< Field, Type2 > & ff )

static

Return a pointer to a new calculatedFvPatchFieldField created on.

freestore without setting patchField values

Definition at line 190 of file FieldField.C.

References FieldField(), and Foam::New().

Referenced by Foam::cmptAv(), Foam::cmptMag(), Foam::cmptMax(), Foam::cmptMin(), Foam::mag(), Foam::magSqr(), reuseTmpFieldField< Field, TypeR, Type1 >::New(), reuseTmpFieldField< Field, TypeR, Type1 >::New(), reuseTmpFieldField< Field, TypeR, TypeR >::New(), reuseTmpTmpFieldField< Field, TypeR, Type1, Type12, Type2 >::New(), reuseTmpTmpFieldField< Field, TypeR, Type1, Type12, TypeR >::New(), reuseTmpTmpFieldField< Field, TypeR, TypeR, TypeR, Type2 >::New(), reuseTmpTmpFieldField< Field, TypeR, TypeR, TypeR, TypeR >::New(), Foam::pow(), Foam::sqr(), Foam::stabilise(), and T().

Here is the call graph for this function:

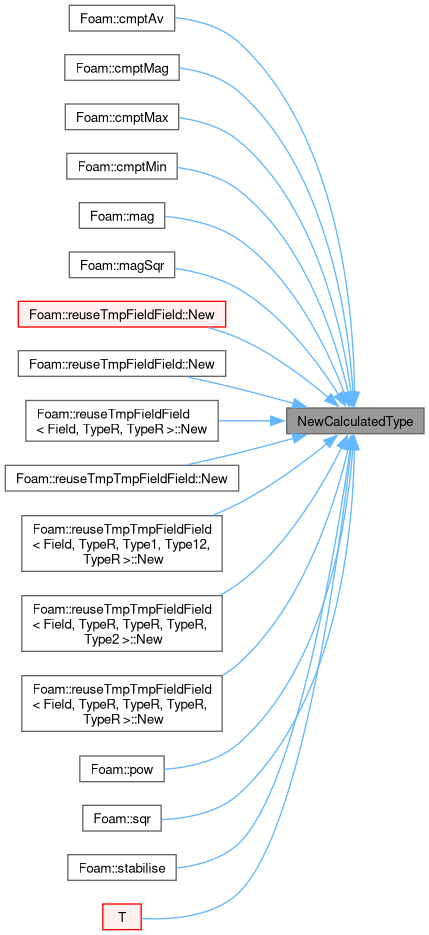

Here is the caller graph for this function:

◆ negate()

template<template< class > class Field, class Type>

void negate ( )

Negate this field. See notes in Field.

Definition at line 212 of file FieldField.C.

References forAll, and operator[]().

Here is the call graph for this function:

◆ normalise()

template<template< class > class Field, class Type>

void normalise ( )

Normalise this field. See notes in Field.

Definition at line 222 of file FieldField.C.

◆ component()

template<template< class > class Field, class Type>

tmp< FieldField< Field, typename FieldField< Field, Type >::cmptType > > component ( const direction d ) const

Return a component field of the field.

Definition at line 233 of file FieldField.C.

◆ replace() [1/2]

template<template< class > class Field, class Type>

void replace	(	const direction	d,
		const FieldField< Field, cmptType > &	sf )

Replace a component field of the field.

Definition at line 251 of file FieldField.C.

References FieldField(), forAll, and operator[]().

Here is the call graph for this function:

◆ replace() [2/2]

template<template< class > class Field, class Type>

void replace	(	const direction	d,
		const cmptType &	s )

Replace a component field of the field.

Definition at line 265 of file FieldField.C.

◆ clamp_min() [1/2]

template<template< class > class Field, class Type>

void clamp_min ( const Type & lower )

Impose lower (floor) clamp on the field values (in-place).

Definition at line 279 of file FieldField.C.

◆ clamp_min() [2/2]

template<template< class > class Field, class Type>

void clamp_min ( const FieldField< Field, Type > & lower )

Impose lower (floor) clamp on the field values (in-place).

Definition at line 305 of file FieldField.C.

References FieldField(), and UPtrList< Field< Type > >::size().

Here is the call graph for this function:

◆ clamp_max() [1/2]

template<template< class > class Field, class Type>

void clamp_max ( const Type & upper )

Impose upper (ceiling) clamp on the field values (in-place).

Definition at line 292 of file FieldField.C.

◆ clamp_max() [2/2]

template<template< class > class Field, class Type>

void clamp_max ( const FieldField< Field, Type > & upper )

Impose upper (ceiling) clamp on the field values (in-place).

Definition at line 320 of file FieldField.C.

References FieldField(), and UPtrList< Field< Type > >::size().

Here is the call graph for this function:

◆ clamp_range() [1/2]

template<template< class > class Field, class Type>

void clamp_range	(	const Type &	lower,
		const Type &	upper )

Clamp field values (in-place) to the specified range.

Does not check if range is valid or not.

Definition at line 335 of file FieldField.C.

◆ clamp_range() [2/2]

template<template< class > class Field, class Type>

void clamp_range ( const MinMax< Type > & range )

Clamp field values (in-place) to the specified range.

Does not check if range is valid or not.

Definition at line 351 of file FieldField.C.

References range.

◆ T()

template<template< class > class Field, class Type>

tmp< FieldField< Field, Type > > T ( ) const

Return the field transpose (only defined for second rank tensors).

Definition at line 366 of file FieldField.C.

References NewCalculatedType(), and Foam::T().

Referenced by Dual< Type >::interpolateGrad(), and Moment< Type >::Moment().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ operator[]() [1/2]

template<template< class > class Field, class Type>

const Type & operator[] ( const labelPair & index ) const

inline

Const access to a single field element via (fieldi, elemi).

Definition at line 381 of file FieldField.C.

References Pair< T >::first(), operator[](), and Pair< T >::second().

Referenced by negate(), operator=(), operator[](), operator[](), and replace().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ operator[]() [2/2]

template<template< class > class Field, class Type>

Type & operator[] ( const labelPair & index )

inline

Non-const access to a single field element via (fieldi, elemi).

Definition at line 388 of file FieldField.C.

References Pair< T >::first(), operator[](), and Pair< T >::second().

Here is the call graph for this function:

◆ operator=() [1/5]

template<template< class > class Field, class Type>

void operator= ( const FieldField< Field, Type > & ff )

Copy assignment.

Definition at line 395 of file FieldField.C.

References FieldField(), forAll, and operator[]().

Referenced by AveragingMethod< Type >::operator=(), AveragingMethod< Type >::operator=(), AveragingMethod< Type >::operator=(), GeometricBoundaryField< Type, PatchField, GeoMesh >::operator=(), GeometricBoundaryField< Type, PatchField, GeoMesh >::operator=(), and GeometricBoundaryField< Type, PatchField, GeoMesh >::operator=().

Here is the call graph for this function:

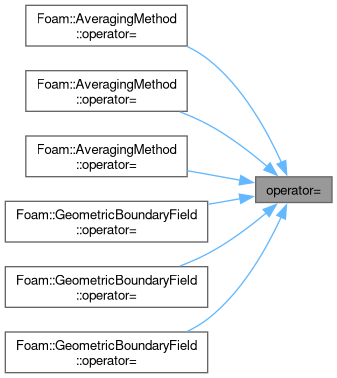

Here is the caller graph for this function:

◆ operator=() [2/5]

template<template< class > class Field, class Type>

void operator= ( FieldField< Field, Type > && ff )

Move assignment.

Definition at line 412 of file FieldField.C.

References FieldField(), PtrList< Field< Type > >::PtrList(), and PtrList< Field< Type > >::transfer().

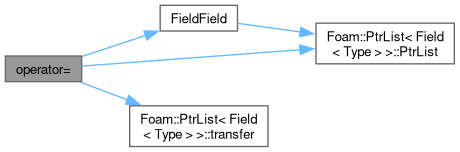

Here is the call graph for this function:

◆ operator=() [3/5]

template<template< class > class Field, class Type>

void operator= ( const tmp< FieldField< Field, Type > > & )

Move or clone assignment.

References FieldField(), and operator.

Here is the call graph for this function:

◆ operator=() [4/5]

template<template< class > class Field, class Type>

void operator= ( const Type & val )

Assign uniform value.

Definition at line 444 of file FieldField.C.

◆ operator=() [5/5]

template<template< class > class Field, class Type>

void operator= ( Foam::zero )

Assign uniform zero.

Definition at line 454 of file FieldField.C.

◆ operator+=() [1/3]

template<template< class > class Field, class Type>

void operator+= ( const FieldField< Field, Type > & f )

Definition at line 493 of file FieldField.C.

Referenced by AveragingMethod< Type >::operator+=().

Here is the caller graph for this function:

◆ operator+=() [2/3]

template<template< class > class Field, class Type>

void operator+= ( const tmp< FieldField< Field, Type > > & tf )

Definition at line 493 of file FieldField.C.

◆ operator-=() [1/3]

template<template< class > class Field, class Type>

void operator-= ( const FieldField< Field, Type > & f )

Definition at line 494 of file FieldField.C.

References COMPUTED_ASSIGNMENT.

◆ operator-=() [2/3]

template<template< class > class Field, class Type>

void operator-= ( const tmp< FieldField< Field, Type > > & tf )

Definition at line 494 of file FieldField.C.

◆ operator*=() [1/3]

template<template< class > class Field, class Type>

void operator*= ( const FieldField< Field, scalar > & f )

Definition at line 495 of file FieldField.C.

References COMPUTED_ASSIGNMENT.

Referenced by AveragingMethod< Type >::operator*=().

Here is the caller graph for this function:

◆ operator*=() [2/3]

template<template< class > class Field, class Type>

void operator*= ( const tmp< FieldField< Field, scalar > > & tf )

Definition at line 495 of file FieldField.C.

◆ operator/=() [1/3]

template<template< class > class Field, class Type>

void operator/= ( const FieldField< Field, scalar > & f )

Definition at line 496 of file FieldField.C.

References COMPUTED_ASSIGNMENT.

Referenced by AveragingMethod< Type >::operator/=().

Here is the caller graph for this function:

◆ operator/=() [2/3]

template<template< class > class Field, class Type>

void operator/= ( const tmp< FieldField< Field, scalar > > & tf )

Definition at line 496 of file FieldField.C.

◆ operator+=() [3/3]

template<template< class > class Field, class Type>

void operator+= ( const Type & val )

Definition at line 493 of file FieldField.C.

◆ operator-=() [3/3]

template<template< class > class Field, class Type>

void operator-= ( const Type & val )

Definition at line 494 of file FieldField.C.

◆ operator*=() [3/3]

template<template< class > class Field, class Type>

void operator*= ( const scalar & val )

Definition at line 495 of file FieldField.C.

◆ operator/=() [3/3]

template<template< class > class Field, class Type>

void operator/= ( const scalar & val )

Definition at line 496 of file FieldField.C.

◆ operator [1/2]

template<template< class > class Field, class Type>

Ostream & operator	(	Ostream &	,
		const FieldField< Field, Type > &	)

friend

References FieldField(), and operator.

Referenced by Basic< Type >::Basic(), Basic< Type >::Basic(), Dual< Type >::Dual(), Dual< Type >::Dual(), Moment< Type >::Moment(), Moment< Type >::Moment(), operator, operator, AveragingMethod< Type >::operator*=(), AveragingMethod< Type >::operator+=(), AveragingMethod< Type >::operator/=(), AveragingMethod< Type >::operator=(), AveragingMethod< Type >::operator=(), AveragingMethod< Type >::operator=(), and operator=().

◆ operator [2/2]

template<template< class > class Field, class Type>

Ostream & operator	(	Ostream &	,
		const tmp< FieldField< Field, Type > > &	)

friend

References FieldField(), and operator.

The documentation for this class was generated from the following files:

src/OpenFOAM/fields/FieldFields/FieldField/FieldField.H
src/OpenFOAM/fields/FieldFields/FieldField/FieldField.C

Public Types

Public Member Functions

Static Public Member Functions

Friends

Additional Inherited Members

Detailed Description

Member Typedef Documentation

◆ cmptType

Constructor & Destructor Documentation

◆ FieldField() [1/10]

◆ FieldField() [2/10]

◆ FieldField() [3/10]

◆ FieldField() [4/10]

◆ FieldField() [5/10]

◆ FieldField() [6/10]

◆ FieldField() [7/10]

◆ FieldField() [8/10]

◆ FieldField() [9/10]

◆ FieldField() [10/10]

Member Function Documentation

◆ clone()

◆ NewCalculatedType()

◆ negate()

◆ normalise()

◆ component()

◆ replace() [1/2]

◆ replace() [2/2]

◆ clamp_min() [1/2]

◆ clamp_min() [2/2]

◆ clamp_max() [1/2]

◆ clamp_max() [2/2]

◆ clamp_range() [1/2]

◆ clamp_range() [2/2]

◆ T()

◆ operator[]() [1/2]

◆ operator[]() [2/2]

◆ operator=() [1/5]

◆ operator=() [2/5]

◆ operator=() [3/5]

◆ operator=() [4/5]

◆ operator=() [5/5]

◆ operator+=() [1/3]

◆ operator+=() [2/3]

◆ operator-=() [1/3]

◆ operator-=() [2/3]

◆ operator*=() [1/3]

◆ operator*=() [2/3]

◆ operator/=() [1/3]

◆ operator/=() [2/3]

◆ operator+=() [3/3]

◆ operator-=() [3/3]

◆ operator*=() [3/3]

◆ operator/=() [3/3]

Friends And Related Symbol Documentation

◆ operator [1/2]

◆ operator [2/2]
