FallOffReactionRate< ReactionRate, FallOffFunction > Class Template Reference

General class for handling unimolecular/recombination fall-off reactions. More...

#include <FallOffReactionRate.H>

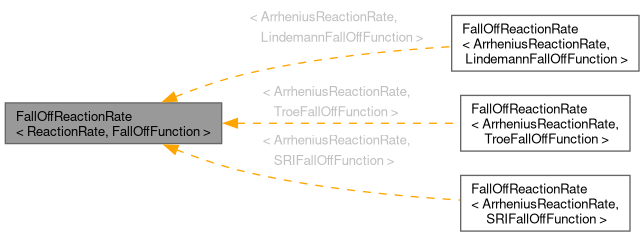

Inheritance diagram for FallOffReactionRate< ReactionRate, FallOffFunction >:

Public Member Functions
	FallOffReactionRate (const ReactionRate &k0, const ReactionRate &kInf, const FallOffFunction &F, const thirdBodyEfficiencies &tbes)
	Construct from components.
	FallOffReactionRate (const speciesTable &species, const dictionary &dict)
	Construct from dictionary.
scalar	operator() (const scalar p, const scalar T, const scalarField &c) const
void	write (Ostream &os) const
	Write to stream.

Static Public Member Functions
static word	type ()
	Return the type name.

Friends
Ostream &	operator (Ostream &, const FallOffReactionRate< ReactionRate, FallOffFunction > &)

Detailed Description

template<class ReactionRate, class FallOffFunction>
class Foam::FallOffReactionRate< ReactionRate, FallOffFunction >

General class for handling unimolecular/recombination fall-off reactions.

Source files

• FallOffReactionRate.H
• FallOffReactionRateI.H

Definition at line 60 of file FallOffReactionRate.H.

Constructor & Destructor Documentation

FallOffReactionRate() [1/2]

template<class ReactionRate, class FallOffFunction>

FallOffReactionRate ( const ReactionRate & k0, const ReactionRate & kInf, const FallOffFunction & F, const thirdBodyEfficiencies & tbes )

inline

Construct from components.

Definition at line 24 of file FallOffReactionRateI.H.

References F().

Here is the call graph for this function:

FallOffReactionRate() [2/2]

template<class ReactionRate, class FallOffFunction>

FallOffReactionRate ( const speciesTable & species, const dictionary & dict )

inline

Construct from dictionary.

Definition at line 41 of file FallOffReactionRateI.H.

References dict.

Member Function Documentation

type()

template<class ReactionRate, class FallOffFunction>

word type ( )

inlinestatic

Return the type name.

Definition at line 100 of file FallOffReactionRate.H.

operator()()

template<class ReactionRate, class FallOffFunction>

Foam::scalar operator() ( const scalar p, const scalar T, const scalarField & c ) const

inline

Definition at line 59 of file FallOffReactionRateI.H.

References p, Pr(), and Foam::T().

Here is the call graph for this function:

write()

template<class ReactionRate, class FallOffFunction>

void write ( Ostream & os ) const

inline

Write to stream.

Definition at line 76 of file FallOffReactionRateI.H.

References os().

Here is the call graph for this function:

Friends And Related Symbol Documentation

operator

template<class ReactionRate, class FallOffFunction>

Ostream & operator ( Ostream & , const FallOffReactionRate< ReactionRate, FallOffFunction > &  )

friend

---

The documentation for this class was generated from the following files:

• src/thermophysicalModels/specie/reaction/reactionRate/FallOffReactionRate/FallOffReactionRate.H
• src/thermophysicalModels/specie/reaction/reactionRate/FallOffReactionRate/FallOffReactionRateI.H
