UPtrList< T > Class Template Reference

A list of pointers to objects of type <T>, without allocation/deallocation management of the pointers - this is to be done elsewhere. The operator[] returns a reference to the object (not the pointer). More...

#include <UPtrList.H>

Inherited by PtrList< faPatch >, PtrList< fvPatch >, PtrList< blockEdge >, PtrList< blockFace >, PtrList< block >, PtrList< blockVertex >, PtrList< pointPatch >, PtrList< polyPatch >, and PtrList< T >.

Classes
struct	value_compare
	A wrapper for a binary comparison of values that interjects pointer dereferencing with null pointer guards. More...
struct	less
	A UPtrList compare binary predicate for normal sort order. Null entries (if any) sort to the end. More...
struct	greater
	A UPtrList compare binary predicate for reverse sort order. More...
class	Iterator
	Internally used base for iterator and const_iterator. More...
class	iterator
	Forward iterator with non-const access. More...
class	const_iterator
	Forward iterator with const access. More...

Public Types
typedef T	value_type
	Type of values the list contains.
typedef T &	reference
	A non-const reference to the value_type.
typedef const T &	const_reference
	A const reference to the value_type.

Public Member Functions
constexpr	UPtrList () noexcept=default
	Default construct.
	UPtrList (const label len)
	Construct with specified size and set all entries to nullptr.
	UPtrList (const UPtrList< T > &list)
	Copy construct (shallow copies addresses).
	UPtrList (UPtrList< T > &&list) noexcept
	Move construct.
	UPtrList (UPtrList< T > &list, bool reuse)
	Construct as shallow copy or re-use as specified.
	UPtrList (PtrList< T > &list)
	Shallow copy from PtrList.
	UPtrList (const UList< T * > &list)
	Construct from UList of pointers (shallow copy).
	UPtrList (UList< T > &list)
	Construct from UList, taking the address of each list element.
bool	empty () const noexcept
	True if the list is empty (ie, size() is zero).
label	size () const noexcept
	The number of entries in the list.
label	capacity () const noexcept
	Size of the underlying storage.
label	count_nonnull () const noexcept
	The number of non-nullptr entries in the list.
T &	front ()
	Reference to the first element of the list.
const T &	front () const
	Reference to first element of the list.
T &	back ()
	Reference to the last element of the list.
const T &	back () const
	Reference to the last element of the list.
const T *	test (const label i) const
	Return const pointer to element (can be nullptr), or nullptr for out-of-range access (ie, with bounds checking).
const T *	get (const label i) const
	Return const pointer to element (can be nullptr), or nullptr for out-of-range access (ie, with bounds checking).
T *	get (const label i)
	Return pointer to element (can be nullptr), or nullptr for out-of-range access (ie, with bounds checking).
const T *	set (const label i) const
	Return const pointer to element (can be nullptr), or nullptr for out-of-range access (ie, with bounds checking).
void	clear ()
	Set list size to zero.
void	free ()
	Nullify all entries. Does not change the list size.
void	resize (const label newLen)
	Change the size of the list. Any new entries are nullptr.
void	resize_null (const label newLen)
	Set the list to the given size and set all entries to nullptr.
label	squeezeNull ()
	Squeeze out nullptr entries in the list of pointers after which any null pointers will be at the end of the list.

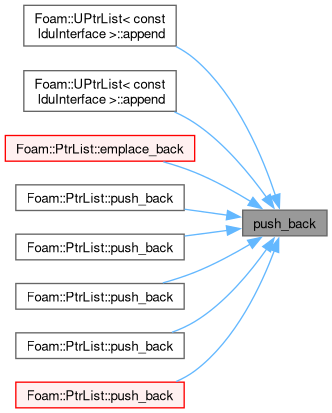

void	push_back (T *ptr)
	Append an element to the end of the list.
void	push_back (UPtrList< T > &&other)
	Move append another list to the end of this list.
void	swap (UPtrList< T > &list) noexcept
	Swap content.
void	transfer (UPtrList< T > &list)
	Transfer contents into this list and annul the argument.
T *	set (const label i, T *ptr)
	Set element to specified pointer and return the old list element, which can be a nullptr.

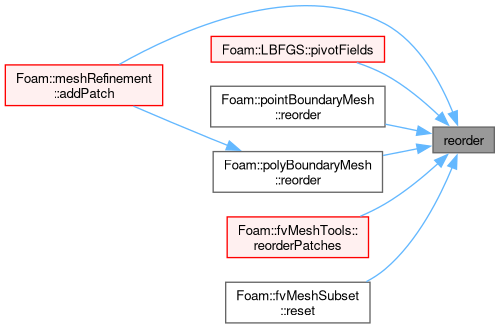

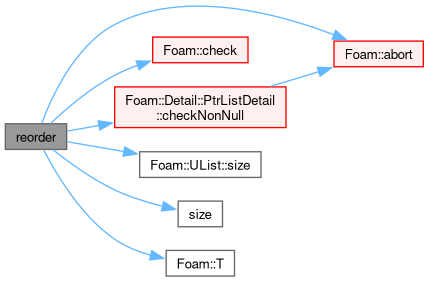

void	reorder (const labelUList &oldToNew, const bool check=false)
	Reorder elements. Reordering must be unique (ie, shuffle).

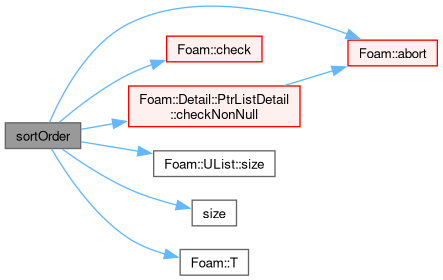

void	sortOrder (const labelUList &order, const bool check=false)
	Reorder elements according to new order mapping (newToOld). Reordering must be unique (ie, shuffle).
void	checkNonNull () const
	Check and raise FatalError if any nullptr exists in the list.
const T &	at (const label i) const
	Return const reference to the element at given position. FatalError for bounds problem or nullptr.
T &	at (const label i)
	Return reference to the element at given position. FatalError for bounds problem or nullptr.

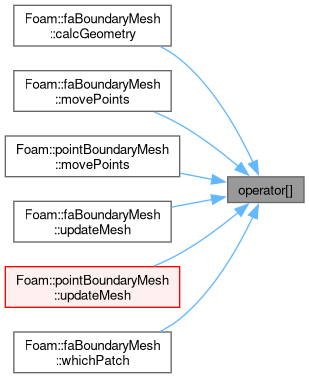

const T &	operator[] (const label i) const
	Return const reference to the element at given position. FatalError for bounds problem or nullptr. Same as at().
T &	operator[] (const label i)
	Return reference to the element at given position. FatalError for bounds problem or nullptr. Same as at().
	FOAM_DEPRECATED_FOR (2022-09, "get(), set() or test() methods") const T *operator()(const label i) const
	Deprecated(2022-09) - same as get().
void	operator= (const UPtrList< T > &list)
	Copy assignment (shallow copies addresses).
void	operator= (UPtrList< T > &&list)
	Move assignment.
Ostream &	printAddresses (Ostream &os) const
	Print pointer addresses to Ostream (debugging only).
Ostream &	writeList (Ostream &os, const bool trimNull=false) const
	Write UPtrList to Ostream, optionally ignoring null entries.
T **	begin_ptr () noexcept
	Iterator to begin of raw pointers traversal (use with caution).
T **	end_ptr () noexcept
	Iterator beyond end of raw pointers traversal (use with caution).
iterator	begin ()
	Return iterator to begin traversal of non-nullptr entries.
iterator	end () noexcept
	Return iterator beyond end of UPtrList traversal.
const_iterator	cbegin () const
	Return const_iterator to begin traversal of non-nullptr entries.
const_iterator	cend () const noexcept
	Return const_iterator beyond end of UPtrList traversal.
const_iterator	begin () const
	Return const_iterator to begin traversal of non-nullptr entries.
const_iterator	end () const noexcept
	Return const_iterator beyond end of UPtrList traversal.

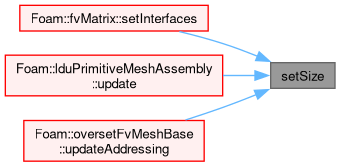

void	setSize (const label n)
	Alias for resize().
T &	first ()
	Reference to the first element of the list.
const T &	first () const
	Return reference to first element of the list.
T &	last ()
	Return reference to the last element of the list.
const T &	last () const
	Return reference to the last element of the list.
void	append (T *ptr)
	Append an element to the end of the list.
void	append (UPtrList< T > &&other)
	Move append another list to the end of this list.

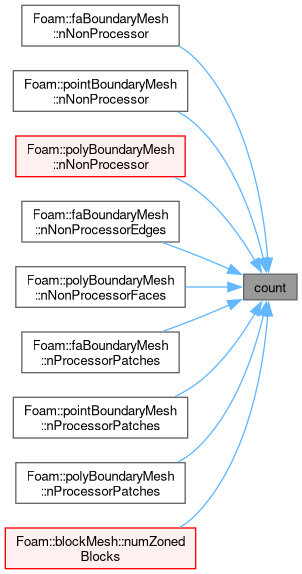

label	count () const noexcept
	The number of non-nullptr entries in the list.

Protected Member Functions
void	setAddressableSize (const label n) noexcept
	Adjust addressable size.
label	find_next (label pos) const
	The next non-null entry after the specified position.
	UPtrList (Detail::PtrListDetail< T > &&ptrs) noexcept
	Low-level move construct.

Protected Attributes
Detail::PtrListDetail< T >	ptrs_
	The list of pointers.

Friends
class	Iterator< true >
	Allow iterator access to internals.
class	Iterator< false >
	Allow iterator access to internals.
Ostream &	operator<< (Ostream &os, const UPtrList< T > &list)
	Write UPtrList to Ostream. Does not ignore null entries.

Detailed Description

template<class T>
class Foam::UPtrList< T >

A list of pointers to objects of type <T>, without allocation/deallocation management of the pointers - this is to be done elsewhere. The operator[] returns a reference to the object (not the pointer).

The iterators are similar to bitSet in that they skip nullptr entries, and also return a value (like the list operator[] does).

When traversing lists, it possible to test the validity directly:

forAll(interfaces, i)
{
    if (interfaces.test(i))
    {
        // Interface is set, do something
        const auto& intf = interfaces[i];
        ...
    }
}

The lists can also be traversed with a for-range (in OpenFOAM-v2212 and earlier this would have failed on nullptr entries):

for (const auto& intf : interfaces)
{
    // Do something
    ...
}

It is also possible to traverse with non-null entries and use key/val access (like HashTable naming):

forAllConstIters(interfaces, iter)
{
    Info<< "entry " << iter.key() << " : " << iter.val() << nl;
}

Note

The class definition is such that it contains a list of pointers, but itself does not inherit from a list of pointers since this would wreak havoc later with inheritance resolution.

See also

Foam::PtrList Foam::PtrDynList

Source files

• UPtrList.H
• UPtrListI.H
• UPtrList.C

Definition at line 100 of file UPtrList.H.

Member Typedef Documentation

value_type

template<class T>

typedef T value_type

Type of values the list contains.

Definition at line 140 of file UPtrList.H.

reference

template<class T>

typedef T& reference

A non-const reference to the value_type.

Definition at line 145 of file UPtrList.H.

const_reference

template<class T>

typedef const T& const_reference

A const reference to the value_type.

Definition at line 150 of file UPtrList.H.

Constructor & Destructor Documentation

UPtrList() [1/9]

template<class T>

UPtrList ( Detail::PtrListDetail< T > && ptrs )

inlineexplicitprotectednoexcept

Low-level move construct.

Definition at line 48 of file UPtrListI.H.

References Foam::noexcept, and ptrs_.

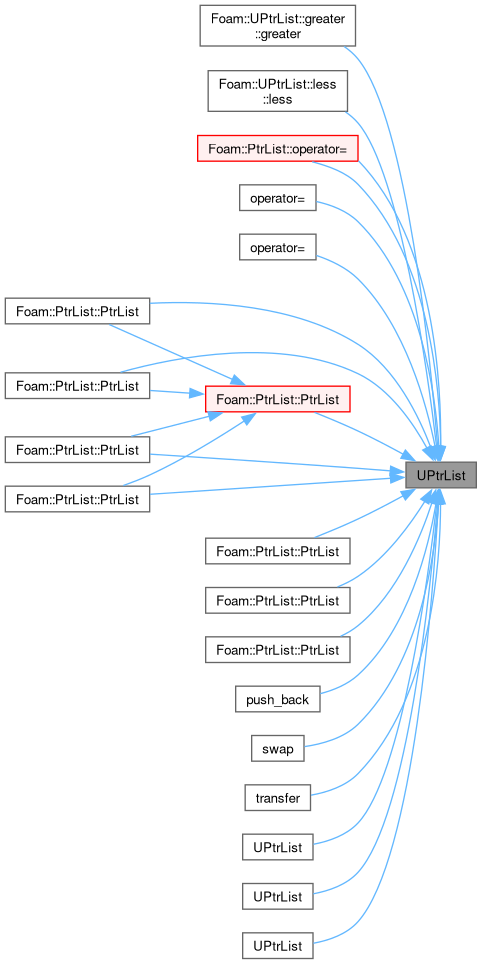

Referenced by UPtrList< T >::greater::greater(), UPtrList< T >::less::less(), PtrList< T >::operator=(), PtrList< faPatch >::operator=(), operator=(), operator=(), PtrList< T >::PtrList(), PtrList< T >::PtrList(), PtrList< T >::PtrList(), PtrList< T >::PtrList(), PtrList< T >::PtrList(), PtrList< T >::PtrList(), PtrList< T >::PtrList(), PtrList< T >::PtrList(), push_back(), swap(), transfer(), UPtrList(), UPtrList(), and UPtrList().

Here is the caller graph for this function:

UPtrList() [2/9]

template<class T>

UPtrList ( )

constexprdefaultnoexcept

Default construct.

UPtrList() [3/9]

template<class T>

UPtrList ( const label len )

inlineexplicit

Construct with specified size and set all entries to nullptr.

Definition at line 41 of file UPtrListI.H.

References ptrs_.

UPtrList() [4/9]

template<class T>

UPtrList ( const UPtrList< T > & list )

inline

Copy construct (shallow copies addresses).

Definition at line 55 of file UPtrListI.H.

References ptrs_, and UPtrList().

Here is the call graph for this function:

UPtrList() [5/9]

template<class T>

UPtrList ( UPtrList< T > && list )

inlinenoexcept

Move construct.

Definition at line 62 of file UPtrListI.H.

References Foam::noexcept, ptrs_, and UPtrList().

Here is the call graph for this function:

UPtrList() [6/9]

template<class T>

UPtrList ( UPtrList< T > & list, bool reuse )

inline

Construct as shallow copy or re-use as specified.

Definition at line 69 of file UPtrListI.H.

References ptrs_, and UPtrList().

Here is the call graph for this function:

UPtrList() [7/9]

template<class T>

UPtrList ( PtrList< T > & list )

explicit

Shallow copy from PtrList.

The argument is non-const to reflect that the UPtrList can change the values (not the addresses) within the original list.

Definition at line 29 of file UPtrList.C.

References ptrs_.

UPtrList() [8/9]

template<class T>

UPtrList ( const UList< T * > & list )

inlineexplicit

Construct from UList of pointers (shallow copy).

Definition at line 76 of file UPtrListI.H.

References ptrs_.

UPtrList() [9/9]

template<class T>

UPtrList ( UList< T > & list )

inlineexplicit

Construct from UList, taking the address of each list element.

The argument is non-const to reflect that the UPtrList can change the values of the original list.

Definition at line 83 of file UPtrListI.H.

References ptrs_, and size().

Here is the call graph for this function:

Member Function Documentation

setAddressableSize()

template<class T>

void setAddressableSize ( const label n )

inlineprotectednoexcept

Adjust addressable size.

Definition at line 25 of file UPtrListI.H.

References n, and ptrs_.

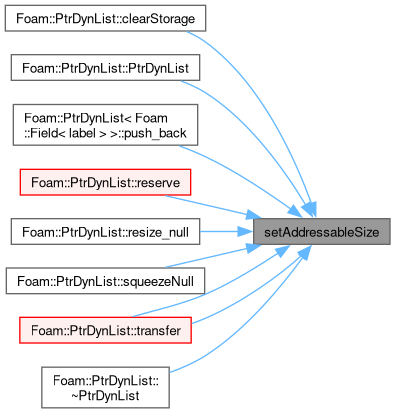

Referenced by PtrDynList< T, SizeMin >::clearStorage(), PtrDynList< T, SizeMin >::PtrDynList(), PtrDynList< Foam::Field< label > >::push_back(), PtrDynList< T, SizeMin >::reserve(), PtrDynList< T, SizeMin >::resize_null(), PtrDynList< T, SizeMin >::squeezeNull(), PtrDynList< T, SizeMin >::transfer(), PtrDynList< Foam::Field< label > >::transfer(), and PtrDynList< T, SizeMin >::~PtrDynList().

Here is the caller graph for this function:

find_next()

template<class T>

Foam::label find_next ( label pos ) const

inlineprotected

The next non-null entry after the specified position.

Definition at line 32 of file UPtrListI.H.

References Foam::pos(), and ptrs_.

Here is the call graph for this function:

empty()

template<class T>

bool empty ( ) const

inlinenoexcept

True if the list is empty (ie, size() is zero).

Definition at line 99 of file UPtrListI.H.

References Foam::noexcept, and ptrs_.

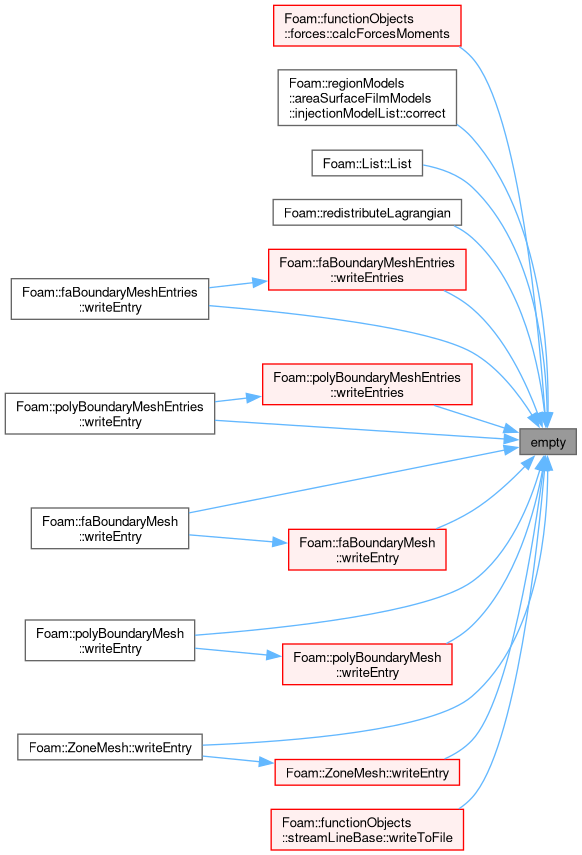

Referenced by forces::calcForcesMoments(), injectionModelList::correct(), List< T >::List(), Foam::redistributeLagrangian(), faBoundaryMeshEntries::writeEntries(), polyBoundaryMeshEntries::writeEntries(), faBoundaryMesh::writeEntry(), faBoundaryMesh::writeEntry(), faBoundaryMeshEntries::writeEntry(), polyBoundaryMesh::writeEntry(), polyBoundaryMesh::writeEntry(), polyBoundaryMeshEntries::writeEntry(), ZoneMesh< ZoneType, MeshType >::writeEntry(), ZoneMesh< ZoneType, MeshType >::writeEntry(), and streamLineBase::writeToFile().

Here is the caller graph for this function:

size()

template<class T>

Foam::label size ( ) const

inlinenoexcept

The number of entries in the list.

Definition at line 106 of file UPtrListI.H.

References Foam::noexcept, and ptrs_.

Referenced by singleProcessorFaceSets::add(), fvMeshAdder::add(), polyMeshAdder::add(), polyMeshAdder::add(), surfaceZonesInfo::addCellZone(), surfaceZonesInfo::addCellZonesToMesh(), surfaceZonesInfo::addFaceZone(), surfaceZonesInfo::addFaceZonesToMesh(), topOZones::addIOcellsZone(), meshRefinement::addPatch(), meshRefinement::addPointZone(), GAMGAgglomeration::agglomerateLduAddressing(), extendedEdgeMesh::allNearestFeatureEdges(), meshRefinement::appendPatch(), Foam::FieldOps::assign(), Foam::FieldOps::assign(), at(), at(), attachPolyTopoChanger::attach(), back(), back(), meshRefinement::blockLeakFaces(), snappySnapDriver::calcNearestSurface(), viewFactor::calculate(), polyBoundaryMesh::checkDefinition(), faBoundaryMesh::checkParallelSync(), polyBoundaryMesh::checkParallelSync(), PtrList< faPatch >::clone(), inverseFaceDistanceDiffusivity::correct(), nearWallDist::correct(), injectionModelList::correct(), cellDistFuncs::correctBoundaryCells(), epsilonWallFunctionFvPatchScalarField::createAveragingWeights(), omegaWallFunctionFvPatchScalarField::createAveragingWeights(), Foam::createReconstructMap(), Foam::createZeroBoundaryPtr(), motionSmootherAlgo::curPoints(), volumetricBSplinesMotionSolver::curPoints(), cyclicACMIGAMGInterface::cyclicACMIGAMGInterface(), cyclicAMIGAMGInterface::cyclicAMIGAMGInterface(), fvMeshDistribute::distribute(), snappyLayerDriver::doLayers(), PtrDynList< T, SizeMin >::emplace_set(), Foam::extract(), extrudePatchMesh::extrudePatchMesh(), faBoundaryMesh::faBoundaryMesh(), faBoundaryMesh::faBoundaryMesh(), patchFieldProbe::findElements(), volPointInterpolationAdjoint::flatBoundaryField(), GAMGSolver::GAMGSolver(), surfaceZonesInfo::getAllClosedNamedSurfaces(), surfaceZonesInfo::getClosedNamedSurfaces(), surfaceZonesInfo::getInsidePointNamedSurfaces(), surfaceZonesInfo::getNamedSurfaces(), surfaceZonesInfo::getStandaloneNamedSurfaces(), surfaceZonesInfo::getUnclosedNamedSurfaces(), surfaceZonesInfo::getUnnamedSurfaces(), meshRefinement::getZones(), GAMGProcAgglomeration::globalCellCells(), basicThermo::heBoundaryBaseTypes(), hexRef8Data::hexRef8Data(), faBoundaryMesh::indices(), faBoundaryMesh::indices(), faBoundaryMesh::indices(), pointBoundaryMesh::indices(), pointBoundaryMesh::indices(), polyBoundaryMesh::indices(), polyBoundaryMesh::indices(), interRegionExplicitPorositySource::initialise(), viewFactor::initialise(), lduMatrix::initMatrixInterfaces(), singleCellFvMesh::interpolate(), rigidBodyModel::join(), lduPrimitiveMesh::lduPrimitiveMesh(), Foam::MULES::limitSum(), Foam::MULES::limitSum(), meshRefinement::makeDisplacementField(), polyTopoChange::makeMesh(), mapDistributeBase::mapDistributeBase(), meshToMesh::mapSrcToTgt(), meshToMesh::mapTgtToSrc(), blockMesh::mesh(), extendedEdgeMesh::nearestFeatureEdgeByType(), polyBoundaryMesh::neighbourEdges(), fvMeshTools::newMesh(), Foam::operator<<(), Foam::operator<<(), faBoundaryMesh::operator=(), polyBoundaryMesh::operator=(), PtrDynList< T, SizeMin >::operator=(), PtrDynList< T, SizeMin >::operator=(), PtrDynList< T, SizeMin >::operator=(), blockMesh::patchDicts(), polyBoundaryMesh::patchID(), lumpedPointDisplacementPointPatchVectorField::patchIds(), boundaryMesh::patchify(), pointBoundaryMesh::pointBoundaryMesh(), polyBoundaryMesh::polyBoundaryMesh(), polyBoundaryMesh::polyBoundaryMesh(), PtrDynList< T, SizeMin >::pop_back(), powerLawLopesdaCostaZone::powerLawLopesdaCostaZone(), foamToVtkReportFields::print(), GAMGAgglomeration::printLevels(), GAMGAgglomeration::procAgglomerateLduAddressing(), PtrDynList< T, SizeMin >::PtrDynList(), PtrDynList< T, SizeMin >::PtrDynList(), PtrDynList< T, SizeMin >::PtrDynList(), PtrDynList< T, SizeMin >::PtrDynList(), PtrList< T >::PtrList(), PtrDynList< T, SizeMin >::push_back(), PtrDynList< T, SizeMin >::push_back(), PtrDynList< T, SizeMin >::push_back(), PtrDynList< Foam::Field< label > >::push_back(), PtrList< T >::push_back(), multiphaseInterHtcModel::q(), reactingEulerHtcModel::q(), sampledSurfaces::read(), Foam::readFields(), Foam::readUniformFields(), polyMesh::readUpdate(), refinementHistory::refinementHistory(), PtrList< T >::release(), faBoundaryMeshEntries::removeProcPatches(), polyBoundaryMeshEntries::removeProcPatches(), reorder(), PtrDynList< T, SizeMin >::reserve(), PtrDynList< T, SizeMin >::reserve_exact(), fvMeshSubset::reset(), fvMeshSubset::reset(), PtrList< T >::resize(), sampledPatchInternalField::sampleOnPoints(), PtrDynList< T, SizeMin >::set(), ZoneMesh< ZoneType, MeshType >::setGroup(), coordSetWriter::setTracks(), Foam::shuffle(), singleCellFvMesh::singleCellFvMesh(), Foam::sortedOrder(), sortOrder(), squeezeNull(), Foam::fvc::surfaceSum(), Foam::FieldOps::ternary(), Foam::FieldOps::ternarySelect(), blockMesh::topology(), PtrDynList< T, SizeMin >::transfer(), streamLineBase::trimToBox(), PtrDynList< T, SizeMin >::try_emplace(), GeometricBoundaryField< Type, PatchField, GeoMesh >::types(), cellVolumeWeight::update(), inverseDistance::update(), trackingInverseDistance::update(), sampledFaceZone::update(), oversetFvMeshBase::updateAddressing(), designVariablesUpdate::updateGradientsAndValues(), lduMatrix::updateMatrixInterfaces(), UPtrList(), Foam::vertices(), faBoundaryMesh::whichPatch(), faBoundaryMeshEntries::writeEntries(), polyBoundaryMeshEntries::writeEntries(), faBoundaryMesh::writeEntry(), polyBoundaryMesh::writeEntry(), ZoneMesh< ZoneType, MeshType >::writeEntry(), ZoneMesh< ZoneType, MeshType >::ZoneMesh(), and ZoneMesh< faFaceZone, faMesh >::ZoneMesh().

capacity()

template<class T>

Foam::label capacity ( ) const

inlinenoexcept

Size of the underlying storage.

Definition at line 113 of file UPtrListI.H.

References Foam::noexcept, and ptrs_.

count_nonnull()

template<class T>

Foam::label count_nonnull ( ) const

inlinenoexcept

The number of non-nullptr entries in the list.

Definition at line 120 of file UPtrListI.H.

References Foam::noexcept.

Referenced by UPtrList< const lduInterface >::count().

Here is the caller graph for this function:

front() [1/2]

template<class T>

T & front ( )

inline

Reference to the first element of the list.

Definition at line 223 of file UPtrListI.H.

References at(), and Foam::T().

Referenced by UPtrList< const lduInterface >::first(), and UPtrList< const lduInterface >::first().

Here is the call graph for this function:

Here is the caller graph for this function:

front() [2/2]

template<class T>

const T & front ( ) const

inline

Reference to first element of the list.

Definition at line 230 of file UPtrListI.H.

References at(), and Foam::T().

Here is the call graph for this function:

back() [1/2]

template<class T>

T & back ( )

inline

Reference to the last element of the list.

Definition at line 237 of file UPtrListI.H.

References at(), size(), and Foam::T().

Referenced by UPtrList< const lduInterface >::last(), and UPtrList< const lduInterface >::last().

Here is the call graph for this function:

Here is the caller graph for this function:

back() [2/2]

template<class T>

const T & back ( ) const

inline

Reference to the last element of the list.

Definition at line 244 of file UPtrListI.H.

References at(), size(), and Foam::T().

Here is the call graph for this function:

test()

template<class T>

const T * test ( const label i ) const

inline

Return const pointer to element (can be nullptr), or nullptr for out-of-range access (ie, with bounds checking).

The return value can be tested as a bool.

Definition at line 127 of file UPtrListI.H.

References ptrs_, and Foam::T().

Referenced by coordinateSystems::cfind(), and procLduMatrix::procLduMatrix().

Here is the call graph for this function:

Here is the caller graph for this function:

get() [1/2]

template<class T>

const T * get ( const label i ) const

inline

Return const pointer to element (can be nullptr), or nullptr for out-of-range access (ie, with bounds checking).

The return value can be tested as a bool.

Definition at line 134 of file UPtrListI.H.

References ptrs_, and Foam::T().

Referenced by fvMeshAdder::add(), UPtrList< const lduInterface >::FOAM_DEPRECATED_FOR(), RecycleInteraction< CloudType >::postEvolve(), PtrList< CloudFunctionObject< CloudType > >::push_back(), UPtrList< const lduInterface >::set(), coordSetWriter::setTracks(), lduPrimitiveMeshAssembly::update(), and lduMatrix::updateMatrixInterfaces().

Here is the call graph for this function:

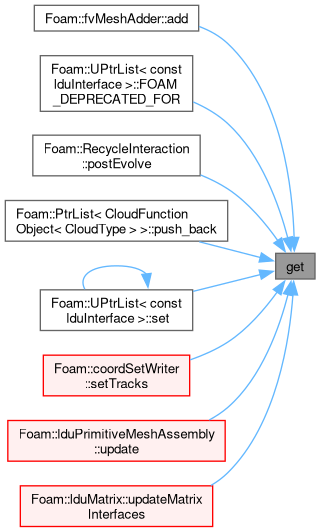

Here is the caller graph for this function:

get() [2/2]

template<class T>

T * get ( const label i )

inline

Return pointer to element (can be nullptr), or nullptr for out-of-range access (ie, with bounds checking).

The return value can be tested as a bool.

Definition at line 141 of file UPtrListI.H.

References ptrs_, and Foam::T().

Here is the call graph for this function:

set() [1/2]

template<class T>

const T * set ( const label i ) const

inline

Return const pointer to element (can be nullptr), or nullptr for out-of-range access (ie, with bounds checking).

The return value can be tested as a bool.

Definition at line 366 of file UPtrList.H.

Referenced by fvMeshAdder::add(), GAMGAgglomeration::agglomerateLduAddressing(), GAMGAgglomeration::combineLevels(), directionalMeshWave::correct(), meshWave::correct(), wallDistData< TransferType >::correct(), fvMatrix< Type >::createOrUpdateLduPrimitiveAssembly(), HashTable< T, Key, Hash >::csorted(), cyclicACMIGAMGInterface::cyclicACMIGAMGInterface(), cyclicAMIGAMGInterface::cyclicAMIGAMGInterface(), fvMeshDistribute::distribute(), faBoundaryMesh::edgeFaces(), faBoundaryMesh::edgeLabels(), PtrList< T >::emplace_set(), fvBoundaryMesh::faceCells(), polyBoundaryMesh::faceCells(), GAMGSolver::GAMGSolver(), lduPrimitiveMesh::gather(), GAMGProcAgglomeration::globalCellCells(), hexRef8Data::hexRef8Data(), viewFactor::initialise(), lduMatrix::initMatrixInterfaces(), faBoundaryMesh::interfaces(), fvBoundaryMesh::interfaces(), GeometricBoundaryField< Type, PatchField, GeoMesh >::interfaces(), lduPrimitiveMesh::lduPrimitiveMesh(), Foam::MULES::limitSum(), Foam::MULES::limitSum(), fvMeshAdder::MapDimFields(), mapDistributeBase::mapDistributeBase(), fvMeshAdder::MapSurfaceFields(), fvMeshAdder::MapVolFields(), faceAreaPairGAMGAgglomeration::movePoints(), IOobjectList::objectsTypeImpl(), objectRegistry::objectsTypeImpl(), Foam::operator<<(), GAMGAgglomeration::printLevels(), PtrList< T >::release(), coordSetWriter::repackageFields(), coordSetWriter::repackageFields(), GeometricBoundaryField< Type, PatchField, GeoMesh >::scalarInterfaces(), PtrDynList< T, SizeMin >::set(), PtrList< T >::set(), PtrList< faPatch >::set(), fvMatrix< Type >::setInterfaces(), HashTable< T, Key, Hash >::sorted(), lduMatrix::sumA(), lduPrimitiveMeshAssembly::update(), oversetFvMeshBase::updateAddressing(), lduMatrix::updateMatrixInterfaces(), and oversetFvMeshBase::write().

clear()

template<class T>

void clear ( )

inline

Set list size to zero.

Definition at line 195 of file UPtrListI.H.

References ptrs_.

Referenced by PtrList< T >::clear().

Here is the caller graph for this function:

free()

template<class T>

void free ( )

inline

Nullify all entries. Does not change the list size.

Definition at line 202 of file UPtrListI.H.

References ptrs_.

resize()

template<class T>

void resize ( const label newLen )

inline

Change the size of the list. Any new entries are nullptr.

Definition at line 251 of file UPtrListI.H.

References ptrs_.

Referenced by IOobjectList::objectsTypeImpl(), objectRegistry::objectsTypeImpl(), and UPtrList< const lduInterface >::setSize().

Here is the caller graph for this function:

resize_null()

template<class T>

void resize_null ( const label newLen )

inline

Set the list to the given size and set all entries to nullptr.

Definition at line 258 of file UPtrListI.H.

References ptrs_.

Referenced by PtrList< T >::resize_null().

Here is the caller graph for this function:

squeezeNull()

template<class T>

Foam::label squeezeNull

(

)

Squeeze out nullptr entries in the list of pointers after which any null pointers will be at the end of the list.

Returns

the number of non-null entries

Definition at line 38 of file UPtrList.C.

References ptrs_, size(), and Foam::T().

Referenced by PtrDynList< T, SizeMin >::squeezeNull().

Here is the call graph for this function:

Here is the caller graph for this function:

push_back() [1/2]

template<class T>

void push_back ( T * ptr )

inline

Append an element to the end of the list.

Definition at line 265 of file UPtrListI.H.

References ptrs_, and Foam::T().

Referenced by UPtrList< const lduInterface >::append(), UPtrList< const lduInterface >::append(), PtrList< T >::emplace_back(), PtrList< T >::push_back(), PtrList< T >::push_back(), PtrList< T >::push_back(), PtrList< T >::push_back(), and PtrList< T >::push_back().

Here is the call graph for this function:

Here is the caller graph for this function:

push_back() [2/2]

template<class T>

void push_back ( UPtrList< T > && other )

inline

Move append another list to the end of this list.

Definition at line 272 of file UPtrListI.H.

References ptrs_, and UPtrList().

Here is the call graph for this function:

swap()

template<class T>

void swap ( UPtrList< T > & list )

inlinenoexcept

Swap content.

Definition at line 209 of file UPtrListI.H.

References ptrs_, and UPtrList().

Here is the call graph for this function:

transfer()

template<class T>

void transfer ( UPtrList< T > & list )

inline

Transfer contents into this list and annul the argument.

Definition at line 216 of file UPtrListI.H.

References ptrs_, and UPtrList().

Here is the call graph for this function:

set() [2/2]

template<class T>

T * set ( const label i, T * ptr )

inline

Set element to specified pointer and return the old list element, which can be a nullptr.

No-op if the new pointer value is identical to the current content.

Definition at line 182 of file UPtrListI.H.

References ptrs_, and Foam::T().

Here is the call graph for this function:

reorder()

template<class T>

void reorder	(	const labelUList &	oldToNew,
		const bool	check = false )

Reorder elements. Reordering must be unique (ie, shuffle).

Optionally check that all pointers have been set.

Definition at line 62 of file UPtrList.C.

References Foam::abort(), Foam::check(), PtrListDetail< T >::checkNonNull(), Foam::FatalError, FatalErrorInFunction, name, Foam::nl, ptrs_, UList< T >::size(), size(), and Foam::T().

Referenced by meshRefinement::addPatch(), LBFGS::pivotFields(), pointBoundaryMesh::reorder(), polyBoundaryMesh::reorder(), fvMeshTools::reorderPatches(), and fvMeshSubset::reset().

Here is the call graph for this function:

Here is the caller graph for this function:

sortOrder()

template<class T>

void sortOrder	(	const labelUList &	order,
		const bool	check = false )

Reorder elements according to new order mapping (newToOld). Reordering must be unique (ie, shuffle).

Optionally check that all pointers have been set.

Definition at line 112 of file UPtrList.C.

References Foam::abort(), Foam::check(), PtrListDetail< T >::checkNonNull(), Foam::FatalError, FatalErrorInFunction, name, Foam::nl, ptrs_, UList< T >::size(), size(), and Foam::T().

Referenced by Foam::shuffle().

Here is the call graph for this function:

Here is the caller graph for this function:

checkNonNull()

template<class T>

void checkNonNull ( ) const

inline

Check and raise FatalError if any nullptr exists in the list.

Definition at line 280 of file UPtrListI.H.

References ptrs_.

at() [1/2]

template<class T>

const T & at ( const label i ) const

inline

Return const reference to the element at given position. FatalError for bounds problem or nullptr.

Definition at line 148 of file UPtrListI.H.

References Foam::abort(), Foam::FatalError, FatalErrorInFunction, ptrs_, size(), and Foam::T().

Referenced by back(), back(), front(), front(), operator[](), and operator[]().

Here is the call graph for this function:

Here is the caller graph for this function:

at() [2/2]

template<class T>

T & at ( const label i )

inline

Return reference to the element at given position. FatalError for bounds problem or nullptr.

Definition at line 165 of file UPtrListI.H.

References Foam::abort(), Foam::FatalError, FatalErrorInFunction, ptrs_, size(), and Foam::T().

Here is the call graph for this function:

operator[]() [1/2]

template<class T>

const T & operator[] ( const label i ) const

inline

Return const reference to the element at given position. FatalError for bounds problem or nullptr. Same as at().

Definition at line 289 of file UPtrListI.H.

References at(), and Foam::T().

Referenced by faBoundaryMesh::calcGeometry(), faBoundaryMesh::movePoints(), pointBoundaryMesh::movePoints(), faBoundaryMesh::updateMesh(), pointBoundaryMesh::updateMesh(), and faBoundaryMesh::whichPatch().

Here is the call graph for this function:

Here is the caller graph for this function:

operator[]() [2/2]

template<class T>

T & operator[] ( const label i )

inline

Return reference to the element at given position. FatalError for bounds problem or nullptr. Same as at().

Definition at line 296 of file UPtrListI.H.

References at(), and Foam::T().

Here is the call graph for this function:

FOAM_DEPRECATED_FOR()

template<class T>

FOAM_DEPRECATED_FOR ( 2022- 09, " get(), set() or test() methods"  ) const

inline

Deprecated(2022-09) - same as get().

Deprecated

(2022-09) - use get(), set() or test() methods

Definition at line 485 of file UPtrList.H.

operator=() [1/2]

template<class T>

void operator= ( const UPtrList< T > & list )

inline

Copy assignment (shallow copies addresses).

Definition at line 465 of file UPtrListI.H.

References ptrs_, and UPtrList().

Here is the call graph for this function:

operator=() [2/2]

template<class T>

void operator= ( UPtrList< T > && list )

inline

Move assignment.

Definition at line 472 of file UPtrListI.H.

References ptrs_, and UPtrList().

Here is the call graph for this function:

printAddresses()

template<class T>

Foam::Ostream & printAddresses

(

Ostream &

os

)

const

Print pointer addresses to Ostream (debugging only).

Definition at line 167 of file UPtrList.C.

References os(), and ptrs_.

Referenced by PtrDynList< T, SizeMin >::printAddresses().

Here is the call graph for this function:

Here is the caller graph for this function:

writeList()

template<class T>

Foam::Ostream & writeList	(	Ostream &	os,
		const bool	trimNull = false ) const

Write UPtrList to Ostream, optionally ignoring null entries.

Definition at line 174 of file UPtrList.C.

References os(), and ptrs_.

Here is the call graph for this function:

begin_ptr()

template<class T>

T ** begin_ptr ( )

inlinenoexcept

Iterator to begin of raw pointers traversal (use with caution).

Definition at line 798 of file UPtrList.H.

Referenced by Foam::sort(), and Foam::sort().

Here is the caller graph for this function:

end_ptr()

template<class T>

T ** end_ptr ( )

inlinenoexcept

Iterator beyond end of raw pointers traversal (use with caution).

Definition at line 803 of file UPtrList.H.

Referenced by Foam::sort(), and Foam::sort().

Here is the caller graph for this function:

begin() [1/2]

template<class T>

Foam::UPtrList< T >::iterator begin ( )

inline

Return iterator to begin traversal of non-nullptr entries.

Definition at line 416 of file UPtrListI.H.

Referenced by ZoneMesh< ZoneType, MeshType >::cfindZone().

Here is the caller graph for this function:

end() [1/2]

template<class T>

Foam::UPtrList< T >::iterator end ( )

inlinenoexcept

Return iterator beyond end of UPtrList traversal.

Definition at line 440 of file UPtrListI.H.

References Foam::noexcept.

Referenced by ZoneMesh< ZoneType, MeshType >::cfindZone().

Here is the caller graph for this function:

cbegin()

template<class T>

Foam::UPtrList< T >::const_iterator cbegin ( ) const

inline

Return const_iterator to begin traversal of non-nullptr entries.

Definition at line 432 of file UPtrListI.H.

cend()

template<class T>

Foam::UPtrList< T >::const_iterator cend ( ) const

inlinenoexcept

Return const_iterator beyond end of UPtrList traversal.

Definition at line 456 of file UPtrListI.H.

References Foam::noexcept.

begin() [2/2]

template<class T>

Foam::UPtrList< T >::const_iterator begin ( ) const

inline

Return const_iterator to begin traversal of non-nullptr entries.

Definition at line 424 of file UPtrListI.H.

end() [2/2]

template<class T>

Foam::UPtrList< T >::const_iterator end ( ) const

inlinenoexcept

Return const_iterator beyond end of UPtrList traversal.

Definition at line 448 of file UPtrListI.H.

References Foam::noexcept.

setSize()

template<class T>

void setSize ( const label n )

inline

Alias for resize().

Definition at line 842 of file UPtrList.H.

Referenced by fvMatrix< Type >::setInterfaces(), lduPrimitiveMeshAssembly::update(), and oversetFvMeshBase::updateAddressing().

Here is the caller graph for this function:

first() [1/2]

template<class T>

T & first ( )

inline

Reference to the first element of the list.

FOAM_DEPRECATED_FOR(2022-10, "front()")

Definition at line 849 of file UPtrList.H.

Referenced by PtrDynList< T, SizeMin >::PtrDynList().

Here is the caller graph for this function:

first() [2/2]

template<class T>

const T & first ( ) const

inline

Return reference to first element of the list.

FOAM_DEPRECATED_FOR(2022-10, "front()")

Definition at line 856 of file UPtrList.H.

last() [1/2]

template<class T>

T & last ( )

inline

Return reference to the last element of the list.

FOAM_DEPRECATED_FOR(2022-10, "back()")

Definition at line 863 of file UPtrList.H.

Referenced by fvMatrix< Type >::setInterfaces().

Here is the caller graph for this function:

last() [2/2]

template<class T>

const T & last ( ) const

inline

Return reference to the last element of the list.

FOAM_DEPRECATED_FOR(2022-10, "back()")

Definition at line 870 of file UPtrList.H.

append() [1/2]

template<class T>

void append ( T * ptr )

inline

Append an element to the end of the list.

FOAM_DEPRECATED_FOR(2022-10, "push_back()")

Definition at line 877 of file UPtrList.H.

append() [2/2]

template<class T>

void append ( UPtrList< T > && other )

inline

Move append another list to the end of this list.

FOAM_DEPRECATED_FOR(2022-10, "push_back()")

Definition at line 884 of file UPtrList.H.

count()

template<class T>

label count ( ) const

inlinenoexcept

The number of non-nullptr entries in the list.

Definition at line 890 of file UPtrList.H.

Referenced by faBoundaryMesh::nNonProcessor(), pointBoundaryMesh::nNonProcessor(), polyBoundaryMesh::nNonProcessor(), faBoundaryMesh::nNonProcessorEdges(), polyBoundaryMesh::nNonProcessorFaces(), faBoundaryMesh::nProcessorPatches(), pointBoundaryMesh::nProcessorPatches(), polyBoundaryMesh::nProcessorPatches(), and blockMesh::numZonedBlocks().

Here is the caller graph for this function:

Friends And Related Symbol Documentation

Iterator< true >

template<class T>

friend class Iterator< true >

friend

Allow iterator access to internals.

Definition at line 517 of file UPtrList.H.

Iterator< false >

template<class T>

friend class Iterator< false >

friend

Allow iterator access to internals.

Definition at line 517 of file UPtrList.H.

operator<<

template<class T>

Ostream & operator<< ( Ostream & os, const UPtrList< T > & list )

friend

Write UPtrList to Ostream. Does not ignore null entries.

Member Data Documentation

ptrs_

template<class T>

Detail::PtrListDetail<T> ptrs_

protected

The list of pointers.

Definition at line 109 of file UPtrList.H.

Referenced by at(), at(), capacity(), checkNonNull(), PtrList< T >::clear(), clear(), PtrList< faPatch >::clone(), empty(), find_next(), PtrList< T >::free(), free(), get(), get(), operator=(), operator=(), PtrDynList< T, SizeMin >::printAddresses(), printAddresses(), PtrList< T >::PtrList(), PtrDynList< T, SizeMin >::push_back(), push_back(), push_back(), reorder(), PtrList< T >::resize(), resize(), PtrList< T >::resize_null(), resize_null(), set(), setAddressableSize(), size(), sortOrder(), squeezeNull(), swap(), test(), PtrList< T >::transfer(), transfer(), UPtrList(), UPtrList(), UPtrList(), UPtrList(), UPtrList(), UPtrList(), UPtrList(), UPtrList(), writeList(), and PtrList< T >::~PtrList().

---

The documentation for this class was generated from the following files:

• src/OpenFOAM/containers/HashTables/HashTable/HashTable.H
• src/OpenFOAM/containers/PtrLists/UPtrList/UPtrList.H
• src/OpenFOAM/containers/PtrLists/UPtrList/UPtrList.C
• src/OpenFOAM/containers/PtrLists/UPtrList/UPtrListI.H
