Class to provide interfacial heat and mass transfer between a number of phases according to a interface composition model. More...

#include <InterfaceCompositionPhaseChangePhaseSystem.H>

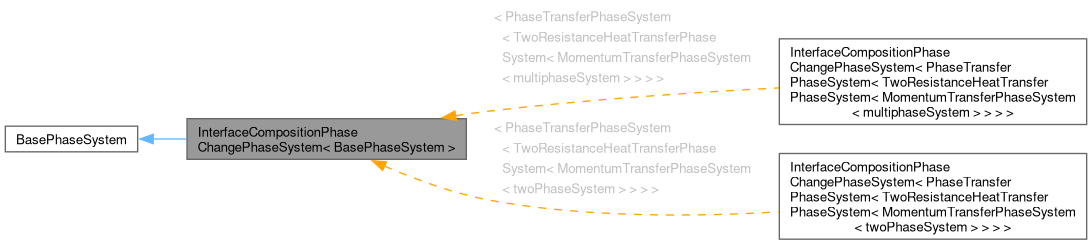

Inheritance diagram for InterfaceCompositionPhaseChangePhaseSystem< BasePhaseSystem >:

[legend]

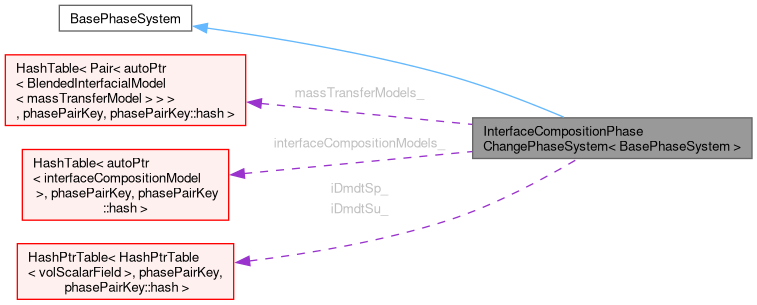

Collaboration diagram for InterfaceCompositionPhaseChangePhaseSystem< BasePhaseSystem >:

[legend]

Public Member Functions
	InterfaceCompositionPhaseChangePhaseSystem (const fvMesh &)
	Construct from fvMesh.
virtual	~InterfaceCompositionPhaseChangePhaseSystem ()
	Destructor.
virtual tmp< volScalarField >	dmdt (const phasePairKey &key) const
	Return the mass transfer rate for a pair.
virtual PtrList< volScalarField >	dmdts () const
	Return the mass transfer rates for each phase.
virtual autoPtr< phaseSystem::massTransferTable >	massTransfer () const
	Return the mass transfer matrices.
virtual void	correctInterfaceThermo ()
	Correct the interface temperatures.
virtual bool	read ()
	Read base phaseProperties dictionary.

Protected Types
typedef HashTable< autoPtr< interfaceCompositionModel >, phasePairKey, phasePairKey::hash >	interfaceCompositionModelTable
typedef HashTable< Pair< autoPtr< BlendedInterfacialModel< massTransferModel > > >, phasePairKey, phasePairKey::hash >	massTransferModelTable
typedef HashPtrTable< HashPtrTable< volScalarField >, phasePairKey, phasePairKey::hash >	iDmdtSuSpTable
typedef HashPtrTable< volScalarField, phasePairKey, phasePairKey::hash >	iDmdtTable

Protected Member Functions
virtual tmp< volScalarField >	iDmdt (const phasePairKey &key) const
	Return the interfacial mass transfer rate for a pair for a pair.

Protected Attributes
const label	nInterfaceCorrectors_
	The number of interface correctors.
massTransferModelTable	massTransferModels_
	Mass transfer models.
interfaceCompositionModelTable	interfaceCompositionModels_
	Interface composition models.
iDmdtSuSpTable	iDmdtSu_
	The explicit part of the interfacial mass transfer rates.
iDmdtSuSpTable	iDmdtSp_
	The implicit part of the interfacial mass transfer rates.

Detailed Description

template<class BasePhaseSystem>
class Foam::InterfaceCompositionPhaseChangePhaseSystem< BasePhaseSystem >

Class to provide interfacial heat and mass transfer between a number of phases according to a interface composition model.

The interface temperature is calculated such that the net rate at which the heat is transferred to the interface is equal to the latent heat consumed by the mass transfer.

Source files

Definition at line 56 of file InterfaceCompositionPhaseChangePhaseSystem.H.

Member Typedef Documentation

◆ interfaceCompositionModelTable

template<class BasePhaseSystem>

typedef HashTable< autoPtr<interfaceCompositionModel>, phasePairKey, phasePairKey::hash > interfaceCompositionModelTable

protected

Definition at line 69 of file InterfaceCompositionPhaseChangePhaseSystem.H.

◆ massTransferModelTable

template<class BasePhaseSystem>

typedef HashTable< Pair<autoPtr<BlendedInterfacialModel<massTransferModel> > >, phasePairKey, phasePairKey::hash > massTransferModelTable

protected

Definition at line 76 of file InterfaceCompositionPhaseChangePhaseSystem.H.

◆ iDmdtSuSpTable

template<class BasePhaseSystem>

typedef HashPtrTable< HashPtrTable<volScalarField>, phasePairKey, phasePairKey::hash > iDmdtSuSpTable

protected

Definition at line 83 of file InterfaceCompositionPhaseChangePhaseSystem.H.

◆ iDmdtTable

template<class BasePhaseSystem>

typedef HashPtrTable< volScalarField, phasePairKey, phasePairKey::hash > iDmdtTable

protected

Definition at line 90 of file InterfaceCompositionPhaseChangePhaseSystem.H.

Constructor & Destructor Documentation

◆ InterfaceCompositionPhaseChangePhaseSystem()

template<class BasePhaseSystem>

InterfaceCompositionPhaseChangePhaseSystem ( const fvMesh & mesh )

explicit

Construct from fvMesh.

Definition at line 76 of file InterfaceCompositionPhaseChangePhaseSystem.C.

References Foam::dimDensity, Foam::dimTime, Foam::exit(), Foam::FatalError, FatalErrorInFunction, forAllConstIter, IOobject::groupName(), iDmdtSp_, iDmdtSu_, phasePair::index(), interfaceCompositionModels_, massTransferModels_, mesh, phase::name(), phaseModel::name(), phasePair::name(), nInterfaceCorrectors_, phasePairKey::ordered(), phasePair::phase1(), and phasePair::phase2().

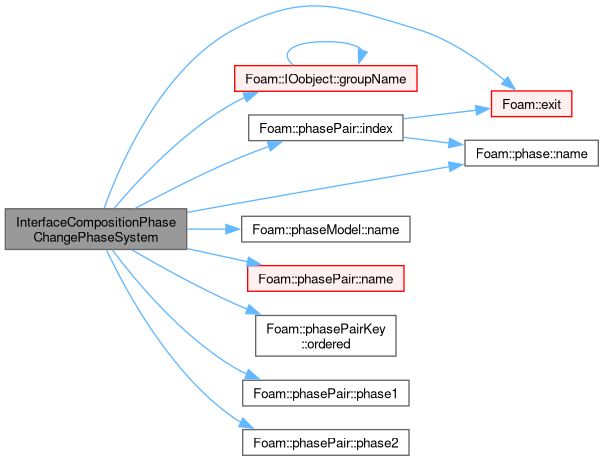

Here is the call graph for this function:

◆ ~InterfaceCompositionPhaseChangePhaseSystem()

template<class BasePhaseSystem>

~InterfaceCompositionPhaseChangePhaseSystem ( )

virtual

Destructor.

Definition at line 228 of file InterfaceCompositionPhaseChangePhaseSystem.C.

Member Function Documentation

◆ iDmdt()

template<class BasePhaseSystem>

Foam::tmp< Foam::volScalarField > iDmdt ( const phasePairKey & key ) const

protectedvirtual

Return the interfacial mass transfer rate for a pair for a pair.

Definition at line 30 of file InterfaceCompositionPhaseChangePhaseSystem.C.

References Pair< T >::compare(), phaseSystem::dmdt(), Pair< T >::first(), forAllConstIter, iDmdtSp_, iDmdtSu_, interfaceCompositionModels_, phaseModel::otherPhase(), phases, and tmp< T >::ref().

Referenced by dmdt(), dmdts(), and massTransfer().

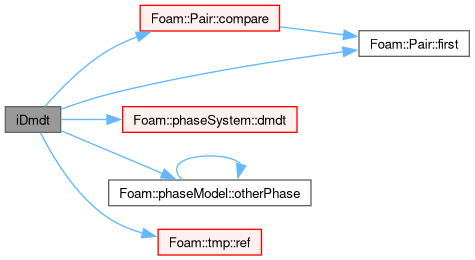

Here is the call graph for this function:

Here is the caller graph for this function:

◆ dmdt()

template<class BasePhaseSystem>

Foam::tmp< Foam::volScalarField > dmdt ( const phasePairKey & key ) const

virtual

Return the mass transfer rate for a pair.

Definition at line 237 of file InterfaceCompositionPhaseChangePhaseSystem.C.

References iDmdt().

Here is the call graph for this function:

◆ dmdts()

template<class BasePhaseSystem>

Foam::PtrList< Foam::volScalarField > dmdts ( ) const

virtual

Return the mass transfer rates for each phase.

Definition at line 248 of file InterfaceCompositionPhaseChangePhaseSystem.C.

References dmdts(), forAllConstIter, iDmdt(), iDmdtSp_, iDmdtSu_, interfaceCompositionModels_, phasePair::phase1(), and phasePair::phase2().

Referenced by dmdts().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ massTransfer()

template<class BasePhaseSystem>

Foam::autoPtr< Foam::phaseSystem::massTransferTable > massTransfer ( ) const

virtual

Return the mass transfer matrices.

Definition at line 286 of file InterfaceCompositionPhaseChangePhaseSystem.C.

References forAllConstIter, HashTable< T, Key, Hash >::found(), IOobject::groupName(), iDmdt(), iDmdtSp_, iDmdtSu_, phasePair::index(), interfaceCompositionModels_, massTransferModels_, Foam::name(), phase::name(), phaseModel::name(), name, phasePair::phase1(), phasePair::phase2(), phase::rho(), Foam::fvm::Sp(), and interfaceCompositionModel::Yf().

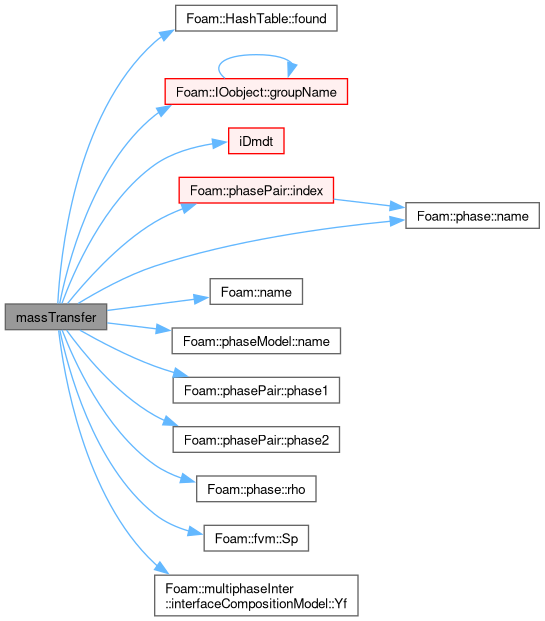

Here is the call graph for this function:

◆ correctInterfaceThermo()

template<class BasePhaseSystem>

void correctInterfaceThermo ( )

virtual

Correct the interface temperatures.

Definition at line 366 of file InterfaceCompositionPhaseChangePhaseSystem.C.

References Foam::average(), GeometricField< Type, PatchField, GeoMesh >::correctBoundaryConditions(), Foam::dimEnergy, DimensionedField< Type, GeoMesh >::dimensions(), heatTransferModel::dimK, Foam::dimTemperature, Foam::dimTime, Foam::dimVolume, Foam::endl(), Pair< T >::first(), forAllConstIter, Foam::Info, interfaceCompositionModels_, massTransferModels_, Foam::max(), mesh, Foam::min(), phasePair::name(), nInterfaceCorrectors_, phasePair::phase1(), phasePair::phase2(), GeometricField< Type, PatchField, GeoMesh >::primitiveField(), Pair< T >::second(), basicThermo::T(), T, phaseModel::thermo(), thermo, and timeName.

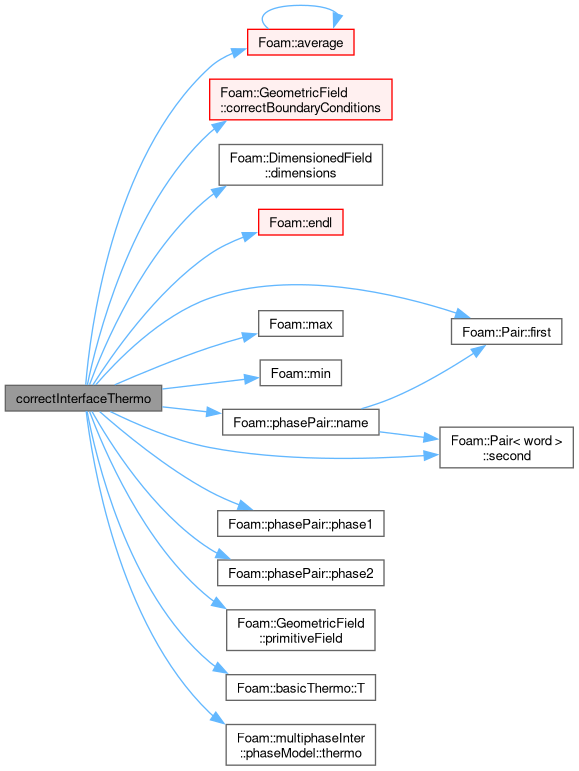

Here is the call graph for this function:

◆ read()

template<class BasePhaseSystem>

bool read ( )

virtual

Read base phaseProperties dictionary.

Definition at line 482 of file InterfaceCompositionPhaseChangePhaseSystem.C.

Member Data Documentation

◆ nInterfaceCorrectors_

template<class BasePhaseSystem>

const label nInterfaceCorrectors_

protected

The number of interface correctors.

Definition at line 100 of file InterfaceCompositionPhaseChangePhaseSystem.H.

Referenced by correctInterfaceThermo(), and InterfaceCompositionPhaseChangePhaseSystem().

◆ massTransferModels_

template<class BasePhaseSystem>

massTransferModelTable massTransferModels_

protected

Mass transfer models.

Definition at line 105 of file InterfaceCompositionPhaseChangePhaseSystem.H.

Referenced by correctInterfaceThermo(), InterfaceCompositionPhaseChangePhaseSystem(), and massTransfer().

◆ interfaceCompositionModels_

template<class BasePhaseSystem>

interfaceCompositionModelTable interfaceCompositionModels_

protected

Interface composition models.

Definition at line 110 of file InterfaceCompositionPhaseChangePhaseSystem.H.

Referenced by correctInterfaceThermo(), dmdts(), iDmdt(), InterfaceCompositionPhaseChangePhaseSystem(), and massTransfer().

◆ iDmdtSu_

template<class BasePhaseSystem>

iDmdtSuSpTable iDmdtSu_

mutableprotected

The explicit part of the interfacial mass transfer rates.

Definition at line 115 of file InterfaceCompositionPhaseChangePhaseSystem.H.

Referenced by dmdts(), iDmdt(), InterfaceCompositionPhaseChangePhaseSystem(), and massTransfer().

◆ iDmdtSp_

template<class BasePhaseSystem>

iDmdtSuSpTable iDmdtSp_

mutableprotected

The implicit part of the interfacial mass transfer rates.

Definition at line 120 of file InterfaceCompositionPhaseChangePhaseSystem.H.

Referenced by dmdts(), iDmdt(), InterfaceCompositionPhaseChangePhaseSystem(), and massTransfer().

The documentation for this class was generated from the following files:

src/phaseSystemModels/reactingEuler/multiphaseSystem/PhaseSystems/InterfaceCompositionPhaseChangePhaseSystem/InterfaceCompositionPhaseChangePhaseSystem.H
src/phaseSystemModels/reactingEuler/multiphaseSystem/PhaseSystems/InterfaceCompositionPhaseChangePhaseSystem/InterfaceCompositionPhaseChangePhaseSystem.C
