IOobject Class Reference

Defines the attributes of an object for which implicit objectRegistry management is supported, and provides the infrastructure for performing stream I/O. More...

#include <IOobject.H>

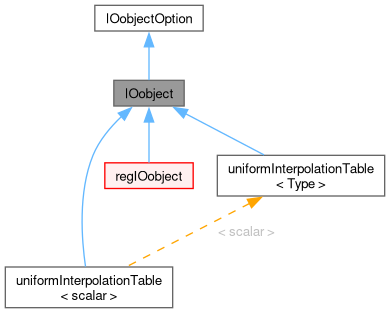

Inheritance diagram for IOobject:

Collaboration diagram for IOobject:

Public Types
enum	objectState : char { GOOD , BAD }
	Enumeration defining the valid states of an IOobject. More...
enum	fileCheckTypes : char { timeStamp = 1 , timeStampMaster = 3 , inotify = 4 , inotifyMaster = 6 }
	Enumeration defining the file checking options (time-stamp | inotify) | (all | masterOnly). More...
Public Types inherited from IOobjectOption
enum	readOption : unsigned char {   NO_READ = 0 , MUST_READ = 0x1 , READ_MODIFIED = 0x3 , MUST_READ_IF_MODIFIED = 0x3 ,   LAZY_READ = 0x4 , READ_IF_PRESENT = 0x4 }
	Enumeration defining read preferences. More...
enum	writeOption : unsigned char { NO_WRITE = 0 , AUTO_WRITE = 0x10 }
	Enumeration defining write preferences. More...
enum	registerOption : unsigned char { NO_REGISTER = 0 , REGISTER = 1 , LEGACY_REGISTER = 2 }
	Enumeration for use with registerObject(). Values map to bool (false/true). More...
enum class	Layout : unsigned char { regular , global }
	The layout of the case structure. More...

Public Member Functions
	TypeName ("IOobject")
	Declare type-name, virtual type (with debug switch).
	IOobject (const IOobject &)=default
	Copy construct.

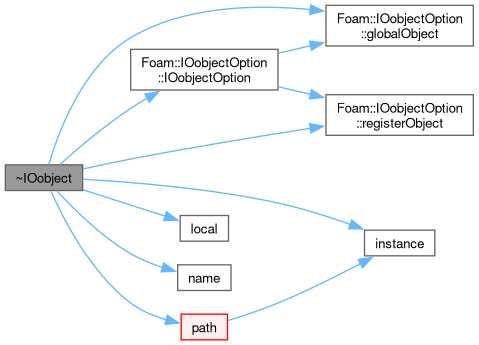

virtual	~IOobject ()=default
	Destructor.

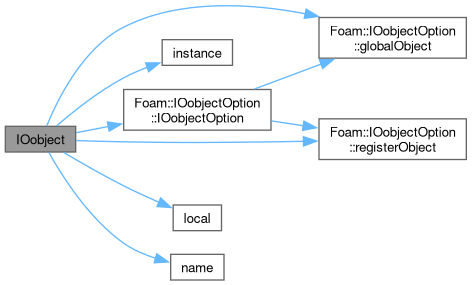

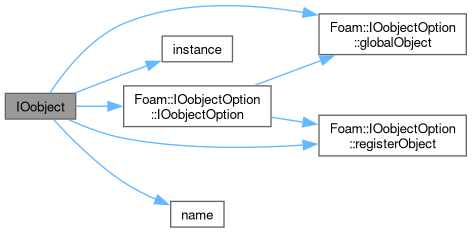

	IOobject (const word &name, const fileName &instance, const objectRegistry &registry, IOobjectOption ioOpt=IOobjectOption())
	Construct from name, instance, registry, io options.
	IOobject (const word &name, const fileName &instance, const fileName &local, const objectRegistry &registry, IOobjectOption ioOpt=IOobjectOption())
	Construct from name, instance, local, registry, io options.

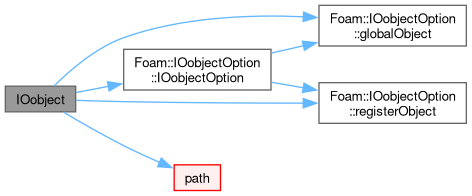

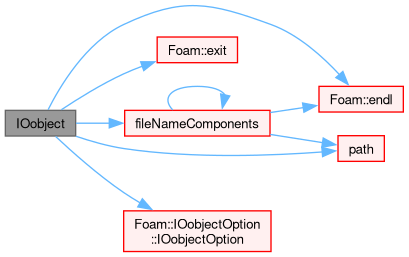

	IOobject (const fileName &path, const objectRegistry &registry, IOobjectOption ioOpt=IOobjectOption())
	Construct from path, registry, io options.
	IOobject (const word &name, const fileName &instance, const objectRegistry &registry, IOobjectOption::readOption rOpt, IOobjectOption::writeOption wOpt=IOobjectOption::NO_WRITE, bool registerObject=true, bool globalObject=false)
	Construct from name, instance, registry, io options.
	IOobject (const word &name, const fileName &instance, const fileName &local, const objectRegistry &registry, IOobjectOption::readOption rOpt, IOobjectOption::writeOption wOpt=IOobjectOption::NO_WRITE, bool registerObject=true, bool globalObject=false)
	Construct from name, instance, local, registry, io options.
	IOobject (const fileName &path, const objectRegistry &registry, IOobjectOption::readOption rOpt, IOobjectOption::writeOption wOpt=IOobjectOption::NO_WRITE, bool registerObject=true, bool globalObject=false)
	Construct from path, registry, io options.
	IOobject (const IOobject &io, const objectRegistry &registry)
	Copy construct, resetting registry.
	IOobject (const IOobject &io, const word &name)
	Copy construct, resetting name.
	IOobject (const IOobject &io, const word &name, const fileName &local)
	Copy construct, resetting name and local component.
	IOobject (const IOobject &io, IOobjectOption::readOption rOpt, IOobjectOption::writeOption wOpt)
	Copy construct, resetting read/write options.
	IOobject (const IOobject &io, IOobjectOption::registerOption regOpt)
	Copy construct, resetting register option.

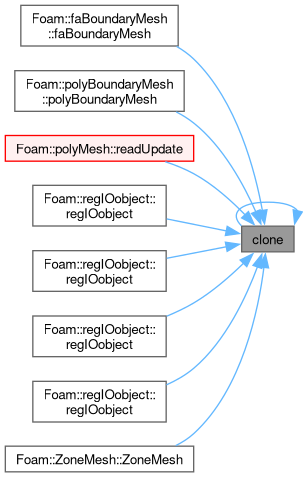

autoPtr< IOobject >	clone () const
	Clone.
autoPtr< IOobject >	clone (const objectRegistry &registry) const
	Clone resetting registry.
const objectRegistry &	db () const noexcept
	Return the local objectRegistry.
const Time &	time () const noexcept
	Return Time associated with the objectRegistry.
const word &	name () const noexcept
	Return the object name.

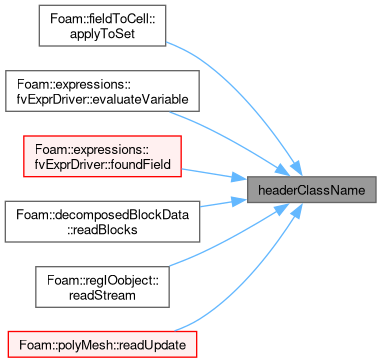

const word &	headerClassName () const noexcept
	Return name of the class name read from header.
word &	headerClassName () noexcept
	Modifiable access to the class name read from header.

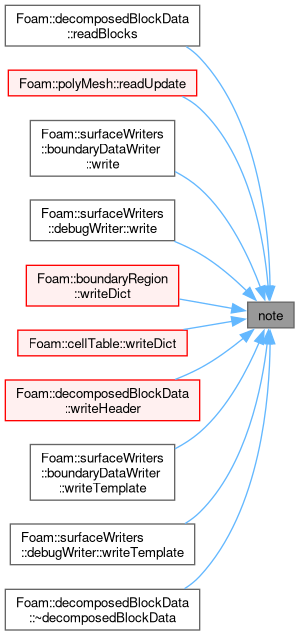

const string &	note () const noexcept
	Return the optional note.
string &	note () noexcept
	Modifiable access to the optional note.

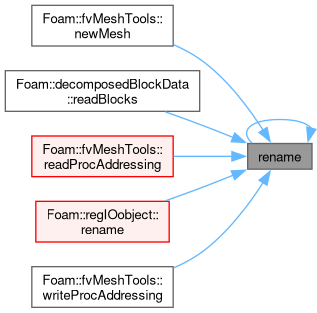

virtual void	rename (const word &newName)
	Rename the object.
unsigned	labelByteSize () const noexcept
	The sizeof (label) in bytes, possibly read from the header.
unsigned	scalarByteSize () const noexcept
	The sizeof (scalar) in bytes, possibly read from the header.

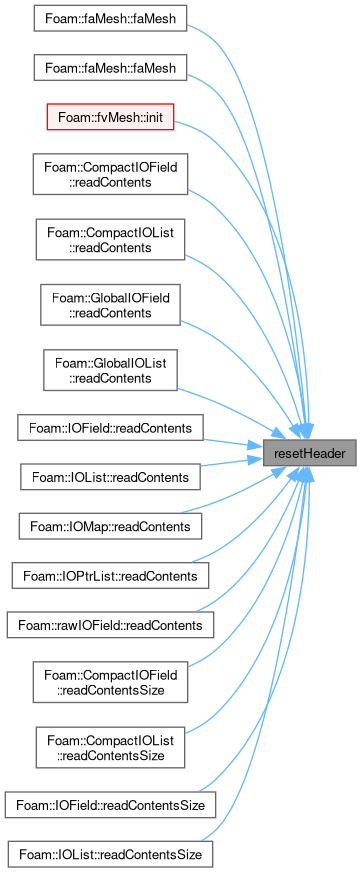

void	resetHeader (const word &newName=word::null)
	Clear various bits (headerClassName, note, sizeof...) that would be obtained when reading from a file.
bool	hasHeaderClass () const noexcept
	True if headerClassName() is non-empty (after reading).
bool	isHeaderClass (const word &expectedType) const
	Check if headerClassName() equals the expected type. Always true if the expected type is empty.
template<class Type>
bool	isHeaderClass () const
	Check if headerClassName() equals Type::typeName Always true for a void type.
virtual const dictionary *	findMetaData () const noexcept
	Return pointer to meta-data (if any) or nullptr.

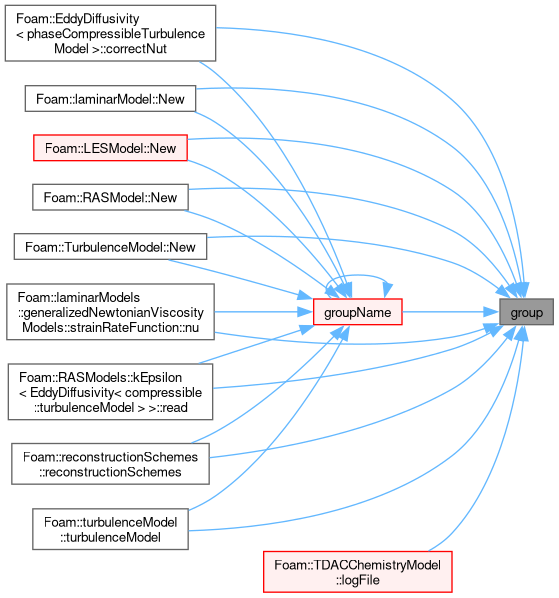

word	group () const
	Return group (extension part of name).

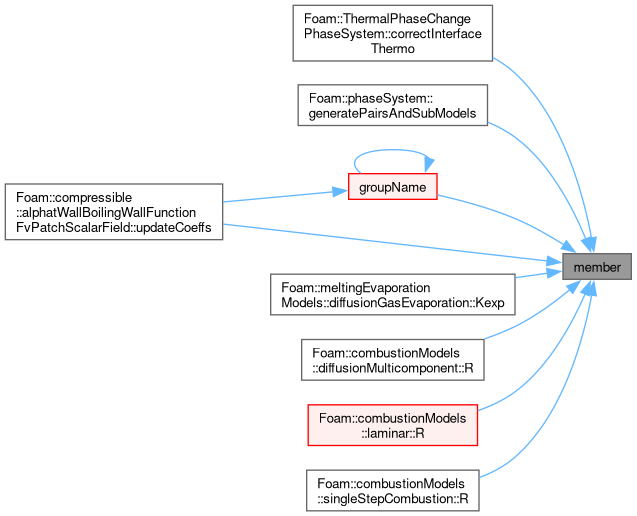

word	member () const
	Return member (name without the extension).

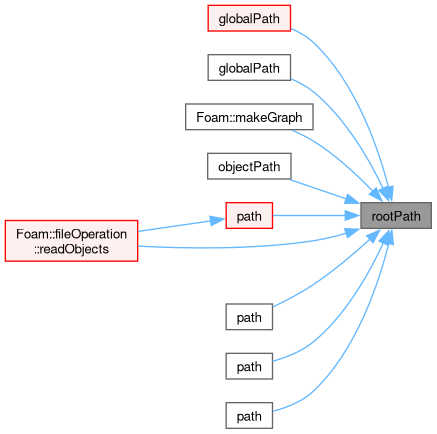

const fileName &	rootPath () const noexcept
	Return the Time::rootPath().

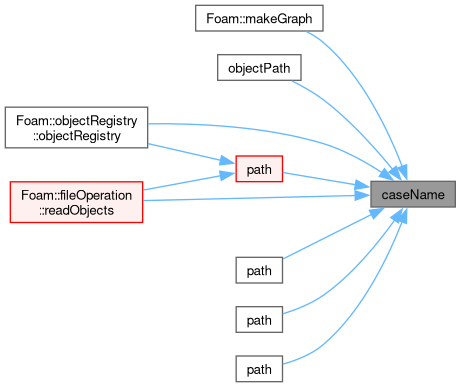

const fileName &	caseName () const noexcept
	Return the Time::caseName().
const fileName &	globalCaseName () const noexcept
	Return the Time::globalCaseName().
const fileName &	caseName (IOobjectOption::Layout) const noexcept
	Return the Time::caseName() - normal or global.
const fileName &	instance () const noexcept
	Read access to instance path component.
fileName &	instance () noexcept
	Modifiable access to instance path component.
scalar	instanceValue () const
	Return the scalar value of the instance component (or 0), which often corresponds to a time index/value.

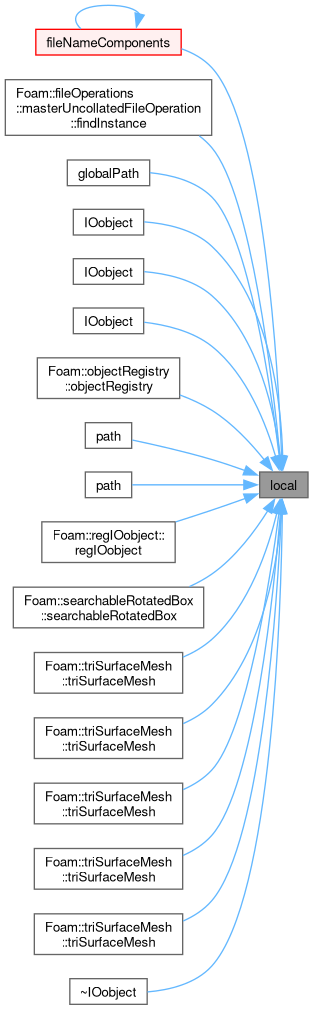

const fileName &	local () const noexcept
	Read access to local path component.
fileName &	local () noexcept
	Modifiable access to the local path component.

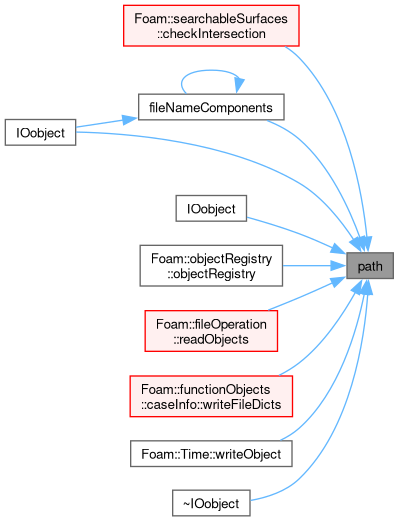

fileName	path () const
	The complete path for the object (with instance, local,...).

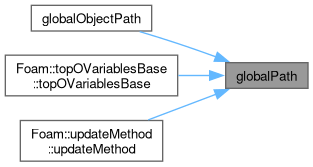

fileName	globalPath () const
	The complete global path for the object (with instance, local,...).
fileName	path (IOobjectOption::Layout) const
	The complete path (normal or global) for the object.
fileName	path (const word &instance, const fileName &local=fileName::null) const
	The complete path with alternative instance and local.
fileName	globalPath (const word &instance, const fileName &local=fileName::null) const
	The complete global path with alternative instance and local.
fileName	path (IOobjectOption::Layout, const word &instance, const fileName &local=fileName::null) const
	The complete path (normal or global) with alternative instance and local.
fileName	objectPath () const
	The complete path + object name.
fileName	globalObjectPath () const
	The complete global path + object name.
fileName	objectPath (IOobjectOption::Layout) const
	The complete path (normal or global) + object name.
fileName	objectPath (IOobjectOption::Layout, const word &instance) const
	The complete path (normal or global) + object name with alternative instance.
fileName	objectPath (const word &instance) const
	The complete path + object name with alternative instance.
fileName	globalObjectPath (const word &instance) const
	The complete global path + object name with alternative instance.

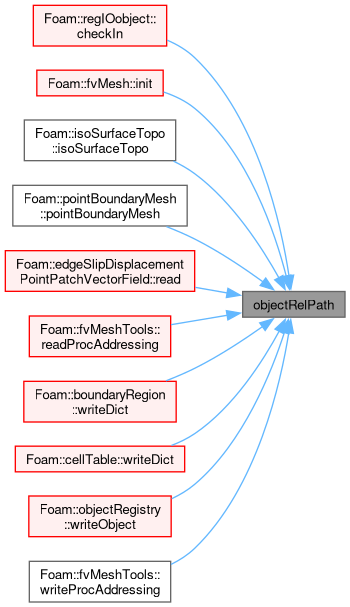

fileName	objectRelPath () const
	The object path relative to the case.

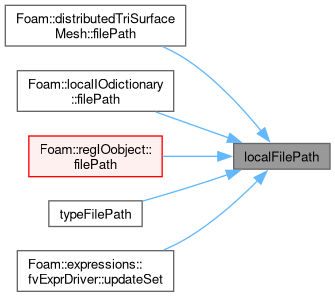

fileName	localFilePath (const word &typeName, const bool search=true) const
	Redirect to fileHandler filePath, searching locally.

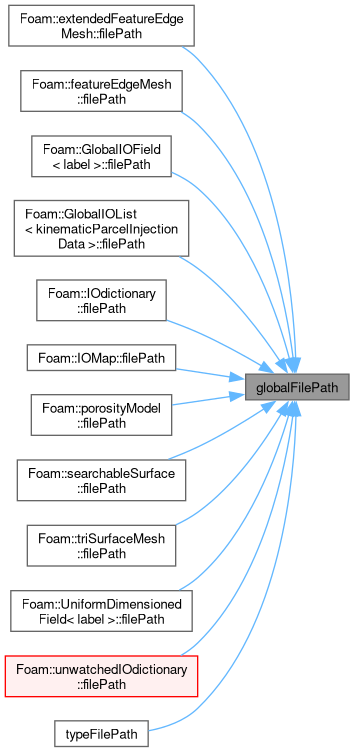

fileName	globalFilePath (const word &typeName, const bool search=true) const
	Redirect to fileHandler filePath, searching up if in parallel.

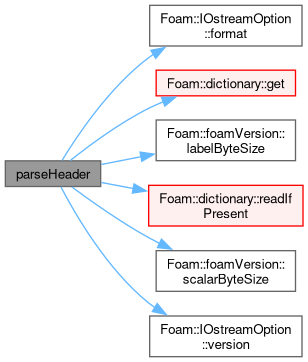

IOstreamOption	parseHeader (const dictionary &headerDict)
	Parse 'FoamFile' header contents and set the IOobject characteristics and return the stream characteristics.

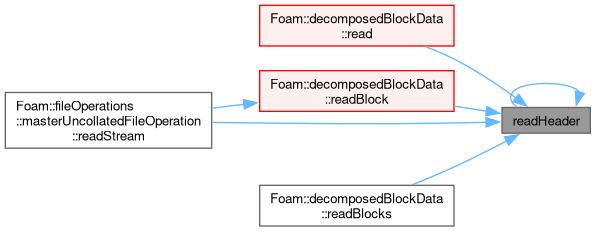

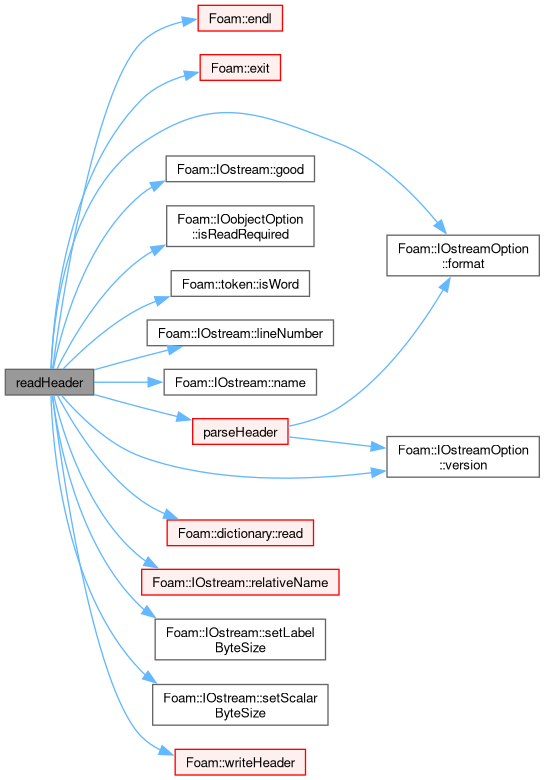

bool	readHeader (Istream &is)
	Read header ('FoamFile' dictionary) and set the IOobject and stream characteristics.
bool	readHeader (dictionary &headerDict, Istream &is)
	Read header (the 'FoamFile' dictionary) and set the IOobject and stream characteristics.
template<class Type>

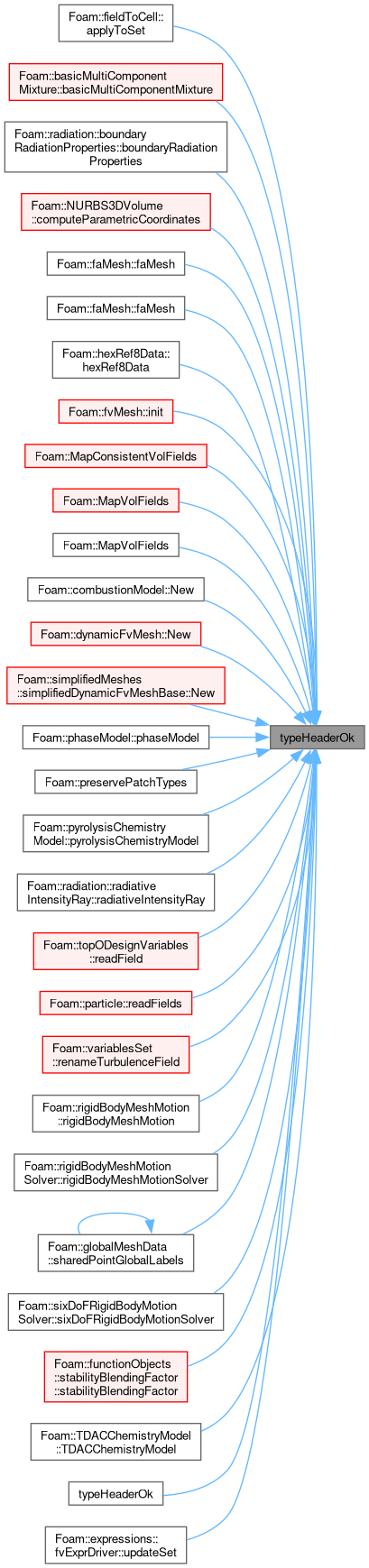

bool	typeHeaderOk (const bool checkType=true, const bool search=true, const bool verbose=true)
	Read header (respects is_globalIOobject trait) and check its info. A void type suppresses trait and type-name checks.
template<class Type, bool Searching>
bool	typeHeaderOk (const bool checkType=true, const bool verbose=true)
	Forwards to single-parameter version with the specified search type. A void type suppresses trait and type-name checks.

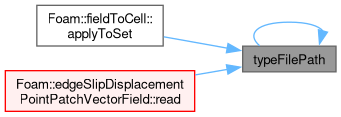

template<class Type>

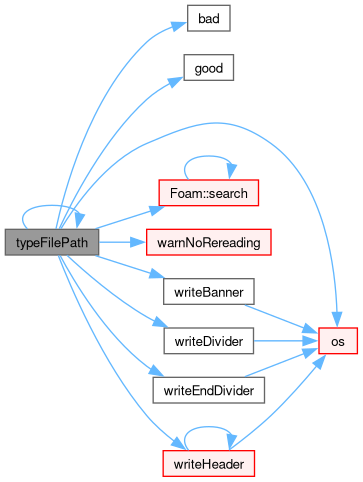

fileName	typeFilePath (const bool search=true) const
	Call localFilePath or globalFilePath for given type depending on its is_globalIOobject trait.
template<class Type>

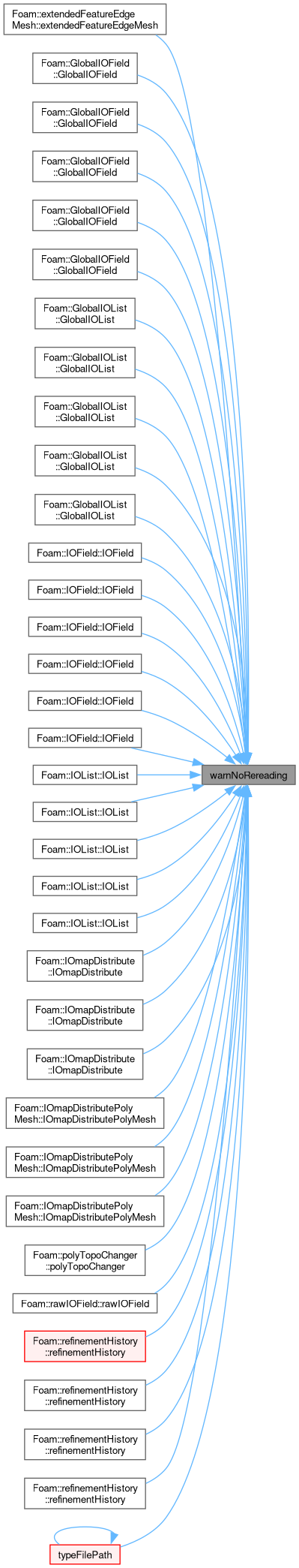

void	warnNoRereading () const
	Helper: warn that type does not support re-reading.

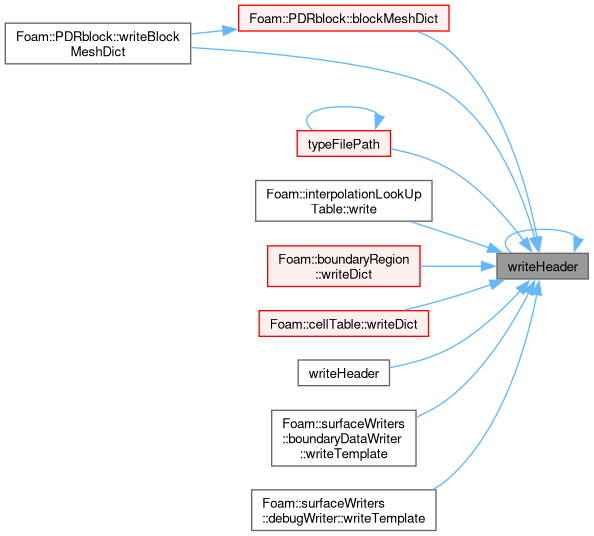

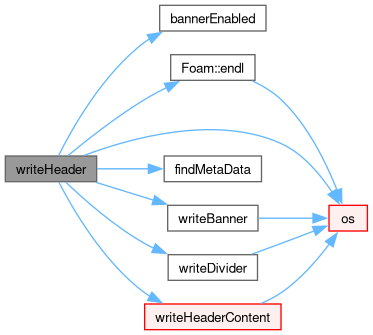

bool	writeHeader (Ostream &os) const
	Write header with current type().
bool	writeHeader (Ostream &os, const word &objectType) const
	Write header with override of type.
void	writeHeader (dictionary &dict, IOstreamOption streamOpt) const
	Write header into a dictionary with current type() and given output format.
void	writeHeader (dictionary &dict, const word &objectType, IOstreamOption streamOpt) const
	Write header into a dictionary with override of type and given output format.

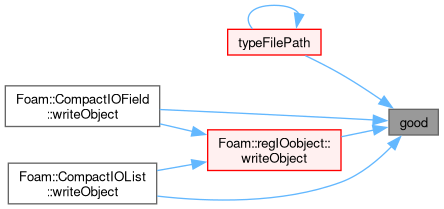

bool	good () const noexcept
	Did last readHeader() succeed?
bool	bad () const noexcept
	Did last readHeader() fail?
InfoProxy< IOobject >	info () const noexcept
	Return info proxy, for printing information to a stream.
void	operator= (const IOobject &io)
	Copy assignment, copies all values (except the registry).
template<class Type>
bool	isHeaderClassName () const
	Same as isHeaderClass().
template<class StringType>
Foam::word	groupName (StringType base, const word &group)
template<class Type>
Foam::fileName	typeFilePath (const bool search) const
Public Member Functions inherited from IOobjectOption
constexpr	IOobjectOption (readOption rOpt=readOption::NO_READ, writeOption wOpt=writeOption::NO_WRITE, registerOption registerObject=registerOption::REGISTER, bool globalObject=false) noexcept
	Default construct (NO_READ, NO_WRITE, REGISTER, non-global) or construct with specified options.
constexpr	IOobjectOption (readOption rOpt, registerOption registerObject=registerOption::REGISTER, bool globalObject=false) noexcept
	Construct NO_WRITE with specified read/register options.
constexpr	IOobjectOption (writeOption wOpt, registerOption registerObject=registerOption::REGISTER, bool globalObject=false) noexcept
	Construct NO_READ with specified write/register options.
constexpr	IOobjectOption (registerOption registerObject, bool globalObject=false) noexcept
	Construct (NO_READ, NO_WRITE) with specified register option.
constexpr	IOobjectOption (readOption rOpt, writeOption wOpt, bool registerObject, bool globalObject=false) noexcept
	Construct from components with specified register option as bool.
constexpr	IOobjectOption (bool registerObject, bool globalObject=false) noexcept
	Construct (NO_READ, NO_WRITE) with specified register option as bool.
readOption	readOpt () const noexcept
	Get the read option.
readOption	readOpt (readOption opt) noexcept
	Set the read option.
writeOption	writeOpt () const noexcept
	Get the write option.
writeOption	writeOpt (writeOption opt) noexcept
	Set the write option.
bool	registerObject () const noexcept
	Should objects created with this IOobject be registered?
bool	registerObject (bool on) noexcept
	Change registration preference.
bool	globalObject () const noexcept
	True if object is treated the same for all processors.
bool	globalObject (bool on) noexcept
	Change global-object status.
bool	isAnyRead () const noexcept
	True if any reading may be required (ie, != NO_READ).
bool	isReadRequired () const noexcept
	True if (MUST_READ | READ_MODIFIED) bits are set.
bool	isReadOptional () const noexcept
	True if (LAZY_READ) bits are set [same as READ_IF_PRESENT].
readOption &	readOpt () noexcept
	Access to the read option.
writeOption &	writeOpt () noexcept
	Access to the write option.
bool &	registerObject () noexcept
	Access to the register object option.
bool &	globalObject () noexcept
	Access to the global object option.

Static Public Member Functions

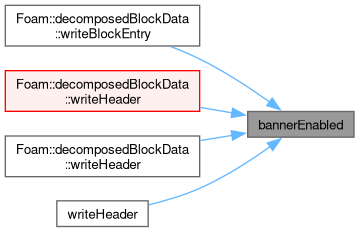

static bool	bannerEnabled () noexcept
	Status of output file banner.
static bool	bannerEnabled (bool on) noexcept
	Enable/disable output file banner.

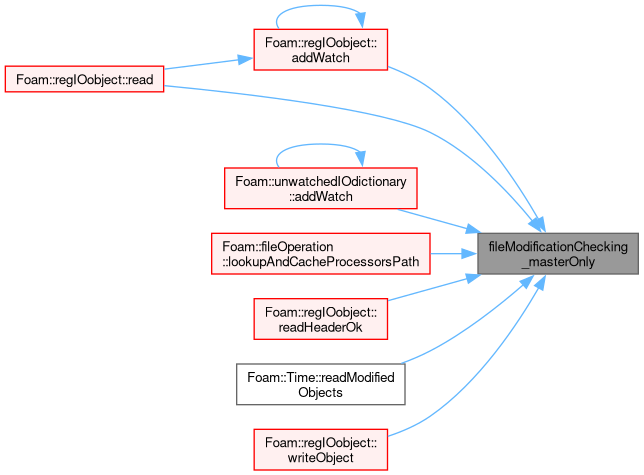

static bool	fileModificationChecking_masterOnly () noexcept
	Test fileModificationChecking for master-only.

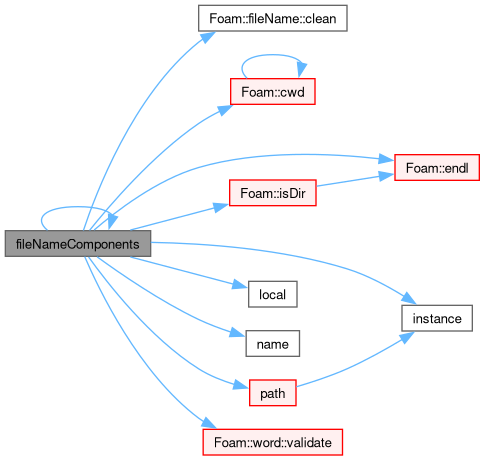

static bool	fileNameComponents (const fileName &path, fileName &instance, fileName &local, word &name)
	Split path into instance, local, name components.
template<class StringType>

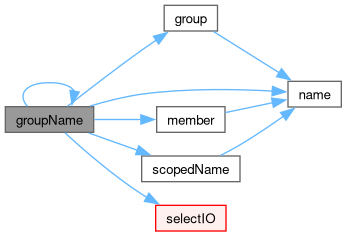

static word	groupName (StringType base, const word &group)
	Create dot-delimited name.group string.
static word	group (const word &name)
	Return group (extension part of name).
static word	member (const word &name)
	Return member (name without the extension).
static word	scopedName (const std::string &scope, const word &name)
	Create scope:name or scope_name string.
static word	scopedName (const std::string &scope, const word &name1, const word &name2)
	Create scope:name1:name2 or scope_name1_name2 string.
static IOobject	selectIO (const IOobject &io, const fileName &altFile, const word &ioName="")
	Return the IOobject, but also consider an alternative file name.

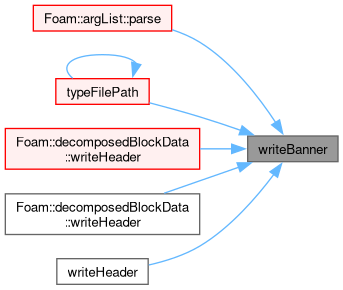

static Ostream &	writeBanner (Ostream &os, const bool noSyntaxHint=false)
	Write the standard OpenFOAM file/dictionary banner.

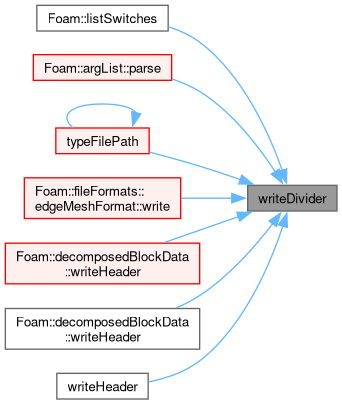

static Ostream &	writeDivider (Ostream &os)
	Write the standard file section divider.

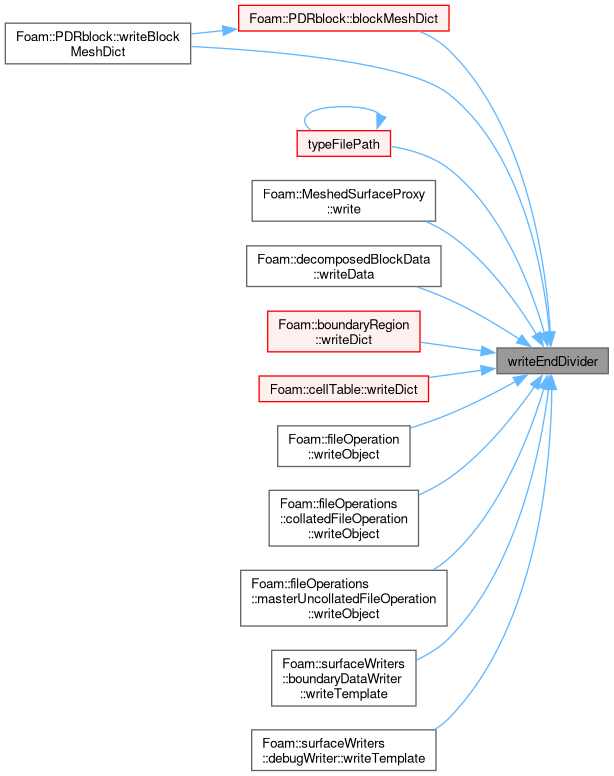

static Ostream &	writeEndDivider (Ostream &os)
	Write the standard end file divider.
Static Public Member Functions inherited from IOobjectOption
static bool	isAnyRead (readOption opt) noexcept
	True if any reading may be required (ie, != NO_READ).
static bool	isReadRequired (readOption opt) noexcept
	True if (MUST_READ | READ_MODIFIED) bits are set.
static bool	isReadOptional (readOption opt) noexcept
	True if (LAZY_READ) bits are set [same as READ_IF_PRESENT].
static readOption	lazierRead (readOption opt) noexcept
	Downgrade readOption optional (LAZY_READ), leaves NO_READ intact.

Static Public Attributes
static const Enum< fileCheckTypes >	fileCheckTypesNames
	Names for the fileCheckTypes.
static char	scopeSeparator
	Character for scoping object names (':' or '_').
static fileCheckTypes	fileModificationChecking
	Type of file modification checking.
static float	fileModificationSkew
	Time skew (seconds) for file modification checks.
static int	maxFileModificationPolls
	Max number of times to poll for file modification changes.

Protected Member Functions
void	setBad (const string &s)
	Set the object state to bad.

Static Protected Member Functions
static void	writeHeaderContent (Ostream &os, const IOobject &io, const word &objectType, const dictionary *metaDataDict=nullptr)
	Helper: write content for FoamFile IOobject header with optional meta information.
static void	writeHeaderContent (dictionary &dict, const IOobject &io, const word &objectType, IOstreamOption streamOpt, const dictionary *metaDataDict=nullptr)
	Helper: write dictionary content for FoamFile header with optional meta information.

Detailed Description

Defines the attributes of an object for which implicit objectRegistry management is supported, and provides the infrastructure for performing stream I/O.

An IOobject is constructed with an object name, a class name, an instance path, a reference to a objectRegistry, and parameters determining its storage status.

Read options

Define what is done on object construction and explicit reads:

• NO_READ

  Do not read

• MUST_READ

  Object must be read from Istream on construction.
  Error if Istream does not exist or cannot be read. Does not check timestamp or re-read.

• READ_MODIFIED (MUST_READ_IF_MODIFIED)

  Object must be read from Istream on construction.
  Error if Istream does not exist or cannot be read. If object is registered its timestamp will be checked every timestep and possibly re-read.

• LAZY_READ (READ_IF_PRESENT)

  Read object from Istream, but only if Istream exists.
  Error only if Istream exists but cannot be read. Does not check timestamp or re-read.

  Write options

  Define what is done on object destruction and explicit writes:

• NO_WRITE

  No automatic writing, but can be written explicitly

• AUTO_WRITE

  Object is written automatically when requested to by the objectRegistry.

  When serializing, the IOobject characteristics are typically written as a FoamFile header, which is a sub-dictionary with the following type of content:

Property	Description	Type	Reqd	Deflt
version	The base format version	float	no	2.0
format	The stream format (ascii/binary)	word	yes
arch	The architecture string	string	no
note	Descriptive note about the object	string	no
location	The relative location of the object	string	no
class	The type of the object	word	yes
object	The name of the object	word	yes

Note

Specifying registered does not result in the IOobject itself being registered. It is only serves as guidance for a regIOobject using it.

See also

Foam::objectRegistry Foam::regIOobject

Source files

• IOobject.H
• IOobject.C
• IOobjectIO.C
• IOobjectMetaData.C
• IOobjectReadHeader.C
• IOobjectWriteHeader.C

Definition at line 188 of file IOobject.H.

Member Enumeration Documentation

objectState

enum objectState : char

Enumeration defining the valid states of an IOobject.

Enumerator
GOOD
BAD

Definition at line 199 of file IOobject.H.

fileCheckTypes

enum fileCheckTypes : char

Enumeration defining the file checking options (time-stamp | inotify) | (all | masterOnly).

Enumerator
timeStamp
timeStampMaster
inotify
inotifyMaster

Definition at line 209 of file IOobject.H.

Constructor & Destructor Documentation

IOobject() [1/12]

IOobject ( const IOobject & )

default

Copy construct.

~IOobject()

virtual ~IOobject ( )

virtualdefault

Destructor.

References IOobjectOption::globalObject(), instance(), io, IOobjectOption::IOobjectOption(), local(), name(), IOobjectOption::NO_WRITE, path(), and IOobjectOption::registerObject().

Here is the call graph for this function:

IOobject() [2/12]

IOobject	(	const word &	name,
		const fileName &	instance,
		const objectRegistry &	registry,
		IOobjectOption	ioOpt = IOobjectOption() )

Construct from name, instance, registry, io options.

(default: NO_READ, NO_WRITE, REGISTER, non-global)

Definition at line 338 of file IOobject.C.

References Foam::endl(), InfoInFunction, instance(), IOobjectOption::IOobjectOption(), and name().

Here is the call graph for this function:

IOobject() [3/12]

IOobject	(	const word &	name,
		const fileName &	instance,
		const fileName &	local,
		const objectRegistry &	registry,
		IOobjectOption	ioOpt = IOobjectOption() )

Construct from name, instance, local, registry, io options.

(default: NO_READ, NO_WRITE, REGISTER, non-global)

Definition at line 359 of file IOobject.C.

References Foam::endl(), InfoInFunction, instance(), IOobjectOption::IOobjectOption(), local(), and name().

Here is the call graph for this function:

IOobject() [4/12]

IOobject	(	const fileName &	path,
		const objectRegistry &	registry,
		IOobjectOption	ioOpt = IOobjectOption() )

Construct from path, registry, io options.

(default: NO_READ, NO_WRITE, REGISTER, non-global)

Uses fileNameComponents() to split path into components. A path that starts with a '/' is regarded as a file system path. Paths starting with either './' or '../' are relative to current working directory (and replaced with absolute equivalents). All other paths are considered to be relative to the case.

Definition at line 382 of file IOobject.C.

References Foam::endl(), Foam::exit(), Foam::FatalError, FatalErrorInFunction, fileNameComponents(), InfoInFunction, IOobjectOption::IOobjectOption(), and path().

Here is the call graph for this function:

IOobject() [5/12]

IOobject ( const word & name, const fileName & instance, const objectRegistry & registry, IOobjectOption::readOption rOpt, IOobjectOption::writeOption wOpt = IOobjectOption::NO_WRITE, bool registerObject = true, bool globalObject = false )

inline

Construct from name, instance, registry, io options.

Definition at line 99 of file IOobjectI.H.

References IOobjectOption::globalObject(), instance(), IOobjectOption::IOobjectOption(), name(), and IOobjectOption::registerObject().

Here is the call graph for this function:

IOobject() [6/12]

IOobject ( const word & name, const fileName & instance, const fileName & local, const objectRegistry & registry, IOobjectOption::readOption rOpt, IOobjectOption::writeOption wOpt = IOobjectOption::NO_WRITE, bool registerObject = true, bool globalObject = false )

inline

Construct from name, instance, local, registry, io options.

Definition at line 120 of file IOobjectI.H.

References IOobjectOption::globalObject(), instance(), IOobjectOption::IOobjectOption(), local(), name(), and IOobjectOption::registerObject().

Here is the call graph for this function:

IOobject() [7/12]

IOobject ( const fileName & path, const objectRegistry & registry, IOobjectOption::readOption rOpt, IOobjectOption::writeOption wOpt = IOobjectOption::NO_WRITE, bool registerObject = true, bool globalObject = false )

inline

Construct from path, registry, io options.

Uses fileNameComponents() to split path into components. A path that starts with a '/' is regarded as a file system path. Paths starting with either './' or '../' are relative to current working directory (and replaced with absolute equivalents). All other paths are considered to be relative to the case.

Definition at line 143 of file IOobjectI.H.

References IOobjectOption::globalObject(), IOobjectOption::IOobjectOption(), path(), and IOobjectOption::registerObject().

Here is the call graph for this function:

IOobject() [8/12]

IOobject	(	const IOobject &	io,
		const objectRegistry &	registry )

Copy construct, resetting registry.

Definition at line 406 of file IOobject.C.

References io, and IOobjectOption::IOobjectOption().

Here is the call graph for this function:

IOobject() [9/12]

IOobject	(	const IOobject &	io,
		const word &	name )

Copy construct, resetting name.

Definition at line 427 of file IOobject.C.

References io, IOobjectOption::IOobjectOption(), and name().

Here is the call graph for this function:

IOobject() [10/12]

IOobject ( const IOobject & io, const word & name, const fileName & local )

inline

Copy construct, resetting name and local component.

Definition at line 162 of file IOobjectI.H.

References io, local(), and name().

Here is the call graph for this function:

IOobject() [11/12]

IOobject ( const IOobject & io, IOobjectOption::readOption rOpt, IOobjectOption::writeOption wOpt )

inline

Copy construct, resetting read/write options.

Definition at line 175 of file IOobjectI.H.

References io, IOobjectOption::readOpt(), and IOobjectOption::writeOpt().

Here is the call graph for this function:

IOobject() [12/12]

IOobject ( const IOobject & io, IOobjectOption::registerOption regOpt )

inline

Copy construct, resetting register option.

Definition at line 189 of file IOobjectI.H.

References io, and IOobjectOption::registerObject().

Here is the call graph for this function:

Member Function Documentation

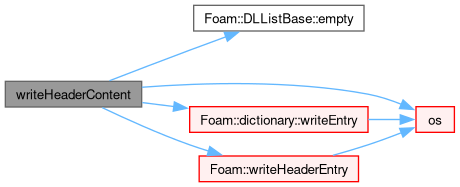

writeHeaderContent() [1/2]

void writeHeaderContent ( Ostream & os, const IOobject & io, const word & objectType, const dictionary * metaDataDict = nullptr )

staticprotected

Helper: write content for FoamFile IOobject header with optional meta information.

Definition at line 150 of file IOobjectWriteHeader.C.

References Foam::foamVersion::buildArch, DLListBase::empty(), io, os(), dictionary::writeEntry(), and Foam::writeHeaderEntry().

Referenced by writeHeader(), and writeHeader().

Here is the call graph for this function:

Here is the caller graph for this function:

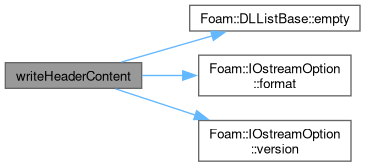

writeHeaderContent() [2/2]

void writeHeaderContent ( dictionary & dict, const IOobject & io, const word & objectType, IOstreamOption streamOpt, const dictionary * metaDataDict = nullptr )

staticprotected

Helper: write dictionary content for FoamFile header with optional meta information.

Definition at line 189 of file IOobjectWriteHeader.C.

References Foam::foamVersion::buildArch, dict, DLListBase::empty(), IOstreamOption::format(), io, and IOstreamOption::version().

Here is the call graph for this function:

setBad()

void setBad ( const string & s )

protected

Set the object state to bad.

Definition at line 625 of file IOobject.C.

References BAD, Foam::endl(), Foam::exit(), Foam::FatalError, FatalErrorInFunction, GOOD, info(), InfoInFunction, messageStream::level, and s().

Here is the call graph for this function:

TypeName()

TypeName

(

"IOobject"

)

Declare type-name, virtual type (with debug switch).

bannerEnabled() [1/2]

bool bannerEnabled ( )

inlinestaticnoexcept

Status of output file banner.

Definition at line 376 of file IOobject.H.

References Foam::noexcept.

Referenced by decomposedBlockData::writeBlockEntry(), decomposedBlockData::writeHeader(), decomposedBlockData::writeHeader(), and writeHeader().

Here is the caller graph for this function:

bannerEnabled() [2/2]

bool bannerEnabled ( bool on )

inlinestaticnoexcept

Enable/disable output file banner.

Returns

the previous value

Definition at line 386 of file IOobject.H.

fileModificationChecking_masterOnly()

bool fileModificationChecking_masterOnly ( )

inlinestaticnoexcept

Test fileModificationChecking for master-only.

Definition at line 23 of file IOobjectI.H.

References fileModificationChecking, inotifyMaster, Foam::noexcept, and timeStampMaster.

Referenced by regIOobject::addWatch(), unwatchedIOdictionary::addWatch(), fileOperation::lookupAndCacheProcessorsPath(), regIOobject::read(), regIOobject::readHeaderOk(), Time::readModifiedObjects(), and regIOobject::writeObject().

Here is the caller graph for this function:

fileNameComponents()

bool fileNameComponents ( const fileName & path, fileName & instance, fileName & local, word & name )

static

Split path into instance, local, name components.

The splitting behaviour is as follows:

*   input       | instance   | local | name
*   ----------- | ---------- | ----- | ----
*   a           |            |       | a
*   a/b         | a          |       | b
*   a/b/c/d     | a          | b/c   | d
*   /a/b/c      | /a/b       |       | c
*   ./a/b/c     | PWD/a/b    |       | c
*   ../a/b/c    | PWD/../a/b |       | c
*   a/b/        | ERROR      |       |
*

where PWD is the Foam::cwd() current working directory

Definition at line 164 of file IOobject.C.

References fileName::clean(), Foam::cwd(), Foam::endl(), fileNameComponents(), instance(), Foam::isDir(), local(), name(), path(), word::validate(), and WarningInFunction.

Referenced by fileNameComponents(), and IOobject().

Here is the call graph for this function:

Here is the caller graph for this function:

groupName() [1/2]

template<class StringType>

word groupName ( StringType base, const word & group )

inlinestatic

Create dot-delimited name.group string.

An empty group is ignored.

References group(), groupName(), io, member(), name(), scopedName(), and selectIO().

Referenced by phaseSystem::addField(), phaseSystem::addField(), phaseChange::addToDriftRate(), StaticPhaseModel< BasePhaseModel >::alphaPhi(), ThermalDiffusivity< BasicTurbulenceModel >::alphat(), basicMultiComponentMixture::basicMultiComponentMixture(), alphatPhaseChangeJayatillekeWallFunctionFvPatchScalarField::calcAlphat(), atmNutkWallFunctionFvPatchScalarField::calcNut(), atmNutUWallFunctionFvPatchScalarField::calcNut(), atmNutWallFunctionFvPatchScalarField::calcNut(), nutkFilmWallFunctionFvPatchScalarField::calcNut(), nutkRoughWallFunctionFvPatchScalarField::calcNut(), nutkWallFunctionFvPatchScalarField::calcNut(), nutUBlendedWallFunctionFvPatchScalarField::calcNut(), nutUSpaldingWallFunctionFvPatchScalarField::calcNut(), nutUTabulatedWallFunctionFvPatchScalarField::calcNut(), nutUWallFunctionFvPatchScalarField::calcNut(), nutkFilmWallFunctionFvPatchScalarField::calcUTau(), nutUBlendedWallFunctionFvPatchScalarField::calcUTau(), nutUSpaldingWallFunctionFvPatchScalarField::calcUTau(), nutUWallFunctionFvPatchScalarField::calcYPlus(), kEpsilon::computeG(), kOmegaSST::computeG(), populationBalanceModel::continuousTurbulence(), turbulentDispersionModel::continuousTurbulence(), limitTemperature::correct(), Maxwell< BasicTurbulenceModel >::correct(), DarcyForchheimer::correct(), DarcyForchheimer::correct(), powerLaw::correct(), powerLaw::correct(), solidification::correct(), solidification::correct(), EddyDiffusivity< phaseCompressibleTurbulenceModel >::correctNut(), MultiComponentPhaseModel< BasePhaseModel, phaseThermo >::correctThermo(), InterfaceCompositionModel< Thermo, OtherThermo >::D(), Burns::D(), Gosman::D(), DeltaOmegaTildeDelta::DeltaOmegaTildeDelta(), Maxwell< BasicTurbulenceModel >::devRhoReff(), linearViscousStress< BasicTurbulenceModel >::devRhoReff(), kineticTheoryModel::devRhoReff(), phasePressureModel::devRhoReff(), ReynoldsStress< BasicTurbulenceModel >::devRhoReff(), InterfaceCompositionModel< Thermo, OtherThermo >::Dfrom(), MovingPhaseModel< BasePhaseModel >::diffNo(), phaseSystem::dmdt(), SpalartAllmarasBase< BasicEddyViscosityModel >::DnuTildaEff(), dragModel::dragModel(), dragModel::dragModel(), InterfaceCompositionModel< Thermo, OtherThermo >::Dto(), laminarModel< BasicTurbulenceModel >::epsilon(), LESModel< BasicTurbulenceModel >::epsilon(), sigma< BasicTurbulenceModel >::epsilon(), RASModel< BasicTurbulenceModel >::epsilon(), SpalartAllmarasBase< BasicEddyViscosityModel >::epsilon(), DispersionRASModel< CloudType >::epsilonModel(), phaseSystem::fillFields(), phaseSystem::fillFields(), kOmegaSSTLM< BasicTurbulenceModel >::Flength(), kOmegaSSTLM< BasicTurbulenceModel >::Fonset(), phaseSystem::foundBlendedSubModel(), phaseSystem::foundSubModel(), kOmegaSSTLM< BasicTurbulenceModel >::Fthetat(), multiphaseInterSystem::generatePairsAndSubModels(), phaseSystem::generatePairsAndSubModels(), groupName(), hyperbolic::hyperbolic(), IDDESDelta::IDDESDelta(), InterfaceCompositionPhaseChangePhaseSystem< BasePhaseSystem >::InterfaceCompositionPhaseChangePhaseSystem(), BlendedInterfacialModel< Foam::dragModel >::K(), MovingPhaseModel< BasePhaseModel >::K(), laminarModel< BasicTurbulenceModel >::k(), sigma< BasicTurbulenceModel >::k(), Smagorinsky< BasicTurbulenceModel >::k(), WALE< BasicTurbulenceModel >::k(), SpalartAllmarasBase< BasicEddyViscosityModel >::k(), DispersionRASModel< CloudType >::kModel(), InterfaceCompositionModel< Thermo, OtherThermo >::L(), linear::linear(), continuousGasKEqn< BasicTurbulenceModel >::liquidTurbulence(), continuousGasKEpsilon< BasicTurbulenceModel >::liquidTurbulence(), phaseSystem::lookupBlendedSubModel(), multiphaseInterSystem::lookupSubModel(), phaseSystem::lookupSubModel(), twoPhaseSystem::lookupSubModel(), kaqRWallFunctionFvPatchScalarField::manipulateMatrix(), InterfaceCompositionPhaseChangePhaseSystem< BasePhaseSystem >::massTransfer(), PhaseTransferPhaseSystem< BasePhaseSystem >::massTransfer(), PopulationBalancePhaseSystem< BasePhaseSystem >::massTransfer(), ThermalPhaseChangePhaseSystem< BasePhaseSystem >::massTransfer(), MassTransferPhaseSystem< BasePhaseSystem >::MassTransferPhaseSystem(), moleFractions< ThermoType >::moleFractions(), MomentumTransferPhaseSystem< BasePhaseSystem >::MomentumTransferPhaseSystem(), MultiComponentPhaseModel< BasePhaseModel, phaseThermo >::MultiComponentPhaseModel(), laminarModel< BasicTurbulenceModel >::New(), LESModel< BasicTurbulenceModel >::New(), RASModel< BasicTurbulenceModel >::New(), TurbulenceModel< Alpha, Rho, BasicTurbulenceModel, TransportModel >::New(), strainRateFunction::nu(), laminarModel< BasicTurbulenceModel >::nuEff(), generalizedNewtonian< BasicMomentumTransportModel >::nuEff(), Stokes< BasicTurbulenceModel >::nuEff(), LESModel< EddyDiffusivity< fluidThermoCompressibleTurbulenceModel > >::nuEff(), RASModel< EddyDiffusivity< fluidThermoCompressibleTurbulenceModel > >::nuEff(), continuousGasKEpsilon< BasicTurbulenceModel >::nuEff(), laminarModel< BasicMomentumTransportModel >::nut(), generalizedNewtonian< BasicMomentumTransportModel >::nut(), Stokes< BasicTurbulenceModel >::nut(), laminarModel< BasicTurbulenceModel >::omega(), LESModel< BasicTurbulenceModel >::omega(), RASModel< BasicTurbulenceModel >::omega(), SpalartAllmarasBase< BasicEddyViscosityModel >::omega(), phaseChange::phaseChange(), phaseModel::phaseModel(), phaseModel::phaseModel(), phaseModel::phaseModel(), phaseModel::phaseModel(), basicThermo::phasePropertyName(), basicThermo::phasePropertyName(), basicThermo::phaseScopedName(), StaticPhaseModel< BasePhaseModel >::phi(), populationBalanceModel::populationBalanceModel(), PopulationBalancePhaseSystem< BasePhaseSystem >::PopulationBalancePhaseSystem(), porousModel::porousModel(), PhaseCompressibleTurbulenceModel< TransportModel >::pPrime(), PhaseIncompressibleTurbulenceModel< TransportModel >::pPrime(), PhaseCompressibleTurbulenceModel< TransportModel >::pPrimef(), PhaseIncompressibleTurbulenceModel< TransportModel >::pPrimef(), InertPhaseModel< BasePhaseModel >::Qdot(), phaseChange::R(), wallBoiling::R(), laminarModel< BasicTurbulenceModel >::R(), continuousGasKEpsilon< BasicTurbulenceModel >::R(), kineticTheoryModel::R(), phasePressureModel::R(), BilgerMixtureFraction::read(), limitTemperature::read(), kEpsilon< EddyDiffusivity< compressible::turbulenceModel > >::read(), sampledSurfaces::read(), reconstructionSchemes::reconstructionSchemes(), kOmegaSSTLM< BasicTurbulenceModel >::ReThetac(), kOmegaSSTLM< BasicTurbulenceModel >::ReThetat0(), continuousGasKEpsilon< BasicTurbulenceModel >::rhoEff(), faBoundaryMesh::setGroup(), polyBoundaryMesh::setGroup(), ZoneMesh< ZoneType, MeshType >::setGroup(), ZoneMesh< faFaceZone, faMesh >::setGroup(), sizeGroup::sizeGroup(), SLADelta::SLADelta(), surfaceTensionModel::surfaceTensionModel(), ThermalPhaseChangePhaseSystem< BasePhaseSystem >::ThermalPhaseChangePhaseSystem(), ThermoPhaseModel< BasePhaseModel, ThermoType >::ThermoPhaseModel(), turbulenceModel::turbulenceModel(), TwoResistanceHeatTransferPhaseSystem< BasePhaseSystem >::TwoResistanceHeatTransferPhaseSystem(), StaticPhaseModel< BasePhaseModel >::U(), atmAlphatkWallFunctionFvPatchScalarField::updateCoeffs(), alphatJayatillekeWallFunctionFvPatchScalarField::updateCoeffs(), alphatWallBoilingWallFunctionFvPatchScalarField::updateCoeffs(), alphatWallFunctionFvPatchScalarField::updateCoeffs(), convectiveHeatTransferFvPatchScalarField::updateCoeffs(), alphatFilmWallFunctionFvPatchScalarField::updateCoeffs(), epsilonWallFunctionFvPatchScalarField::updateCoeffs(), fixedShearStressFvPatchVectorField::updateCoeffs(), JohnsonJacksonParticleSlipFvPatchVectorField::updateCoeffs(), JohnsonJacksonParticleThetaFvPatchScalarField::updateCoeffs(), kLowReWallFunctionFvPatchScalarField::updateCoeffs(), omegaWallFunctionFvPatchScalarField::updateCoeffs(), porousBafflePressureFvPatchField::updateCoeffs(), totalFlowRateAdvectiveDiffusiveFvPatchScalarField::updateCoeffs(), turbulentMixingLengthDissipationRateInletFvPatchScalarField::updateCoeffs(), turbulentMixingLengthFrequencyInletFvPatchScalarField::updateCoeffs(), wallHeatTransferFvPatchScalarField::updateCoeffs(), epsilonWallFunctionFvPatchScalarField::updateWeightedCoeffs(), omegaWallFunctionFvPatchScalarField::updateWeightedCoeffs(), virtualMassModel::virtualMassModel(), Henry< Thermo, OtherThermo >::YfPrime(), nutkFilmWallFunctionFvPatchScalarField::yPlus(), nutkWallFunctionFvPatchScalarField::yPlus(), nutLowReWallFunctionFvPatchScalarField::yPlus(), nutUBlendedWallFunctionFvPatchScalarField::yPlus(), nutURoughWallFunctionFvPatchScalarField::yPlus(), nutUSpaldingWallFunctionFvPatchScalarField::yPlus(), nutUTabulatedWallFunctionFvPatchScalarField::yPlus(), nutUWallFunctionFvPatchScalarField::yPlus(), StationaryPhaseModel< BasePhaseModel >::zeroField(), and BlendedInterfacialModel< Foam::dragModel >::~BlendedInterfacialModel().

Here is the call graph for this function:

group() [1/2]

Foam::word group ( const word & name )

static

Return group (extension part of name).

Definition at line 300 of file IOobject.C.

References name().

Referenced by EddyDiffusivity< phaseCompressibleTurbulenceModel >::correctNut(), groupName(), TDACChemistryModel< ReactionThermo, ThermoType >::logFile(), laminarModel< BasicTurbulenceModel >::New(), LESModel< BasicTurbulenceModel >::New(), RASModel< BasicTurbulenceModel >::New(), TurbulenceModel< Alpha, Rho, BasicTurbulenceModel, TransportModel >::New(), strainRateFunction::nu(), kEpsilon< EddyDiffusivity< compressible::turbulenceModel > >::read(), reconstructionSchemes::reconstructionSchemes(), and turbulenceModel::turbulenceModel().

Here is the call graph for this function:

Here is the caller graph for this function:

member() [1/2]

Foam::word member ( const word & name )

static

Return member (name without the extension).

Definition at line 313 of file IOobject.C.

References name().

Referenced by ThermalPhaseChangePhaseSystem< BasePhaseSystem >::correctInterfaceThermo(), phaseSystem::generatePairsAndSubModels(), groupName(), diffusionGasEvaporation< Thermo, OtherThermo >::Kexp(), diffusionMulticomponent< ReactionThermo, ThermoType >::R(), laminar< ReactionThermo >::R(), singleStepCombustion< ReactionThermo, ThermoType >::R(), and alphatWallBoilingWallFunctionFvPatchScalarField::updateCoeffs().

Here is the call graph for this function:

Here is the caller graph for this function:

scopedName() [1/2]

Foam::word scopedName ( const std::string & scope, const word & name )

inlinestatic

Create scope:name or scope_name string.

An empty scope is ignored.

Definition at line 49 of file IOobjectI.H.

References name(), and scopeSeparator.

Referenced by acousticDampingSource::addSup(), acousticDampingSource::addSup(), acousticDampingSource::addSup(), interRegionExplicitPorositySource::addSup(), interRegionExplicitPorositySource::addSup(), interRegionHeatTransferModel::addSup(), rotorDiskSource::addSup(), rotorDiskSource::addSup(), KinematicCloud< CloudType >::alpha(), adjointkOmegaSST::beta(), adjointkOmegaSST::beta(), kOmegaSSTBase< BasicEddyViscosityModel >::beta(), Relaxation< CloudType >::cacheFields(), Explicit< CloudType >::cacheFields(), Implicit< CloudType >::cacheFields(), DarcyForchheimer::calcTransformModelData(), Stochastic< CloudType >::calculate(), PatchInteractionFields< CloudType >::clearOrReset(), KinematicCloud< Foam::DSMCCloud< dsmcParcel > >::cloudReset(), SuppressionCollision< CloudType >::collide(), kEpsilon::computeG(), kOmegaSST::computeG(), KinematicCloud< Foam::DSMCCloud< dsmcParcel > >::constProps(), directionalPressureGradientExplicitSource::constrain(), meanVelocityForce::constrain(), kEpsilon< BasicTurbulenceModel >::correct(), RNGkEpsilon< BasicTurbulenceModel >::correct(), contactAngleForce::correct(), contactAngleForce::correct(), waxSolventEvaporation::correctModel(), IsothermalPhaseModel< BasePhaseModel >::correctThermo(), constantFilmThermo::Cp(), liquidFilmThermo::Cp(), solverInfo::createResidualField(), MRFZoneList::DDt(), multiphaseMangrovesSource::dragCoeff(), DSMCCloud< ParcelType >::DSMCCloud(), DSMCCloud< ParcelType >::DSMCCloud(), dynamicContactAngleForce::dynamicContactAngleForce(), constantAspectRatio::E(), phaseSystem::E(), ThermoCloud< CloudType >::Ep(), multiphaseMangrovesTurbulenceModel::epsilonCoeff(), BlendedInterfacialModel< Foam::dragModel >::evaluate(), extractEulerianParticles::execute(), setFlow::execute(), filmTurbulenceModel::filmTurbulenceModel(), adjointkOmegaSST::gamma(), adjointkOmegaSST::gamma(), kOmegaSSTBase< BasicEddyViscosityModel >::gamma(), kOmegaSSTBase< BasicEddyViscosityModel >::GbyNu0(), turbulenceModel::GName(), groupName(), multiphaseMangrovesSource::inertiaCoeff(), turbulenceFields::initialise(), KinematicCloud< Foam::DSMCCloud< dsmcParcel > >::injectors(), constantFilmThermo::kappa(), liquidFilmThermo::kappa(), multiphaseMangrovesTurbulenceModel::kCoeff(), KinematicCloud< CloudType >::KinematicCloud(), kOmegaSSTDES< BasicTurbulenceModel >::LESRegion(), SpalartAllmarasDES< BasicTurbulenceModel >::LESRegion(), limitFields::limitField(), LocalInteraction< CloudType >::LocalInteraction(), meshToMesh::mapSrcToTgt(), meshToMesh::mapTgtToSrc(), LocalInteraction< CloudType >::massEscape(), LocalInteraction< CloudType >::massStick(), constantFilmThermo::mu(), liquidFilmThermo::mu(), laminar::mut(), AveragingMethod< Foam::Vector< scalar > >::New(), Schaeffer::nu(), strainRateFunction::nu(), ThermoCloud< Foam::DSMCCloud< dsmcParcel > >::p(), KinematicCloud< Foam::DSMCCloud< dsmcParcel > >::pAmbient(), PatchCollisionDensity< CloudType >::PatchCollisionDensity(), phaseChange::phaseChange(), basicThermo::phaseScopedName(), kinematicSingleLayer::pp(), turbulenceFields::processField(), SpalartAllmarasDES< BasicTurbulenceModel >::psi(), kinematicSingleLayer::pu(), ThermoCloud< Foam::DSMCCloud< dsmcParcel > >::radAreaP(), ReactingCloud< CloudType >::ReactingCloud(), multiFieldValue::read(), multiRegion::read(), turbulenceFields::read(), constantFilmThermo::rho(), liquidFilmThermo::rho(), KinematicCloud< CloudType >::rhoEff(), functionObject::scopedName(), scopedName(), rotorDiskSource::setFaceArea(), ReactingCloud< Foam::DSMCCloud< dsmcParcel > >::setModels(), ThermoCloud< CloudType >::setModels(), lduMatrix::setResidualField(), kinematicSingleLayer::Sh(), noFilm::Sh(), thermoSingleLayer::Sh(), constantRadiation::Shs(), noRadiation::Shs(), primaryRadiation::Shs(), standardRadiation::Shs(), phaseSystem::sigma(), constantFilmThermo::sigma(), liquidFilmThermo::sigma(), ReactingCloud< CloudType >::Srho(), ReactingCloud< CloudType >::Srho(), ReactingCloud< CloudType >::Srho(), kinematicSingleLayer::Srho(), kinematicSingleLayer::Srho(), noFilm::Srho(), noFilm::Srho(), thermoSingleLayer::Srho(), thermoSingleLayer::Srho(), ReactingCloud< CloudType >::SYi(), ThermoCloud< CloudType >::ThermoCloud(), ThermoCloud< CloudType >::ThermoCloud(), distributionContactAngleForce::theta(), perturbedTemperatureDependentContactAngleForce::theta(), temperatureDependentContactAngleForce::theta(), MPPICParcel< KinematicParcel< particle > >::trackingData::trackingData(), KinematicParcel< ParcelType >::trackingData::updateAverages(), adjointkOmegaSST::updatePrimalRelatedFields(), laminar::Us(), AveragingMethod< Type >::write(), electricPotential::write(), turbulenceFields::write(), and PatchCollisionDensity< CloudType >::write().

Here is the call graph for this function:

scopedName() [2/2]

Foam::word scopedName ( const std::string & scope, const word & name1, const word & name2 )

inlinestatic

Create scope:name1:name2 or scope_name1_name2 string.

An empty scope is ignored.

Definition at line 70 of file IOobjectI.H.

References scopedName(), and scopeSeparator.

Here is the call graph for this function:

selectIO()

Foam::IOobject selectIO ( const IOobject & io, const fileName & altFile, const word & ioName = "" )

static

Return the IOobject, but also consider an alternative file name.

Parameters

io	The expected IOobject to use
altFile	Alternative fileName (ignored if empty).
ioName	The alternative name for the IOobject when the altFile resolves to a directory.

Note

If the alternative fileName is a non-empty string, it defines the location but uses all other properties of the expected IOobject. The location may be an absolute or a relative path. If it corresponds to a directory, the name of the expected IOobject will be used in its resolution. This expected name can provided via the ioName parameter.

Definition at line 255 of file IOobject.C.

References string::expand(), io, and Foam::isDir().

Referenced by groupName(), and decompositionModel::selectIO().

Here is the call graph for this function:

Here is the caller graph for this function:

clone() [1/2]

autoPtr< IOobject > clone ( ) const

inline

Clone.

Definition at line 641 of file IOobject.H.

References clone(), and autoPtr< T >::New().

Referenced by clone(), faBoundaryMesh::faBoundaryMesh(), polyBoundaryMesh::polyBoundaryMesh(), polyMesh::readUpdate(), regIOobject::regIOobject(), regIOobject::regIOobject(), regIOobject::regIOobject(), regIOobject::regIOobject(), and ZoneMesh< ZoneType, MeshType >::ZoneMesh().

Here is the call graph for this function:

Here is the caller graph for this function:

clone() [2/2]

autoPtr< IOobject > clone ( const objectRegistry & registry ) const

inline

Clone resetting registry.

Definition at line 649 of file IOobject.H.

References autoPtr< T >::New().

Here is the call graph for this function:

db()

const Foam::objectRegistry & db ( ) const

noexcept

Return the local objectRegistry.

Definition at line 450 of file IOobject.C.

References Foam::noexcept.

Referenced by refinementHistory::add(), adjointRASModel::adjointRASModel(), adjointTurbulenceModel::adjointTurbulenceModel(), Antoine::Antoine(), AntoineExtended::AntoineExtended(), refinementHistory::apply(), ArdenBuck::ArdenBuck(), basicChemistryModel::basicChemistryModel(), SprayParcel< ParcelType >::calcAtomization(), leastSquaresFaGrad< Type >::calcGrad(), regIOobject::checkIn(), regIOobject::checkOut(), KinematicCloud< Foam::DSMCCloud< dsmcParcel > >::cloudReset(), ReactingCloud< Foam::DSMCCloud< dsmcParcel > >::cloudReset(), ReactingCloud< Foam::DSMCCloud< dsmcParcel > >::composition(), constantSaturationConditions::constantSaturationConditions(), ReactingCloud< Foam::DSMCCloud< dsmcParcel > >::constProps(), ThermoCloud< Foam::DSMCCloud< dsmcParcel > >::constProps(), correctedLnGrad< Type >::correction(), fourthLnGrad< Type >::correction(), relaxedSnGrad< Type >::correction(), saturationModel::declareRunTimeSelectionTable(), refinementHistory::distribute(), distributedTriSurfaceMesh::distributedTriSurfaceMesh(), distributedTriSurfaceMesh::distributedTriSurfaceMesh(), distributedTriSurfaceMesh::distributedTriSurfaceMesh(), surfaceInterpolationScheme< scalar >::dotInterpolate(), DSMCCloud< ParcelType >::dumpParticlePositions(), Foam::fac::edgeIntegrate(), Foam::fac::edgeSum(), enthalpySorptionFvPatchScalarField::enthalpySorptionFvPatchScalarField(), edgeInterpolationScheme< Type >::euclidianInterpolate(), freePiston::freePiston(), function1::function1(), relaxedNonOrthoGaussLaplacianScheme< Type, GType >::fvmLaplacian(), ThermoCloud< Foam::DSMCCloud< dsmcParcel > >::heatTransfer(), incompressibleTwoPhaseMixture::incompressibleTwoPhaseMixture(), edgeInterpolationScheme< Type >::interpolate(), leastSquaresEdgeInterpolation< Type >::interpolate(), pointVolInterpolation::interpolate(), volPointInterpolation::interpolate(), volPointInterpolation::interpolate(), KinematicCloud< CloudType >::KinematicCloud(), Foam::fam::laplacian(), Foam::fam::laplacian(), Foam::fam::laplacian(), Foam::fam::laplacian(), lnGradScheme< Type >::lnGrad(), CollidingCloud< CloudType >::motion(), MPPICCloud< CloudType >::motion(), KinematicCloud< Foam::DSMCCloud< dsmcParcel > >::mu(), multiphaseSystem::multiphaseSystem(), DimensionedField< Type, GeoMesh >::New(), GeometricField< Type, PatchField, GeoMesh >::New(), GeometricField< Type, PatchField, GeoMesh >::New(), GeometricField< Type, PatchField, GeoMesh >::New(), adjointRASModel::New(), adjointTurbulenceModel::New(), laminarFlameSpeed::New(), saturationModel::New(), objectRegistry::objectRegistry(), GeometricField< Type, PatchField, GeoMesh >::oldTime(), KinematicCloud< Foam::DSMCCloud< dsmcParcel > >::patchData(), sampledSurface::pointAverage(), pointPatchDist::pointPatchDist(), polynomial::polynomial(), polySurface::polySurface(), KinematicCloud< CloudType >::postEvolve(), ThermoCloud< Foam::DSMCCloud< dsmcParcel > >::radAreaP(), ReactingCloud< CloudType >::ReactingCloud(), reconstructionSchemes::reconstructionSchemes(), refinementHistory::refinementHistory(), regIOobject::regIOobject(), regIOobject::regIOobject(), regIOobject::regIOobject(), regIOobject::regIOobject(), regIOobject::regIOobject(), solution::relaxEquation(), solution::relaxField(), surfMesh::removeFiles(), saturationModel::saturationModel(), searchableRotatedBox::searchableRotatedBox(), ThermoCloud< CloudType >::setModels(), regIOobject::setUpToDate(), ThermoCloud< CloudType >::Sh(), singlePhaseTransportModel::singlePhaseTransportModel(), skewCorrectedEdgeInterpolation< Type >::skewCorrection(), KinematicCloud< Foam::DSMCCloud< dsmcParcel > >::solution(), rigidBodyMeshMotion::solve(), rigidBodyMeshMotionSolver::solve(), sixDoFRigidBodyMotionSolver::solve(), SRFModel::SRFModel(), ReactingCloud< CloudType >::Srho(), ReactingCloud< CloudType >::Srho(), surfMesh::surfMesh(), surfMesh::surfMesh(), surfMesh::surfMesh(), ReactingCloud< CloudType >::SYi(), ThermoCloud< CloudType >::ThermoCloud(), ThermoCloud< CloudType >::ThermoCloud(), triSurfaceMesh::triSurfaceMesh(), triSurfaceMesh::triSurfaceMesh(), triSurfaceMesh::triSurfaceMesh(), triSurfaceMesh::triSurfaceMesh(), triSurfaceMesh::triSurfaceMesh(), turbulenceModel::turbulenceModel(), objectRegistry::TypeName(), Antoine::TypeName(), AntoineExtended::TypeName(), ArdenBuck::TypeName(), constantSaturationConditions::TypeName(), function1::TypeName(), polynomial::TypeName(), uniformInterpolationTable< Type >::uniformInterpolationTable(), uniformMixedFaPatchField< Type >::uniformMixedFaPatchField(), KinematicParcel< ParcelType >::trackingData::updateAverages(), PDRblock::writeBlockMeshDict(), decomposedBlockData::writeData(), Cloud< ParticleType >::writePositions(), basicThermo::~basicThermo(), MPPICCloud< Foam::DSMCCloud< dsmcParcel > >::~MPPICCloud(), and regIOobject::~regIOobject().

time()

const Foam::Time & time ( ) const

noexcept

Return Time associated with the objectRegistry.

Definition at line 456 of file IOobject.C.

References Foam::noexcept.

Referenced by objective::accumulateJMean(), objectiveTopOSolidVolume::addColumnValues(), objectiveTopOVolume::addColumnValues(), externalFileSource::addSup(), regIOobject::addWatch(), regIOobject::addWatch(), adjointRASModel::adjointRASModel(), adjointSolverManager::adjointSolverManager(), adjointTurbulenceModel::adjointTurbulenceModel(), ATCModel::ATCModel(), ATCstandard::ATCstandard(), basicChemistryModel::basicChemistryModel(), basicThermo::basicThermo(), basicThermo::basicThermo(), basicThermo::basicThermo(), caseName(), caseName(), SIMPLEControlSingleRun::checkEndTime(), componentDisplacementMotionSolver::componentDisplacementMotionSolver(), componentVelocityMotionSolver::componentVelocityMotionSolver(), coordinateSystems::coordinateSystems(), laminar< ReactionThermo >::correct(), displacementInterpolationMotionSolver::curPoints(), StandardChemistryModel< ReactionThermo, ThermoType >::derivatives(), TDACChemistryModel< ReactionThermo, ThermoType >::derivatives(), displacementComponentLaplacianFvMotionSolver::displacementComponentLaplacianFvMotionSolver(), displacementLaplacianFvMotionSolver::displacementLaplacianFvMotionSolver(), displacementLaplacianFvMotionSolver::displacementLaplacianFvMotionSolver(), displacementMotionSolver::displacementMotionSolver(), displacementSBRStressFvMotionSolver::displacementSBRStressFvMotionSolver(), displacementSBRStressFvMotionSolver::displacementSBRStressFvMotionSolver(), distributedTriSurfaceMesh::distribute(), dragModel::dragModel(), dragModel::dragModel(), EDC< ReactionThermo >::EDC(), elasticityMotionSolver::elasticityMotionSolver(), extendedFeatureEdgeMesh::extendedFeatureEdgeMesh(), faMeshesRegistry::faMeshesRegistry(), fileOperation::findInstance(), masterUncollatedFileOperation::findInstance(), FSD< ReactionThermo, ThermoType >::FSD(), fvDOM::fvDOM(), fvDOM::fvDOM(), fvExprDriverWriter::fvExprDriverWriter(), GeometricField< Type, PatchField, GeoMesh >::GeometricField(), GeometricField< Type, PatchField, GeoMesh >::GeometricField(), GeometricField< Type, PatchField, GeoMesh >::GeometricField(), GeometricField< Type, PatchField, GeoMesh >::GeometricField(), GeometricField< Type, PatchField, GeoMesh >::GeometricField(), GeometricField< Type, PatchField, GeoMesh >::GeometricField(), GeometricField< Type, PatchField, GeoMesh >::GeometricField(), GeometricField< Type, PatchField, GeoMesh >::GeometricField(), GeometricField< Type, PatchField, GeoMesh >::GeometricField(), GeometricField< Type, PatchField, GeoMesh >::GeometricField(), GeometricField< Type, PatchField, GeoMesh >::GeometricField(), GeometricField< Type, PatchField, GeoMesh >::GeometricField(), GeometricField< Type, PatchField, GeoMesh >::GeometricField(), GeometricField< Type, PatchField, GeoMesh >::GeometricField(), GeometricField< Type, PatchField, GeoMesh >::GeometricField(), GeometricField< Type, PatchField, GeoMesh >::GeometricField(), GeometricField< Type, PatchField, GeoMesh >::GeometricField(), GeometricField< Type, PatchField, GeoMesh >::GeometricField(), GeometricField< Type, PatchField, GeoMesh >::GeometricField(), globalCaseName(), incompressibleTwoPhaseMixture::incompressibleTwoPhaseMixture(), IOPosition< CloudType >::IOPosition(), objective::isWithinIntegrationTime(), objectiveTopOSolidVolume::J(), objectiveTopOVolume::J(), BlendedInterfacialModel< Foam::dragModel >::Kf(), Foam::fam::laplacian(), Foam::fam::laplacian(), Foam::fvm::laplacian(), Foam::fvm::laplacian(), laplacianMotionSolver::laplacianMotionSolver(), levelSetDesignVariables::levelSetDesignVariables(), codeStream::libs(), TDACChemistryModel< ReactionThermo, ThermoType >::logFile(), meshState::meshState(), motionSolver::motionSolver(), multiphaseInterSystem::multiphaseInterSystem(), multiphaseSystem::multiphaseSystem(), multiphaseSystem::multiphaseSystem(), GAMGAgglomeration::New(), adjointRASModel::New(), adjointTurbulenceModel::New(), laminarFlameSpeed::New(), NURBS3DVolume::NURBS3DVolume(), objective::objective(), objectiveManager::objectiveManager(), GeometricField< Type, PatchField, GeoMesh >::oldTime(), optimisationManager::optimisationManager(), P1::P1(), P1::P1(), PaSR< ReactionThermo >::PaSR(), phaseModel::phaseModel(), phaseModel::phaseModel(), phaseModel::phaseModel(), phaseModel::phaseModel(), phaseSystem::phaseSystem(), pLaplacianMotionSolver::pLaplacianMotionSolver(), pointPatchDist::pointPatchDist(), polyTopoChanger::polyTopoChanger(), populationBalanceModel::populationBalanceModel(), porosityModel::porosityModel(), porousModel::porousModel(), psiThermo::psiThermo(), psiThermo::psiThermo(), radiationModel::radiationModel(), radiationModel::radiationModel(), radiationModel::radiationModel(), reconstructedDistanceFunction::reconstructedDistanceFunction(), reconstructionSchemes::reconstructionSchemes(), solution::relaxEquation(), solution::relaxField(), GAMGAgglomeration::requiresUpdate(), rhoThermo::rhoThermo(), rhoThermo::rhoThermo(), rhoThermo::rhoThermo(), rigidBodyMeshMotion::rigidBodyMeshMotion(), rigidBodyMeshMotionSolver::rigidBodyMeshMotionSolver(), rootPath(), saturationModel::saturationModel(), schemesLookup::schemesLookup(), searchableExtrudedCircle::searchableExtrudedCircle(), meshState::setSolverPerformance(), singlePhaseTransportModel::singlePhaseTransportModel(), singleStepCombustion< ReactionThermo, ThermoType >::singleStepCombustion(), sixDoFRigidBodyMotionSolver::sixDoFRigidBodyMotionSolver(), sizeGroup::sizeGroup(), solarLoad::solarLoad(), solarLoad::solarLoad(), solidBodyDisplacementLaplacianFvMotionSolver::solidBodyDisplacementLaplacianFvMotionSolver(), solidBodyDisplacementLaplacianFvMotionSolver::solidBodyDisplacementLaplacianFvMotionSolver(), solidBodyMotionSolver::solidBodyMotionSolver(), solution::solution(), solutionControl::solutionControl(), rigidBodyMeshMotion::solve(), rigidBodyMeshMotionSolver::solve(), sixDoFRigidBodyMotionSolver::solve(), velocityDisplacementMotionSolver::solve(), RASTurbulenceModel::solveIter(), solver::solver(), SRFModel::SRFModel(), StandardChemistryModel< ReactionThermo, ThermoType >::StandardChemistryModel(), GeometricField< Type, PatchField, GeoMesh >::storeOldTimes(), surfaceAlignedSBRStressFvMotionSolver::surfaceAlignedSBRStressFvMotionSolver(), surfaceTensionModel::surfaceTensionModel(), surfaceTensionModel::surfaceTensionModel(), TDACChemistryModel< ReactionThermo, ThermoType >::TDACChemistryModel(), faMesh::time(), fvMesh::time(), topoBitSet::topoBitSet(), topoBoolSet::topoBoolSet(), topOVariablesBase::topOVariablesBase(), twoPhaseSystem::twoPhaseSystem(), uniformInterpolationTable< Type >::uniformInterpolationTable(), objectiveTopOSolidVolume::update_dJdb(), objectiveTopOVolume::update_dJdb(), points0MotionSolver::updateMesh(), updateMethod::updateMethod(), velocityComponentLaplacianFvMotionSolver::velocityComponentLaplacianFvMotionSolver(), velocityLaplacianFvMotionSolver::velocityLaplacianFvMotionSolver(), velocityMotionSolver::velocityMotionSolver(), viewFactor::viewFactor(), viewFactor::viewFactor(), virtualMassModel::virtualMassModel(), volumetricBSplinesDesignVariables::volumetricBSplinesDesignVariables(), wallDist::wallDist(), wallDistAddressing::wallDistAddressing(), wallDistAddressing::wallDistAddressing(), wallDistData< TransferType >::wallDistData(), waveModel::waveModel(), regIOobject::write(), SIMPLEControlSingleRun::write(), Foam::writeCellGraph(), SIMPLEControlSingleRun::writeNow(), regIOobject::writeObject(), rigidBodyMeshMotion::writeObject(), rigidBodyMeshMotionSolver::writeObject(), sixDoFRigidBodyMotionSolver::writeObject(), triSurfaceMesh::writeObject(), Foam::writePatchGraph(), fvMeshTools::writeProcAddressing(), and BlendedInterfacialModel< Foam::dragModel >::~BlendedInterfacialModel().

name()

const Foam::word & name ( ) const

inlinenoexcept

Return the object name.

Definition at line 205 of file IOobjectI.H.

References Foam::noexcept.

Referenced by incompressibleAdjointSolver::accumulateOptionsDxDbMultiplier(), multivariateSurfaceInterpolationScheme< Type >::fieldTable::add(), exprDriver::addContextObject(), snappyLayerDriver::addLayers(), objectiveIncompressible::addSource(), objectiveNutSqr::addSource(), objectivePowerDissipation::addSource(), contactHeatFluxSource::addSup(), externalFileSource::addSup(), externalHeatFluxSource::addSup(), multiphaseMangrovesTurbulenceModel::addSup(), multiphaseMangrovesTurbulenceModel::addSup(), multiphaseStabilizedTurbulence::addSup(), patchCellsSource::addSup(), solidificationMeltingSource::addSup(), topOSource::addSup(), topOSource::addSup(), topOSource::addSup(), topOSource::addSup(), exprResultGlobals::addValue(), exprResultGlobals::addValue(), exprResultGlobals::addValue(), advectiveFvPatchField< Type >::advectiveFvPatchField(), solutionControl::applyToField(), setsToFaceZone::applyToSet(), Foam::atan2(), Foam::atan2(), Foam::atan2(), Foam::atan2(), Foam::atan2(), Foam::atan2(), Foam::atan2(), Foam::atan2(), Foam::atan2(), Foam::atan2(), Foam::atan2(), Foam::atan2(), Foam::atan2(), Foam::atan2(), Foam::atan2(), Foam::atan2(), attachPolyTopoChanger::attach(), Foam::fac::average(), Foam::fvc::average(), blended< Type >::blendingFactor(), cellCoBlended< Type >::blendingFactor(), CoBlended< Type >::blendingFactor(), localBlended< Type >::blendingFactor(), Foam::bound(), cellLimitedGrad< Type, Limiter >::calcGrad(), faceLimitedGrad< Type >::calcGrad(), fourthGrad< Type >::calcGrad(), fourthGrad< Type >::calcGrad(), fusedGaussGrad< Type >::calcGrad(), fusedGaussGrad< Type >::calcGrad(), fusedLeastSquaresGrad< Type >::calcGrad(), gaussGrad< Type >::calcGrad(), gradScheme< Type >::calcGrad(), iterativeGaussGrad< Type >::calcGrad(), hydrostaticPressure::calculateAndWrite(), coordinateSystems::cfind(), objectRegistry::cfindIOobject(), objectRegistry::cfindObject(), meshRefinement::checkCoupledFaceZones(), faBoundaryMesh::checkDefinition(), polyBoundaryMesh::checkDefinition(), Cloud< ParticleType >::checkFieldIOobject(), Foam::checkMethod(), Foam::checkMethod(), Foam::checkMethod(), Foam::checkMethod(), Foam::checkMethod(), Foam::checkMethod(), faBoundaryMesh::checkParallelSync(), faceZone::checkParallelSync(), polyBoundaryMesh::checkParallelSync(), refinementFeatures::checkSizes(), Foam::clamp(), Foam::clamp(), objectRegistry::classesImpl(), objectRegistry::clear(), RASModelVariables::cloneRefPtr(), Foam::cmptAv(), Foam::cmptAv(), optionList::constrain(), objectRegistry::contains(), adjointkOmegaSST::convectionMeanFlowSource(), adjointkOmegaSST::convectionScheme(), RASModelVariables::copyAndRename(), atmNutSource::correct(), multiphaseStabilizedTurbulence::correct(), adjointkOmegaSST::correct(), adjointSpalartAllmaras::correct(), fusedGaussGrad< Type >::correctBoundaryConditions(), cubic< Type >::correction(), deferredCorrection< Type >::correction(), correctedLnGrad< Type >::correction(), fourthLnGrad< Type >::correction(), correctedSnGrad< Type >::correction(), faceCorrectedSnGrad< Type >::correction(), relaxedSnGrad< Type >::correction(), skewCorrectedSnGrad< Type >::correction(), linearUpwind< Type >::correction(), linearUpwind< Type >::correction(), linearUpwindNormal< Type >::correction(), linearUpwindV< Type >::correction(), localBlended< Type >::correction(), objectRegistry::countImpl(), objectRegistry::countTypeImpl(), Foam::fvc::curl(), cyclicACMIFvPatchField< Type >::cyclicACMIFvPatchField(), cyclicACMIFvPatchField< Type >::cyclicACMIFvPatchField(), cyclicAMIFvPatchField< Type >::cyclicAMIFvPatchField(), cyclicAMIFvPatchField< Type >::cyclicAMIFvPatchField(), cyclicFaPatchField< Type >::cyclicFaPatchField(), cyclicFaPatchField< Type >::cyclicFaPatchField(), cyclicFvPatchField< Type >::cyclicFvPatchField(), cyclicFvPatchField< Type >::cyclicFvPatchField(), Foam::fac::d2dt2(), Foam::fac::d2dt2(), Foam::fac::d2dt2(), Foam::fam::d2dt2(), Foam::fam::d2dt2(), Foam::fam::d2dt2(), Foam::fvc::d2dt2(), Foam::fvc::d2dt2(), Foam::fvm::d2dt2(), Foam::fvm::d2dt2(), Foam::fvm::d2dt2(), faMeshRegistry::dbDir(), polyMesh::dbDir(), Foam::fac::ddt(), Foam::fac::ddt(), Foam::fac::ddt(), Foam::fam::ddt(), Foam::fam::ddt(), Foam::fam::ddt(), Foam::fvc::ddt(), Foam::fvc::ddt(), Foam::fvc::ddt(), Foam::fvc::ddt(), Foam::fvc::ddt(), Foam::fvm::ddt(), Foam::fvm::ddt(), Foam::fvm::ddt(), Foam::fvm::ddt(), topoSet::declareRunTimeSelectionTable(), topoSet::declareRunTimeSelectionTable(), topoSet::declareRunTimeSelectionTable(), decomposedBlockData::decomposedBlockData(), DimensionedField< Type, GeoMesh >::DimensionedField(), distributedTriSurfaceMesh::distribute(), distributedTriSurfaceMesh::distributedTriSurfaceMesh(), Foam::fac::div(), Foam::fac::div(), Foam::fam::div(), Foam::fvc::div(), Foam::fvc::div(), Foam::fvc::div(), Foam::fvm::div(), Foam::fvc::domainIntegrate(), Foam::fvc::domainIntegrate(), surfaceInterpolationScheme< Type >::dotInterpolate(), surfaceInterpolationScheme< scalar >::dotInterpolate(), dragModel::dragModel(), dragModel::dragModel(), Foam::fac::edgeIntegrate(), Foam::fac::edgeSum(), triSurfaceMesh::edgeTree(), emptyFaPatchField< Type >::emptyFaPatchField(), emptyFaPatchField< Type >::emptyFaPatchField(), emptyFvPatchField< Type >::emptyFvPatchField(), emptyFvPatchField< Type >::emptyFvPatchField(), edgeInterpolationScheme< Type >::euclidianInterpolate(), edgeInterpolationScheme< Type >::euclidianInterpolate(), BlendedInterfacialModel< Foam::dragModel >::evaluate(), electricPotential::execute(), removeRegisteredObject::execute(), EulerFaD2dt2Scheme< Type >::facD2dt2(), EulerFaD2dt2Scheme< Type >::facD2dt2(), EulerFaD2dt2Scheme< Type >::facD2dt2(), backwardFaDdtScheme< Type >::facDdt(), backwardFaDdtScheme< Type >::facDdt(), backwardFaDdtScheme< Type >::facDdt(), boundedBackwardFaDdtScheme::facDdt(), boundedBackwardFaDdtScheme::facDdt(), boundedBackwardFaDdtScheme::facDdt(), EulerFaDdtScheme< Type >::facDdt(), EulerFaDdtScheme< Type >::facDdt(), EulerFaDdtScheme< Type >::facDdt(), steadyStateFaDdtScheme< Type >::facDdt(), steadyStateFaDdtScheme< Type >::facDdt(), steadyStateFaDdtScheme< Type >::facDdt(), backwardFaDdtScheme< Type >::facDdt0(), backwardFaDdtScheme< Type >::facDdt0(), backwardFaDdtScheme< Type >::facDdt0(), boundedBackwardFaDdtScheme::facDdt0(), boundedBackwardFaDdtScheme::facDdt0(), boundedBackwardFaDdtScheme::facDdt0(), EulerFaDdtScheme< Type >::facDdt0(), EulerFaDdtScheme< Type >::facDdt0(), EulerFaDdtScheme< Type >::facDdt0(), steadyStateFaDdtScheme< Type >::facDdt0(), steadyStateFaDdtScheme< Type >::facDdt0(), steadyStateFaDdtScheme< Type >::facDdt0(), gaussConvectionScheme< Type >::facDiv(), gaussDivScheme< Type >::facDiv(), gaussLaplacianScheme< Type >::facLaplacian(), gaussLaplacianScheme< Type >::facLaplacian(), gaussLaplacianScheme< Type >::famLaplacian(), fileNameComponents(), masterUncollatedFileOperation::findInstance(), topoSet::findIOobject(), topoSet::findIOobject(), topoSet::findIOobject(), triSurfaceMesh::findLine(), distributedTriSurfaceMesh::findLineAll(), triSurfaceMesh::findLineAll(), triSurfaceMesh::findLineAny(), distributedTriSurfaceMesh::findNearest(), distributedTriSurfaceMesh::findNearest(), triSurfaceMesh::findNearest(), triSurfaceMesh::findNearest(), objectRegistry::findObject(), objectRegistry::findObject(), coupleGroupIdentifier::findOtherPatchID(), adjointkOmegaSST::FISensitivityTerm(), distributedTriSurfaceMesh::flip(), triSurfaceMesh::flip(), Foam::fvc::flux(), Foam::fvc::flux(), objectRegistry::found(), objectRegistry::foundObject(), correctedSnGrad< Type >::fullGradCorrection(), faceCorrectedSnGrad< Type >::fullGradCorrection(), skewCorrectedSnGrad< Type >::fullGradCorrection(), EulerD2dt2Scheme< Type >::fvcD2dt2(), EulerD2dt2Scheme< Type >::fvcD2dt2(), steadyStateD2dt2Scheme< Type >::fvcD2dt2(), steadyStateD2dt2Scheme< Type >::fvcD2dt2(), backwardDdtScheme< Type >::fvcDdt(), backwardDdtScheme< Type >::fvcDdt(), backwardDdtScheme< Type >::fvcDdt(), backwardDdtScheme< Type >::fvcDdt(), CoEulerDdtScheme< Type >::fvcDdt(), CoEulerDdtScheme< Type >::fvcDdt(), CoEulerDdtScheme< Type >::fvcDdt(), CoEulerDdtScheme< Type >::fvcDdt(), CrankNicolsonDdtScheme< Type >::fvcDdt(), CrankNicolsonDdtScheme< Type >::fvcDdt(), CrankNicolsonDdtScheme< Type >::fvcDdt(), CrankNicolsonDdtScheme< Type >::fvcDdt(), EulerDdtScheme< Type >::fvcDdt(), EulerDdtScheme< Type >::fvcDdt(), EulerDdtScheme< Type >::fvcDdt(), EulerDdtScheme< Type >::fvcDdt(), EulerDdtScheme< Type >::fvcDdt(), localEulerDdtScheme< Type >::fvcDdt(), localEulerDdtScheme< Type >::fvcDdt(), localEulerDdtScheme< Type >::fvcDdt(), localEulerDdtScheme< Type >::fvcDdt(), localEulerDdtScheme< Type >::fvcDdt(), SLTSDdtScheme< Type >::fvcDdt(), SLTSDdtScheme< Type >::fvcDdt(), SLTSDdtScheme< Type >::fvcDdt(), SLTSDdtScheme< Type >::fvcDdt(), steadyStateDdtScheme< Type >::fvcDdt(), steadyStateDdtScheme< Type >::fvcDdt(), steadyStateDdtScheme< Type >::fvcDdt(), steadyStateDdtScheme< Type >::fvcDdt(), fusedGaussConvectionScheme< Type >::fvcDiv(), fusedGaussDivScheme< Type >::fvcDiv(), gaussConvectionScheme< Type >::fvcDiv(), gaussDivScheme< Type >::fvcDiv(), fusedGaussLaplacianScheme< Type, GType >::fvcLaplacian(), fusedGaussLaplacianScheme< Type, GType >::fvcLaplacian(), fusedGaussLaplacianScheme< Type, GType >::fvcLaplacian(), fusedGaussLaplacianScheme< Type, GType >::fvcLaplacian(), fusedGaussLaplacianScheme< Type, GType >::fvcLaplacian(), fusedGaussLaplacianScheme< Type, GType >::fvcLaplacian(), gaussLaplacianScheme< Type, GType >::fvcLaplacian(), gaussLaplacianScheme< Type, GType >::fvcLaplacian(), relaxedNonOrthoGaussLaplacianScheme< Type, GType >::fvcLaplacian(), relaxedNonOrthoGaussLaplacianScheme< Type, GType >::fvcLaplacian(), fvExprDriverWriter::fvExprDriverWriter(), CrankNicolsonDdtScheme< Type >::fvmDdt(), CrankNicolsonDdtScheme< Type >::fvmDdt(), CrankNicolsonDdtScheme< Type >::fvmDdt(), CrankNicolsonDdtScheme< Type >::fvmDdt(), fusedGaussConvectionScheme< Type >::fvmDiv(), fusedGaussLaplacianScheme< Type, GType >::fvmLaplacian(), fusedGaussLaplacianScheme< Type, GType >::fvmLaplacian(), gaussLaplacianScheme< Type, GType >::fvmLaplacian(), relaxedNonOrthoGaussLaplacianScheme< Type, GType >::fvmLaplacian(), fusedGaussLaplacianScheme< Type, GType >::fvmLaplacianUncorrected(), genericFaePatchField< Type >::genericFaePatchField(), genericFaPatchField< Type >::genericFaPatchField(), genericFvPatchField< Type >::genericFvPatchField(), genericFvsPatchField< Type >::genericFvsPatchField(), genericPointPatchField< Type >::genericPointPatchField(), exprResultGlobals::get(), distributedTriSurfaceMesh::getField(), triSurfaceMesh::getField(), exprResultGlobals::getNamespace(), distributedTriSurfaceMesh::getNormal(), smoothTriSurfaceMesh::getNormal(), triSurfaceMesh::getNormal(), objectRegistry::getObjectPtr(), distributedTriSurfaceMesh::getRegion(), triSurfaceMesh::getRegion(), distributedTriSurfaceMesh::getVolumeType(), triSurfaceMesh::getVolumeType(), gradScheme< Type >::grad(), Foam::fac::grad(), Foam::fac::grad(), gradScheme< Type >::grad(), Foam::fvc::grad(), Foam::fvc::grad(), fusedGaussGrad< Type >::gradf(), group(), groupName(), AnisothermalPhaseModel< BasePhaseModel >::heEqn(), hexRef8Data::hexRef8Data(), dynamicRefineFvMesh::init(), edgeInterpolationScheme< Type >::interpolate(), edgeInterpolationScheme< Type >::interpolate(), edgeInterpolationScheme< Type >::interpolate(), cellDecomposer::interpolate(), fvMeshSubset::interpolate(), fvMeshSubset::interpolate(), fvMeshSubset::interpolate(), fvMeshSubset::interpolate(), Foam::interpolate(), leastSquaresEdgeInterpolation< Type >::interpolate(), localBlended< Type >::interpolate(), localMax< Type >::interpolate(), localMin< Type >::interpolate(), meshToMesh0::interpolate(), pointVolInterpolation::interpolate(), singleCellFvMesh::interpolate(), surfaceInterpolationScheme< Type >::interpolate(), volPointInterpolation::interpolate(), volPointInterpolation::interpolate(), volPointInterpolation::interpolate(), volPointInterpolation::interpolate(), weightedFlux< Type >::interpolate(), volPointInterpolation::interpolateDimensionedInternalField(), volPointInterpolation::interpolateInternalField(), IOobject(), IOobject(), IOobject(), IOobject(), IOobject(), IOobject(), objectRegistry::is_cacheTemporaryObject(), triSurfaceMesh::isSurfaceClosed(), BlendedInterfacialModel< Foam::dragModel >::K(), sizeGroup::keyword(), Foam::fac::laplacian(), Foam::fac::laplacian(), Foam::fac::laplacian(), Foam::fac::laplacian(), Foam::fam::laplacian(), Foam::fvc::laplacian(), Foam::fvc::laplacian(), Foam::fvc::laplacian(), Foam::fvc::laplacian(), Foam::fvm::laplacian(), Foam::fvm::laplacian(), Foam::fvm::laplacian(), lnGradScheme< Type >::lnGrad(), Foam::fac::lnGrad(), topoSet::localPath(), coordinateSystems::lookup(), objectRegistry::lookupClass(), objectRegistry::lookupClassTypeImpl(), mappedPatchBase::lookupMesh(), objectRegistry::lookupObject(), objectRegistry::lookupObjectPtr(), objectRegistry::lookupObjectRef(), objectRegistry::lookupObjectRefPtr(), coordinateSystems::lookupPtr(), Foam::mag(), Foam::mag(), Foam::magSqr(), Foam::magSqr(), adjointSimple::mainIter(), Foam::makeGraph(), Foam::MapConsistentSubMesh(), mappedPatchFieldBase< Type >::mapper(), zoneSubSet::mapToZone(), Foam::MapVolFields(), member(), Foam::fvc::meshPhi(), Foam::fvc::meshPhi(), Foam::fvc::meshPhi(), triSurfaceMesh::movePoints(), multiphaseSystem::multiphaseSystem(), baseIOdictionary::name(), faMesh::name(), fvMesh::name(), objectRegistry::namesImpl(), objectRegistry::namesTypeImpl(), Foam::fac::ndiv(), Foam::fac::ndiv(), Foam::fam::ndiv(), DimensionedField< Type, GeoMesh >::New(), DimensionedField< Type, GeoMesh >::New(), DimensionedField< Type, GeoMesh >::New(), DimensionedField< Type, GeoMesh >::New(), DimensionedField< Type, GeoMesh >::New(), DimensionedField< Type, GeoMesh >::New(), DimensionedField< Type, GeoMesh >::New(), DimensionedField< Type, GeoMesh >::New(), DimensionedField< Type, GeoMesh >::New(), DimensionedField< Type, GeoMesh >::New(), DimensionedField< Type, GeoMesh >::New(), DimensionedField< Type, GeoMesh >::New(), DimensionedField< Type, GeoMesh >::New(), DimensionedField< Type, GeoMesh >::New(), DimensionedField< Type, areaMesh >::New(), DimensionedField< Type, areaMesh >::New(), DimensionedField< Type, areaMesh >::New(), DimensionedField< Type, areaMesh >::New(), DimensionedField< Type, areaMesh >::New(), DimensionedField< Type, areaMesh >::New(), DimensionedField< Type, areaMesh >::New(), DimensionedField< Type, areaMesh >::New(), DimensionedField< Type, areaMesh >::New(), DimensionedField< Type, areaMesh >::New(), DimensionedField< Type, areaMesh >::New(), DimensionedField< Type, areaMesh >::New(), DimensionedField< Type, areaMesh >::New(), DimensionedField< Type, areaMesh >::New(), topoSet::New(), topoSet::New(), topoSet::New(), DimensionedField< Type, areaMesh >::New_impl(), objectRegistry::newIOobject(), objectRegistry::newIOobject(), Foam::fac::ngrad(), oversetFvMeshBase::normalisation(), objectRegistry::objectRegistry(), objectRegistry::objectRegistry(), objectRegistry::objectsTypeImpl(), coordinateSystems::operator=(), triSurfaceMesh::outsideVolumeType(), sampledPatch::patchIDs(), pointBoundaryMesh::pointBoundaryMesh(), pointConstraints::pointConstraints(), pointMesh::pointMesh(), polyMesh::polyMesh(), populationBalanceModel::populationBalanceModel(), porousModel::porousModel(), RemoveParcels< CloudType >::postEvolve(), Foam::pow(), Foam::pow(), Foam::pow(), Foam::pow(), Foam::pow(), Foam::pow(), Foam::pow(), Foam::pow(), Foam::pow(), Foam::pow(), Foam::pow(), processorCyclicFvPatchField< Type >::processorCyclicFvPatchField(), processorCyclicFvPatchField< Type >::processorCyclicFvPatchField(), processorFaPatchField< Type >::processorFaPatchField(), processorFaPatchField< Type >::processorFaPatchField(), processorFvPatchField< Type >::processorFvPatchField(), processorFvPatchField< Type >::processorFvPatchField(), wallBoundedStreamLine::read(), decomposedBlockData::readBlocks(), Foam::fvc::reconstruct(), Foam::fvc::reconstructMag(), faMesh::regionName(), polyMesh::regionName(), triSurfaceMesh::regions(), exprDriver::removeContextObject(), exprResultGlobals::removeValue(), variablesSet::renameTurbulenceField(), Time::run(), VollerPrakash::S(), sampledMeshedSurface::sampleOnFaces(), sampledMeshedSurface::sampleOnPoints(), scopedName(), searchableSurfaceCollection::searchableSurfaceCollection(), triSurfaceMesh::setField(), refinementSurfaces::setMinLevelFields(), removeFaces::setRefinement(), sizeGroup::sizeGroup(), skewCorrected< Type >::skewCorrection(), skewCorrectedEdgeInterpolation< Type >::skewCorrection(), ATCModel::smoothFieldBasedOnCells(), snGradScheme< Type >::snGrad(), Foam::fvc::snGrad(), oversetFvMeshBase::solveOverset(), MultiComponentPhaseModel< BasePhaseModel, phaseThermo >::solveYi(), objectRegistry::sortedNames(), Foam::sqr(), Foam::sqr(), Foam::stabilise(), Foam::stabilise(), Foam::stabilise(), Foam::stabilise(), objectRegistry::subRegistry(), Foam::fvc::surfaceIntegrate(), Foam::fvc::surfaceSum(), surfaceTensionModel::surfaceTensionModel(), surfaceTensionModel::surfaceTensionModel(), symmetryFaPatchField< Type >::symmetryFaPatchField(), symmetryFaPatchField< Type >::symmetryFaPatchField(), symmetryFvPatchField< Type >::symmetryFvPatchField(), symmetryFvPatchField< Type >::symmetryFvPatchField(), symmetryPlaneFvPatchField< Type >::symmetryPlaneFvPatchField(), symmetryPlaneFvPatchField< Type >::symmetryPlaneFvPatchField(), topoSet::topoSet(), topoSet::topoSet(), topoSet::topoSet(), topoSet::topoSet(), topoSet::topoSet(), triSurfaceMesh::triSurfaceMesh(), Time::TypeName(), fvExprDriverWriter::TypeNameNoDebug(), UniformDimensionedField< Type >::UniformDimensionedField(), uniformMixedFaPatchField< Type >::uniformMixedFaPatchField(), uniformMixedFvPatchField< Type >::uniformMixedFvPatchField(), KinematicParcel< ParcelType >::trackingData::updateAverages(), filmPyrolysisRadiativeCoupledMixedFvPatchScalarField::updateCoeffs(), humidityTemperatureCoupledMixedFvPatchScalarField::updateCoeffs(), mappedFlowRateFvPatchVectorField::updateCoeffs(), waveSurfacePressureFvPatchScalarField::updateCoeffs(), topoBitSet::updateLabels(), topoBoolSet::updateLabels(), adjointSolverManager::updatePrimalBasedQuantities(), basicThermo::validate(), basicThermo::validate(), basicThermo::validate(), basicThermo::validate(), LookupField< Type >::value(), populationBalanceModel::velocityGroup, virtualMassModel::virtualMassModel(), wedgeFvPatchField< Type >::wedgeFvPatchField(), wedgeFvPatchField< Type >::wedgeFvPatchField(), localBlended< Type >::weights(), FaceInteraction< CloudType >::write(), FacePostProcessing< CloudType >::write(), ObukhovLength::write(), regionSizeDistribution::write(), writeCellCentres::write(), writeObjects::write(), XiReactionRate::write(), Foam::writeCellGraph(), meshToMeshMethod::writeConnectivity(), decomposedBlockData::writeData(), boundaryRegion::writeDict(), cellTable::writeDict(), mappedPatchBase::writeDict(), molecule::writeFields(), distributedTriSurfaceMesh::writeObject(), regionFunctionObject::writeObject(), regIOobject::writeObject(), Foam::writePatchGraph(), MultiComponentPhaseModel< BasePhaseModel, phaseThermo >::YiEqn(), adjointSolverManager::~adjointSolverManager(), BlendedInterfacialModel< Foam::dragModel >::~BlendedInterfacialModel(), exprResultGlobals::~exprResultGlobals(), and ~IOobject().

headerClassName() [1/2]

const Foam::word & headerClassName ( ) const

inlinenoexcept

Return name of the class name read from header.

Definition at line 223 of file IOobjectI.H.

References Foam::noexcept.

Referenced by fieldToCell::applyToSet(), fvExprDriver::evaluateVariable(), fvExprDriver::foundField(), decomposedBlockData::readBlocks(), regIOobject::readStream(), and polyMesh::readUpdate().

Here is the caller graph for this function:

headerClassName() [2/2]

Foam::word & headerClassName ( )

inlinenoexcept

Modifiable access to the class name read from header.

Definition at line 229 of file IOobjectI.H.

References Foam::noexcept.

note() [1/2]

const Foam::string & note ( ) const

inlinenoexcept

Return the optional note.

Definition at line 235 of file IOobjectI.H.

References Foam::noexcept.

Referenced by decomposedBlockData::readBlocks(), polyMesh::readUpdate(), boundaryDataWriter::write(), debugWriter::write(), boundaryRegion::writeDict(), cellTable::writeDict(), decomposedBlockData::writeHeader(), boundaryDataWriter::writeTemplate(), debugWriter::writeTemplate(), and decomposedBlockData::~decomposedBlockData().

Here is the caller graph for this function:

note() [2/2]

Foam::string & note ( )

inlinenoexcept

Modifiable access to the optional note.

Definition at line 241 of file IOobjectI.H.

References Foam::noexcept.

rename()

virtual void rename ( const word & newName )

inlinevirtual

Rename the object.

Reimplemented in objectRegistry, and regIOobject.

Definition at line 697 of file IOobject.H.

References rename().

Referenced by fvMeshTools::newMesh(), decomposedBlockData::readBlocks(), fvMeshTools::readProcAddressing(), rename(), regIOobject::rename(), and fvMeshTools::writeProcAddressing().

Here is the call graph for this function:

Here is the caller graph for this function:

labelByteSize()

unsigned labelByteSize ( ) const

inlinenoexcept

The sizeof (label) in bytes, possibly read from the header.

Definition at line 247 of file IOobjectI.H.

References Foam::noexcept.

scalarByteSize()

unsigned scalarByteSize ( ) const

inlinenoexcept

The sizeof (scalar) in bytes, possibly read from the header.

Definition at line 253 of file IOobjectI.H.

References Foam::noexcept.

resetHeader()

void resetHeader

(

const word &

newName = word::null

)

Clear various bits (headerClassName, note, sizeof...) that would be obtained when reading from a file.

Parameters

newName

if non-null, optionally rename the IOobject

Definition at line 644 of file IOobject.C.

References GOOD.

Referenced by faMesh::faMesh(), faMesh::faMesh(), fvMesh::init(), CompactIOField< T >::readContents(), CompactIOList< T >::readContents(), GlobalIOField< Type >::readContents(), GlobalIOList< Type >::readContents(), IOField< Type >::readContents(), IOList< T >::readContents(), IOMap< T >::readContents(), IOPtrList< T >::readContents(), rawIOField< Type >::readContents(), CompactIOField< T >::readContentsSize(), CompactIOList< T >::readContentsSize(), IOField< Type >::readContentsSize(), and IOList< T >::readContentsSize().

Here is the caller graph for this function:

hasHeaderClass()

bool hasHeaderClass ( ) const

inlinenoexcept

True if headerClassName() is non-empty (after reading).

Definition at line 261 of file IOobjectI.H.

References Foam::noexcept.

isHeaderClass() [1/2]

bool isHeaderClass ( const word & expectedType ) const

inline

Check if headerClassName() equals the expected type. Always true if the expected type is empty.

Definition at line 267 of file IOobjectI.H.

Referenced by fieldToCell::applyToSet().

Here is the caller graph for this function:

isHeaderClass() [2/2]

template<class Type>

bool isHeaderClass ( ) const

inline

Check if headerClassName() equals Type::typeName Always true for a void type.

Definition at line 274 of file IOobjectI.H.

Referenced by isHeaderClassName().

Here is the caller graph for this function:

findMetaData()

const Foam::dictionary * findMetaData ( ) const

virtualnoexcept

Return pointer to meta-data (if any) or nullptr.

Reimplemented in regIOobject.

Definition at line 26 of file IOobjectMetaData.C.

References Foam::noexcept.

Referenced by writeHeader(), and writeHeader().

Here is the caller graph for this function:

group() [2/2]

Foam::word group ( ) const

inline

Return group (extension part of name).

Definition at line 211 of file IOobjectI.H.

References word::ext().

Here is the call graph for this function:

member() [2/2]

Foam::word member ( ) const

inline

Return member (name without the extension).

Definition at line 217 of file IOobjectI.H.

References word::lessExt().

Referenced by kineticGasEvaporation< Thermo, OtherThermo >::Kexp(), and kineticGasEvaporation< Thermo, OtherThermo >::kineticGasEvaporation().

Here is the call graph for this function:

Here is the caller graph for this function:

rootPath()

const Foam::fileName & rootPath ( ) const

noexcept

Return the Time::rootPath().

Definition at line 462 of file IOobject.C.

References Foam::noexcept, and time().

Referenced by globalPath(), globalPath(), Foam::makeGraph(), objectPath(), path(), path(), path(), path(), and fileOperation::readObjects().

Here is the call graph for this function:

Here is the caller graph for this function:

caseName() [1/2]

const Foam::fileName & caseName ( ) const

noexcept

Return the Time::caseName().

Definition at line 468 of file IOobject.C.

References Foam::noexcept, and time().

Referenced by Foam::makeGraph(), objectPath(), objectRegistry::objectRegistry(), path(), path(), path(), path(), and fileOperation::readObjects().

Here is the call graph for this function:

Here is the caller graph for this function:

globalCaseName()

const Foam::fileName & globalCaseName ( ) const

noexcept

Return the Time::globalCaseName().

Definition at line 474 of file IOobject.C.

References Foam::noexcept, and time().

Referenced by globalPath(), and globalPath().

Here is the call graph for this function:

Here is the caller graph for this function:

caseName() [2/2]

const Foam::fileName & caseName ( IOobjectOption::Layout layout ) const

noexcept

Return the Time::caseName() - normal or global.

Definition at line 481 of file IOobject.C.

References time().

Here is the call graph for this function:

instance() [1/2]

const Foam::fileName & instance ( ) const

inlinenoexcept

Read access to instance path component.

Definition at line 289 of file IOobjectI.H.

References Foam::noexcept.

Referenced by snappyLayerDriver::addLayers(), Foam::fac::average(), Foam::fvc::average(), leastSquaresFaGrad< Type >::calcGrad(), cellLimitedGrad< Type, Limiter >::calcGrad(), fourthGrad< Type >::calcGrad(), fusedGaussGrad< Type >::calcGrad(), fusedLeastSquaresGrad< Type >::calcGrad(), LeastSquaresGrad< Type, Stencil >::calcGrad(), leastSquaresGrad< Type >::calcGrad(), correctedLnGrad< Type >::correction(), fourthLnGrad< Type >::correction(), correctedSnGrad< Type >::correction(), faceCorrectedSnGrad< Type >::correction(), skewCorrectedSnGrad< Type >::correction(), distributedTriSurfaceMesh::distributedTriSurfaceMesh(), distributedTriSurfaceMesh::distributedTriSurfaceMesh(), distributedTriSurfaceMesh::distributedTriSurfaceMesh(), surfaceInterpolationScheme< scalar >::dotInterpolate(), Foam::fac::edgeIntegrate(), Foam::fac::edgeSum(), edgeInterpolationScheme< Type >::euclidianInterpolate(), faMesh::faMesh(), faMesh::faMesh(), faMesh::faMesh(), faMesh::faMesh(), fileNameComponents(), fileOperation::findInstance(), masterUncollatedFileOperation::findInstance(), faceCorrectedSnGrad< Type >::fullGradCorrection(), skewCorrectedSnGrad< Type >::fullGradCorrection(), fusedGaussConvectionScheme< Type >::fvcDiv(), fusedGaussDivScheme< Type >::fvcDiv(), fusedGaussLaplacianScheme< Type, GType >::fvcLaplacian(), fusedGaussLaplacianScheme< Type, GType >::fvcLaplacian(), fusedGaussLaplacianScheme< Type, GType >::fvcLaplacian(), fusedGaussLaplacianScheme< Type, GType >::fvcLaplacian(), globalObjectPath(), globalPath(), globalPath(), fusedGaussGrad< Type >::gradf(), gaussGrad< Type >::gradf(), edgeInterpolationScheme< Type >::interpolate(), leastSquaresEdgeInterpolation< Type >::interpolate(), pointVolInterpolation::interpolate(), volPointInterpolation::interpolate(), volPointInterpolation::interpolate(), volPointInterpolation::interpolate(), IOobject(), IOobject(), IOobject(), IOobject(), Foam::fam::laplacian(), Foam::fam::laplacian(), Foam::fvc::laplacian(), Foam::fvc::laplacian(), Foam::fvm::laplacian(), Foam::fvm::laplacian(), lnGradScheme< Type >::lnGrad(), Foam::makeGraph(), volPointInterpolationAdjoint::makeWeights(), topoSet::maxSize(), meshRefinement::mergeEdgesUndo(), meshRefinement::mergePatchFacesUndo(), triSurfaceMesh::movePoints(), DimensionedField< Type, GeoMesh >::New(), GeometricField< Type, PatchField, GeoMesh >::New(), GeometricField< Type, PatchField, GeoMesh >::New(), GeometricField< Type, PatchField, GeoMesh >::New(), fvMeshTools::newMesh(), objectPath(), objectPath(), objectRelPath(), path(), path(), path(), path(), pointBoundaryMesh::pointBoundaryMesh(), points0MotionSolver::points0IO(), polyMesh::polyMesh(), polyMesh::polyMesh(), polyMesh::polyMesh(), polyMesh::polyMesh(), polyMesh::polyMesh(), Foam::fvc::reconstruct(), Foam::fvc::reconstructMag(), regIOobject::regIOobject(), faMesh::removeFiles(), polyMesh::removeFiles(), surfMesh::removeFiles(), searchableRotatedBox::searchableRotatedBox(), pointMesh::setInstance(), surfMesh::setInstance(), topoSet::setInstance(), singleCellFvMesh::singleCellFvMesh(), singleCellFvMesh::singleCellFvMesh(), singleCellFvMesh::singleCellFvMesh(), skewCorrectedEdgeInterpolation< Type >::skewCorrection(), SLGThermo::SLGThermo(), snGradScheme< Type >::snGrad(), solarLoadBase::solarLoadBase(), Foam::fvc::surfaceIntegrate(), Foam::fvc::surfaceSum(), surfMesh::surfMesh(), surfMesh::surfMesh(), surfMesh::surfMesh(), polyMesh::tetBasePtIs(), triSurfaceMesh::triSurfaceMesh(), triSurfaceMesh::triSurfaceMesh(), triSurfaceMesh::triSurfaceMesh(), triSurfaceMesh::triSurfaceMesh(), triSurfaceMesh::triSurfaceMesh(), polyTopoChanger::update(), topoSet::updateMesh(), decomposedBlockData::writeData(), distributedTriSurfaceMesh::writeObject(), regIOobject::writeObject(), triSurfaceMesh::writeObject(), fvMeshTools::writeProcAddressing(), and ~IOobject().

instance() [2/2]

Foam::fileName & instance ( )

inlinenoexcept

Modifiable access to instance path component.

Definition at line 295 of file IOobjectI.H.

References Foam::noexcept.

instanceValue()

Foam::scalar instanceValue

(

)

const

Return the scalar value of the instance component (or 0), which often corresponds to a time index/value.

Definition at line 487 of file IOobject.C.

local() [1/2]

const Foam::fileName & local ( ) const

inlinenoexcept

Read access to local path component.

Definition at line 301 of file IOobjectI.H.

References Foam::noexcept.

Referenced by fileNameComponents(), masterUncollatedFileOperation::findInstance(), globalPath(), IOobject(), IOobject(), IOobject(), objectRegistry::objectRegistry(), path(), path(), regIOobject::regIOobject(), searchableRotatedBox::searchableRotatedBox(), triSurfaceMesh::triSurfaceMesh(), triSurfaceMesh::triSurfaceMesh(), triSurfaceMesh::triSurfaceMesh(), triSurfaceMesh::triSurfaceMesh(), triSurfaceMesh::triSurfaceMesh(), and ~IOobject().

Here is the caller graph for this function:

local() [2/2]

Foam::fileName & local ( )

inlinenoexcept

Modifiable access to the local path component.

Definition at line 307 of file IOobjectI.H.

References Foam::noexcept.

path() [1/4]

Foam::fileName path

(

)

const

The complete path for the object (with instance, local,...).

Definition at line 500 of file IOobject.C.

References caseName(), file_isOutsideCase(), instance(), local, and rootPath().

Referenced by searchableSurfaces::checkIntersection(), fileNameComponents(), IOobject(), IOobject(), objectRegistry::objectRegistry(), fileOperation::readObjects(), caseInfo::writeFileDicts(), Time::writeObject(), and ~IOobject().

Here is the call graph for this function:

Here is the caller graph for this function:

globalPath() [1/2]

Foam::fileName globalPath

(

)

const

The complete global path for the object (with instance, local,...).

Definition at line 512 of file IOobject.C.

References file_isOutsideCase(), globalCaseName(), instance(), local, and rootPath().

Referenced by globalObjectPath(), topOVariablesBase::topOVariablesBase(), and updateMethod::updateMethod().

Here is the call graph for this function:

Here is the caller graph for this function:

path() [2/4]

Foam::fileName path

(

IOobjectOption::Layout

layout

)

const

The complete path (normal or global) for the object.

Definition at line 524 of file IOobject.C.

References caseName(), file_isOutsideCase(), instance(), local, and rootPath().

Here is the call graph for this function:

path() [3/4]

Foam::fileName path	(	const word &	instance,
		const fileName &	local = fileName::null ) const

The complete path with alternative instance and local.

Definition at line 536 of file IOobject.C.

References caseName(), instance(), local(), and rootPath().

Here is the call graph for this function:

globalPath() [2/2]

Foam::fileName globalPath	(	const word &	instance,
		const fileName &	local = fileName::null ) const

The complete global path with alternative instance and local.

Definition at line 547 of file IOobject.C.

References globalCaseName(), instance(), local(), and rootPath().

Here is the call graph for this function:

path() [4/4]

Foam::fileName path	(	IOobjectOption::Layout	layout,
		const word &	instance,
		const fileName &	local = fileName::null ) const

The complete path (normal or global) with alternative instance and local.

Definition at line 558 of file IOobject.C.

References caseName(), instance(), local(), and rootPath().

Here is the call graph for this function:

objectPath() [1/4]

Foam::fileName objectPath ( ) const

inline

The complete path + object name.

Definition at line 313 of file IOobjectI.H.

References name, and path().

Referenced by regIOobject::addWatch(), unwatchedIOdictionary::addWatch(), advectiveFvPatchField< Type >::advectiveFvPatchField(), baseIOdictionary::baseIOdictionary(), baseIOdictionary::baseIOdictionary(), hexRef8::consistentSlowRefinement2(), limitedSnGrad< Type >::correction(), distanceSurface::createGeometry(), cyclicACMIFvPatchField< Type >::cyclicACMIFvPatchField(), cyclicACMIFvPatchField< Type >::cyclicACMIFvPatchField(), cyclicAMIFvPatchField< Type >::cyclicAMIFvPatchField(), cyclicAMIFvPatchField< Type >::cyclicAMIFvPatchField(), cyclicFaPatchField< Type >::cyclicFaPatchField(), cyclicFaPatchField< Type >::cyclicFaPatchField(), cyclicFvPatchField< Type >::cyclicFvPatchField(), cyclicFvPatchField< Type >::cyclicFvPatchField(), emptyFaPatchField< Type >::emptyFaPatchField(), emptyFaPatchField< Type >::emptyFaPatchField(), emptyFvPatchField< Type >::emptyFvPatchField(), emptyFvPatchField< Type >::emptyFvPatchField(), globalObjectPath(), regIOobject::headerOk(), isoSurfaceCell::isoSurfaceCell(), isoSurfacePoint::isoSurfacePoint(), mappedPatchFieldBase< Type >::mapper(), meshRefinement::mergeEdgesUndo(), meshRefinement::mergePatchFacesUndo(), objectPath(), processorCyclicFvPatchField< Type >::processorCyclicFvPatchField(), processorCyclicFvPatchField< Type >::processorCyclicFvPatchField(), processorFaPatchField< Type >::processorFaPatchField(), processorFaPatchField< Type >::processorFaPatchField(), processorFvPatchField< Type >::processorFvPatchField(), processorFvPatchField< Type >::processorFvPatchField(), edgeSlipDisplacementPointPatchVectorField::read(), baseIOdictionary::readData(), fileOperation::readObjects(), masterUncollatedFileOperation::readObjects(), uncollatedFileOperation::readObjects(), schemesLookup::schemesLookup(), searchableExtrudedCircle::searchableExtrudedCircle(), hexRef8::setRefinement(), hexRef8::setUnrefinement(), symmetryFaPatchField< Type >::symmetryFaPatchField(), symmetryFaPatchField< Type >::symmetryFaPatchField(), symmetryFvPatchField< Type >::symmetryFvPatchField(), symmetryFvPatchField< Type >::symmetryFvPatchField(), symmetryPlaneFvPatchField< Type >::symmetryPlaneFvPatchField(), symmetryPlaneFvPatchField< Type >::symmetryPlaneFvPatchField(), syncObjects::sync(), trackingInverseDistance::update(), wedgeFvPatchField< Type >::wedgeFvPatchField(), wedgeFvPatchField< Type >::wedgeFvPatchField(), PDRblock::writeBlockMeshDict(), boundaryRegion::writeDict(), cellTable::writeDict(), decomposedBlockData::writeObject(), distributedTriSurfaceMesh::writeObject(), regIOobject::writeObject(), triSurfaceMesh::writeObject(), boundaryDataWriter::writeTemplate(), and debugWriter::writeTemplate().

Here is the call graph for this function:

globalObjectPath() [1/2]

Foam::fileName globalObjectPath ( ) const

inline

The complete global path + object name.

Definition at line 319 of file IOobjectI.H.

References globalPath(), and name.

Here is the call graph for this function:

objectPath() [2/4]

Foam::fileName objectPath ( IOobjectOption::Layout layout ) const

inline

The complete path (normal or global) + object name.

Definition at line 325 of file IOobjectI.H.

References name, and path().

Here is the call graph for this function:

objectPath() [3/4]

Foam::fileName objectPath	(	IOobjectOption::Layout	layout,
		const word &	instance ) const

The complete path (normal or global) + object name with alternative instance.

Definition at line 570 of file IOobject.C.

References caseName(), instance(), local, name, and rootPath().

Here is the call graph for this function:

objectPath() [4/4]

Foam::fileName objectPath ( const word & instance ) const

inline

The complete path + object name with alternative instance.

Definition at line 334 of file IOobjectI.H.

References instance(), objectPath(), and IOobjectOption::regular.

Here is the call graph for this function:

globalObjectPath() [2/2]

Foam::fileName globalObjectPath ( const word & instance ) const

inline

The complete global path + object name with alternative instance.

Definition at line 343 of file IOobjectI.H.

References IOobjectOption::global, instance(), and objectPath().

Here is the call graph for this function:

objectRelPath()

Foam::fileName objectRelPath

(

)

const

The object path relative to the case.

Definition at line 581 of file IOobject.C.

References file_isOutsideCase(), instance(), local, and name.

Referenced by regIOobject::checkIn(), fvMesh::init(), isoSurfaceTopo::isoSurfaceTopo(), pointBoundaryMesh::pointBoundaryMesh(), edgeSlipDisplacementPointPatchVectorField::read(), fvMeshTools::readProcAddressing(), boundaryRegion::writeDict(), cellTable::writeDict(), objectRegistry::writeObject(), and fvMeshTools::writeProcAddressing().

Here is the call graph for this function:

Here is the caller graph for this function:

localFilePath()

Foam::fileName localFilePath	(	const word &	typeName,
		const bool	search = true ) const

Redirect to fileHandler filePath, searching locally.

Parameters

search

False: use current instance; True: search previous instances

Definition at line 592 of file IOobject.C.

References Foam::fileHandler, Foam::GlobalIOList< Tuple2< scalar, vector > >::typeName, and Foam::search().

Referenced by distributedTriSurfaceMesh::filePath(), localIOdictionary::filePath(), regIOobject::filePath(), typeFilePath(), and fvExprDriver::updateSet().

Here is the call graph for this function:

Here is the caller graph for this function:

globalFilePath()

Foam::fileName globalFilePath	(	const word &	typeName,
		const bool	search = true ) const

Redirect to fileHandler filePath, searching up if in parallel.

Parameters

search

False: use current instance; True: search previous instances

Definition at line 603 of file IOobject.C.

References Foam::fileHandler, Foam::GlobalIOList< Tuple2< scalar, vector > >::typeName, and Foam::search().

Referenced by extendedFeatureEdgeMesh::filePath(), featureEdgeMesh::filePath(), GlobalIOField< label >::filePath(), GlobalIOList< kinematicParcelInjectionData >::filePath(), IOdictionary::filePath(), IOMap< T >::filePath(), porosityModel::filePath(), searchableSurface::filePath(), triSurfaceMesh::filePath(), UniformDimensionedField< label >::filePath(), unwatchedIOdictionary::filePath(), and typeFilePath().

Here is the call graph for this function:

Here is the caller graph for this function:

parseHeader()

Foam::IOstreamOption parseHeader

(

const dictionary &

headerDict

)

Parse 'FoamFile' header contents and set the IOobject characteristics and return the stream characteristics.

Definition at line 30 of file IOobjectReadHeader.C.

References IOstreamOption::format(), dictionary::get(), Foam::foamVersion::labelByteSize(), dictionary::readIfPresent(), Foam::foamVersion::scalarByteSize(), and IOstreamOption::version().

Referenced by readHeader().

Here is the call graph for this function:

Here is the caller graph for this function:

readHeader() [1/2]

bool readHeader

(

Istream &

is

)

Read header ('FoamFile' dictionary) and set the IOobject and stream characteristics.

Definition at line 162 of file IOobjectReadHeader.C.

References readHeader().

Referenced by decomposedBlockData::read(), decomposedBlockData::readBlock(), decomposedBlockData::readBlocks(), readHeader(), and masterUncollatedFileOperation::readStream().

Here is the call graph for this function:

Here is the caller graph for this function:

readHeader() [2/2]

bool readHeader	(	dictionary &	headerDict,
		Istream &	is )

Read header (the 'FoamFile' dictionary) and set the IOobject and stream characteristics.

Saves the header content in the given dictionary.

Definition at line 68 of file IOobjectReadHeader.C.

References BAD, Foam::endl(), Foam::exit(), Foam::FatalIOError, FatalIOErrorInFunction, IOstreamOption::format(), GOOD, IOstream::good(), Foam::Info, InfoInFunction, IOWarningInFunction, IOobjectOption::isReadRequired(), token::isWord(), IOstream::lineNumber(), IOstream::name(), name, Foam::nl, parseHeader(), dictionary::read(), IOstream::relativeName(), SeriousIOErrorInFunction, IOstream::setLabelByteSize(), IOstream::setScalarByteSize(), IOstreamOption::version(), and Foam::writeHeader().

Here is the call graph for this function:

typeHeaderOk() [1/2]

template<class Type>

bool typeHeaderOk	(	const bool	checkType = true,
		const bool	search = true,
		const bool	verbose = true )

Read header (respects is_globalIOobject trait) and check its info. A void type suppresses trait and type-name checks.

Parameters

checkType	Check headerClassName against the type-name
search	Also search previous instances if not found at current instance
verbose	Report any check-type failures

Definition at line 31 of file IOobjectTemplates.C.

References word::null, and Foam::search().

Referenced by fieldToCell::applyToSet(), basicMultiComponentMixture::basicMultiComponentMixture(), boundaryRadiationProperties::boundaryRadiationProperties(), NURBS3DVolume::computeParametricCoordinates(), faMesh::faMesh(), faMesh::faMesh(), hexRef8Data::hexRef8Data(), fvMesh::init(), Foam::MapConsistentVolFields(), Foam::MapVolFields(), Foam::MapVolFields(), combustionModel::New(), dynamicFvMesh::New(), simplifiedDynamicFvMeshBase::New(), phaseModel::phaseModel(), Foam::preservePatchTypes(), pyrolysisChemistryModel< CompType, SolidThermo, GasThermo >::pyrolysisChemistryModel(), radiativeIntensityRay::radiativeIntensityRay(), topODesignVariables::readField(), particle< Type >::readFields(), variablesSet::renameTurbulenceField(), rigidBodyMeshMotion::rigidBodyMeshMotion(), rigidBodyMeshMotionSolver::rigidBodyMeshMotionSolver(), globalMeshData::sharedPointGlobalLabels(), sixDoFRigidBodyMotionSolver::sixDoFRigidBodyMotionSolver(), stabilityBlendingFactor::stabilityBlendingFactor(), TDACChemistryModel< ReactionThermo, ThermoType >::TDACChemistryModel(), typeHeaderOk(), and fvExprDriver::updateSet().

Here is the call graph for this function:

Here is the caller graph for this function:

typeHeaderOk() [2/2]

template<class Type, bool Searching>

bool typeHeaderOk	(	const bool	checkType = true,
		const bool	verbose = true )

Forwards to single-parameter version with the specified search type. A void type suppresses trait and type-name checks.

Parameters

checkType	Check headerClassName against the type-name
verbose	Report any check-type failures

Definition at line 64 of file IOobjectTemplates.C.

References typeHeaderOk().

Here is the call graph for this function:

typeFilePath() [1/2]

template<class Type>

fileName typeFilePath

(

const bool

search = true

)

const

Call localFilePath or globalFilePath for given type depending on its is_globalIOobject trait.

References bad(), dict, good(), Foam::noexcept, os(), Foam::search(), typeFilePath(), warnNoRereading(), writeBanner(), writeDivider(), writeEndDivider(), and writeHeader().

Referenced by fieldToCell::applyToSet(), edgeSlipDisplacementPointPatchVectorField::read(), and typeFilePath().

Here is the call graph for this function:

Here is the caller graph for this function:

warnNoRereading()

template<class Type>

void warnNoRereading

(

)

const

Helper: warn that type does not support re-reading.

Definition at line 85 of file IOobjectTemplates.C.

References Foam::endl(), name, IOobjectOption::READ_MODIFIED, IOobjectOption::readOpt(), and WarningInFunction.

Referenced by extendedFeatureEdgeMesh::extendedFeatureEdgeMesh(), GlobalIOField< Type >::GlobalIOField(), GlobalIOField< Type >::GlobalIOField(), GlobalIOField< Type >::GlobalIOField(), GlobalIOField< Type >::GlobalIOField(), GlobalIOField< Type >::GlobalIOField(), GlobalIOList< Type >::GlobalIOList(), GlobalIOList< Type >::GlobalIOList(), GlobalIOList< Type >::GlobalIOList(), GlobalIOList< Type >::GlobalIOList(), GlobalIOList< Type >::GlobalIOList(), IOField< Type >::IOField(), IOField< Type >::IOField(), IOField< Type >::IOField(), IOField< Type >::IOField(), IOField< Type >::IOField(), IOField< Type >::IOField(), IOList< T >::IOList(), IOList< T >::IOList(), IOList< T >::IOList(), IOList< T >::IOList(), IOList< T >::IOList(), IOmapDistribute::IOmapDistribute(), IOmapDistribute::IOmapDistribute(), IOmapDistribute::IOmapDistribute(), IOmapDistributePolyMesh::IOmapDistributePolyMesh(), IOmapDistributePolyMesh::IOmapDistributePolyMesh(), IOmapDistributePolyMesh::IOmapDistributePolyMesh(), polyTopoChanger::polyTopoChanger(), rawIOField< Type >::rawIOField(), refinementHistory::refinementHistory(), refinementHistory::refinementHistory(), refinementHistory::refinementHistory(), refinementHistory::refinementHistory(), and typeFilePath().

Here is the call graph for this function:

Here is the caller graph for this function:

writeBanner()

Foam::Ostream & writeBanner ( Ostream & os, const bool noSyntaxHint = false )

static

Write the standard OpenFOAM file/dictionary banner.

Optionally without editor syntax hint (eg, for logs)

Definition at line 72 of file IOobjectWriteHeader.C.

References Foam::foamVersion::api, and os().

Referenced by argList::parse(), typeFilePath(), decomposedBlockData::writeHeader(), decomposedBlockData::writeHeader(), and writeHeader().

Here is the call graph for this function:

Here is the caller graph for this function:

writeDivider()

Foam::Ostream & writeDivider ( Ostream & os )

static

Write the standard file section divider.

Definition at line 128 of file IOobjectWriteHeader.C.

References os().

Referenced by Foam::listSwitches(), argList::parse(), typeFilePath(), edgeMeshFormat::write(), decomposedBlockData::writeHeader(), decomposedBlockData::writeHeader(), and writeHeader().

Here is the call graph for this function:

Here is the caller graph for this function:

writeEndDivider()

Foam::Ostream & writeEndDivider ( Ostream & os )

static

Write the standard end file divider.

Definition at line 138 of file IOobjectWriteHeader.C.

References os().

Referenced by PDRblock::blockMeshDict(), typeFilePath(), MeshedSurfaceProxy< Face >::write(), PDRblock::writeBlockMeshDict(), decomposedBlockData::writeData(), boundaryRegion::writeDict(), cellTable::writeDict(), fileOperation::writeObject(), collatedFileOperation::writeObject(), masterUncollatedFileOperation::writeObject(), boundaryDataWriter::writeTemplate(), and debugWriter::writeTemplate().

Here is the call graph for this function:

Here is the caller graph for this function:

writeHeader() [1/4]

bool writeHeader

(

Ostream &

os

)

const

Write header with current type().

Definition at line 273 of file IOobjectWriteHeader.C.

References os(), Foam::type(), and writeHeader().

Referenced by PDRblock::blockMeshDict(), typeFilePath(), interpolationLookUpTable< Type >::write(), PDRblock::writeBlockMeshDict(), boundaryRegion::writeDict(), cellTable::writeDict(), writeHeader(), writeHeader(), boundaryDataWriter::writeTemplate(), and debugWriter::writeTemplate().

Here is the call graph for this function:

Here is the caller graph for this function:

writeHeader() [2/4]

bool writeHeader	(	Ostream &	os,
		const word &	objectType ) const

Write header with override of type.

Definition at line 231 of file IOobjectWriteHeader.C.

References bannerEnabled(), Foam::endl(), findMetaData(), InfoInFunction, Foam::nl, os(), writeBanner(), writeDivider(), and writeHeaderContent().

Here is the call graph for this function:

writeHeader() [3/4]

void writeHeader	(	dictionary &	dict,
		IOstreamOption	streamOpt ) const

Write header into a dictionary with current type() and given output format.

Definition at line 297 of file IOobjectWriteHeader.C.

References dict, Foam::type(), and writeHeader().

Here is the call graph for this function:

writeHeader() [4/4]

void writeHeader	(	dictionary &	dict,
		const word &	objectType,
		IOstreamOption	streamOpt ) const

Write header into a dictionary with override of type and given output format.

Definition at line 279 of file IOobjectWriteHeader.C.

References dict, findMetaData(), and writeHeaderContent().

Here is the call graph for this function:

good()

bool good ( ) const

inlinenoexcept

Did last readHeader() succeed?

Definition at line 354 of file IOobjectI.H.

References GOOD, and Foam::noexcept.

Referenced by typeFilePath(), CompactIOField< T >::writeObject(), CompactIOList< T >::writeObject(), and regIOobject::writeObject().

Here is the caller graph for this function:

bad()

bool bad ( ) const

inlinenoexcept

Did last readHeader() fail?

Definition at line 360 of file IOobjectI.H.

References BAD, and Foam::noexcept.

Referenced by typeFilePath().

Here is the caller graph for this function:

info()

InfoProxy< IOobject > info ( ) const

inlinenoexcept

Return info proxy, for printing information to a stream.

Definition at line 1041 of file IOobject.H.

References info(), and Foam::noexcept.

Referenced by profiling::beginTimer(), GeometricField< scalar, Foam::fvPatchField, Foam::volMesh >::clearOldTimes(), GeometricField< scalar, Foam::fvPatchField, Foam::volMesh >::clone(), profiling::create(), profiling::create(), profiling::endTimer(), distributedTriSurfaceMesh::findLine(), searchableBox::findLine(), searchableBox::findLine(), searchableCone::findLine(), searchableCylinder::findLine(), searchableDisk::findLine(), searchablePlane::findLine(), searchablePlate::findLine(), searchableRotatedBox::findLine(), searchableSphere::findLine(), searchableSurfaceCollection::findLine(), searchableSurfaceWithGaps::findLine(), triSurfaceMesh::findLine(), distributedTriSurfaceMesh::findLineAll(), searchableBox::findLineAll(), searchableCone::findLineAll(), searchableCylinder::findLineAll(), searchableDisk::findLineAll(), searchablePlane::findLineAll(), searchablePlate::findLineAll(), searchableRotatedBox::findLineAll(), searchableSphere::findLineAll(), searchableSurfaceCollection::findLineAll(), searchableSurfaceWithGaps::findLineAll(), triSurfaceMesh::findLineAll(), distributedTriSurfaceMesh::findLineAny(), searchableBox::findLineAny(), searchableCone::findLineAny(), searchableCylinder::findLineAny(), searchableDisk::findLineAny(), searchablePlane::findLineAny(), searchablePlate::findLineAny(), searchableRotatedBox::findLineAny(), searchableSphere::findLineAny(), searchableSurfaceCollection::findLineAny(), searchableSurfaceWithGaps::findLineAny(), triSurfaceMesh::findLineAny(), distributedTriSurfaceMesh::findNearest(), distributedTriSurfaceMesh::findNearest(), searchableBox::findNearest(), searchableCone::findNearest(), searchableCylinder::findNearest(), searchableDisk::findNearest(), searchableExtrudedCircle::findNearest(), searchablePlane::findNearest(), searchablePlate::findNearest(), searchableRotatedBox::findNearest(), searchableSphere::findNearest(), searchableSurface::findNearest(), searchableSurface::findNearest(), searchableSurfaceWithGaps::findNearest(), triSurfaceMesh::findNearest(), triSurfaceMesh::findNearest(), searchableBox::findNearestOnEdge(), searchableExtrudedCircle::findParametricNearest(), GeometricField< Type, PatchField, GeoMesh >::GeometricField(), GeometricField< Type, PatchField, GeoMesh >::GeometricField(), GeometricField< Type, PatchField, GeoMesh >::GeometricField(), GeometricField< Type, PatchField, GeoMesh >::GeometricField(), GeometricField< Type, PatchField, GeoMesh >::GeometricField(), GeometricField< Type, PatchField, GeoMesh >::GeometricField(), GeometricField< Type, PatchField, GeoMesh >::GeometricField(), GeometricField< Type, PatchField, GeoMesh >::GeometricField(), GeometricField< Type, PatchField, GeoMesh >::GeometricField(), GeometricField< Type, PatchField, GeoMesh >::GeometricField(), GeometricField< Type, PatchField, GeoMesh >::GeometricField(), GeometricField< Type, PatchField, GeoMesh >::GeometricField(), GeometricField< Type, PatchField, GeoMesh >::GeometricField(), GeometricField< Type, PatchField, GeoMesh >::GeometricField(), GeometricField< Type, PatchField, GeoMesh >::GeometricField(), GeometricField< Type, PatchField, GeoMesh >::GeometricField(), GeometricField< Type, PatchField, GeoMesh >::GeometricField(), GeometricField< Type, PatchField, GeoMesh >::GeometricField(), GeometricField< Type, PatchField, GeoMesh >::GeometricField(), GeometricField< Type, PatchField, GeoMesh >::GeometricField(), GeometricField< Type, PatchField, GeoMesh >::GeometricField(), GeometricField< Type, PatchField, GeoMesh >::GeometricField(), GeometricField< Type, PatchField, GeoMesh >::GeometricField(), GeometricField< Type, PatchField, GeoMesh >::GeometricField(), GeometricField< Type, PatchField, GeoMesh >::GeometricField(), GeometricField< Type, PatchField, GeoMesh >::GeometricField(), GeometricField< Type, PatchField, GeoMesh >::GeometricField(), GeometricField< Type, PatchField, GeoMesh >::GeometricField(), distributedTriSurfaceMesh::getField(), searchableSurfaceCollection::getField(), searchableSurfaceWithGaps::getField(), triSurfaceMesh::getField(), distributedTriSurfaceMesh::getNormal(), searchableBox::getNormal(), searchableCone::getNormal(), searchableCylinder::getNormal(), searchableDisk::getNormal(), searchableExtrudedCircle::getNormal(), searchablePlane::getNormal(), searchablePlate::getNormal(), searchableRotatedBox::getNormal(), searchableSphere::getNormal(), searchableSurfaceCollection::getNormal(), searchableSurfaceWithGaps::getNormal(), smoothTriSurfaceMesh::getNormal(), triSurfaceMesh::getNormal(), distributedTriSurfaceMesh::getRegion(), searchableBox::getRegion(), searchableCone::getRegion(), searchableCylinder::getRegion(), searchableDisk::getRegion(), searchableExtrudedCircle::getRegion(), searchablePlane::getRegion(), searchablePlate::getRegion(), searchableRotatedBox::getRegion(), searchableSphere::getRegion(), searchableSurfaceCollection::getRegion(), searchableSurfaceWithGaps::getRegion(), triSurfaceMesh::getRegion(), searchableSurfaceWithGaps::getVolumeType(), info(), Boussinesq::info(), cnoidal::info(), Grimshaw::info(), irregularMultiDirectional::info(), irregularWaveModel::info(), McCowan::info(), regularWaveModel::info(), solitaryWaveModel::info(), StokesI::info(), StokesII::info(), StokesV::info(), streamFunction::info(), waveGenerationModel::info(), distributedTriSurfaceMesh::localQueries(), profiling::New(), profiling::operator=(), GeometricField< Type, PatchField, GeoMesh >::prevIter(), profiling::profiling(), setBad(), KinematicCloud< CloudType >::solve(), GeometricField< Type, PatchField, GeoMesh >::storeOldTime(), profiling::unstack(), profiling::writeData(), topOVariablesBase::writeFluidSolidInterface(), and GeometricField< scalar, Foam::fvPatchField, Foam::volMesh >::~GeometricField().

Here is the call graph for this function:

operator=()

void operator=

(

const IOobject &

io

)

Copy assignment, copies all values (except the registry).

Definition at line 660 of file IOobject.C.

References IOobjectOption::globalObject(), io, IOobjectOption::readOpt(), and IOobjectOption::writeOpt().

Referenced by regIOobject::operator=().

Here is the call graph for this function:

Here is the caller graph for this function:

isHeaderClassName()

template<class Type>

bool isHeaderClassName ( ) const

inline

Same as isHeaderClass().

Definition at line 1058 of file IOobject.H.

References isHeaderClass().

Here is the call graph for this function:

groupName() [2/2]

template<class StringType>

Foam::word groupName ( StringType base, const word & group )

inline

Definition at line 34 of file IOobjectI.H.

References group().

Here is the call graph for this function:

typeFilePath() [2/2]

template<class Type>

Foam::fileName typeFilePath

(

const bool

search

)

const

Definition at line 71 of file IOobjectTemplates.C.

References globalFilePath(), localFilePath(), and Foam::search().

Here is the call graph for this function:

Member Data Documentation

fileCheckTypesNames

const Foam::Enum< Foam::IOobject::fileCheckTypes > fileCheckTypesNames

static

Names for the fileCheckTypes.

Definition at line 218 of file IOobject.H.

Referenced by argList::parse().

scopeSeparator

char scopeSeparator

static

Character for scoping object names (':' or '_').

Change with caution.

Definition at line 353 of file IOobject.H.

Referenced by scopedName(), scopedName(), and dsmcFields::write().

fileModificationChecking

Foam::IOobject::fileCheckTypes fileModificationChecking

static

Type of file modification checking.

Definition at line 358 of file IOobject.H.

Referenced by fileModificationChecking_masterOnly(), fileOperation::monitor(), fvMeshTools::newMesh(), and argList::parse().

fileModificationSkew

float fileModificationSkew

static

Time skew (seconds) for file modification checks.

Definition at line 363 of file IOobject.H.

Referenced by codeStream::getFunction(), argList::parse(), registerOptSwitch(), and dynamicCode::waitForFile().

maxFileModificationPolls

int maxFileModificationPolls

static

Max number of times to poll for file modification changes.

Definition at line 368 of file IOobject.H.

Referenced by argList::parse(), registerOptSwitch(), and dynamicCode::waitForFile().

---

The documentation for this class was generated from the following files:

• src/OpenFOAM/db/IOobject/IOobject.H
• src/OpenFOAM/db/IOobject/IOobject.C
• src/OpenFOAM/db/IOobject/IOobjectI.H
• src/OpenFOAM/db/IOobject/IOobjectMetaData.C
• src/OpenFOAM/db/IOobject/IOobjectReadHeader.C
• src/OpenFOAM/db/IOobject/IOobjectTemplates.C
• src/OpenFOAM/db/IOobject/IOobjectWriteHeader.C
