Templated abstract base class for LES SGS models. More...

#include <LESModel.H>

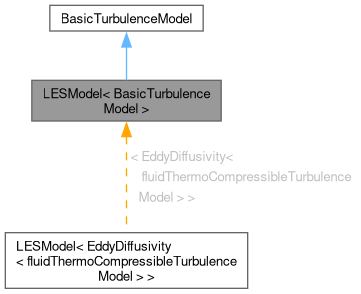

Inheritance diagram for LESModel< BasicTurbulenceModel >:

[legend]

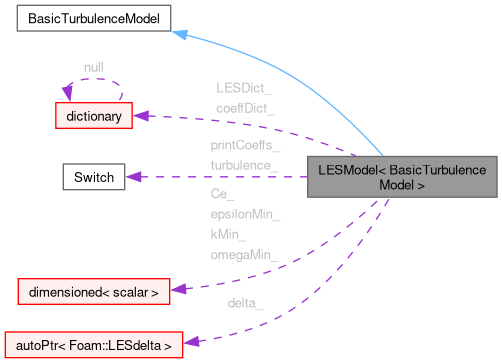

Collaboration diagram for LESModel< BasicTurbulenceModel >:

[legend]

Public Types
typedef BasicTurbulenceModel::alphaField	alphaField
typedef BasicTurbulenceModel::rhoField	rhoField
typedef BasicTurbulenceModel::transportModel	transportModel

Public Member Functions
	TypeName ("LES")
	Runtime type information.
	declareRunTimeSelectionTable (autoPtr, LESModel, dictionary,(const alphaField &alpha, const rhoField &rho, const volVectorField &U, const surfaceScalarField &alphaRhoPhi, const surfaceScalarField &phi, const transportModel &transport, const word &propertiesName),(alpha, rho, U, alphaRhoPhi, phi, transport, propertiesName))
	LESModel (const word &type, const alphaField &alpha, const rhoField &rho, const volVectorField &U, const surfaceScalarField &alphaRhoPhi, const surfaceScalarField &phi, const transportModel &transport, const word &propertiesName)
	Construct from components.
virtual	~LESModel ()=default
	Destructor.
virtual bool	read ()
	Read model coefficients if they have changed.
virtual const dictionary &	coeffDict () const
	Const access to the coefficients dictionary.
const dimensionedScalar &	Ce () const noexcept
const dimensionedScalar &	kMin () const
	Return the lower allowable limit for k (default: SMALL).
dimensionedScalar &	kMin ()
	Allow kMin to be changed.
const volScalarField &	delta () const
	Access function to filter width.
virtual tmp< volScalarField >	nuEff () const
	Return the effective viscosity.
virtual tmp< scalarField >	nuEff (const label patchi) const
	Return the effective viscosity on patch.
virtual tmp< volScalarField >	epsilon () const
	Return the turbulence kinetic energy dissipation rate.
virtual tmp< volScalarField >	omega () const
	Return the specific dissipation rate.
virtual void	correct ()
	Solve the turbulence equations and correct the turbulence viscosity.

Static Public Member Functions
static autoPtr< LESModel >	New (const alphaField &alpha, const rhoField &rho, const volVectorField &U, const surfaceScalarField &alphaRhoPhi, const surfaceScalarField &phi, const transportModel &transport, const word &propertiesName=turbulenceModel::propertiesName)
	Return a reference to the selected LES model.

Protected Member Functions
virtual void	printCoeffs (const word &type)
	Print model coefficients.
	LESModel (const LESModel &)=delete
	No copy construct.
void	operator= (const LESModel &)=delete
	No copy assignment.

Protected Attributes
dictionary	LESDict_
	LES coefficients dictionary.
Switch	turbulence_
	Turbulence on/off flag.
Switch	printCoeffs_
	Flag to print the model coeffs at run-time.
dictionary	coeffDict_
	Model coefficients dictionary.
dimensionedScalar	Ce_
	Empirical model constant.
dimensionedScalar	kMin_
	Lower limit of k.
dimensionedScalar	epsilonMin_
	Lower limit of epsilon.
dimensionedScalar	omegaMin_
	Lower limit for omega.
autoPtr< Foam::LESdelta >	delta_
	Run-time selectable delta model.

Detailed Description

template<class BasicTurbulenceModel>
class Foam::LESModel< BasicTurbulenceModel >

Templated abstract base class for LES SGS models.

Source files

Definition at line 56 of file LESModel.H.

Member Typedef Documentation

◆ alphaField

template<class BasicTurbulenceModel>

typedef BasicTurbulenceModel::alphaField alphaField

Definition at line 130 of file LESModel.H.

◆ rhoField

template<class BasicTurbulenceModel>

typedef BasicTurbulenceModel::rhoField rhoField

Definition at line 131 of file LESModel.H.

◆ transportModel

template<class BasicTurbulenceModel>

typedef BasicTurbulenceModel::transportModel transportModel

Definition at line 132 of file LESModel.H.

Constructor & Destructor Documentation

◆ LESModel() [1/2]

template<class BasicTurbulenceModel>

LESModel ( const LESModel< BasicTurbulenceModel > & )

protecteddelete

No copy construct.

◆ LESModel() [2/2]

template<class BasicTurbulenceModel>

LESModel	(	const word &	type,
		const alphaField &	alpha,
		const rhoField &	rho,
		const volVectorField &	U,
		const surfaceScalarField &	alphaRhoPhi,
		const surfaceScalarField &	phi,
		const transportModel &	transport,
		const word &	propertiesName )

Construct from components.

Definition at line 39 of file LESModel.C.

References alpha, Ce_, coeffDict_, delta_, Foam::dimless, Foam::dimTime, Foam::dimVelocity, epsilonMin_, kMin_, LESDict_, New(), omegaMin_, phi, printCoeffs_, rho, Foam::sqr(), turbulence_, and U.

Here is the call graph for this function:

◆ ~LESModel()

template<class BasicTurbulenceModel>

virtual ~LESModel ( )

virtualdefault

Destructor.

Member Function Documentation

◆ printCoeffs()

template<class BasicTurbulenceModel>

void printCoeffs ( const word & type )

protectedvirtual

Print model coefficients.

Definition at line 27 of file LESModel.C.

References coeffDict_, Foam::endl(), Foam::Info, and printCoeffs_.

Here is the call graph for this function:

◆ operator=()

template<class BasicTurbulenceModel>

void operator= ( const LESModel< BasicTurbulenceModel > & )

protecteddelete

No copy assignment.

◆ TypeName()

template<class BasicTurbulenceModel>

TypeName ( "LES" )

Runtime type information.

◆ declareRunTimeSelectionTable()

template<class BasicTurbulenceModel>

declareRunTimeSelectionTable	(	autoPtr	,
		LESModel< BasicTurbulenceModel >	,
		dictionary	,
		(const alphaField &alpha, const rhoField &rho, const volVectorField &U, const surfaceScalarField &alphaRhoPhi, const surfaceScalarField &phi, const transportModel &transport, const word &propertiesName)	,
		(alpha, rho, U, alphaRhoPhi, phi, transport, propertiesName)	)

◆ New()

template<class BasicTurbulenceModel>

Foam::autoPtr< Foam::LESModel< BasicTurbulenceModel > > New	(	const alphaField &	alpha,
		const rhoField &	rho,
		const volVectorField &	U,
		const surfaceScalarField &	alphaRhoPhi,
		const surfaceScalarField &	phi,
		const transportModel &	transport,
		const word &	propertiesName = turbulenceModel::propertiesName )

static

Return a reference to the selected LES model.

Definition at line 125 of file LESModel.C.

References alpha, dict, IOobject::group(), IOobject::groupName(), IOobjectOption::MUST_READ, IOobjectOption::NO_REGISTER, IOobjectOption::NO_WRITE, phi, rho, dictionary::subDict(), and U.

Referenced by LESModel().

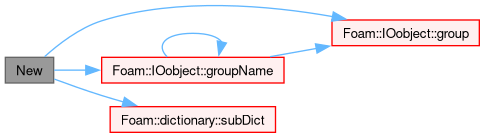

Here is the call graph for this function:

Here is the caller graph for this function:

◆ read()

template<class BasicTurbulenceModel>

bool read ( )

virtual

Read model coefficients if they have changed.

Definition at line 182 of file LESModel.C.

References Ce_, coeffDict_, delta_, kMin_, LESDict_, turbulence_, and Foam::type().

Here is the call graph for this function:

◆ coeffDict()

template<class BasicTurbulenceModel>

virtual const dictionary & coeffDict ( ) const

inlinevirtual

Const access to the coefficients dictionary.

Definition at line 215 of file LESModel.H.

◆ Ce()

template<class BasicTurbulenceModel>

const dimensionedScalar & Ce ( ) const

inlinenoexcept

Definition at line 221 of file LESModel.H.

◆ kMin() [1/2]

template<class BasicTurbulenceModel>

const dimensionedScalar & kMin ( ) const

inline

Return the lower allowable limit for k (default: SMALL).

Definition at line 229 of file LESModel.H.

◆ kMin() [2/2]

template<class BasicTurbulenceModel>

dimensionedScalar & kMin ( )

inline

Allow kMin to be changed.

Definition at line 237 of file LESModel.H.

◆ delta()

template<class BasicTurbulenceModel>

const volScalarField & delta ( ) const

inline

Access function to filter width.

Definition at line 245 of file LESModel.H.

◆ nuEff() [1/2]

template<class BasicTurbulenceModel>

virtual tmp< volScalarField > nuEff ( ) const

inlinevirtual

Return the effective viscosity.

Definition at line 254 of file LESModel.H.

◆ nuEff() [2/2]

template<class BasicTurbulenceModel>

virtual tmp< scalarField > nuEff ( const label patchi ) const

inlinevirtual

Return the effective viscosity on patch.

Definition at line 269 of file LESModel.H.

◆ epsilon()

template<class BasicTurbulenceModel>

Foam::tmp< Foam::volScalarField > epsilon ( ) const

virtual

Return the turbulence kinetic energy dissipation rate.

Definition at line 206 of file LESModel.C.

References delta, IOobject::groupName(), k, tmp< T >::New(), and Foam::pow().

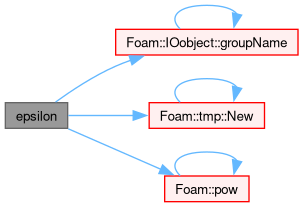

Here is the call graph for this function:

◆ omega()

template<class BasicTurbulenceModel>

Foam::tmp< Foam::volScalarField > omega ( ) const

virtual

Return the specific dissipation rate.

Definition at line 223 of file LESModel.C.

References Foam::dimLength, Foam::dimTime, IOobject::groupName(), tmp< T >::New(), and Foam::sqr().

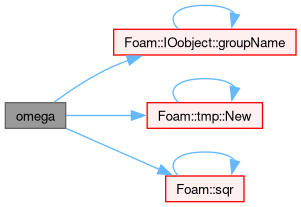

Here is the call graph for this function:

◆ correct()

template<class BasicTurbulenceModel>

void correct ( )

virtual

Solve the turbulence equations and correct the turbulence viscosity.

Definition at line 242 of file LESModel.C.

References delta_.

Member Data Documentation

◆ LESDict_

template<class BasicTurbulenceModel>

dictionary LESDict_

protected

LES coefficients dictionary.

Definition at line 67 of file LESModel.H.

Referenced by LESModel(), and read().

◆ turbulence_

template<class BasicTurbulenceModel>

Switch turbulence_

protected

Turbulence on/off flag.

Definition at line 72 of file LESModel.H.

Referenced by LESModel(), and read().

◆ printCoeffs_

template<class BasicTurbulenceModel>

Switch printCoeffs_

protected

Flag to print the model coeffs at run-time.

Definition at line 77 of file LESModel.H.

Referenced by LESModel(), and printCoeffs().

◆ coeffDict_

template<class BasicTurbulenceModel>

dictionary coeffDict_

protected

Model coefficients dictionary.

Definition at line 82 of file LESModel.H.

Referenced by LESModel(), printCoeffs(), and read().

◆ Ce_

template<class BasicTurbulenceModel>

dimensionedScalar Ce_

protected

Empirical model constant.

Definition at line 87 of file LESModel.H.

Referenced by LESModel(), and read().

◆ kMin_

template<class BasicTurbulenceModel>

dimensionedScalar kMin_

protected

Lower limit of k.

Definition at line 92 of file LESModel.H.

Referenced by LESModel(), and read().

◆ epsilonMin_

template<class BasicTurbulenceModel>

dimensionedScalar epsilonMin_

protected

Lower limit of epsilon.

Definition at line 97 of file LESModel.H.

Referenced by LESModel().

◆ omegaMin_

template<class BasicTurbulenceModel>

dimensionedScalar omegaMin_

protected

Lower limit for omega.

Definition at line 102 of file LESModel.H.

Referenced by LESModel().

◆ delta_

template<class BasicTurbulenceModel>

autoPtr<Foam::LESdelta> delta_

protected

Run-time selectable delta model.

Definition at line 107 of file LESModel.H.

Referenced by correct(), LESModel(), and read().

The documentation for this class was generated from the following files:

src/TurbulenceModels/turbulenceModels/LES/LESModel/LESModel.H
src/TurbulenceModels/turbulenceModels/LES/LESModel/LESModel.C
