DESModel< BasicTurbulenceModel > Class Template Referenceabstract

Templated abstract base class for DES models. More...

#include <DESModel.H>

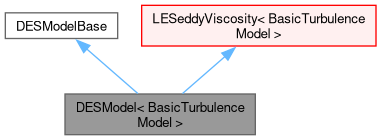

Inheritance diagram for DESModel< BasicTurbulenceModel >:
Inheritance graph
[legend]

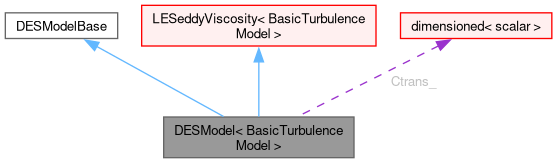

Collaboration diagram for DESModel< BasicTurbulenceModel >:
Collaboration graph
[legend]

Public Types

typedef BasicTurbulenceModel::alphaField alphaField
typedef BasicTurbulenceModel::rhoField rhoField
typedef BasicTurbulenceModel::transportModel transportModel
Public Types inherited from LESeddyViscosity< BasicTurbulenceModel >
typedef BasicTurbulenceModel::alphaField alphaField
typedef BasicTurbulenceModel::rhoField rhoField
typedef BasicTurbulenceModel::transportModel transportModel
Public Types inherited from eddyViscosity< LESModel< BasicTurbulenceModel > >
typedef BasicTurbulenceModel::alphaField alphaField
typedef BasicTurbulenceModel::rhoField rhoField
typedef BasicTurbulenceModel::transportModel transportModel
Public Types inherited from linearViscousStress< BasicTurbulenceModel >
typedef BasicTurbulenceModel::alphaField alphaField
typedef BasicTurbulenceModel::rhoField rhoField
typedef BasicTurbulenceModel::transportModel transportModel

Public Member Functions

 DESModel (const word &type, const alphaField &alpha, const rhoField &rho, const volVectorField &U, const surfaceScalarField &alphaRhoPhi, const surfaceScalarField &phi, const transportModel &transport, const word &propertiesName=turbulenceModel::propertiesName)
 Construct from components.
virtual ~DESModel ()=default
 Destructor.
virtual bool read ()
 Re-read model coefficients if they have changed.
virtual tmp< volScalarField > LESRegion () const =0
 Return the LES field indicator.
virtual tmp< volScalarField > Ssigma (const volTensorField &gradU) const
 Return modified strain rate.
virtual tmp< volScalarField > fd () const
 Return the shielding function.
Public Member Functions inherited from DESModelBase
 ClassName ("DESModelBase")
 Runtime type information.
 DESModelBase () noexcept=default
 Constructor.
virtual ~DESModelBase ()=default
 Destructor.
Public Member Functions inherited from LESeddyViscosity< BasicTurbulenceModel >
 LESeddyViscosity (const word &type, const alphaField &alpha, const rhoField &rho, const volVectorField &U, const surfaceScalarField &alphaRhoPhi, const surfaceScalarField &phi, const transportModel &transport, const word &propertiesName=turbulenceModel::propertiesName)
 Construct from components.
virtual ~LESeddyViscosity ()=default
 Destructor.
Public Member Functions inherited from eddyViscosity< LESModel< BasicTurbulenceModel > >
 eddyViscosity (const word &modelName, const alphaField &alpha, const rhoField &rho, const volVectorField &U, const surfaceScalarField &alphaRhoPhi, const surfaceScalarField &phi, const transportModel &transport, const word &propertiesName)
 Construct from components.
virtual ~eddyViscosity ()=default
 Destructor.
virtual tmp< volScalarField > nut () const
 Return the turbulence viscosity.
virtual tmp< volScalarField > k () const=0
 Return the turbulence kinetic energy.
virtual tmp< volSymmTensorField > R () const
 Return the Reynolds stress tensor.
virtual void validate ()
 Validate the turbulence fields after construction.
virtual void correct ()=0
 Solve the turbulence equations and correct the turbulence viscosity.
Public Member Functions inherited from linearViscousStress< BasicTurbulenceModel >
 linearViscousStress (const word &modelName, const alphaField &alpha, const rhoField &rho, const volVectorField &U, const surfaceScalarField &alphaRhoPhi, const surfaceScalarField &phi, const transportModel &transport, const word &propertiesName)
 Construct from components.
virtual ~linearViscousStress ()=default
 Destructor.
virtual tmp< volSymmTensorField > devRhoReff () const
 Return the effective stress tensor.
virtual tmp< volSymmTensorField > devRhoReff (const volVectorField &U) const
 Return the effective stress tensor based on a given velocity field.
virtual tmp< fvVectorMatrix > divDevRhoReff (volVectorField &U) const
 Return the source term for the momentum equation.
virtual tmp< fvVectorMatrix > divDevRhoReff (const volScalarField &rho, volVectorField &U) const
 Return the source term for the momentum equation.

Static Public Member Functions

static tmp< volScalarField > Ssigma (const volTensorField &gradU, const dimensionedScalar &coeff)
 Return modified strain rate.

Protected Attributes

dimensionedScalar Ctrans_
 Model-specific transition constant.
Protected Attributes inherited from eddyViscosity< LESModel< BasicTurbulenceModel > >
volScalarField nut_

Additional Inherited Members

Protected Member Functions inherited from eddyViscosity< LESModel< BasicTurbulenceModel > >
virtual void correctNut ()=0

Detailed Description

template<class BasicTurbulenceModel>
class Foam::LESModels::DESModel< BasicTurbulenceModel >

Templated abstract base class for DES models.

Source files

Definition at line 51 of file DESModel.H.

Member Typedef Documentation

◆ alphaField

template<class BasicTurbulenceModel>
typedef BasicTurbulenceModel::alphaField alphaField

Definition at line 81 of file DESModel.H.

◆ rhoField

template<class BasicTurbulenceModel>
typedef BasicTurbulenceModel::rhoField rhoField

Definition at line 82 of file DESModel.H.

◆ transportModel

template<class BasicTurbulenceModel>
typedef BasicTurbulenceModel::transportModel transportModel

Definition at line 83 of file DESModel.H.

Constructor & Destructor Documentation

◆ DESModel()

template<class BasicTurbulenceModel>
DESModel ( const word & type,
const alphaField & alpha,
const rhoField & rho,
const volVectorField & U,
const surfaceScalarField & alphaRhoPhi,
const surfaceScalarField & phi,
const transportModel & transport,
const word & propertiesName = turbulenceModel::propertiesName )

Construct from components.

Definition at line 35 of file DESModel.C.

References alpha, Ctrans_, Foam::dimless, phi, rho, U, and Foam::Zero.

◆ ~DESModel()

template<class BasicTurbulenceModel>
virtual ~DESModel ( )
virtualdefault

Destructor.

Member Function Documentation

◆ read()

template<class BasicTurbulenceModel>
bool read ( )
virtual

Re-read model coefficients if they have changed.

Reimplemented from LESeddyViscosity< BasicTurbulenceModel >.

Definition at line 67 of file DESModel.C.

References Ctrans_, and LESeddyViscosity< BasicTurbulenceModel >::read().

Here is the call graph for this function:

◆ LESRegion()

template<class BasicTurbulenceModel>
virtual tmp< volScalarField > LESRegion ( ) const
pure virtual

Return the LES field indicator.

Implements DESModelBase.

◆ Ssigma() [1/2]

template<class BasicTurbulenceModel>
tmp< volScalarField > Ssigma ( const volTensorField & gradU,
const dimensionedScalar & coeff )
static

Return modified strain rate.

Definition at line 81 of file DESModel.C.

References Foam::acos(), alpha1, Foam::cos(), Foam::det(), Foam::dimless, Foam::dimTime, Foam::max(), VectorSpace< Form, Cmpt, Mrows *Ncols >::max, Foam::min(), VectorSpace< Form, Cmpt, Mrows *Ncols >::min, Foam::constant::mathematical::pi(), Foam::pow(), Foam::pow3(), Foam::pow4(), Foam::sqr(), Foam::sqrt(), GeometricField< Type, PatchField, GeoMesh >::T(), and Foam::tr().

Referenced by sigma< BasicTurbulenceModel >::correctNut(), and Ssigma().

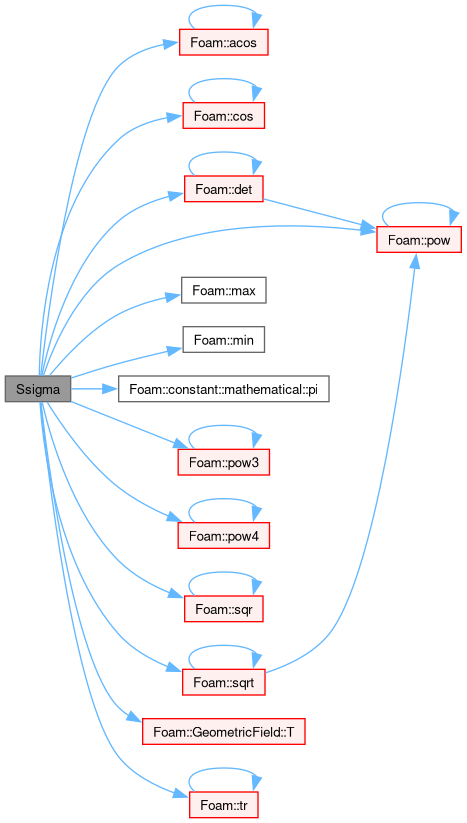

Here is the call graph for this function:
Here is the caller graph for this function:

◆ Ssigma() [2/2]

template<class BasicTurbulenceModel>
tmp< volScalarField > Ssigma ( const volTensorField & gradU) const
virtual

Return modified strain rate.

Note: uses Ctrans_ coefficient

Definition at line 152 of file DESModel.C.

References Ctrans_, and Ssigma().

Here is the call graph for this function:

◆ fd()

template<class BasicTurbulenceModel>
tmp< volScalarField > fd ( ) const
virtual

Return the shielding function.

Implements DESModelBase.

Definition at line 162 of file DESModel.C.

References Foam::dimless, GeometricField< scalar, fvPatchField, volMesh >::New(), IOobjectOption::NO_REGISTER, and Foam::Zero.

Here is the call graph for this function:

Member Data Documentation

◆ Ctrans_

template<class BasicTurbulenceModel>
dimensionedScalar Ctrans_
protected

Model-specific transition constant.

Definition at line 76 of file DESModel.H.

Referenced by DESModel(), read(), and Ssigma().

The documentation for this class was generated from the following files:
  • src/TurbulenceModels/turbulenceModels/DES/DESModel/DESModel.H
  • src/TurbulenceModels/turbulenceModels/DES/DESModel/DESModel.C
