linearViscousStress< BasicTurbulenceModel > Class Template Referenceabstract
Turbulence models

Linear viscous stress turbulence model base class. More...

#include <linearViscousStress.H>

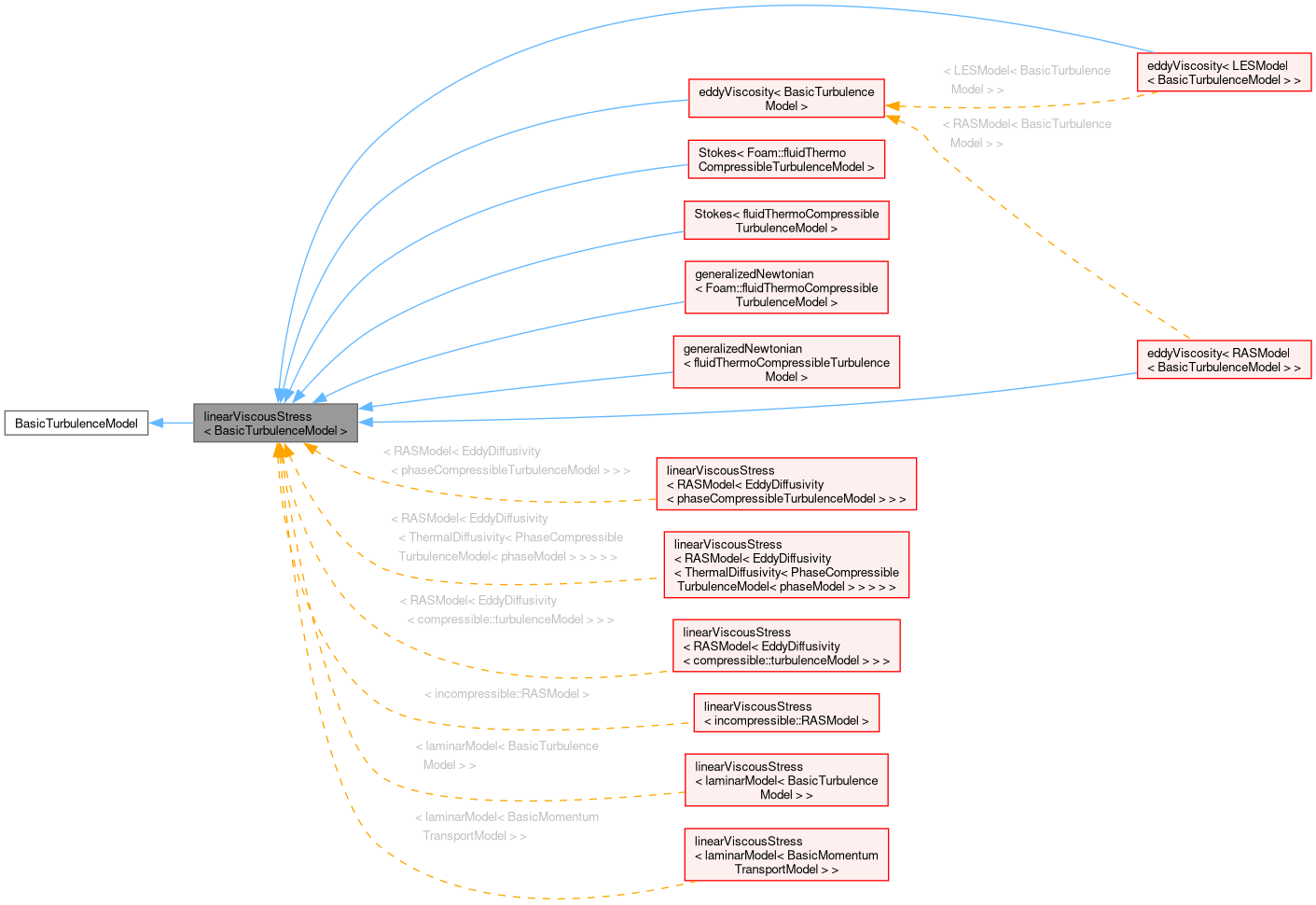

Inheritance diagram for linearViscousStress< BasicTurbulenceModel >:
Inheritance graph
[legend]
Collaboration diagram for linearViscousStress< BasicTurbulenceModel >:
Collaboration graph
[legend]

Public Types

typedef BasicTurbulenceModel::alphaField alphaField
typedef BasicTurbulenceModel::rhoField rhoField
typedef BasicTurbulenceModel::transportModel transportModel

Public Member Functions

 linearViscousStress (const word &modelName, const alphaField &alpha, const rhoField &rho, const volVectorField &U, const surfaceScalarField &alphaRhoPhi, const surfaceScalarField &phi, const transportModel &transport, const word &propertiesName)
 Construct from components.
virtual ~linearViscousStress ()=default
 Destructor.
virtual bool read ()=0
 Re-read model coefficients if they have changed.
virtual tmp< volSymmTensorField > devRhoReff () const
 Return the effective stress tensor.
virtual tmp< volSymmTensorField > devRhoReff (const volVectorField &U) const
 Return the effective stress tensor based on a given velocity field.
virtual tmp< fvVectorMatrix > divDevRhoReff (volVectorField &U) const
 Return the source term for the momentum equation.
virtual tmp< fvVectorMatrix > divDevRhoReff (const volScalarField &rho, volVectorField &U) const
 Return the source term for the momentum equation.
virtual void correct ()=0
 Solve the turbulence equations and correct the turbulence viscosity.

Detailed Description

template<class BasicTurbulenceModel>
class Foam::linearViscousStress< BasicTurbulenceModel >

Linear viscous stress turbulence model base class.

Source files

Definition at line 49 of file linearViscousStress.H.

Member Typedef Documentation

◆ alphaField

template<class BasicTurbulenceModel>
typedef BasicTurbulenceModel::alphaField alphaField

Definition at line 56 of file linearViscousStress.H.

◆ rhoField

template<class BasicTurbulenceModel>
typedef BasicTurbulenceModel::rhoField rhoField

Definition at line 57 of file linearViscousStress.H.

◆ transportModel

template<class BasicTurbulenceModel>
typedef BasicTurbulenceModel::transportModel transportModel

Definition at line 58 of file linearViscousStress.H.

Constructor & Destructor Documentation

◆ linearViscousStress()

template<class BasicTurbulenceModel>
linearViscousStress ( const word & modelName,
const alphaField & alpha,
const rhoField & rho,
const volVectorField & U,
const surfaceScalarField & alphaRhoPhi,
const surfaceScalarField & phi,
const transportModel & transport,
const word & propertiesName )

Construct from components.

Definition at line 29 of file linearViscousStress.C.

References alpha, phi, rho, and U.

Referenced by eddyViscosity< BasicTurbulenceModel >::eddyViscosity().

Here is the caller graph for this function:

◆ ~linearViscousStress()

template<class BasicTurbulenceModel>
virtual ~linearViscousStress ( )
virtualdefault

Destructor.

References rho, and U.

Member Function Documentation

◆ read()

template<class BasicTurbulenceModel>
bool read ( )
pure virtual

Re-read model coefficients if they have changed.

Implemented in PDRkEpsilon, eddyViscosity< BasicTurbulenceModel >, eddyViscosity< incompressible::RASModel >, eddyViscosity< LESModel< BasicTurbulenceModel > >, eddyViscosity< RASModel< BasicTurbulenceModel > >, eddyViscosity< RASModel< EddyDiffusivity< compressible::turbulenceModel > > >, eddyViscosity< RASModel< EddyDiffusivity< phaseCompressibleTurbulenceModel > > >, eddyViscosity< RASModel< EddyDiffusivity< ThermalDiffusivity< PhaseCompressibleTurbulenceModel< phaseModel > > > > >, kkLOmega, LamBremhorstKE, LienCubicKE, LienLeschziner, qZeta, ShihQuadraticKE, kOmegaSSTBase< eddyViscosity< RASModel< BasicTurbulenceModel > > >, generalizedNewtonian< BasicMomentumTransportModel >, generalizedNewtonian< fluidThermoCompressibleTurbulenceModel >, generalizedNewtonian< Foam::fluidThermoCompressibleTurbulenceModel >, Stokes< BasicTurbulenceModel >, Stokes< fluidThermoCompressibleTurbulenceModel >, Stokes< Foam::fluidThermoCompressibleTurbulenceModel >, continuousGasKEqn< BasicTurbulenceModel >, DESModel< BasicTurbulenceModel >, dynamicKEqn< BasicTurbulenceModel >, dynamicKEqn< EddyDiffusivity< fluidThermoCompressibleTurbulenceModel > >, dynamicKEqn< Foam::EddyDiffusivity< Foam::fluidThermoCompressibleTurbulenceModel > >, dynamicLagrangian< BasicTurbulenceModel >, dynamicLagrangian< EddyDiffusivity< fluidThermoCompressibleTurbulenceModel > >, dynamicLagrangian< Foam::EddyDiffusivity< Foam::fluidThermoCompressibleTurbulenceModel > >, kEqn< BasicTurbulenceModel >, kEqn< EddyDiffusivity< fluidThermoCompressibleTurbulenceModel > >, kEqn< Foam::EddyDiffusivity< Foam::fluidThermoCompressibleTurbulenceModel > >, LESeddyViscosity< BasicTurbulenceModel >, NicenoKEqn< BasicTurbulenceModel >, sigma< BasicTurbulenceModel >, sigma< EddyDiffusivity< fluidThermoCompressibleTurbulenceModel > >, sigma< Foam::EddyDiffusivity< Foam::fluidThermoCompressibleTurbulenceModel > >, Smagorinsky< BasicTurbulenceModel >, Smagorinsky< EddyDiffusivity< fluidThermoCompressibleTurbulenceModel > >, Smagorinsky< Foam::EddyDiffusivity< Foam::fluidThermoCompressibleTurbulenceModel > >, SmagorinskyZhang< BasicTurbulenceModel >, WALE< BasicTurbulenceModel >, WALE< EddyDiffusivity< fluidThermoCompressibleTurbulenceModel > >, WALE< Foam::EddyDiffusivity< Foam::fluidThermoCompressibleTurbulenceModel > >, buoyantKEpsilon< BasicTurbulenceModel >, buoyantKEpsilon< EddyDiffusivity< fluidThermoCompressibleTurbulenceModel > >, buoyantKEpsilon< Foam::EddyDiffusivity< Foam::fluidThermoCompressibleTurbulenceModel > >, continuousGasKEpsilon< BasicTurbulenceModel >, kEpsilon< BasicTurbulenceModel >, kEpsilon< EddyDiffusivity< compressible::turbulenceModel > >, kEpsilon< EddyDiffusivity< fluidThermoCompressibleTurbulenceModel > >, kEpsilon< Foam::EddyDiffusivity< Foam::fluidThermoCompressibleTurbulenceModel > >, kEpsilonLopesdaCosta< BasicTurbulenceModel >, kEpsilonLopesdaCosta< EddyDiffusivity< fluidThermoCompressibleTurbulenceModel > >, kEpsilonLopesdaCosta< Foam::EddyDiffusivity< Foam::fluidThermoCompressibleTurbulenceModel > >, kEpsilonPhitF< BasicTurbulenceModel >, kEpsilonPhitF< EddyDiffusivity< fluidThermoCompressibleTurbulenceModel > >, kEpsilonPhitF< Foam::EddyDiffusivity< Foam::fluidThermoCompressibleTurbulenceModel > >, kineticTheoryModel, kineticTheoryModel, kL< BasicTurbulenceModel >, kL< EddyDiffusivity< fluidThermoCompressibleTurbulenceModel > >, kL< Foam::EddyDiffusivity< Foam::fluidThermoCompressibleTurbulenceModel > >, kOmega< BasicTurbulenceModel >, kOmega< EddyDiffusivity< fluidThermoCompressibleTurbulenceModel > >, kOmega< Foam::EddyDiffusivity< Foam::fluidThermoCompressibleTurbulenceModel > >, kOmegaSSTLM< BasicTurbulenceModel >, kOmegaSSTSAS< BasicTurbulenceModel >, kOmegaSSTSato< BasicTurbulenceModel >, LaheyKEpsilon< BasicTurbulenceModel >, LaunderSharmaKE< BasicTurbulenceModel >, LaunderSharmaKE< EddyDiffusivity< fluidThermoCompressibleTurbulenceModel > >, LaunderSharmaKE< Foam::EddyDiffusivity< Foam::fluidThermoCompressibleTurbulenceModel > >, mixtureKEpsilon< BasicTurbulenceModel >, phasePressureModel, phasePressureModel, realizableKE< BasicTurbulenceModel >, realizableKE< EddyDiffusivity< fluidThermoCompressibleTurbulenceModel > >, realizableKE< Foam::EddyDiffusivity< Foam::fluidThermoCompressibleTurbulenceModel > >, RNGkEpsilon< BasicTurbulenceModel >, RNGkEpsilon< EddyDiffusivity< fluidThermoCompressibleTurbulenceModel > >, RNGkEpsilon< Foam::EddyDiffusivity< Foam::fluidThermoCompressibleTurbulenceModel > >, and SpalartAllmarasBase< eddyViscosity< RASModel< BasicTurbulenceModel > > >.

Definition at line 58 of file linearViscousStress.C.

Referenced by kOmegaSSTLM< BasicTurbulenceModel >::read(), kOmegaSSTSAS< BasicTurbulenceModel >::read(), and kOmegaSSTSato< BasicTurbulenceModel >::read().

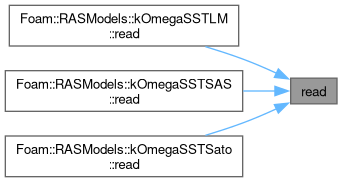

Here is the caller graph for this function:

◆ devRhoReff() [1/2]

template<class BasicTurbulenceModel>
Foam::tmp< Foam::volSymmTensorField > devRhoReff ( ) const
virtual

Return the effective stress tensor.

Reimplemented in nonlinearEddyViscosity< BasicTurbulenceModel >, nonlinearEddyViscosity< incompressible::RASModel >, kineticTheoryModel, kineticTheoryModel, phasePressureModel, and phasePressureModel.

Definition at line 66 of file linearViscousStress.C.

References devRhoReff().

Referenced by devRhoReff(), and nonlinearEddyViscosity< BasicTurbulenceModel >::devRhoReff().

Here is the call graph for this function:
Here is the caller graph for this function:

◆ devRhoReff() [2/2]

template<class BasicTurbulenceModel>
Foam::tmp< Foam::volSymmTensorField > devRhoReff ( const volVectorField & U) const
virtual

Return the effective stress tensor based on a given velocity field.

Reimplemented in nonlinearEddyViscosity< BasicTurbulenceModel >.

Definition at line 74 of file linearViscousStress.C.

References IOobject::groupName(), IOobjectOption::NO_READ, IOobjectOption::NO_WRITE, and U.

Here is the call graph for this function:

◆ divDevRhoReff() [1/2]

template<class BasicTurbulenceModel>
Foam::tmp< Foam::fvVectorMatrix > divDevRhoReff ( volVectorField & U) const
virtual

Return the source term for the momentum equation.

Reimplemented in nonlinearEddyViscosity< BasicTurbulenceModel >, nonlinearEddyViscosity< incompressible::RASModel >, kineticTheoryModel, kineticTheoryModel, phasePressureModel, and phasePressureModel.

Definition at line 100 of file linearViscousStress.C.

References Foam::dev2(), Foam::fvc::div(), Foam::fvc::grad(), T, and U.

Referenced by nonlinearEddyViscosity< incompressible::RASModel >::devRhoReff(), and nonlinearEddyViscosity< incompressible::RASModel >::divDevRhoReff().

Here is the call graph for this function:

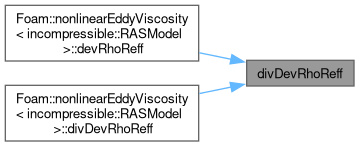

Here is the caller graph for this function:

◆ divDevRhoReff() [2/2]

template<class BasicTurbulenceModel>
Foam::tmp< Foam::fvVectorMatrix > divDevRhoReff ( const volScalarField & rho,
volVectorField & U ) const
virtual

Return the source term for the momentum equation.

Reimplemented in nonlinearEddyViscosity< BasicTurbulenceModel >.

Definition at line 115 of file linearViscousStress.C.

References rho, and U.

◆ correct()

template<class BasicTurbulenceModel>
void correct ( )
pure virtual

Solve the turbulence equations and correct the turbulence viscosity.

Implemented in PDRkEpsilon, eddyViscosity< BasicTurbulenceModel >, eddyViscosity< incompressible::RASModel >, eddyViscosity< LESModel< BasicTurbulenceModel > >, eddyViscosity< RASModel< BasicTurbulenceModel > >, eddyViscosity< RASModel< EddyDiffusivity< compressible::turbulenceModel > > >, eddyViscosity< RASModel< EddyDiffusivity< phaseCompressibleTurbulenceModel > > >, eddyViscosity< RASModel< EddyDiffusivity< ThermalDiffusivity< PhaseCompressibleTurbulenceModel< phaseModel > > > > >, kkLOmega, LamBremhorstKE, LienCubicKE, LienLeschziner, qZeta, ShihQuadraticKE, kOmegaSSTBase< eddyViscosity< RASModel< BasicTurbulenceModel > > >, generalizedNewtonian< BasicMomentumTransportModel >, generalizedNewtonian< fluidThermoCompressibleTurbulenceModel >, generalizedNewtonian< Foam::fluidThermoCompressibleTurbulenceModel >, Stokes< BasicTurbulenceModel >, Stokes< fluidThermoCompressibleTurbulenceModel >, Stokes< Foam::fluidThermoCompressibleTurbulenceModel >, dynamicKEqn< BasicTurbulenceModel >, dynamicKEqn< EddyDiffusivity< fluidThermoCompressibleTurbulenceModel > >, dynamicKEqn< Foam::EddyDiffusivity< Foam::fluidThermoCompressibleTurbulenceModel > >, dynamicLagrangian< BasicTurbulenceModel >, dynamicLagrangian< EddyDiffusivity< fluidThermoCompressibleTurbulenceModel > >, dynamicLagrangian< Foam::EddyDiffusivity< Foam::fluidThermoCompressibleTurbulenceModel > >, kEqn< BasicTurbulenceModel >, kEqn< EddyDiffusivity< fluidThermoCompressibleTurbulenceModel > >, kEqn< Foam::EddyDiffusivity< Foam::fluidThermoCompressibleTurbulenceModel > >, sigma< BasicTurbulenceModel >, sigma< EddyDiffusivity< fluidThermoCompressibleTurbulenceModel > >, sigma< Foam::EddyDiffusivity< Foam::fluidThermoCompressibleTurbulenceModel > >, Smagorinsky< BasicTurbulenceModel >, Smagorinsky< EddyDiffusivity< fluidThermoCompressibleTurbulenceModel > >, Smagorinsky< Foam::EddyDiffusivity< Foam::fluidThermoCompressibleTurbulenceModel > >, WALE< BasicTurbulenceModel >, WALE< EddyDiffusivity< fluidThermoCompressibleTurbulenceModel > >, WALE< Foam::EddyDiffusivity< Foam::fluidThermoCompressibleTurbulenceModel > >, kEpsilon< BasicTurbulenceModel >, kEpsilon< EddyDiffusivity< compressible::turbulenceModel > >, kEpsilon< EddyDiffusivity< fluidThermoCompressibleTurbulenceModel > >, kEpsilon< Foam::EddyDiffusivity< Foam::fluidThermoCompressibleTurbulenceModel > >, kEpsilonLopesdaCosta< BasicTurbulenceModel >, kEpsilonLopesdaCosta< EddyDiffusivity< fluidThermoCompressibleTurbulenceModel > >, kEpsilonLopesdaCosta< Foam::EddyDiffusivity< Foam::fluidThermoCompressibleTurbulenceModel > >, kEpsilonPhitF< BasicTurbulenceModel >, kEpsilonPhitF< EddyDiffusivity< fluidThermoCompressibleTurbulenceModel > >, kEpsilonPhitF< Foam::EddyDiffusivity< Foam::fluidThermoCompressibleTurbulenceModel > >, kineticTheoryModel, kineticTheoryModel, kL< BasicTurbulenceModel >, kL< EddyDiffusivity< fluidThermoCompressibleTurbulenceModel > >, kL< Foam::EddyDiffusivity< Foam::fluidThermoCompressibleTurbulenceModel > >, kOmega< BasicTurbulenceModel >, kOmega< EddyDiffusivity< fluidThermoCompressibleTurbulenceModel > >, kOmega< Foam::EddyDiffusivity< Foam::fluidThermoCompressibleTurbulenceModel > >, kOmegaSSTLM< BasicTurbulenceModel >, kOmegaSSTSato< BasicTurbulenceModel >, LaheyKEpsilon< BasicTurbulenceModel >, LaunderSharmaKE< BasicTurbulenceModel >, LaunderSharmaKE< EddyDiffusivity< fluidThermoCompressibleTurbulenceModel > >, LaunderSharmaKE< Foam::EddyDiffusivity< Foam::fluidThermoCompressibleTurbulenceModel > >, mixtureKEpsilon< BasicTurbulenceModel >, phasePressureModel, phasePressureModel, realizableKE< BasicTurbulenceModel >, realizableKE< EddyDiffusivity< fluidThermoCompressibleTurbulenceModel > >, realizableKE< Foam::EddyDiffusivity< Foam::fluidThermoCompressibleTurbulenceModel > >, RNGkEpsilon< BasicTurbulenceModel >, RNGkEpsilon< EddyDiffusivity< fluidThermoCompressibleTurbulenceModel > >, RNGkEpsilon< Foam::EddyDiffusivity< Foam::fluidThermoCompressibleTurbulenceModel > >, and SpalartAllmarasBase< eddyViscosity< RASModel< BasicTurbulenceModel > > >.

Definition at line 130 of file linearViscousStress.C.

Referenced by dynamicKEqn< BasicTurbulenceModel >::correct(), dynamicLagrangian< BasicTurbulenceModel >::correct(), kEqn< BasicTurbulenceModel >::correct(), sigma< BasicTurbulenceModel >::correct(), Smagorinsky< BasicTurbulenceModel >::correct(), WALE< BasicTurbulenceModel >::correct(), kOmegaSSTLM< BasicTurbulenceModel >::correct(), and kOmegaSSTSato< BasicTurbulenceModel >::correct().

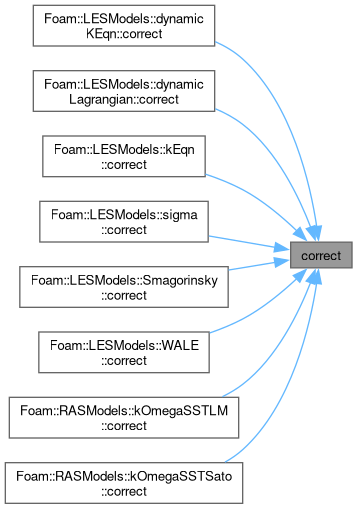

Here is the caller graph for this function:
The documentation for this class was generated from the following files:
