DeltaOmegaTildeDelta Class Reference

Delta formulation that accounts for the orientation of the vorticity vector. In "2D-regions" (i.e. xy-plane), delta is of the order max(delta_x,delta_y), so that the influence of delta_z is discarded. This can help to accelerate the transition from RANS to LES in hybrid RANS/LES simulations. More...

#include <DeltaOmegaTildeDelta.H>

Inheritance diagram for DeltaOmegaTildeDelta:
Inheritance graph
[legend]
Collaboration diagram for DeltaOmegaTildeDelta:
Collaboration graph
[legend]

Public Member Functions

 TypeName ("DeltaOmegaTilde")
 Runtime type information.
 DeltaOmegaTildeDelta (const word &name, const turbulenceModel &turbulence, const dictionary &)
 Construct from name, turbulenceModel and dictionary.
virtual ~DeltaOmegaTildeDelta ()=default
 Destructor.
virtual void read (const dictionary &)
 Read the LESdelta dictionary.
const volScalarField & hmax () const
 Return the hmax delta field.
void correct ()
Public Member Functions inherited from LESdelta
 TypeName ("LESdelta")
 Runtime type information.
 declareRunTimeSelectionTable (autoPtr, LESdelta, dictionary,(const word &name, const turbulenceModel &turbulence, const dictionary &dict),(name, turbulence, dict))
 LESdelta (const word &name, const turbulenceModel &turbulence)
 Construct from name, turbulenceModel and dictionary.
virtual ~LESdelta ()=default
 Destructor.
const turbulenceModel & turbulence () const
 Return turbulenceModel reference.
virtual operator const volScalarField & () const

Additional Inherited Members

Static Public Member Functions inherited from LESdelta
static autoPtr< LESdelta > New (const word &name, const turbulenceModel &turbulence, const dictionary &dict, const word &lookupName="delta")
 Return a reference to the selected LES delta.
static autoPtr< LESdelta > New (const word &name, const turbulenceModel &turbulence, const dictionary &dict, const dictionaryConstructorTableType &additionalConstructors, const word &lookupName="delta")
 Return a reference to the selected LES delta.
Protected Member Functions inherited from LESdelta
 LESdelta (const LESdelta &)=delete
 No copy construct.
void operator= (const LESdelta &)=delete
 No copy assignment.
Protected Attributes inherited from LESdelta
const turbulenceModel & turbulenceModel_
volScalarField delta_

Detailed Description

Delta formulation that accounts for the orientation of the vorticity vector. In "2D-regions" (i.e. xy-plane), delta is of the order max(delta_x,delta_y), so that the influence of delta_z is discarded. This can help to accelerate the transition from RANS to LES in hybrid RANS/LES simulations.

Reference:

    Shur, M. L., Spalart, P. R., Strelets, M. K., & Travin, A. K. (2015).
    An enhanced version of DES with rapid transition
    from RANS to LES in separated flows.
    Flow, turbulence and combustion, 95(4), 709-737.
    DOI:10.1007/s10494-015-9618-0
Source files

Definition at line 62 of file DeltaOmegaTildeDelta.H.

Constructor & Destructor Documentation

◆ DeltaOmegaTildeDelta()

DeltaOmegaTildeDelta ( const word & name,
const turbulenceModel & turbulence,
const dictionary & dict )

Construct from name, turbulenceModel and dictionary.

Definition at line 108 of file DeltaOmegaTildeDelta.C.

References dict, Foam::endl(), found, IOobject::groupName(), Foam::Info, LESdelta::LESdelta(), Foam::name(), LESdelta::New(), and LESdelta::turbulence().

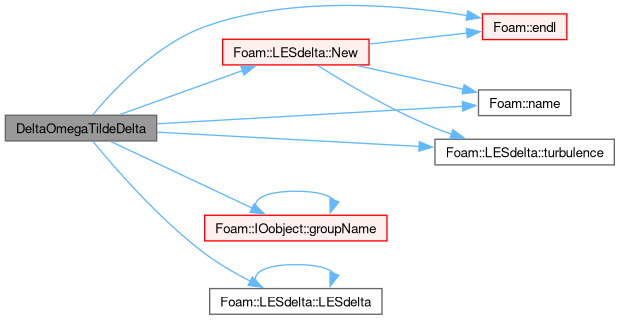

Here is the call graph for this function:

◆ ~DeltaOmegaTildeDelta()

virtual ~DeltaOmegaTildeDelta ( )
virtualdefault

Destructor.

Member Function Documentation

◆ TypeName()

TypeName ( "DeltaOmegaTilde" )

Runtime type information.

References Foam::name(), and LESdelta::turbulence().

Here is the call graph for this function:

◆ read()

void read ( const dictionary & dict)
virtual

Read the LESdelta dictionary.

Implements LESdelta.

Definition at line 167 of file DeltaOmegaTildeDelta.C.

References dict, dictionary::readIfPresent(), and Foam::type().

Here is the call graph for this function:

◆ hmax()

const volScalarField & hmax ( ) const
inline

Return the hmax delta field.

Definition at line 141 of file DeltaOmegaTildeDelta.H.

◆ correct()

void correct ( )
virtual

Implements LESdelta.

Definition at line 178 of file DeltaOmegaTildeDelta.C.

References LESdelta::turbulenceModel_.

The documentation for this class was generated from the following files:
