SLADelta Class Reference

Delta formulation that accounts for the orientation of the vorticity vector and a flow-sensitised function to detect 2D flow regions. Delta value is strongly reduced in these regions to accelerate the transition from RANS to LES in hybrid RANS/LES simulations. More...

#include <SLADelta.H>

Inheritance diagram for SLADelta:

Collaboration diagram for SLADelta:

Public Member Functions
	TypeName ("SLADelta")
	Runtime type information.
	SLADelta (const word &name, const turbulenceModel &turbulence, const dictionary &)
	Construct from name, turbulenceModel and IOdictionary.
virtual	~SLADelta ()=default
	Destructor.
void	read (const dictionary &)
	Read the LESdelta dictionary.
const volScalarField &	hmax () const
	Return the hmax delta field.
void	correct ()
Public Member Functions inherited from LESdelta
	TypeName ("LESdelta")
	Runtime type information.
	declareRunTimeSelectionTable (autoPtr, LESdelta, dictionary,(const word &name, const turbulenceModel &turbulence, const dictionary &dict),(name, turbulence, dict))
	LESdelta (const word &name, const turbulenceModel &turbulence)
	Construct from name, turbulenceModel and dictionary.
virtual	~LESdelta ()=default
	Destructor.
const turbulenceModel &	turbulence () const
	Return turbulenceModel reference.
virtual	operator const volScalarField & () const

Additional Inherited Members
Static Public Member Functions inherited from LESdelta
static autoPtr< LESdelta >	New (const word &name, const turbulenceModel &turbulence, const dictionary &dict, const word &lookupName="delta")
	Return a reference to the selected LES delta.
static autoPtr< LESdelta >	New (const word &name, const turbulenceModel &turbulence, const dictionary &dict, const dictionaryConstructorTableType &additionalConstructors, const word &lookupName="delta")
	Return a reference to the selected LES delta.
Protected Member Functions inherited from LESdelta
	LESdelta (const LESdelta &)=delete
	No copy construct.
void	operator= (const LESdelta &)=delete
	No copy assignment.
Protected Attributes inherited from LESdelta
const turbulenceModel &	turbulenceModel_
volScalarField	delta_

Detailed Description

Delta formulation that accounts for the orientation of the vorticity vector and a flow-sensitised function to detect 2D flow regions. Delta value is strongly reduced in these regions to accelerate the transition from RANS to LES in hybrid RANS/LES simulations.

Reference:

    Shur, M. L., Spalart, P. R., Strelets, M. K., & Travin, A. K. (2015).
    An enhanced version of DES with rapid transition
    from RANS to LES in separated flows.
    Flow, turbulence and combustion, 95(4), 709-737.
    DOI:10.1007/s10494-015-9618-0

Source files

• SLADelta.H
• SLADelta.C

Definition at line 61 of file SLADelta.H.

Constructor & Destructor Documentation

SLADelta()

SLADelta	(	const word &	name,
		const turbulenceModel &	turbulence,
		const dictionary &	dict )

Construct from name, turbulenceModel and IOdictionary.

Definition at line 238 of file SLADelta.C.

References Foam::abort(), dict, Foam::endl(), Foam::FatalIOError, FatalIOErrorInFunction, found, IOobject::groupName(), Foam::Info, LESdelta::LESdelta(), Foam::mag(), Foam::name(), LESdelta::New(), and LESdelta::turbulence().

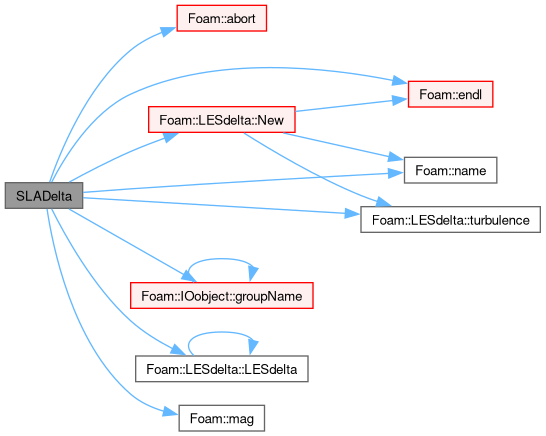

Here is the call graph for this function:

~SLADelta()

virtual ~SLADelta ( )

virtualdefault

Destructor.

Member Function Documentation

TypeName()

TypeName

(

"SLADelta"

)

Runtime type information.

References Foam::name(), and LESdelta::turbulence().

Here is the call graph for this function:

read()

void read ( const dictionary & dict )

virtual

Read the LESdelta dictionary.

Implements LESdelta.

Definition at line 375 of file SLADelta.C.

References dict, and dictionary::readIfPresent().

Here is the call graph for this function:

hmax()

const volScalarField & hmax ( ) const

inline

Return the hmax delta field.

Definition at line 142 of file SLADelta.H.

correct()

void correct ( )

virtual

Implements LESdelta.

Definition at line 394 of file SLADelta.C.

References LESdelta::turbulenceModel_.

---

The documentation for this class was generated from the following files:

• src/TurbulenceModels/turbulenceModels/LES/LESdeltas/SLADelta/SLADelta.H
• src/TurbulenceModels/turbulenceModels/LES/LESdeltas/SLADelta/SLADelta.C
