MassTransferPhaseSystem< BasePhaseSystem > Class Template Reference

Class for mass transfer between phases. More...

#include <MassTransferPhaseSystem.H>

Inheritance diagram for MassTransferPhaseSystem< BasePhaseSystem >:
Inheritance graph
[legend]

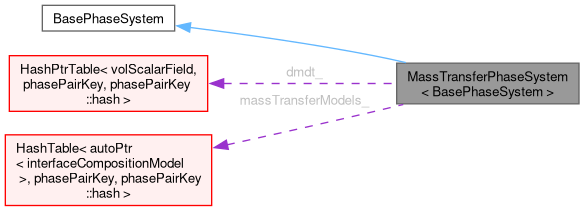

Collaboration diagram for MassTransferPhaseSystem< BasePhaseSystem >:
Collaboration graph
[legend]

Public Types

typedef HashTable< autoPtr< interfaceCompositionModel >, phasePairKey, phasePairKey::hash > massTransferModelTable
typedef HashTable< volScalarField::Internal > SuSpTable

Public Member Functions

 MassTransferPhaseSystem (const fvMesh &)
 Construct from fvMesh.
virtual ~MassTransferPhaseSystem ()=default
 Destructor.
tmp< volScalarField > dmdt (const phasePairKey &key) const
 Return total interfacial mass flow rate.
virtual tmp< fvScalarMatrix > heatTransfer (const volScalarField &T)
 Return the heat transfer matrix.
virtual tmp< fvScalarMatrix > volTransfer (const volScalarField &p)
 Return the volumetric rate transfer matrix.
virtual void correctMassSources (const volScalarField &T)
 Correct/calculates mass sources dmdt for phases.
virtual void alphaTransfer (SuSpTable &Su, SuSpTable &Sp)
 Calculate mass transfer for alpha's.
virtual void massSpeciesTransfer (const Foam::phaseModel &phase, volScalarField::Internal &Su, volScalarField::Internal &Sp, const word speciesName)
 Calculate mass transfer for species.
virtual bool includeVolChange ()
 Add volume change in pEq.

Protected Types

typedef HashPtrTable< volScalarField, phasePairKey, phasePairKey::hash > dmdtTable

Protected Member Functions

tmp< volScalarField > calculateL (const volScalarField &dmdtNetki, const phasePairKey &keyik, const phasePairKey &keyki, const volScalarField &T) const
 Calculate L between phases.

Protected Attributes

dmdtTable dmdt_
 Overall inter-phase mass transfer rates [Kg/s].
massTransferModelTable massTransferModels_
 Mass transfer models.

Detailed Description

template<class BasePhaseSystem>
class Foam::MassTransferPhaseSystem< BasePhaseSystem >

Class for mass transfer between phases.

Source files

Definition at line 51 of file MassTransferPhaseSystem.H.

Member Typedef Documentation

◆ massTransferModelTable

template<class BasePhaseSystem>
typedef HashTable< autoPtr<interfaceCompositionModel>, phasePairKey, phasePairKey::hash > massTransferModelTable

Definition at line 66 of file MassTransferPhaseSystem.H.

◆ SuSpTable

template<class BasePhaseSystem>
typedef HashTable<volScalarField::Internal> SuSpTable

Definition at line 69 of file MassTransferPhaseSystem.H.

◆ dmdtTable

template<class BasePhaseSystem>
typedef HashPtrTable< volScalarField, phasePairKey, phasePairKey::hash > dmdtTable
protected

Definition at line 82 of file MassTransferPhaseSystem.H.

Constructor & Destructor Documentation

◆ MassTransferPhaseSystem()

template<class BasePhaseSystem>
MassTransferPhaseSystem ( const fvMesh & mesh)
explicit

Construct from fvMesh.

Definition at line 34 of file MassTransferPhaseSystem.C.

References IOobjectOption::AUTO_WRITE, Foam::dimDensity, Foam::dimTime, dmdt_, forAllConstIters, IOobject::groupName(), massTransferModels_, mesh, name, IOobjectOption::NO_READ, IOobjectOption::REGISTER, timeName, and Foam::Zero.

Here is the call graph for this function:

◆ ~MassTransferPhaseSystem()

template<class BasePhaseSystem>
virtual ~MassTransferPhaseSystem ( )
virtualdefault

Destructor.

Member Function Documentation

◆ calculateL()

template<class BasePhaseSystem>
Foam::tmp< Foam::volScalarField > calculateL ( const volScalarField & dmdtNetki,
const phasePairKey & keyik,
const phasePairKey & keyki,
const volScalarField & T ) const
protected

Calculate L between phases.

Definition at line 74 of file MassTransferPhaseSystem.C.

References Foam::dimEnergy, Foam::dimMass, L, massTransferModels_, mesh, Foam::neg(), GeometricField< scalar, fvPatchField, volMesh >::New(), IOobjectOption::NO_REGISTER, Foam::pos(), Foam::T(), and Foam::Zero.

Referenced by heatTransfer().

Here is the call graph for this function:
Here is the caller graph for this function:

◆ dmdt()

template<class BasePhaseSystem>
Foam::tmp< Foam::volScalarField > dmdt ( const phasePairKey & key) const

Return total interfacial mass flow rate.

Definition at line 123 of file MassTransferPhaseSystem.C.

References Foam::dimDensity, Foam::dimTime, dmdt(), dmdt_, mesh, GeometricField< scalar, fvPatchField, volMesh >::New(), IOobjectOption::NO_REGISTER, and Foam::Zero.

Referenced by alphaTransfer(), and dmdt().

Here is the call graph for this function:
Here is the caller graph for this function:

◆ heatTransfer()

template<class BasePhaseSystem>
Foam::tmp< Foam::fvScalarMatrix > heatTransfer ( const volScalarField & T)
virtual

Return the heat transfer matrix.

NOTE: Call KSu and KSp with T as variable,if not provided uses dmdt.

Definition at line 148 of file MassTransferPhaseSystem.C.

References calculateL(), Foam::dimDensity, Foam::dimEnergy, Foam::dimTemperature, Foam::dimTime, dmdt_, forAllConstIters, L, massTransferModels_, mesh, phaseModel::name(), name, GeometricField< scalar, fvPatchField, volMesh >::New(), tmp< T >::New(), IOobjectOption::NO_REGISTER, phasei, tmp< T >::ref(), Foam::fvm::Sp(), Foam::Sp(), Foam::Su(), interfaceCompositionModel::T, Foam::T(), tmp< T >::valid(), and Foam::Zero.

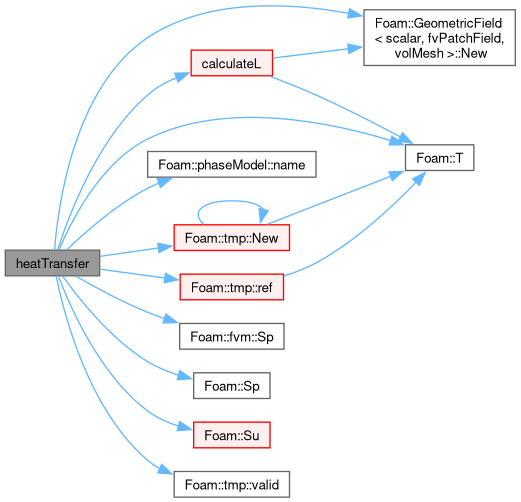

Here is the call graph for this function:

◆ volTransfer()

template<class BasePhaseSystem>
Foam::tmp< Foam::fvScalarMatrix > volTransfer ( const volScalarField & p)
virtual

Return the volumetric rate transfer matrix.

NOTE: Call KSu and KSp with p as variable,if not provided uses dmdt.

Definition at line 278 of file MassTransferPhaseSystem.C.

References Foam::dimless, Foam::dimPressure, Foam::dimTime, Foam::dimVolume, dmdt_, forAllConstIters, massTransferModels_, mesh, GeometricField< scalar, fvPatchField, volMesh >::New(), tmp< T >::New(), IOobjectOption::NO_REGISTER, interfaceCompositionModel::P, p, phasePair::phase1(), phase1, phasePair::phase2(), phase2, tmp< T >::ref(), Foam::fvm::Sp(), Foam::Sp(), Foam::Su(), tmp< T >::valid(), and Foam::Zero.

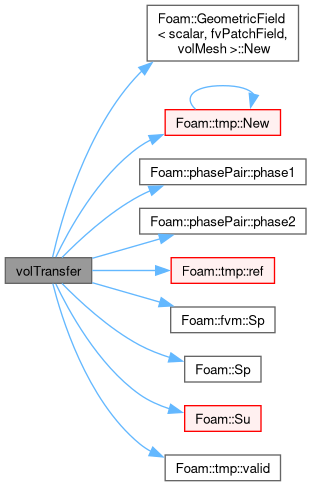

Here is the call graph for this function:

◆ correctMassSources()

template<class BasePhaseSystem>
void correctMassSources ( const volScalarField & T)
virtual

Correct/calculates mass sources dmdt for phases.

NOTE: Call the kexp() for all the mass transfer models.

Definition at line 419 of file MassTransferPhaseSystem.C.

References dmdt_, forAllConstIters, massTransferModels_, phaseModel::name(), name, phasei, tmp< T >::ref(), and Foam::T().

Here is the call graph for this function:

◆ alphaTransfer()

template<class BasePhaseSystem>
void alphaTransfer ( SuSpTable & Su,
SuSpTable & Sp )
virtual

Calculate mass transfer for alpha's.

Definition at line 470 of file MassTransferPhaseSystem.C.

References interfaceCompositionModel::alpha, alpha1, alpha2, Foam::clamp(), Foam::fvc::div(), dmdt(), forAll, forAllConstIters, Foam::gMax(), massTransferModels_, Foam::max(), phasePair::phase1(), phase1, phasePair::phase2(), phase2, phi, tmp< T >::ref(), Foam::Sp(), Foam::Su(), and tmp< T >::valid().

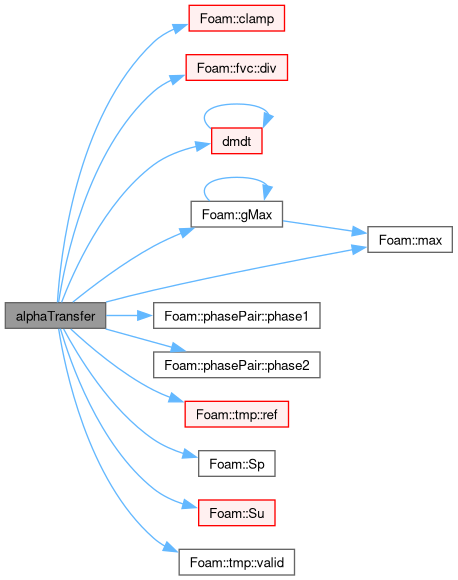

Here is the call graph for this function:

◆ massSpeciesTransfer()

template<class BasePhaseSystem>
void massSpeciesTransfer ( const Foam::phaseModel & phase,
volScalarField::Internal & Su,
volScalarField::Internal & Sp,
const word speciesName )
virtual

Calculate mass transfer for species.

Definition at line 671 of file MassTransferPhaseSystem.C.

References forAllConstIters, massTransferModels_, phaseModel::name(), GeometricField< Type, PatchField, GeoMesh >::oldTime(), Foam::Sp(), Sp, Foam::Su(), and Su.

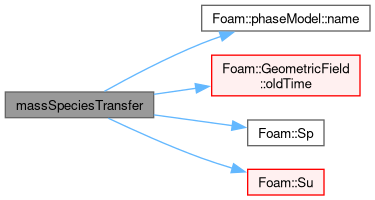

Here is the call graph for this function:

◆ includeVolChange()

template<class BasePhaseSystem>
bool includeVolChange ( )
virtual

Add volume change in pEq.

Definition at line 694 of file MassTransferPhaseSystem.C.

References forAllIters, includeVolChange(), and massTransferModels_.

Referenced by includeVolChange().

Here is the call graph for this function:
Here is the caller graph for this function:

Member Data Documentation

◆ dmdt_

template<class BasePhaseSystem>
dmdtTable dmdt_
protected

Overall inter-phase mass transfer rates [Kg/s].

Definition at line 90 of file MassTransferPhaseSystem.H.

Referenced by correctMassSources(), dmdt(), heatTransfer(), MassTransferPhaseSystem(), and volTransfer().

◆ massTransferModels_

template<class BasePhaseSystem>
massTransferModelTable massTransferModels_
protected

Mass transfer models.

Definition at line 95 of file MassTransferPhaseSystem.H.

Referenced by alphaTransfer(), calculateL(), correctMassSources(), heatTransfer(), includeVolChange(), massSpeciesTransfer(), MassTransferPhaseSystem(), and volTransfer().

The documentation for this class was generated from the following files:
