A templated block of an (m x n) matrix of type <MatrixType>. More...

#include <MatrixBlock.H>

Public Types
typedef MatrixType::cmptType	cmptType
	The value type the Matrix contains.
typedef MatrixType::value_type	value_type
	The value type the Matrix contains.
typedef MatrixType::size_type	size_type
	The type to represent the size of a Matrix.

Public Member Functions
	MatrixBlock (const MatrixBlock &)=default
	Copy construct.
	MatrixBlock (MatrixType &matrix, const label m, const label n, const label mStart, const label nStart)
	Construct block for matrix, size and location.
label	m () const noexcept
	Return the number of rows in the block.
label	n () const noexcept
	Return the number of columns in the block.
label	size () const noexcept
	The number of elements in the block (m*n).
labelPair	sizes () const noexcept
	Return row/column sizes of the block.
const cmptType &	operator() (const label i, const label j) const
	(i, j) const element access operator
cmptType &	operator() (const label i, const label j)
	(i, j) element access operator
	operator Field< cmptType > () const
	Convert a column of a matrix to a Field.
void	checkIndex (const label i, const label j) const
	Check if (i, j) is within range of row-column limits.
template<class Form>
void	operator= (const Matrix< Form, cmptType > &)
	Assignment to a compatible matrix.
void	operator= (const ConstMatrixBlock< MatrixType > &)
	Assignment to a compatible const block.
void	operator= (const MatrixBlock< MatrixType > &)
	Assignment to a compatible block.
template<class MatrixType2>
void	operator= (const ConstMatrixBlock< MatrixType2 > &)
	Assignment to a compatible const block.
template<class MatrixType2>
void	operator= (const MatrixBlock< MatrixType2 > &)
	Assignment to a compatible block.
template<class MSForm, direction Nrows, direction Ncols>
void	operator= (const MatrixSpace< MSForm, cmptType, Nrows, Ncols > &)
	Assignment to a compatible MatrixSpace.
template<template< class, direction, direction > class Block, class SubTensor, direction BRowStart, direction BColStart>
void	operator= (const Block< SubTensor, BRowStart, BColStart > &)
	Assignment to a compatible MatrixSpace block.
template<class VSForm, direction Ncmpts>
void	operator= (const VectorSpace< VSForm, cmptType, Ncmpts > &)
	Assignment to a compatible VectorSpace (column-vector).
template<template< class, direction > class Block, class SubVector, direction BStart>
void	operator= (const Block< SubVector, BStart > &)
	Assignment to a compatible VectorSpace (column-vector) block.
void	operator= (const Field< cmptType > &)
	Assignment to a Field (column-vector).
template<template< class, Foam::direction, Foam::direction > class MSBlock, class SubTensor, Foam::direction BRowStart, Foam::direction BColStart>
void	operator= (const MSBlock< SubTensor, BRowStart, BColStart > &Mb)
template<template< class, Foam::direction > class VSBlock, class SubVector, Foam::direction BStart>
void	operator= (const VSBlock< SubVector, BStart > &Mb)

Detailed Description

template<class MatrixType>
class Foam::MatrixBlock< MatrixType >

A templated block of an (m x n) matrix of type <MatrixType>.

Foam::ConstMatrixBlock: block of a const matrix Foam::MatrixBlock: block of a non-const matrix

The block may be assigned to a block of another matrix or to a VectorSpace or MatrixSpace e.g. tensor. Conversion of a column block to a Field<T> is also provide.

Source files

Definition at line 170 of file MatrixBlock.H.

Member Typedef Documentation

◆ cmptType

template<class MatrixType>

typedef MatrixType::cmptType cmptType

The value type the Matrix contains.

Definition at line 207 of file MatrixBlock.H.

◆ value_type

template<class MatrixType>

typedef MatrixType::value_type value_type

The value type the Matrix contains.

Definition at line 212 of file MatrixBlock.H.

◆ size_type

template<class MatrixType>

typedef MatrixType::size_type size_type

The type to represent the size of a Matrix.

Definition at line 217 of file MatrixBlock.H.

Constructor & Destructor Documentation

◆ MatrixBlock() [1/2]

template<class MatrixType>

MatrixBlock ( const MatrixBlock< MatrixType > & )

default

Copy construct.

References m(), MatrixBlock(), and n().

Referenced by MatrixBlock(), operator=(), and operator=().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ MatrixBlock() [2/2]

template<class MatrixType>

MatrixBlock	(	MatrixType &	matrix,
		const label	m,
		const label	n,
		const label	mStart,
		const label	nStart )

inline

Construct block for matrix, size and location.

Definition at line 53 of file MatrixBlockI.H.

References m(), and n().

Here is the call graph for this function:

Member Function Documentation

◆ m()

template<class MatrixType>

label m ( ) const

inlinenoexcept

Return the number of rows in the block.

Definition at line 248 of file MatrixBlock.H.

References Foam::noexcept.

Referenced by MatrixBlock(), and MatrixBlock().

Here is the caller graph for this function:

◆ n()

template<class MatrixType>

label n ( ) const

inlinenoexcept

Return the number of columns in the block.

Definition at line 253 of file MatrixBlock.H.

References Foam::noexcept.

Referenced by MatrixBlock(), and MatrixBlock().

Here is the caller graph for this function:

◆ size()

template<class MatrixType>

Foam::label size ( ) const

inlinenoexcept

The number of elements in the block (m*n).

Definition at line 90 of file MatrixBlockI.H.

References Foam::noexcept.

◆ sizes()

template<class MatrixType>

Foam::labelPair sizes ( ) const

inlinenoexcept

Return row/column sizes of the block.

Definition at line 106 of file MatrixBlockI.H.

References Foam::noexcept.

◆ operator()() [1/2]

template<class MatrixType>

const MatrixType::cmptType & operator()	(	const label	i,
		const label	j ) const

inline

(i, j) const element access operator

Definition at line 132 of file MatrixBlockI.H.

References checkIndex().

Referenced by operator Field< cmptType >(), operator=(), operator=(), operator=(), and operator=().

Here is the call graph for this function:

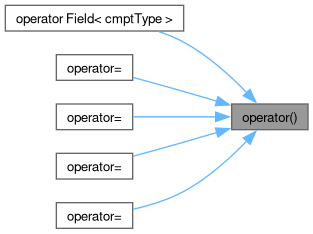

Here is the caller graph for this function:

◆ operator()() [2/2]

template<class MatrixType>

MatrixType::cmptType & operator()	(	const label	i,
		const label	j )

inline

(i, j) element access operator

Definition at line 148 of file MatrixBlockI.H.

References checkIndex().

Here is the call graph for this function:

◆ operator Field< cmptType >()

template<class MatrixType>

operator Field< cmptType > ( ) const

Convert a column of a matrix to a Field.

Definition at line 48 of file MatrixBlock.C.

References Foam::abort(), f(), Foam::FatalError, FatalErrorInFunction, forAll, and operator()().

Here is the call graph for this function:

◆ checkIndex()

template<class MatrixType>

void checkIndex	(	const label	i,
		const label	j ) const

Check if (i, j) is within range of row-column limits.

Definition at line 117 of file MatrixBlock.C.

References Foam::abort(), Foam::FatalError, and FatalErrorInFunction.

Referenced by operator()(), and operator()().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ operator=() [1/12]

template<class MatrixType>

template<class Form>

void operator= ( const Matrix< Form, cmptType > & Mb )

Assignment to a compatible matrix.

Definition at line 142 of file MatrixBlock.C.

References Foam::abort(), Foam::FatalError, and FatalErrorInFunction.

Here is the call graph for this function:

◆ operator=() [2/12]

template<class MatrixType>

void operator= ( const ConstMatrixBlock< MatrixType > & Mb )

Assignment to a compatible const block.

Definition at line 167 of file MatrixBlock.C.

References Foam::abort(), Foam::FatalError, and FatalErrorInFunction.

Here is the call graph for this function:

◆ operator=() [3/12]

template<class MatrixType>

void operator= ( const MatrixBlock< MatrixType > & Mb )

Assignment to a compatible block.

Definition at line 195 of file MatrixBlock.C.

References Foam::abort(), Foam::FatalError, FatalErrorInFunction, and MatrixBlock().

Here is the call graph for this function:

◆ operator=() [4/12]

template<class MatrixType>

template<class MatrixType2>

void operator= ( const ConstMatrixBlock< MatrixType2 > & Mb )

Assignment to a compatible const block.

Definition at line 224 of file MatrixBlock.C.

References Foam::abort(), Foam::FatalError, and FatalErrorInFunction.

Here is the call graph for this function:

◆ operator=() [5/12]

template<class MatrixType>

template<class MatrixType2>

void operator= ( const MatrixBlock< MatrixType2 > & Mb )

Assignment to a compatible block.

Definition at line 253 of file MatrixBlock.C.

References Foam::abort(), Foam::FatalError, FatalErrorInFunction, and MatrixBlock().

Here is the call graph for this function:

◆ operator=() [6/12]

template<class MatrixType>

template<class MSForm, Foam::direction Nrows, Foam::direction Ncols>

void operator= ( const MatrixSpace< MSForm, cmptType, Nrows, Ncols > & ms )

Assignment to a compatible MatrixSpace.

Definition at line 342 of file MatrixBlock.C.

References Foam::abort(), Foam::FatalError, and FatalErrorInFunction.

Here is the call graph for this function:

◆ operator=() [7/12]

template<class MatrixType>

template<template< class, direction, direction > class Block, class SubTensor, direction BRowStart, direction BColStart>

void operator= ( const Block< SubTensor, BRowStart, BColStart > & )

Assignment to a compatible MatrixSpace block.

◆ operator=() [8/12]

template<class MatrixType>

template<class VSForm, Foam::direction Ncmpts>

void operator= ( const VectorSpace< VSForm, cmptType, Ncmpts > & ms )

Assignment to a compatible VectorSpace (column-vector).

Definition at line 368 of file MatrixBlock.C.

References Foam::abort(), Foam::FatalError, FatalErrorInFunction, and operator()().

Here is the call graph for this function:

◆ operator=() [9/12]

template<class MatrixType>

template<template< class, direction > class Block, class SubVector, direction BStart>

void operator= ( const Block< SubVector, BStart > & )

Assignment to a compatible VectorSpace (column-vector) block.

◆ operator=() [10/12]

template<class MatrixType>

void operator= ( const Field< cmptType > & f )

Assignment to a Field (column-vector).

Definition at line 390 of file MatrixBlock.C.

References Foam::abort(), f(), Foam::FatalError, FatalErrorInFunction, forAll, and operator()().

Here is the call graph for this function:

◆ operator=() [11/12]

template<class MatrixType>

template<template< class, Foam::direction, Foam::direction > class MSBlock, class SubTensor, Foam::direction BRowStart, Foam::direction BColStart>

void operator= ( const MSBlock< SubTensor, BRowStart, BColStart > & Mb )

Definition at line 288 of file MatrixBlock.C.

References Foam::abort(), Foam::FatalError, FatalErrorInFunction, and operator()().

Here is the call graph for this function:

◆ operator=() [12/12]

template<class MatrixType>

template<template< class, Foam::direction > class VSBlock, class SubVector, Foam::direction BStart>

void operator= ( const VSBlock< SubVector, BStart > & Mb )

Definition at line 319 of file MatrixBlock.C.

References Foam::abort(), Foam::FatalError, FatalErrorInFunction, and operator()().

Here is the call graph for this function:

The documentation for this class was generated from the following files:

src/OpenFOAM/matrices/Matrix/Matrix.H
src/OpenFOAM/matrices/MatrixBlock/MatrixBlock.H
src/OpenFOAM/matrices/MatrixBlock/MatrixBlock.C
src/OpenFOAM/matrices/MatrixBlock/MatrixBlockI.H

Public Types

Public Member Functions

Detailed Description

Member Typedef Documentation

◆ cmptType

◆ value_type

◆ size_type

Constructor & Destructor Documentation

◆ MatrixBlock() [1/2]

◆ MatrixBlock() [2/2]

Member Function Documentation

◆ m()

◆ n()

◆ size()

◆ sizes()

◆ operator()() [1/2]

◆ operator()() [2/2]

◆ operator Field< cmptType >()

◆ checkIndex()

◆ operator=() [1/12]

◆ operator=() [2/12]

◆ operator=() [3/12]

◆ operator=() [4/12]

◆ operator=() [5/12]

◆ operator=() [6/12]

◆ operator=() [7/12]

◆ operator=() [8/12]

◆ operator=() [9/12]

◆ operator=() [10/12]

◆ operator=() [11/12]

◆ operator=() [12/12]
