A tuple of integers comprising start, size, total. More...

#include <OffsetRange.H>

Inheritance diagram for OffsetRange< IntType >:

[legend]

Public Types
typedef IntType	value_type
	Type of values contained.
typedef IntType	size_type
	The type that can represent the size.
using	const_iterator = IndexIterator<IntType>
	Input iterator with const access.
using	const_reverse_iterator = ReverseIndexIterator<IntType>
	Reverse input iterator with const access.

Public Member Functions
	OffsetRange (const OffsetRange &) noexcept=default
	Copy construct.
	OffsetRange (OffsetRange &&) noexcept=default
	Move construct.
OffsetRange &	operator= (const OffsetRange &) noexcept=default
	Copy assignment.
OffsetRange &	operator= (OffsetRange &&) noexcept=default
	Move assignment.
constexpr	OffsetRange () noexcept
	Default construct as (0,0,0).
constexpr	OffsetRange (IntType len) noexcept
	Construct with start=0 and specified size, assigns total=size.
constexpr	OffsetRange (IntType beg, IntType len, IntType tot) noexcept
	Construct from all components, no checks.
bool	empty () const noexcept
	True if zero-sized.
IntType	size () const noexcept
	The size.
IntType &	size () noexcept
	Non-const access to the size.
IntType	start () const noexcept
	The lower value of the range.
IntType &	start () noexcept
	Non-const access to start of the range.
IntType	total () const noexcept
	The total size.
IntType &	total () noexcept
	Non-const access to the total size.
IntRange< IntType >	range () const noexcept
	The (state,size) range.
void	clear () noexcept
	Reset to zero.
void	reset (IntType len) noexcept
	Reset to the specified size, with start=0 and total=size.
void	reset (IntType beg, IntType len, IntType tot) noexcept
	Reset all components.
bool	equals (const OffsetRange &b) const noexcept
	Test equality of start/size/total.
int	compare (const OffsetRange &b) const noexcept
	Compare start/size/total in that order.
void	operator= (IntType len) noexcept
	Assign to the specified size, with start=0 and total=size.
template<class IntT2, class = std::enable_if_t <std::is_integral_v<IntT2> && (sizeof(IntT2) <= sizeof(IntType))>>
void	operator= (const OffsetRange< IntT2 > &rhs) noexcept
	Assign from an OffsetRange with the same or lower representation.
const_iterator	at (IntType i) const
	Return const_iterator to a position within the range, with bounds checking.
constexpr IntType	operator[] (IntType i) const noexcept
	Offset dereference, without bounds checking.
bool	operator() (IntType i) const noexcept
	True if the value is between the start and size range.
bool	contains (IntType value) const noexcept
	True if the value is between the start and size range range.
IntType	begin_value () const noexcept
	The value at the beginning of the start/size range - same as start().
IntType	end_value () const noexcept
	The value 1 beyond the end of the start/size range.
IntType	rbegin_value () const noexcept
	The max value of the start/size range.
IntType	rend_value () const noexcept
	The value 1 before the begin of start/size range.
const_iterator	begin () const noexcept
	A const_iterator set to the beginning of the range.
const_iterator	cbegin () const noexcept
	A const_iterator set to the beginning of the range.
const_iterator	cend () const noexcept
	A const_iterator set to 1 beyond the end of the range.
const_iterator	end () const noexcept
	A const_iterator set to 1 beyond the end of the range.
const_reverse_iterator	rbegin () const noexcept
	A const_reverse_iterator set to 1 before the end of range.
const_reverse_iterator	crbegin () const noexcept
	A const_reverse_iterator set to 1 before the end of range.
const_reverse_iterator	rend () const noexcept
	A const_reverse_iterator set to 1 before the begin of range.
const_reverse_iterator	crend () const noexcept
	A const_reverse_iterator set to 1 before the begin of range.

Detailed Description

template<class IntType>
class Foam::OffsetRange< IntType >

A tuple of integers comprising start, size, total.

This frequently corresponds what is termed a "hyperslab", a "slice" or a "selection" for MPI addressing. For this type of use, the OffsetRange would represent the local rank addressing. Apart from the total size, it would not have information about any other ranks (like Foam::globalIndex does).

Note: Since this range is low-level, the IO operators are defined in the separate OffsetRangeIO.H header.

See also: Foam::globalIndex Foam::GlobalOffset

Source files

Definition at line 81 of file OffsetRange.H.

Member Typedef Documentation

◆ value_type

template<class IntType>

typedef IntType value_type

Type of values contained.

Definition at line 119 of file OffsetRange.H.

◆ size_type

template<class IntType>

typedef IntType size_type

The type that can represent the size.

Definition at line 124 of file OffsetRange.H.

◆ const_iterator

template<class IntType>

using const_iterator = IndexIterator<IntType>

Input iterator with const access.

Definition at line 129 of file OffsetRange.H.

◆ const_reverse_iterator

template<class IntType>

using const_reverse_iterator = ReverseIndexIterator<IntType>

Reverse input iterator with const access.

Definition at line 134 of file OffsetRange.H.

Constructor & Destructor Documentation

◆ OffsetRange() [1/5]

template<class IntType>

OffsetRange ( const OffsetRange< IntType > & )

defaultnoexcept

Copy construct.

References OffsetRange().

Referenced by compare(), equals(), GlobalOffset< IntType >::GlobalOffset(), GlobalOffset< IntType >::GlobalOffset(), GlobalOffset< IntType >::GlobalOffset(), GlobalOffset< IntType >::GlobalOffset(), OffsetRange(), OffsetRange(), operator=(), operator=(), and operator=().

Here is the call graph for this function:

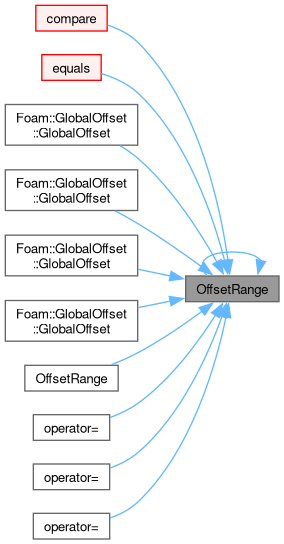

Here is the caller graph for this function:

◆ OffsetRange() [2/5]

template<class IntType>

OffsetRange ( OffsetRange< IntType > && )

defaultnoexcept

Move construct.

References Foam::noexcept, and OffsetRange().

Here is the call graph for this function:

◆ OffsetRange() [3/5]

template<class IntType>

OffsetRange ( )

inlineconstexprnoexcept

Default construct as (0,0,0).

Definition at line 24 of file OffsetRangeI.H.

References Foam::noexcept.

◆ OffsetRange() [4/5]

template<class IntType>

OffsetRange ( IntType len )

inlineconstexprnoexcept

Construct with start=0 and specified size, assigns total=size.

Definition at line 33 of file OffsetRangeI.H.

References Foam::noexcept.

◆ OffsetRange() [5/5]

template<class IntType>

OffsetRange	(	IntType	beg,
		IntType	len,
		IntType	tot )

inlineconstexprnoexcept

Construct from all components, no checks.

Definition at line 42 of file OffsetRangeI.H.

References Foam::noexcept.

Member Function Documentation

◆ operator=() [1/4]

template<class IntType>

OffsetRange & operator= ( const OffsetRange< IntType > & )

defaultnoexcept

Copy assignment.

References Foam::noexcept, and OffsetRange().

Here is the call graph for this function:

◆ operator=() [2/4]

template<class IntType>

OffsetRange & operator= ( OffsetRange< IntType > && )

defaultnoexcept

Move assignment.

References Foam::noexcept, and OffsetRange().

Here is the call graph for this function:

◆ empty()

template<class IntType>

bool empty ( ) const

inlinenoexcept

True if zero-sized.

Definition at line 193 of file OffsetRange.H.

References empty(), and Foam::noexcept.

Referenced by empty().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ size() [1/2]

template<class IntType>

IntType size ( ) const

inlinenoexcept

The size.

Definition at line 198 of file OffsetRange.H.

References Foam::noexcept.

Referenced by GlobalOffset< label >::localSize().

Here is the caller graph for this function:

◆ size() [2/2]

template<class IntType>

IntType & size ( )

inlinenoexcept

Non-const access to the size.

Definition at line 203 of file OffsetRange.H.

References Foam::noexcept.

◆ start() [1/2]

template<class IntType>

IntType start ( ) const

inlinenoexcept

The lower value of the range.

Definition at line 208 of file OffsetRange.H.

References Foam::noexcept.

Referenced by GlobalOffset< label >::localStart(), and GlobalOffset< label >::toGlobal().

Here is the caller graph for this function:

◆ start() [2/2]

template<class IntType>

IntType & start ( )

inlinenoexcept

Non-const access to start of the range.

Definition at line 213 of file OffsetRange.H.

References Foam::noexcept.

◆ total() [1/2]

template<class IntType>

IntType total ( ) const

inlinenoexcept

The total size.

Definition at line 218 of file OffsetRange.H.

References Foam::noexcept.

Referenced by GlobalOffset< label >::totalSize().

Here is the caller graph for this function:

◆ total() [2/2]

template<class IntType>

IntType & total ( )

inlinenoexcept

Non-const access to the total size.

Definition at line 223 of file OffsetRange.H.

References Foam::noexcept.

◆ range()

template<class IntType>

IntRange< IntType > range ( ) const

inlinenoexcept

The (state,size) range.

Definition at line 228 of file OffsetRange.H.

References Foam::noexcept.

Referenced by GlobalOffset< IntType >::GlobalOffset().

Here is the caller graph for this function:

◆ clear()

template<class IntType>

void clear ( )

inlinenoexcept

Reset to zero.

Definition at line 93 of file OffsetRangeI.H.

References Foam::noexcept.

◆ reset() [1/2]

template<class IntType>

void reset ( IntType len )

inlinenoexcept

Reset to the specified size, with start=0 and total=size.

Can also use operator= assignment

Definition at line 102 of file OffsetRangeI.H.

Referenced by operator=(), GlobalOffset< IntType >::reset(), and GlobalOffset< IntType >::reset().

Here is the caller graph for this function:

◆ reset() [2/2]

template<class IntType>

void reset	(	IntType	beg,
		IntType	len,
		IntType	tot )

inlinenoexcept

Reset all components.

Definition at line 111 of file OffsetRangeI.H.

◆ equals()

template<class IntType>

bool equals ( const OffsetRange< IntType > & b ) const

inlinenoexcept

Test equality of start/size/total.

Definition at line 133 of file OffsetRangeI.H.

References b, and OffsetRange().

Referenced by Foam::operator!=(), and Foam::operator==().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ compare()

template<class IntType>

int compare ( const OffsetRange< IntType > & b ) const

inlinenoexcept

Compare start/size/total in that order.

Returns: -1,0,+1

Definition at line 150 of file OffsetRangeI.H.

References b, and OffsetRange().

Referenced by Foam::operator<(), Foam::operator<=(), Foam::operator>(), and Foam::operator>=().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ operator=() [3/4]

template<class IntType>

void operator= ( IntType len )

inlinenoexcept

Assign to the specified size, with start=0 and total=size.

Definition at line 274 of file OffsetRange.H.

References Foam::noexcept, and reset().

Here is the call graph for this function:

◆ operator=() [4/4]

template<class IntType>

template<class IntT2, class = std::enable_if_t <std::is_integral_v<IntT2> && (sizeof(IntT2) <= sizeof(IntType))>>

void operator= ( const OffsetRange< IntT2 > & rhs )

inlinenoexcept

Assign from an OffsetRange with the same or lower representation.

Definition at line 288 of file OffsetRange.H.

References OffsetRange(), and Foam::rhs().

Here is the call graph for this function:

◆ at()

template<class IntType>

const_iterator at ( IntType i ) const

inline

Return const_iterator to a position within the range, with bounds checking.

Returns: iterator at the requested position, or end() for out-of-bounds

Definition at line 301 of file OffsetRange.H.

◆ operator[]()

template<class IntType>

IntType operator[] ( IntType i ) const

inlineconstexprnoexcept

Offset dereference, without bounds checking.

Definition at line 174 of file OffsetRangeI.H.

◆ operator()()

template<class IntType>

bool operator() ( IntType i ) const

inlinenoexcept

True if the value is between the start and size range.

Behaviour identical to contains() - usable as a predicate

Definition at line 313 of file OffsetRange.H.

References contains().

Here is the call graph for this function:

◆ contains()

template<class IntType>

bool contains ( IntType value ) const

inlinenoexcept

True if the value is between the start and size range range.

Definition at line 125 of file OffsetRangeI.H.

Referenced by GlobalOffset< label >::isLocal(), and operator()().

Here is the caller graph for this function:

◆ begin_value()

template<class IntType>

IntType begin_value ( ) const

inlinenoexcept

The value at the beginning of the start/size range - same as start().

Definition at line 65 of file OffsetRangeI.H.

References Foam::noexcept.

Referenced by begin(), and cbegin().

Here is the caller graph for this function:

◆ end_value()

template<class IntType>

IntType end_value ( ) const

inlinenoexcept

The value 1 beyond the end of the start/size range.

Definition at line 72 of file OffsetRangeI.H.

References Foam::noexcept.

Referenced by cend(), and end().

Here is the caller graph for this function:

◆ rbegin_value()

template<class IntType>

IntType rbegin_value ( ) const

inlinenoexcept

The max value of the start/size range.

Definition at line 79 of file OffsetRangeI.H.

References Foam::noexcept.

Referenced by crbegin(), and rbegin().

Here is the caller graph for this function:

◆ rend_value()

template<class IntType>

IntType rend_value ( ) const

inlinenoexcept

The value 1 before the begin of start/size range.

Definition at line 86 of file OffsetRangeI.H.

References Foam::noexcept.

Referenced by crend(), and rend().

Here is the caller graph for this function:

◆ begin()

template<class IntType>

const_iterator begin ( ) const

inlinenoexcept

A const_iterator set to the beginning of the range.

Definition at line 352 of file OffsetRange.H.

References begin(), begin_value(), and Foam::noexcept.

Referenced by begin().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ cbegin()

template<class IntType>

const_iterator cbegin ( ) const

inlinenoexcept

A const_iterator set to the beginning of the range.

Definition at line 357 of file OffsetRange.H.

References begin_value(), and Foam::noexcept.

Here is the call graph for this function:

◆ cend()

template<class IntType>

const_iterator cend ( ) const

inlinenoexcept

A const_iterator set to 1 beyond the end of the range.

Definition at line 362 of file OffsetRange.H.

References end_value(), and Foam::noexcept.

Here is the call graph for this function:

◆ end()

template<class IntType>

const_iterator end ( ) const

inlinenoexcept

A const_iterator set to 1 beyond the end of the range.

Definition at line 367 of file OffsetRange.H.

References end_value(), and Foam::noexcept.

Here is the call graph for this function:

◆ rbegin()

template<class IntType>

const_reverse_iterator rbegin ( ) const

inlinenoexcept

A const_reverse_iterator set to 1 before the end of range.

Definition at line 376 of file OffsetRange.H.

References Foam::noexcept, and rbegin_value().

Here is the call graph for this function:

◆ crbegin()

template<class IntType>

const_reverse_iterator crbegin ( ) const

inlinenoexcept

A const_reverse_iterator set to 1 before the end of range.

Definition at line 382 of file OffsetRange.H.

References Foam::noexcept, and rbegin_value().

Here is the call graph for this function:

◆ rend()

template<class IntType>

const_reverse_iterator rend ( ) const

inlinenoexcept

A const_reverse_iterator set to 1 before the begin of range.

Definition at line 387 of file OffsetRange.H.

References Foam::noexcept, and rend_value().

Here is the call graph for this function:

◆ crend()

template<class IntType>

const_reverse_iterator crend ( ) const

inlinenoexcept

A const_reverse_iterator set to 1 before the begin of range.

Definition at line 392 of file OffsetRange.H.

References Foam::noexcept, and rend_value().

Here is the call graph for this function:

The documentation for this class was generated from the following files:

src/OpenFOAM/primitives/ranges/offsets/OffsetRange.H
src/OpenFOAM/primitives/ranges/offsets/OffsetRangeI.H

Public Types

Public Member Functions

Detailed Description

Member Typedef Documentation

◆ value_type

◆ size_type

◆ const_iterator

◆ const_reverse_iterator

Constructor & Destructor Documentation

◆ OffsetRange() [1/5]

◆ OffsetRange() [2/5]

◆ OffsetRange() [3/5]

◆ OffsetRange() [4/5]

◆ OffsetRange() [5/5]

Member Function Documentation

◆ operator=() [1/4]

◆ operator=() [2/4]

◆ empty()

◆ size() [1/2]

◆ size() [2/2]

◆ start() [1/2]

◆ start() [2/2]

◆ total() [1/2]

◆ total() [2/2]

◆ range()

◆ clear()

◆ reset() [1/2]

◆ reset() [2/2]

◆ equals()

◆ compare()

◆ operator=() [3/4]

◆ operator=() [4/4]

◆ at()

◆ operator[]()

◆ operator()()

◆ contains()

◆ begin_value()

◆ end_value()

◆ rbegin_value()

◆ rend_value()

◆ begin()

◆ cbegin()

◆ cend()

◆ end()

◆ rbegin()

◆ crbegin()

◆ rend()

◆ crend()
