Calculates a non-overlapping list of offsets based on an input size (eg, number of cells) from different MPI ranks. These offsets can be used to define a unique (global) indexing number. More...

#include <globalIndex.H>

Classes
struct	gatherNone
	Dispatch tag: Construct with a single (local size) entry, no communication. More...
struct	gatherOnly
	Dispatch tag: Construct 'one-sided' from local sizes, using gather but no broadcast. More...
struct	gatherNonLocal
	Dispatch tag: Construct 'one-sided' from the non-master local sizes using gather but no broadcast. More...
class	const_iterator
	Forward input iterator with const access that is used to iterate across the globalIndex offsets() table. More...

Public Types
typedef label	value_type
	Type of values contained.
typedef label	size_type
	The type that can represent the size.

Public Member Functions

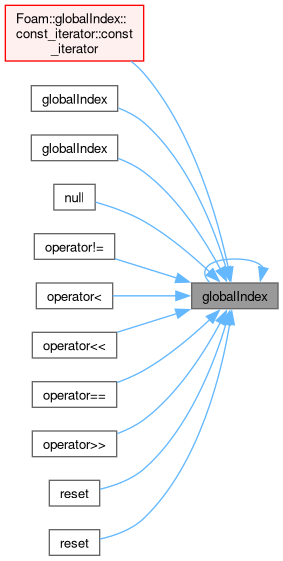

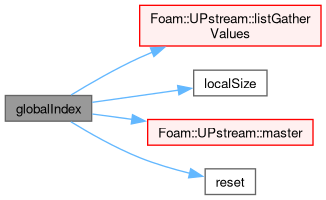

	globalIndex () noexcept=default
	Default construct (empty).
	globalIndex (const labelUList &listOffsets)
	Copy construct from a list of offsets. No communication required.
	globalIndex (labelList &&listOffsets)
	Move construct from a list of offsets. No communication required.
	globalIndex (globalIndex::gatherNone, const labelUList &localSizes)
	Construct from a list of sizes and calculate the offsets. No communication required.
	globalIndex (label localSize, const label comm=UPstream::worldComm, const bool parallel=UPstream::parRun())
	Construct from local size, using gather/broadcast with default/specified communicator if parallel.
	globalIndex (globalIndex::gatherNone, label localSize, int communicator=-1)
	Construct with a single (local size) entry, no communication.
	globalIndex (globalIndex::gatherOnly, label localSize, const label comm=UPstream::worldComm)
	Construct 'one-sided' from local sizes. Uses UPstream::listGatherValues, but no broadcast. Will be empty on non-master processes.
	globalIndex (globalIndex::gatherNonLocal, label localSize, const label comm=UPstream::worldComm)
	Construct 'one-sided' from the non-master local sizes (ie, master size is treated as 0). Uses UPstream::listGatherValues, but no broadcast. Will be empty on non-master processes.
	globalIndex (Istream &is)
	Construct from Istream. No communication required.
bool	empty () const noexcept
	Check for default constructed or total-size == 0.
label	length () const noexcept
	The number of items covered by the offsets.
label	size () const noexcept
	Global sum of localSizes. Same as totalSize().
label	span () const noexcept
	The span size covered by the offsets, zero if empty.

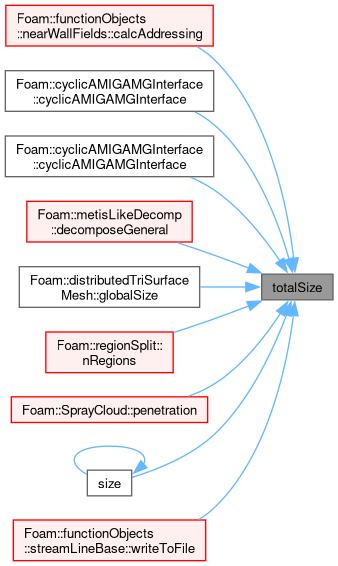

label	totalSize () const noexcept
	The total addressed size, which corresponds to the end offset and also the sum of all localSizes.
labelList	sizes () const
	The local sizes. Same as localSizes().
const labelUList	localStarts () const
	The local starts.
labelList	localSizes () const
	The local sizes.

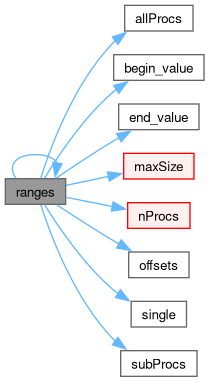

List< labelRange >	ranges () const
	Return start/size ranges for all data.
label	maxSize () const
	Global max of localSizes.

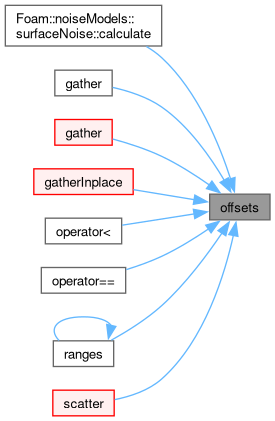

const labelList &	offsets () const noexcept
	Const-access to the offsets.
labelList &	offsets () noexcept
	Write-access to the offsets, for changing after construction.
bool	single () const noexcept
	True if local-only content (ie, nProcs == 1). Such content is often created with gatherNone.
label	nProcs () const noexcept
	The number of processors covered by the offsets, same as the primary length().
labelRange	allProcs () const noexcept
	Range of process indices for all addressed offsets (processes).

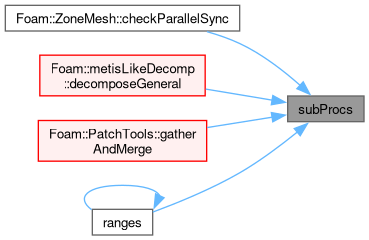

labelRange	subProcs () const noexcept
	Range of process indices for addressed sub-offsets (processes).
label	begin_value () const noexcept
	The value corresponding to the first offset.
label	end_value () const noexcept
	The value corresponding to the last offset (end offset), which is 1 beyond the end of the range.
labelRange	front () const
	The first offset range. It is (0,0) if globalIndex is empty.
labelRange	back () const
	The last offset range. It is (0,0) if globalIndex is empty.
void	clear ()
	Reset to be empty (no offsets).
void	resize (const label n)
	Change the number of entries (nProcs) in the offsets table. Extending will fill with empty local sizes.

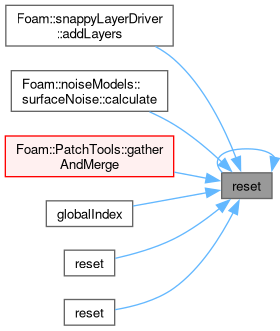

void	reset (label localSize, const label comm=UPstream::worldComm, const bool parallel=UPstream::parRun())
	Reset from local size, using gather/broadcast with default/specified communicator if parallel.
void	reset (const labelUList &counts, const bool checkOverflow=false)
	Reset offsets from a list of local sizes, with optional check for label overflow. No communication required.
void	reset (globalIndex::gatherNone, label localSize, int communicator=-1)
	Reset to a single (local size) entry, no communication.
void	reset (globalIndex::gatherOnly, label localSize, const label comm=UPstream::worldComm)
	Reset as 'one-sided' from local sizes. Uses UPstream::listGatherValues, but no broadcast. Will be empty on non-master processes.
void	reset (globalIndex::gatherNonLocal, label localSize, const label comm=UPstream::worldComm)
	Reset as 'one-sided' from the non-master local sizes (ie, master size is treated as 0). Uses UPstream::listGatherValues, but no broadcast. Will be empty on non-master processes.
void	reset (const globalIndex &gi)
	Reset the globalIndex. Same as copy assignment.
void	setLocalSize (const label proci, const label len)
	Alter local size for given processor.
bool	contains (const label i) const noexcept
	True if contained within the offsets range.

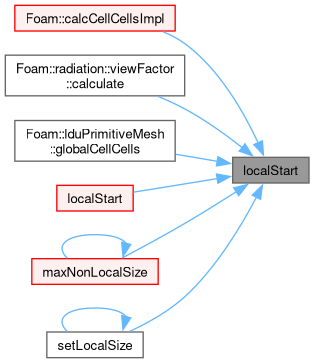

label	localStart (const label proci) const
	Start of proci data.
label	localEnd (const label proci) const
	End of proci data.

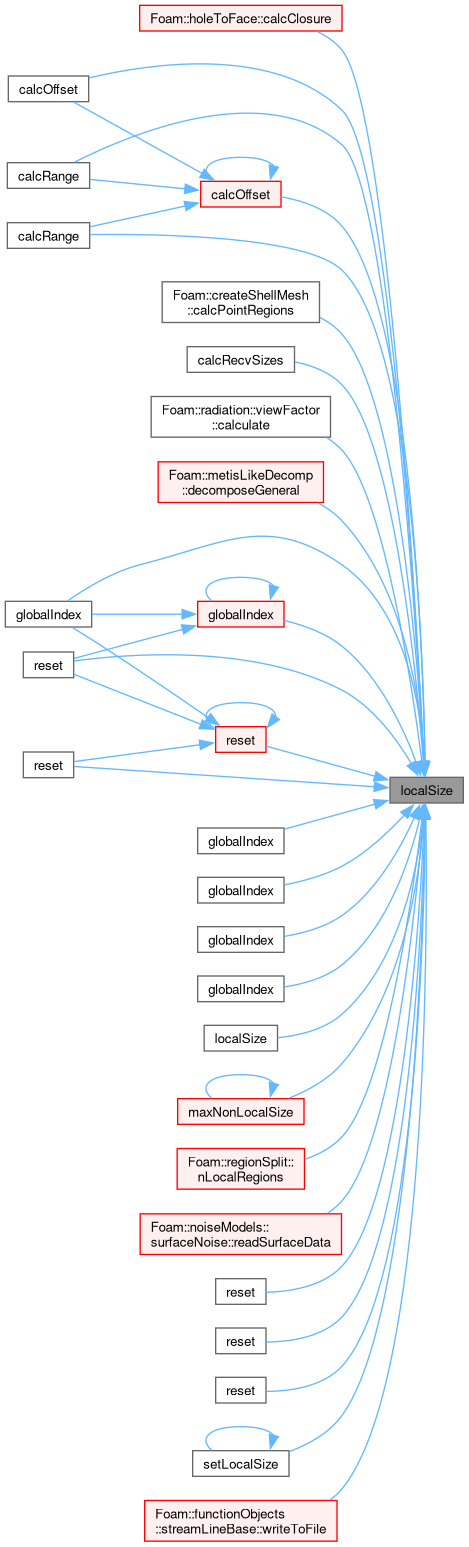

label	localSize (const label proci) const
	Size of proci data.

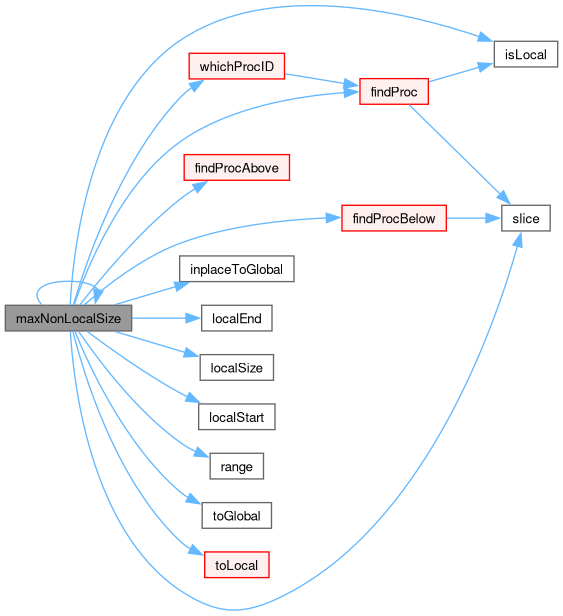

label	maxNonLocalSize (const label proci) const
	The max of localSizes, excluding the specified processor.

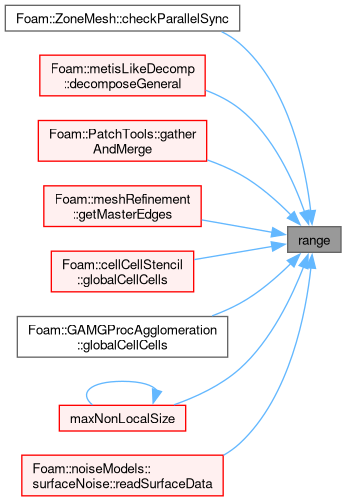

labelRange	range (label proci) const noexcept
	Return start/size range of proci data.
OffsetRange< label >	slice (label proci) const noexcept
	Return start/size/total slab addressing for proci data.
bool	isLocal (const label proci, const label i) const
	Is on processor proci.
label	toGlobal (const label proci, const label i) const
	From local to global on proci.
labelList	toGlobal (const label proci, const labelUList &labels) const
	From local to global on proci.

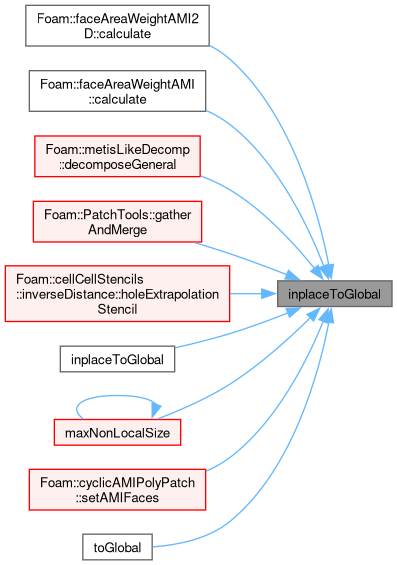

void	inplaceToGlobal (const label proci, labelUList &labels) const
	From local to global index on proci (inplace).

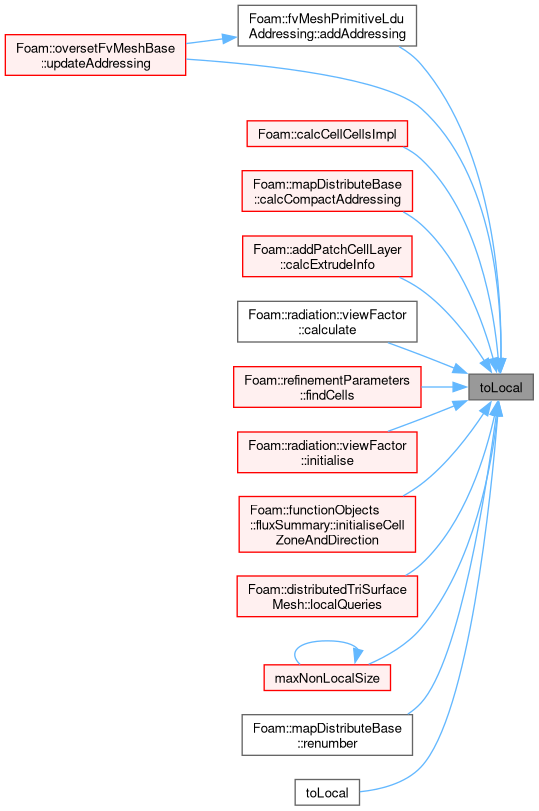

label	toLocal (const label proci, const label i) const
	From global to local on proci.
label	findProc (const label proci, const label i) const
	Find processor with specified global id. Check proci first, followed by binary search.
label	findProcAbove (const label proci, const label i) const
	Find processor above proci with specified global id - binary search.
label	findProcBelow (const label proci, const label i) const
	Find processor below proci with specified global id - binary search.

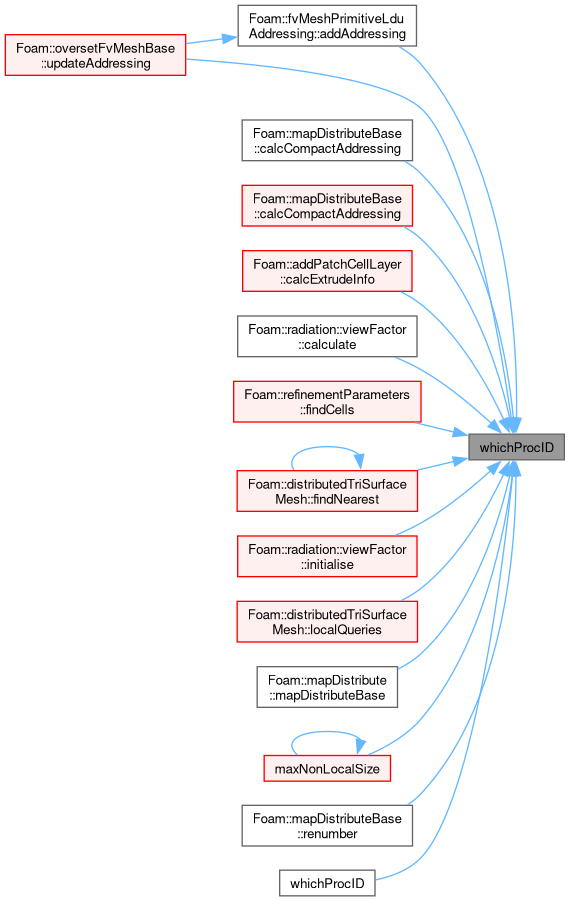

label	whichProcID (const label proci, const label i) const
	Which processor does global id come from? Checks proci first (assumed to occur reasonably frequently) followed by a binary search. Fatal for out-of-range indices.
label	localStart () const
	Local start on myProcNo().
label	localEnd () const
	Local end on myProcNo().
label	localSize () const
	Local size on myProcNo().
label	maxNonLocalSize () const
	The max of localSizes, excluding current (myProcNo) rank.
labelRange	range () const
	Return start/size range of local (myProcNo) data.
OffsetRange< label >	slice () const
	Return start/size/total slab addressing for local (myProcNo) data.

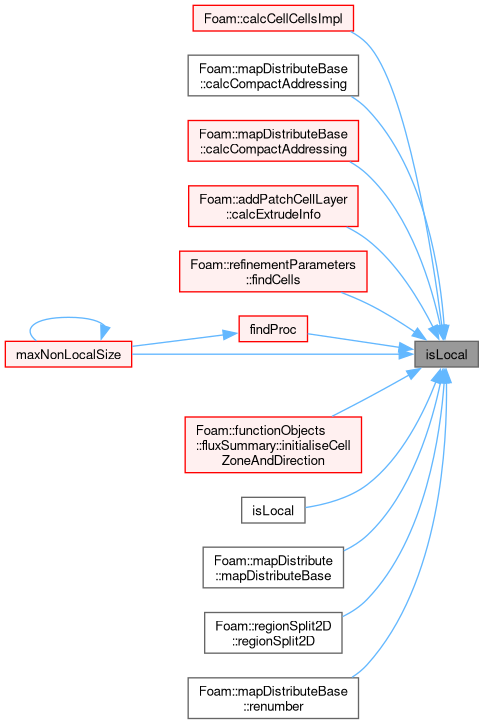

bool	isLocal (const label i) const
	Is on local processor.

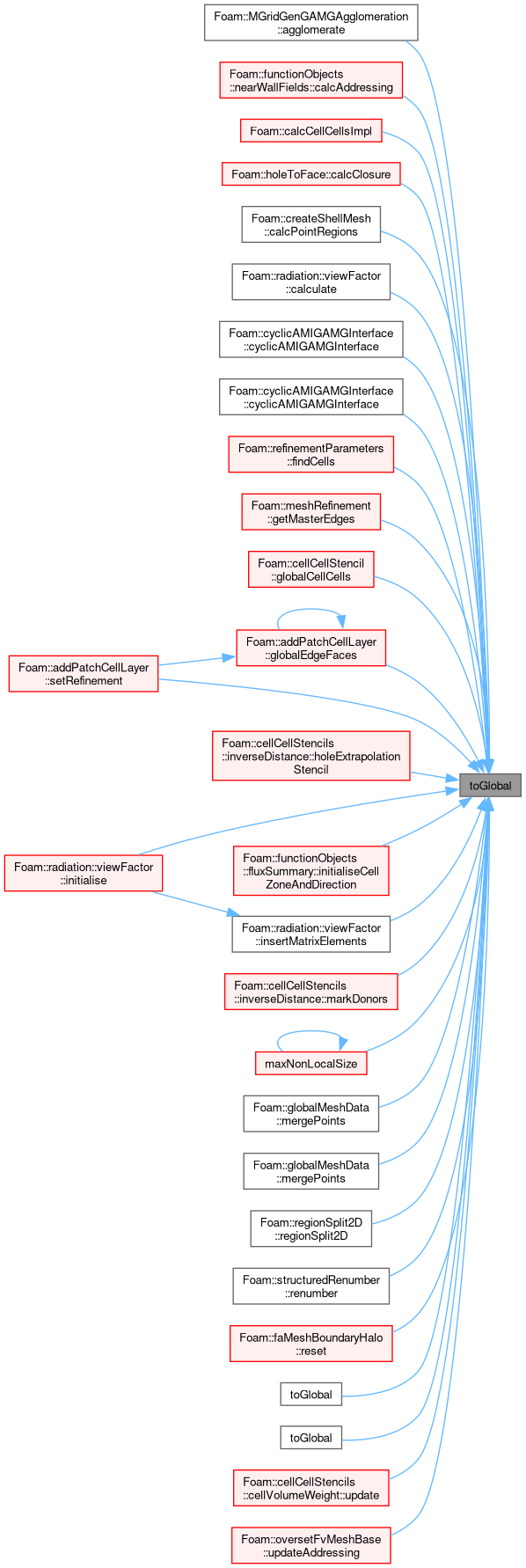

label	toGlobal (const label i) const
	From local to global index.
labelList	toGlobal (const labelUList &labels) const
	From local to global index.
void	inplaceToGlobal (labelUList &labels) const
	From local to global index (inplace).
label	toLocal (const label i) const
	From global to local on current processor.
label	whichProcID (const label i) const
	Which processor does global id come from?
const_iterator	cbegin () const noexcept
	A const_iterator set to the beginning.
const const_iterator	cend () const noexcept
	A const_iterator set to beyond the end.
const_iterator	begin () const noexcept
	A const_iterator set to the beginning.
const const_iterator	end () const noexcept
	A const_iterator set to beyond the end.
const_iterator	cbegin (const label proci) const noexcept
	Return const_iterator at offset proci from begin, clamped to [0,nProcs] range.
const_iterator	begin (const label proci) const noexcept
	Return const_iterator at offset proci from begin, clamped to [0,nProcs] range.
bool	splitNodeOffsets (labelList &interNodeOffsets, labelList &localNodeOffsets, const label communicator=UPstream::worldComm, const bool absoluteLocalNodeOffsets=false) const
	Split the top-level offsets into inter-node and local-node components suitable to a two-stage hierarchy.
template<class ProcIDsContainer, class Type>

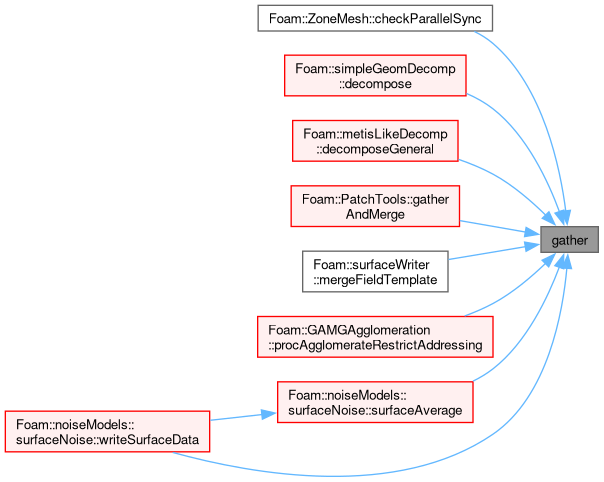

void	gather (const label comm, const ProcIDsContainer &procIDs, const UList< Type > &fld, List< Type > &allFld, const int tag=UPstream::msgType(), UPstream::commsTypes commsType=UPstream::commsTypes::nonBlocking) const
	Collect data in processor order on master (== procIDs[0]).
template<class ProcIDsContainer, class Type>
void	gatherInplace (const label comm, const ProcIDsContainer &procIDs, List< Type > &fld, const int tag=UPstream::msgType(), UPstream::commsTypes commsType=UPstream::commsTypes::nonBlocking) const
	Inplace collect in processor order on master (== procIDs[0]).
template<class Type>
void	gather (const UList< Type > &sendData, List< Type > &allData, const int tag=UPstream::msgType(), UPstream::commsTypes commsType=UPstream::commsTypes::nonBlocking, const label comm=UPstream::worldComm) const
	Collect data in processor order on master (in serial: performs a simple copy).
template<class Type, class Addr>
void	gather (const IndirectListBase< Type, Addr > &sendData, List< Type > &allData, const int tag=UPstream::msgType(), UPstream::commsTypes commsType=UPstream::commsTypes::nonBlocking, const label comm=UPstream::worldComm) const
	Collect data indirectly in processor order on master (in serial: performs a simple copy).
template<class Type, class OutputContainer = List<Type>>
OutputContainer	gather (const UList< Type > &sendData, const int tag=UPstream::msgType(), UPstream::commsTypes commsType=UPstream::commsTypes::nonBlocking, const label comm=UPstream::worldComm) const
	Collect data in processor order on master (in serial: performs a simple copy).
template<class Type, class Addr, class OutputContainer = List<Type>>
OutputContainer	gather (const IndirectListBase< Type, Addr > &sendData, const int tag=UPstream::msgType(), UPstream::commsTypes commsType=UPstream::commsTypes::nonBlocking, const label comm=UPstream::worldComm) const
	Collect data indirectly in processor order on master.
template<class Type>

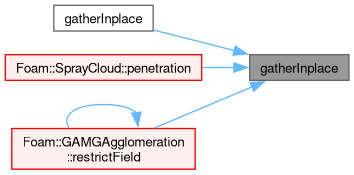

void	gatherInplace (List< Type > &fld, const int tag=UPstream::msgType(), UPstream::commsTypes commsType=UPstream::commsTypes::nonBlocking, const label comm=UPstream::worldComm) const
	Inplace collect data in processor order on master (in serial: a no-op).
template<class Type, class OutputContainer = List<Type>>
void	mpiGather (const UList< Type > &sendData, OutputContainer &allData, const label comm=UPstream::worldComm, UPstream::commsTypes commsType=UPstream::commsTypes::nonBlocking, const int tag=UPstream::msgType()) const
	Use MPI_Gatherv call for contiguous data when possible (in serial: performs a simple copy).
template<class Type, class OutputContainer = List<Type>>
OutputContainer	mpiGather (const UList< Type > &sendData, const label comm=UPstream::worldComm, UPstream::commsTypes commsType=UPstream::commsTypes::nonBlocking, const int tag=UPstream::msgType()) const
	Use MPI_Gatherv call for contiguous data when possible (in serial: performs a simple copy).
template<class Type>
void	mpiGatherInplace (List< Type > &fld, const label comm=UPstream::worldComm, UPstream::commsTypes commsType=UPstream::commsTypes::nonBlocking, const int tag=UPstream::msgType()) const
	Use MPI_Gatherv call to inplace collect contiguous data when possible. (in serial: a no-op).
template<class ProcIDsContainer, class Type>

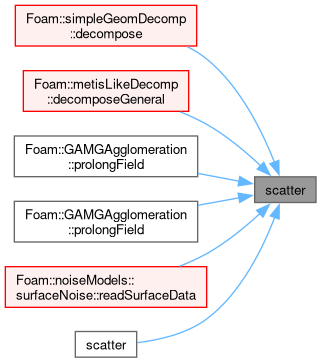

void	scatter (const label comm, const ProcIDsContainer &procIDs, const UList< Type > &allFld, UList< Type > &fld, const int tag=UPstream::msgType(), UPstream::commsTypes commsType=UPstream::commsTypes::nonBlocking) const
	Distribute data in processor order.
template<class Type>
void	scatter (const UList< Type > &allData, UList< Type > &localData, const int tag=UPstream::msgType(), UPstream::commsTypes commsType=UPstream::commsTypes::nonBlocking, const label comm=UPstream::worldComm) const
	Distribute data in processor order.
template<class Type, class OutputContainer = List<Type>>
OutputContainer	scatter (const UList< Type > &allData, const int tag=UPstream::msgType(), UPstream::commsTypes commsType=UPstream::commsTypes::nonBlocking, const label comm=UPstream::worldComm) const
	Distribute data in processor order (in serial: performs a simple copy).
template<class Type, class CombineOp>
void	get (List< Type > &allFld, const labelUList &globalIds, const CombineOp &cop, const label comm=UPstream::worldComm, const int tag=UPstream::msgType()) const
	Get (potentially remote) data. Elements required given as global indices.
bool	operator== (const globalIndex &rhs) const
	Compare for equality - uses the offsets.
bool	operator!= (const globalIndex &rhs) const
	Compare for inequality - uses the offsets.
bool	operator< (const globalIndex &rhs) const
	Compare for less-than - uses the offsets.
	globalIndex (label localSize, const int tag, const label comm, const bool parallel)
	Construct from local size, using gather/broadcast with default/specified communicator if parallel.
void	reset (label localSize, const int tag, const label comm, const bool parallel)
	Reset from local size, using gather/broadcast with default/specified communicator if parallel.
label	offset (const label proci) const
	Prefer localStart() to avoid confusing with offsets().

Static Public Member Functions
static const globalIndex &	null () noexcept
	Return a null globalIndex (reference to a nullObject). Behaves like an empty globalIndex.
template<class IntType>

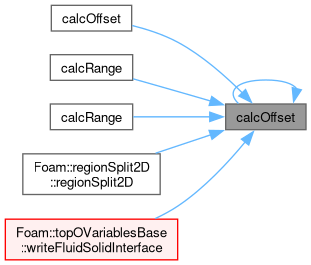

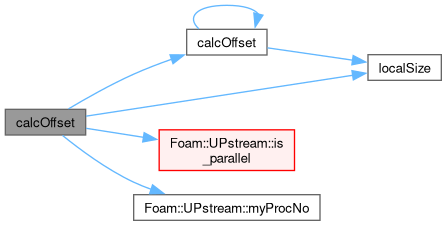

static IntType	calcOffset (IntType localSize, const label comm=UPstream::worldComm)
	Based on the local input size(s), calculate a globally-consistent local start offset.
template<class IntType>
static IntType	calcOffset (IntType localSize, const label comm, const bool checkOverflow)
	Based on the local input size(s), calculate a globally-consistent local start offset.
template<class IntType>
static std::enable_if_t< std::is_integral_v< IntType >, IntRange< IntType > >	calcRange (IntType localSize, const label comm=UPstream::worldComm)
	Based on the local input size(s), calculate a globally-consistent range (offset/size).
template<class IntType>
static std::enable_if_t< std::is_integral_v< IntType >, IntRange< IntType > >	calcRange (IntType localSize, const label comm, const bool checkOverflow)
	Based on the local input size(s), calculate a globally-consistent range (offset/size). With optional overflow checking.
template<class IntType>
static List< IntType >	calcRecvSizes (IntType localSize, const label comm=UPstream::worldComm)
	Get the receive sizes. On master the length == nProcs and element [0] corresponds to the max of all other receive sizes. On non-master, the list is zero-sized.
static labelList	calcOffsets (const labelUList &counts, const bool checkOverflow=false)
	Calculate offsets from a list of local sizes, with optional check for label overflow.
template<class Addr>
static labelList	calcOffsets (const IndirectListBase< label, Addr > &counts, const bool checkOverflow=false)
	Calculate offsets from an indirect list of local sizes, with optional check for label overflow.
template<class SubListType>
static labelList	calcListOffsets (const List< SubListType > &lists, const bool checkOverflow=false)
	Calculate offsets from list of lists, with optional check for label overflow.
static List< labelRange >	calcRanges (const labelUList &counts, const bool checkOverflow=false)
	Calculate ranges (offset/size) from a list of local sizes, with optional check for label overflow.
template<class ProcIDsContainer, class Type>
static List< Type >	listGatherValues (const label comm, const ProcIDsContainer &procIDs, const Type &localValue, const int tag=UPstream::msgType(), UPstream::commsTypes commsType=UPstream::commsTypes::nonBlocking)
	Collect single values in processor order on master (== procIDs[0]).
template<class ProcIDsContainer, class Type>
static void	gather (const labelUList &offsets, const label comm, const ProcIDsContainer &procIDs, const UList< Type > &fld, UList< Type > &allFld, const int tag=UPstream::msgType(), UPstream::commsTypes commsType=UPstream::commsTypes::nonBlocking)
	Collect data in processor order on master (== procIDs[0]).
template<class ProcIDsContainer, class Type, class Addr>
static void	gather (const labelUList &offsets, const label comm, const ProcIDsContainer &procIDs, const IndirectListBase< Type, Addr > &fld, UList< Type > &allFld, const int tag=UPstream::msgType(), UPstream::commsTypes commsType=UPstream::commsTypes::nonBlocking)
	Collect indirect data in processor order on master.
template<class ProcIDsContainer, class Type>
static void	gatherInplace (const labelUList &offsets, const label comm, const ProcIDsContainer &procIDs, List< Type > &fld, const int tag=UPstream::msgType(), UPstream::commsTypes commsType=UPstream::commsTypes::nonBlocking)
	Inplace collect in processor order on master (== procIDs[0]).
template<class Type, class OutputContainer = List<Type>>
static void	mpiGatherOp (const UList< Type > &sendData, OutputContainer &allData, const label comm=UPstream::worldComm, UPstream::commsTypes commsType=UPstream::commsTypes::nonBlocking, const int tag=UPstream::msgType())
	Use MPI_Gatherv call to collect contiguous data when possible (in serial: performs a simple copy).
template<class Type, class OutputContainer = List<Type>>
static OutputContainer	mpiGatherOp (const UList< Type > &sendData, const label comm=UPstream::worldComm, UPstream::commsTypes commsType=UPstream::commsTypes::nonBlocking, const int tag=UPstream::msgType())
	Use MPI_Gatherv call to collect contiguous data when possible (in serial: performs a simple copy).
template<class Type>
static void	mpiGatherInplaceOp (List< Type > &fld, const label comm=UPstream::worldComm, UPstream::commsTypes commsType=UPstream::commsTypes::nonBlocking, const int tag=UPstream::msgType())
	Use MPI_Gatherv call to inplace collect contiguous data when possible. (in serial: a no-op).
template<class Type>
static void	gatherOp (const UList< Type > &sendData, List< Type > &allData, const int tag=UPstream::msgType(), UPstream::commsTypes commsType=UPstream::commsTypes::nonBlocking, const label comm=UPstream::worldComm)
	Collect data in processor order on master (in serial: performs a simple copy).
template<class Type, class Addr>
static void	gatherOp (const IndirectListBase< Type, Addr > &sendData, List< Type > &allData, const int tag=UPstream::msgType(), UPstream::commsTypes commsType=UPstream::commsTypes::nonBlocking, const label comm=UPstream::worldComm)
	Collect data in processor order on master (in serial: performs a simple copy).
template<class Type, class OutputContainer = List<Type>>
static OutputContainer	gatherOp (const UList< Type > &sendData, const int tag=UPstream::msgType(), UPstream::commsTypes commsType=UPstream::commsTypes::nonBlocking, const label comm=UPstream::worldComm)
	Collect and return data in processor order on master (in serial: performs a simple copy).
template<class Type, class Addr, class OutputContainer = List<Type>>
static OutputContainer	gatherOp (const IndirectListBase< Type, Addr > &sendData, const int tag=UPstream::msgType(), UPstream::commsTypes commsType=UPstream::commsTypes::nonBlocking, const label comm=UPstream::worldComm)
	Collect and return data in processor order on master (in serial: performs a simple copy).
template<class Type>
static void	gatherInplaceOp (List< Type > &fld, const int tag=UPstream::msgType(), UPstream::commsTypes commsType=UPstream::commsTypes::nonBlocking, const label comm=UPstream::worldComm)
	Inplace collect data in processor order on master (in serial: a no-op).
template<class ProcIDsContainer, class Type>
static void	scatter (const labelUList &offsets, const label comm, const ProcIDsContainer &procIDs, const UList< Type > &allFld, UList< Type > &fld, const int tag=UPstream::msgType(), UPstream::commsTypes commsType=UPstream::commsTypes::nonBlocking)
	Distribute data in processor order.

Friends
Istream &	operator>> (Istream &is, globalIndex &gi)
Ostream &	operator<< (Ostream &os, const globalIndex &gi)

Detailed Description

Calculates a non-overlapping list of offsets based on an input size (eg, number of cells) from different MPI ranks. These offsets can be used to define a unique (global) indexing number.

For example,

    globalIndex globalFaces(mesh.nFaces());
    label globalFacei = globalFaces.toGlobal(facei);

Note: The globalIndex is generally used when the ranks need information about each other's position, whereas GlobalOffset and OffsetRange are used when only the local addressing information (and total Size) is needed without additional information about other ranks.

Warning: The unique integer is a Foam::label, so may be subject to overflow problems (2G max) with a 32-bit label compilation.

Source files

Definition at line 76 of file globalIndex.H.

Member Typedef Documentation

◆ value_type

typedef label value_type

Type of values contained.

Definition at line 138 of file globalIndex.H.

◆ size_type

typedef label size_type

The type that can represent the size.

Definition at line 143 of file globalIndex.H.

Constructor & Destructor Documentation

◆ globalIndex() [1/10]

globalIndex ( )

defaultnoexcept

Default construct (empty).

References globalIndex(), localSize(), localSizes(), and Foam::noexcept.

Referenced by globalIndex::const_iterator::const_iterator(), globalIndex(), globalIndex(), globalIndex(), null(), operator!=(), operator<(), operator<<, operator==(), operator>>, reset(), and reset().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ globalIndex() [2/10]

globalIndex ( const labelUList & listOffsets )

inlineexplicit

Copy construct from a list of offsets. No communication required.

Definition at line 85 of file globalIndexI.H.

References UList< T >::size().

Here is the call graph for this function:

◆ globalIndex() [3/10]

globalIndex ( labelList && listOffsets )

inlineexplicit

Move construct from a list of offsets. No communication required.

Definition at line 97 of file globalIndexI.H.

◆ globalIndex() [4/10]

globalIndex	(	globalIndex::gatherNone	,
		const labelUList &	localSizes )

inline

Construct from a list of sizes and calculate the offsets. No communication required.

Definition at line 111 of file globalIndexI.H.

References localSizes(), and reset().

Here is the call graph for this function:

◆ globalIndex() [5/10]

globalIndex	(	label	localSize,
		const label	comm = UPstream::worldComm,
		const bool	parallel = UPstream::parRun() )

inlineexplicit

Construct from local size, using gather/broadcast with default/specified communicator if parallel.

Parameters

comm	communicator
parallel	use parallel comms

Definition at line 121 of file globalIndexI.H.

References localSize(), and reset().

Here is the call graph for this function:

◆ globalIndex() [6/10]

globalIndex	(	globalIndex::gatherNone	,
		label	localSize,
		int	communicator = -1 )

inline

Construct with a single (local size) entry, no communication.

Parameters

communicator (unused) no communicator needed

Definition at line 132 of file globalIndexI.H.

References localSize().

Here is the call graph for this function:

◆ globalIndex() [7/10]

globalIndex	(	globalIndex::gatherOnly	,
		label	localSize,
		const label	comm = UPstream::worldComm )

inline

Construct 'one-sided' from local sizes. Uses UPstream::listGatherValues, but no broadcast. Will be empty on non-master processes.

Note: can be used when Pstream::parRun() is false.

Parameters

comm	communicator

Definition at line 146 of file globalIndexI.H.

References UPstream::listGatherValues(), localSize(), and reset().

Here is the call graph for this function:

◆ globalIndex() [8/10]

globalIndex	(	globalIndex::gatherNonLocal	,
		label	localSize,
		const label	comm = UPstream::worldComm )

inline

Construct 'one-sided' from the non-master local sizes (ie, master size is treated as 0). Uses UPstream::listGatherValues, but no broadcast. Will be empty on non-master processes.

Note: can be used when Pstream::parRun() is false.

Parameters

comm	communicator

Definition at line 158 of file globalIndexI.H.

References UPstream::listGatherValues(), localSize(), UPstream::master(), and reset().

Here is the call graph for this function:

◆ globalIndex() [9/10]

globalIndex ( Istream & is )

explicit

Construct from Istream. No communication required.

References empty(), FOAM_DEPRECATED_STRICT, globalIndex(), length(), and Foam::noexcept.

Here is the call graph for this function:

◆ globalIndex() [10/10]

globalIndex	(	label	localSize,
		const int	tag,
		const label	comm,
		const bool	parallel )

inline

Construct from local size, using gather/broadcast with default/specified communicator if parallel.

Definition at line 1463 of file globalIndex.H.

References globalIndex(), localSize(), and reset().

Here is the call graph for this function:

Member Function Documentation

◆ null()

const globalIndex & null ( )

inlinestaticnoexcept

Return a null globalIndex (reference to a nullObject). Behaves like an empty globalIndex.

Definition at line 175 of file globalIndex.H.

References globalIndex(), Foam::noexcept, and Foam::NullObjectRef().

Here is the call graph for this function:

◆ empty()

bool empty ( ) const

inlinenoexcept

Check for default constructed or total-size == 0.

Definition at line 173 of file globalIndexI.H.

References Foam::noexcept.

Referenced by globalIndex().

Here is the caller graph for this function:

◆ length()

Foam::label length ( ) const

inlinenoexcept

The number of items covered by the offsets.

Definition at line 186 of file globalIndexI.H.

References Foam::noexcept.

Referenced by cbegin(), cend(), end(), globalIndex(), and nProcs().

Here is the caller graph for this function:

◆ size()

label size ( ) const

inlinenoexcept

Global sum of localSizes. Same as totalSize().

Definition at line 285 of file globalIndex.H.

References Foam::noexcept, size(), and totalSize().

Referenced by size().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ span()

Foam::label span ( ) const

inlinenoexcept

The span size covered by the offsets, zero if empty.

Definition at line 193 of file globalIndexI.H.

References begin_value(), end_value(), and Foam::noexcept.

Here is the call graph for this function:

◆ totalSize()

Foam::label totalSize ( ) const

inlinenoexcept

The total addressed size, which corresponds to the end offset and also the sum of all localSizes.

Definition at line 218 of file globalIndexI.H.

References end_value(), and Foam::noexcept.

Referenced by nearWallFields::calcAddressing(), cyclicAMIGAMGInterface::cyclicAMIGAMGInterface(), cyclicAMIGAMGInterface::cyclicAMIGAMGInterface(), metisLikeDecomp::decomposeGeneral(), distributedTriSurfaceMesh::globalSize(), regionSplit::nRegions(), SprayCloud< CloudType >::penetration(), size(), and streamLineBase::writeToFile().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ sizes()

Foam::labelList sizes ( ) const

inline

The local sizes. Same as localSizes().

Definition at line 224 of file globalIndexI.H.

References localSizes().

Here is the call graph for this function:

◆ localStarts()

const Foam::labelUList localStarts ( ) const

inline

The local starts.

Definition at line 270 of file globalIndexI.H.

References UList< label >::null().

Here is the call graph for this function:

◆ localSizes()

labelList localSizes ( ) const

The local sizes.

References localSizes().

Referenced by globalIndex(), globalIndex(), localSizes(), and sizes().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ranges()

List< labelRange > ranges ( ) const

Return start/size ranges for all data.

References allProcs(), begin_value(), end_value(), maxSize(), Foam::noexcept, nProcs(), offsets(), ranges(), single(), and subProcs().

Referenced by ranges().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ maxSize()

Foam::label maxSize ( ) const

inline

Global max of localSizes.

Definition at line 319 of file globalIndexI.H.

References maxNonLocalSize().

Referenced by ranges().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ offsets() [1/2]

const Foam::labelList & offsets ( ) const

inlinenoexcept

Const-access to the offsets.

Definition at line 252 of file globalIndexI.H.

References Foam::noexcept.

Referenced by surfaceNoise::calculate(), gather(), gather(), gatherInplace(), operator<(), operator==(), ranges(), and scatter().

Here is the caller graph for this function:

◆ offsets() [2/2]

Foam::labelList & offsets ( )

inlinenoexcept

Write-access to the offsets, for changing after construction.

Definition at line 258 of file globalIndexI.H.

References Foam::noexcept.

◆ single()

bool single ( ) const

inlinenoexcept

True if local-only content (ie, nProcs == 1). Such content is often created with gatherNone.

Definition at line 180 of file globalIndexI.H.

References Foam::noexcept.

Referenced by ranges().

Here is the caller graph for this function:

◆ nProcs()

Foam::label nProcs ( ) const

inlinenoexcept

The number of processors covered by the offsets, same as the primary length().

Definition at line 230 of file globalIndexI.H.

References length(), and Foam::noexcept.

Referenced by ranges().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ allProcs()

Foam::labelRange allProcs ( ) const

inlinenoexcept

Range of process indices for all addressed offsets (processes).

Definition at line 236 of file globalIndexI.H.

References Foam::noexcept.

Referenced by ranges().

Here is the caller graph for this function:

◆ subProcs()

Foam::labelRange subProcs ( ) const

inlinenoexcept

Range of process indices for addressed sub-offsets (processes).

Definition at line 244 of file globalIndexI.H.

References Foam::noexcept.

Referenced by ZoneMesh< ZoneType, MeshType >::checkParallelSync(), metisLikeDecomp::decomposeGeneral(), PatchTools::gatherAndMerge(), and ranges().

Here is the caller graph for this function:

◆ begin_value()

Foam::label begin_value ( ) const

inlinenoexcept

The value corresponding to the first offset.

Definition at line 199 of file globalIndexI.H.

References Foam::noexcept.

Referenced by contains(), ranges(), and span().

Here is the caller graph for this function:

◆ end_value()

Foam::label end_value ( ) const

inlinenoexcept

The value corresponding to the last offset (end offset), which is 1 beyond the end of the range.

Definition at line 205 of file globalIndexI.H.

References Foam::noexcept.

Referenced by contains(), ranges(), span(), and totalSize().

Here is the caller graph for this function:

◆ front()

labelRange front ( ) const

The first offset range. It is (0,0) if globalIndex is empty.

References front().

Referenced by front().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ back()

labelRange back ( ) const

The last offset range. It is (0,0) if globalIndex is empty.

References back(), and clear().

Referenced by back().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ clear()

void clear ( )

inline

Reset to be empty (no offsets).

Definition at line 264 of file globalIndexI.H.

Referenced by back().

Here is the caller graph for this function:

◆ resize()

void resize ( const label n )

Change the number of entries (nProcs) in the offsets table. Extending will fill with empty local sizes.

References n, and resize().

Referenced by resize().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ reset() [1/7]

void reset	(	label	localSize,
		const label	comm = UPstream::worldComm,
		const bool	parallel = UPstream::parRun() )

Reset from local size, using gather/broadcast with default/specified communicator if parallel.

Parameters

comm	communicator
parallel	use parallel comms

References localSize(), and reset().

Referenced by snappyLayerDriver::addLayers(), surfaceNoise::calculate(), PatchTools::gatherAndMerge(), globalIndex(), reset(), reset(), and reset().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ reset() [2/7]

void reset	(	const labelUList &	counts,
		const bool	checkOverflow = false )

Reset offsets from a list of local sizes, with optional check for label overflow. No communication required.

References globalIndex(), localSize(), and reset().

Here is the call graph for this function:

◆ reset() [3/7]

void reset	(	globalIndex::gatherNone	,
		label	localSize,
		int	communicator = -1 )

inline

Reset to a single (local size) entry, no communication.

Parameters

communicator (unused) no communicator needed

Definition at line 573 of file globalIndexI.H.

References localSize().

Here is the call graph for this function:

◆ reset() [4/7]

void reset	(	globalIndex::gatherOnly	,
		label	localSize,
		const label	comm = UPstream::worldComm )

inline

Reset as 'one-sided' from local sizes. Uses UPstream::listGatherValues, but no broadcast. Will be empty on non-master processes.

Note: can be used when Pstream::parRun() is false.

Parameters

comm	communicator

Definition at line 586 of file globalIndexI.H.

References UPstream::listGatherValues(), localSize(), and reset().

Here is the call graph for this function:

◆ reset() [5/7]

void reset	(	globalIndex::gatherNonLocal	,
		label	localSize,
		const label	comm = UPstream::worldComm )

inline

Reset as 'one-sided' from the non-master local sizes (ie, master size is treated as 0). Uses UPstream::listGatherValues, but no broadcast. Will be empty on non-master processes.

Note: can be used when Pstream::parRun() is false.

Parameters

comm	communicator

Definition at line 598 of file globalIndexI.H.

References UPstream::listGatherValues(), localSize(), UPstream::master(), and reset().

Here is the call graph for this function:

◆ reset() [6/7]

void reset ( const globalIndex & gi )

inline

Reset the globalIndex. Same as copy assignment.

Definition at line 611 of file globalIndexI.H.

References globalIndex(), and Foam::rhs().

Here is the call graph for this function:

◆ setLocalSize()

void setLocalSize	(	const label	proci,
		const label	len )

Alter local size for given processor.

References contains(), localEnd(), localSize(), localStart(), Foam::noexcept, and setLocalSize().

Referenced by setLocalSize().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ contains()

bool contains ( const label i ) const

inlinenoexcept

True if contained within the offsets range.

Definition at line 212 of file globalIndexI.H.

References begin_value(), and end_value().

Referenced by setLocalSize().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ localStart() [1/2]

Foam::label localStart ( const label proci ) const

inline

Start of proci data.

Definition at line 283 of file globalIndexI.H.

Referenced by Foam::calcCellCellsImpl(), viewFactor::calculate(), lduPrimitiveMesh::globalCellCells(), localStart(), maxNonLocalSize(), and setLocalSize().

Here is the caller graph for this function:

◆ localEnd() [1/2]

Foam::label localEnd ( const label proci ) const

inline

End of proci data.

Definition at line 295 of file globalIndexI.H.

Referenced by localEnd(), maxNonLocalSize(), and setLocalSize().

Here is the caller graph for this function:

◆ localSize() [1/2]

Foam::label localSize ( const label proci ) const

inline

Size of proci data.

Definition at line 307 of file globalIndexI.H.

Referenced by holeToFace::calcClosure(), calcOffset(), calcOffset(), createShellMesh::calcPointRegions(), calcRange(), calcRange(), calcRecvSizes(), viewFactor::calculate(), metisLikeDecomp::decomposeGeneral(), globalIndex(), globalIndex(), globalIndex(), globalIndex(), globalIndex(), globalIndex(), localSize(), maxNonLocalSize(), regionSplit::nLocalRegions(), surfaceNoise::readSurfaceData(), reset(), reset(), reset(), reset(), reset(), reset(), setLocalSize(), and streamLineBase::writeToFile().

Here is the caller graph for this function:

◆ maxNonLocalSize() [1/2]

label maxNonLocalSize ( const label proci ) const

The max of localSizes, excluding the specified processor.

References findProc(), findProcAbove(), findProcBelow(), inplaceToGlobal(), isLocal(), localEnd(), localSize(), localStart(), maxNonLocalSize(), Foam::noexcept, range(), slice(), toGlobal(), toLocal(), and whichProcID().

Referenced by maxNonLocalSize(), maxNonLocalSize(), and maxSize().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ range() [1/2]

Foam::labelRange range ( label proci ) const

inlinenoexcept

Return start/size range of proci data.

Definition at line 332 of file globalIndexI.H.

Referenced by ZoneMesh< ZoneType, MeshType >::checkParallelSync(), metisLikeDecomp::decomposeGeneral(), PatchTools::gatherAndMerge(), meshRefinement::getMasterEdges(), cellCellStencil::globalCellCells(), GAMGProcAgglomeration::globalCellCells(), maxNonLocalSize(), and surfaceNoise::readSurfaceData().

Here is the caller graph for this function:

◆ slice() [1/2]

Foam::OffsetRange< Foam::label > slice ( label proci ) const

inlinenoexcept

Return start/size/total slab addressing for proci data.

Definition at line 345 of file globalIndexI.H.

Referenced by findProc(), findProcBelow(), and maxNonLocalSize().

Here is the caller graph for this function:

◆ isLocal() [1/2]

bool isLocal	(	const label	proci,
		const label	i ) const

inline

Is on processor proci.

Definition at line 358 of file globalIndexI.H.

Referenced by Foam::calcCellCellsImpl(), mapDistributeBase::calcCompactAddressing(), mapDistributeBase::calcCompactAddressing(), addPatchCellLayer::calcExtrudeInfo(), refinementParameters::findCells(), findProc(), fluxSummary::initialiseCellZoneAndDirection(), isLocal(), mapDistribute::mapDistributeBase(), maxNonLocalSize(), regionSplit2D::regionSplit2D(), and mapDistributeBase::renumber().

Here is the caller graph for this function:

◆ toGlobal() [1/4]

Foam::label toGlobal	(	const label	proci,
		const label	i ) const

inline

From local to global on proci.

Definition at line 371 of file globalIndexI.H.

Referenced by MGridGenGAMGAgglomeration::agglomerate(), nearWallFields::calcAddressing(), Foam::calcCellCellsImpl(), holeToFace::calcClosure(), createShellMesh::calcPointRegions(), viewFactor::calculate(), cyclicAMIGAMGInterface::cyclicAMIGAMGInterface(), cyclicAMIGAMGInterface::cyclicAMIGAMGInterface(), refinementParameters::findCells(), meshRefinement::getMasterEdges(), cellCellStencil::globalCellCells(), addPatchCellLayer::globalEdgeFaces(), inverseDistance::holeExtrapolationStencil(), viewFactor::initialise(), fluxSummary::initialiseCellZoneAndDirection(), viewFactor::insertMatrixElements(), inverseDistance::markDonors(), maxNonLocalSize(), globalMeshData::mergePoints(), globalMeshData::mergePoints(), regionSplit2D::regionSplit2D(), structuredRenumber::renumber(), faMeshBoundaryHalo::reset(), addPatchCellLayer::setRefinement(), toGlobal(), toGlobal(), cellVolumeWeight::update(), and oversetFvMeshBase::updateAddressing().

Here is the caller graph for this function:

◆ toGlobal() [2/4]

Foam::labelList toGlobal	(	const label	proci,
		const labelUList &	labels ) const

inline

From local to global on proci.

Definition at line 387 of file globalIndexI.H.

References inplaceToGlobal().

Here is the call graph for this function:

◆ inplaceToGlobal() [1/2]

void inplaceToGlobal	(	const label	proci,
		labelUList &	labels ) const

inline

From local to global index on proci (inplace).

Definition at line 414 of file globalIndexI.H.

Referenced by faceAreaWeightAMI2D::calculate(), faceAreaWeightAMI::calculate(), metisLikeDecomp::decomposeGeneral(), PatchTools::gatherAndMerge(), inverseDistance::holeExtrapolationStencil(), inplaceToGlobal(), maxNonLocalSize(), cyclicAMIPolyPatch::setAMIFaces(), and toGlobal().

Here is the caller graph for this function:

◆ toLocal() [1/2]

Foam::label toLocal	(	const label	proci,
		const label	i ) const

inline

From global to local on proci.

Definition at line 437 of file globalIndexI.H.

References Foam::abort(), Foam::FatalError, FatalErrorInFunction, and Foam::nl.

Referenced by fvMeshPrimitiveLduAddressing::addAddressing(), Foam::calcCellCellsImpl(), mapDistributeBase::calcCompactAddressing(), addPatchCellLayer::calcExtrudeInfo(), viewFactor::calculate(), refinementParameters::findCells(), viewFactor::initialise(), fluxSummary::initialiseCellZoneAndDirection(), distributedTriSurfaceMesh::localQueries(), maxNonLocalSize(), mapDistributeBase::renumber(), toLocal(), and oversetFvMeshBase::updateAddressing().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ findProc()

Foam::label findProc	(	const label	proci,
		const label	i ) const

inline

Find processor with specified global id. Check proci first, followed by binary search.

Returns: the processor number or -1 (not found)

Definition at line 458 of file globalIndexI.H.

References Foam::findLower(), isLocal(), and slice().

Referenced by maxNonLocalSize(), and whichProcID().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ findProcAbove()

Foam::label findProcAbove	(	const label	proci,
		const label	i ) const

inline

Find processor above proci with specified global id - binary search.

Returns: the processor above proci or -1 otherwise (including for out-of-range indices)

Definition at line 497 of file globalIndexI.H.

References Foam::findLower().

Referenced by maxNonLocalSize().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ findProcBelow()

Foam::label findProcBelow	(	const label	proci,
		const label	i ) const

inline

Find processor below proci with specified global id - binary search.

Binary search.

Returns: the processor below proci or -1 otherwise (including for out-of-range indices)

Definition at line 520 of file globalIndexI.H.

References Foam::findLower(), and slice().

Referenced by maxNonLocalSize().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ whichProcID() [1/2]

Foam::label whichProcID	(	const label	proci,
		const label	i ) const

inline

Which processor does global id come from? Checks proci first (assumed to occur reasonably frequently) followed by a binary search. Fatal for out-of-range indices.

Definition at line 544 of file globalIndexI.H.

References Foam::abort(), Foam::FatalError, FatalErrorInFunction, findProc(), and Foam::nl.

Referenced by fvMeshPrimitiveLduAddressing::addAddressing(), mapDistributeBase::calcCompactAddressing(), mapDistributeBase::calcCompactAddressing(), addPatchCellLayer::calcExtrudeInfo(), viewFactor::calculate(), refinementParameters::findCells(), distributedTriSurfaceMesh::findNearest(), viewFactor::initialise(), distributedTriSurfaceMesh::localQueries(), mapDistribute::mapDistributeBase(), maxNonLocalSize(), mapDistributeBase::renumber(), oversetFvMeshBase::updateAddressing(), and whichProcID().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ localStart() [2/2]

Foam::label localStart ( ) const

inline

Local start on myProcNo().

Definition at line 289 of file globalIndexI.H.

References localStart(), UPstream::myProcNo(), and UPstream::worldComm.

Referenced by offset().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ localEnd() [2/2]

Foam::label localEnd ( ) const

inline

Local end on myProcNo().

Definition at line 301 of file globalIndexI.H.

References localEnd(), UPstream::myProcNo(), and UPstream::worldComm.

Here is the call graph for this function:

◆ localSize() [2/2]

Foam::label localSize ( ) const

inline

Local size on myProcNo().

Definition at line 313 of file globalIndexI.H.

References localSize(), UPstream::myProcNo(), and UPstream::worldComm.

Here is the call graph for this function:

◆ maxNonLocalSize() [2/2]

Foam::label maxNonLocalSize ( ) const

inline

The max of localSizes, excluding current (myProcNo) rank.

Definition at line 326 of file globalIndexI.H.

References maxNonLocalSize(), UPstream::myProcNo(), and UPstream::worldComm.

Here is the call graph for this function:

◆ range() [2/2]

Foam::labelRange range ( ) const

inline

Return start/size range of local (myProcNo) data.

Definition at line 338 of file globalIndexI.H.

References UPstream::myProcNo(), and UPstream::worldComm.

Here is the call graph for this function:

◆ slice() [2/2]

Foam::OffsetRange< Foam::label > slice ( ) const

inline

Return start/size/total slab addressing for local (myProcNo) data.

Definition at line 352 of file globalIndexI.H.

References UPstream::myProcNo(), and UPstream::worldComm.

Here is the call graph for this function:

◆ isLocal() [2/2]

bool isLocal ( const label i ) const

inline

Is on local processor.

Definition at line 365 of file globalIndexI.H.

References isLocal(), UPstream::myProcNo(), and UPstream::worldComm.

Here is the call graph for this function:

◆ toGlobal() [3/4]

Foam::label toGlobal ( const label i ) const

inline

From local to global index.

Definition at line 381 of file globalIndexI.H.

References UPstream::myProcNo(), toGlobal(), and UPstream::worldComm.

Here is the call graph for this function:

◆ toGlobal() [4/4]

Foam::labelList toGlobal ( const labelUList & labels ) const

inline

From local to global index.

Definition at line 405 of file globalIndexI.H.

References UPstream::myProcNo(), toGlobal(), and UPstream::worldComm.

Here is the call graph for this function:

◆ inplaceToGlobal() [2/2]

void inplaceToGlobal ( labelUList & labels ) const

inline

From local to global index (inplace).

Definition at line 430 of file globalIndexI.H.

References inplaceToGlobal(), UPstream::myProcNo(), and UPstream::worldComm.

Here is the call graph for this function:

◆ toLocal() [2/2]

Foam::label toLocal ( const label i ) const

inline

From global to local on current processor.

FatalError if not on local processor.

Definition at line 452 of file globalIndexI.H.

References UPstream::myProcNo(), toLocal(), and UPstream::worldComm.

Here is the call graph for this function:

◆ whichProcID() [2/2]

Foam::label whichProcID ( const label i ) const

inline

Which processor does global id come from?

Uses myProcNo for the initial local check.

Definition at line 564 of file globalIndexI.H.

References UPstream::myProcNo(), whichProcID(), and UPstream::worldComm.

Here is the call graph for this function:

◆ cbegin() [1/2]

Foam::globalIndex::const_iterator cbegin ( ) const

inlinenoexcept

A const_iterator set to the beginning.

Definition at line 733 of file globalIndexI.H.

References Foam::noexcept.

Referenced by begin().

Here is the caller graph for this function:

◆ cend()

const Foam::globalIndex::const_iterator cend ( ) const

inlinenoexcept

A const_iterator set to beyond the end.

Definition at line 740 of file globalIndexI.H.

References length(), and Foam::noexcept.

Here is the call graph for this function:

◆ begin() [1/2]

Foam::globalIndex::const_iterator begin ( ) const

inlinenoexcept

A const_iterator set to the beginning.

Definition at line 747 of file globalIndexI.H.

References Foam::noexcept.

◆ end()

const Foam::globalIndex::const_iterator end ( ) const

inlinenoexcept

A const_iterator set to beyond the end.

Definition at line 754 of file globalIndexI.H.

References length(), and Foam::noexcept.

Here is the call graph for this function:

◆ cbegin() [2/2]

Foam::globalIndex::const_iterator cbegin ( const label proci ) const

inlinenoexcept

Return const_iterator at offset proci from begin, clamped to [0,nProcs] range.

Definition at line 761 of file globalIndexI.H.

References length().

Here is the call graph for this function:

◆ begin() [2/2]

Foam::globalIndex::const_iterator begin ( const label proci ) const

inlinenoexcept

Return const_iterator at offset proci from begin, clamped to [0,nProcs] range.

Definition at line 769 of file globalIndexI.H.

References cbegin().

Here is the call graph for this function:

◆ calcOffset() [1/2]

template<class IntType>

IntType calcOffset	(	IntType	localSize,
		const label	comm = UPstream::worldComm )

static

Based on the local input size(s), calculate a globally-consistent local start offset.

No overflow checks.

Note: Restricted to integral types.

Parameters

comm	communicator

References calcOffset(), and localSize().

Referenced by calcOffset(), calcOffset(), calcRange(), calcRange(), regionSplit2D::regionSplit2D(), and topOVariablesBase::writeFluidSolidInterface().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ calcOffset() [2/2]

template<class IntType>

IntType calcOffset	(	IntType	localSize,
		const label	comm,
		const bool	checkOverflow )

inlinestatic

Based on the local input size(s), calculate a globally-consistent local start offset.

With optional overflow checking.

Note: Restricted to integral types.

Parameters

comm	communicator

Definition at line 779 of file globalIndex.H.

References calcOffset(), UPstream::is_parallel(), localSize(), and UPstream::myProcNo().

Here is the call graph for this function:

◆ calcRange() [1/2]

template<class IntType>

std::enable_if_t< std::is_integral_v< IntType >, IntRange< IntType > > calcRange	(	IntType	localSize,
		const label	comm = UPstream::worldComm )

inlinestatic

Based on the local input size(s), calculate a globally-consistent range (offset/size).

No overflow checks.

Note: Restricted to integral types.

Parameters

comm	communicator

Definition at line 810 of file globalIndex.H.

References calcOffset(), localSize(), and UPstream::worldComm.

Here is the call graph for this function:

◆ calcRange() [2/2]

template<class IntType>

std::enable_if_t< std::is_integral_v< IntType >, IntRange< IntType > > calcRange	(	IntType	localSize,
		const label	comm,
		const bool	checkOverflow )

inlinestatic

Based on the local input size(s), calculate a globally-consistent range (offset/size). With optional overflow checking.

Note: Restricted to integral types.

Parameters

comm	communicator

Definition at line 829 of file globalIndex.H.

References calcOffset(), and localSize().

Here is the call graph for this function:

◆ calcRecvSizes()

template<class IntType>

List< IntType > calcRecvSizes	(	IntType	localSize,
		const label	comm = UPstream::worldComm )

static

Get the receive sizes. On master the length == nProcs and element [0] corresponds to the max of all other receive sizes. On non-master, the list is zero-sized.

Note: Restricted to integral types.

Parameters

comm	communicator

References localSize(), and UPstream::worldComm.

Here is the call graph for this function:

◆ calcOffsets() [1/2]

labelList calcOffsets	(	const labelUList &	counts,
		const bool	checkOverflow = false )

static

Calculate offsets from a list of local sizes, with optional check for label overflow.

◆ calcOffsets() [2/2]

template<class Addr>

labelList calcOffsets	(	const IndirectListBase< label, Addr > &	counts,
		const bool	checkOverflow = false )

static

Calculate offsets from an indirect list of local sizes, with optional check for label overflow.

◆ calcListOffsets()

template<class SubListType>

labelList calcListOffsets	(	const List< SubListType > &	lists,
		const bool	checkOverflow = false )

static

Calculate offsets from list of lists, with optional check for label overflow.

◆ calcRanges()

List< labelRange > calcRanges	(	const labelUList &	counts,
		const bool	checkOverflow = false )

static

Calculate ranges (offset/size) from a list of local sizes, with optional check for label overflow.

◆ splitNodeOffsets()

bool splitNodeOffsets	(	labelList &	interNodeOffsets,
		labelList &	localNodeOffsets,
		const label	communicator = UPstream::worldComm,
		const bool	absoluteLocalNodeOffsets = false ) const

Split the top-level offsets into inter-node and local-node components suitable to a two-stage hierarchy.

Parameters

[out]	interNodeOffsets	Offsets between nodes (only non-empty on node leaders)
[out]	localNodeOffsets	Offsets within a node (only non-empty on node leaders)
	communicator	The communicator. Must resolve to const world-comm
	absoluteLocalNodeOffsets	Retain absolute values for the localNode offsets

References UPstream::worldComm.

◆ listGatherValues()

template<class ProcIDsContainer, class Type>

List< Type > listGatherValues	(	const label	comm,
		const ProcIDsContainer &	procIDs,
		const Type &	localValue,
		const int	tag = UPstream::msgType(),
		UPstream::commsTypes	commsType = UPstream::commsTypes::nonBlocking )

staticnodiscard

Collect single values in processor order on master (== procIDs[0]).

Handles contiguous/non-contiguous data. non-zero output field (master only)

Parameters

comm	communicator

References UPstream::msgType(), and UPstream::nonBlocking.

Referenced by GAMGAgglomeration::procAgglomerateRestrictAddressing().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ gather() [1/7]

template<class ProcIDsContainer, class Type>

void gather	(	const labelUList &	offsets,
		const label	comm,
		const ProcIDsContainer &	procIDs,
		const UList< Type > &	fld,
		UList< Type > &	allFld,
		const int	tag = UPstream::msgType(),
		UPstream::commsTypes	commsType = UPstream::commsTypes::nonBlocking )

static

Collect data in processor order on master (== procIDs[0]).

Handles contiguous/non-contiguous data, skips empty fields.

Parameters

	offsets	offsets (master only)
	comm	communicator
[in]	fld	all ranks
[out]	allFld	result (master only). Must be adequately sized!

References fld(), UPstream::msgType(), UPstream::nonBlocking, and offsets().

Referenced by ZoneMesh< ZoneType, MeshType >::checkParallelSync(), simpleGeomDecomp::decompose(), metisLikeDecomp::decomposeGeneral(), PatchTools::gatherAndMerge(), surfaceWriter::mergeFieldTemplate(), GAMGAgglomeration::procAgglomerateRestrictAddressing(), surfaceNoise::surfaceAverage(), and surfaceNoise::writeSurfaceData().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ gather() [2/7]

template<class ProcIDsContainer, class Type, class Addr>

void gather	(	const labelUList &	offsets,
		const label	comm,
		const ProcIDsContainer &	procIDs,
		const IndirectListBase< Type, Addr > &	fld,
		UList< Type > &	allFld,
		const int	tag = UPstream::msgType(),
		UPstream::commsTypes	commsType = UPstream::commsTypes::nonBlocking )

static

Collect indirect data in processor order on master.

Handles contiguous/non-contiguous data, skips empty fields.

Parameters

	offsets	offsets (master only)
	comm	communicator
[in]	fld	all ranks
[out]	allFld	result (master only). Must be adequately sized!

References fld(), UPstream::msgType(), UPstream::nonBlocking, and offsets().

Here is the call graph for this function:

◆ gatherInplace() [1/3]

template<class ProcIDsContainer, class Type>

void gatherInplace	(	const labelUList &	offsets,
		const label	comm,
		const ProcIDsContainer &	procIDs,
		List< Type > &	fld,
		const int	tag = UPstream::msgType(),
		UPstream::commsTypes	commsType = UPstream::commsTypes::nonBlocking )

static

Inplace collect in processor order on master (== procIDs[0]).

Parameters

	offsets	offsets (master only)
	comm	communicator
[in,out]	fld

References fld(), UPstream::msgType(), UPstream::nonBlocking, and offsets().

Referenced by gatherInplace(), SprayCloud< CloudType >::penetration(), and GAMGAgglomeration::restrictField().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ gather() [3/7]

template<class ProcIDsContainer, class Type>

void gather	(	const label	comm,
		const ProcIDsContainer &	procIDs,
		const UList< Type > &	fld,
		List< Type > &	allFld,
		const int	tag = UPstream::msgType(),
		UPstream::commsTypes	commsType = UPstream::commsTypes::nonBlocking ) const

Collect data in processor order on master (== procIDs[0]).

Note: the globalIndex offsets needed on master only.

Parameters

	comm	communicator
[in]	fld	input field
[out]	allFld	resized to have results on master, empty elsewhere.

References fld(), UPstream::msgType(), and UPstream::nonBlocking.

Here is the call graph for this function:

◆ gatherInplace() [2/3]

template<class ProcIDsContainer, class Type>

void gatherInplace	(	const label	comm,
		const ProcIDsContainer &	procIDs,
		List< Type > &	fld,
		const int	tag = UPstream::msgType(),
		UPstream::commsTypes	commsType = UPstream::commsTypes::nonBlocking ) const

inline

Inplace collect in processor order on master (== procIDs[0]).

Note: the globalIndex offsets needed on master only.

Parameters

	comm	communicator
[in,out]	fld

Definition at line 1007 of file globalIndex.H.

References fld(), gatherInplace(), UPstream::msgType(), and UPstream::nonBlocking.

Here is the call graph for this function:

◆ gather() [4/7]

template<class Type>

void gather	(	const UList< Type > &	sendData,
		List< Type > &	allData,
		const int	tag = UPstream::msgType(),
		UPstream::commsTypes	commsType = UPstream::commsTypes::nonBlocking,
		const label	comm = UPstream::worldComm ) const

Collect data in processor order on master (in serial: performs a simple copy).

Communication with default/specified communicator, message tag.

Parameters

[in]	sendData	input on all ranks
[out]	allData	resized to have results on master, empty elsewhere.
	comm	communicator

References UPstream::msgType(), UPstream::nonBlocking, and UPstream::worldComm.

Here is the call graph for this function:

◆ gather() [5/7]

template<class Type, class Addr>

void gather	(	const IndirectListBase< Type, Addr > &	sendData,
		List< Type > &	allData,
		const int	tag = UPstream::msgType(),
		UPstream::commsTypes	commsType = UPstream::commsTypes::nonBlocking,
		const label	comm = UPstream::worldComm ) const

Collect data indirectly in processor order on master (in serial: performs a simple copy).

Communication with default/specified communicator, message tag.

Parameters

[in]	sendData	input on all ranks
[out]	allData	resized to have results on master, empty elsewhere.
	comm	communicator

References UPstream::msgType(), UPstream::nonBlocking, and UPstream::worldComm.

Here is the call graph for this function:

◆ gather() [6/7]

template<class Type, class OutputContainer = List<Type>>

OutputContainer gather	(	const UList< Type > &	sendData,
		const int	tag = UPstream::msgType(),
		UPstream::commsTypes	commsType = UPstream::commsTypes::nonBlocking,
		const label	comm = UPstream::worldComm ) const

nodiscard

Collect data in processor order on master (in serial: performs a simple copy).

Communication with default/specified communicator, message tag.

Returns: output (master), zero-sized on non-master

Parameters

[in]	sendData	all ranks
	comm	communicator

References UPstream::msgType(), UPstream::nonBlocking, and UPstream::worldComm.

Here is the call graph for this function:

◆ gather() [7/7]

template<class Type, class Addr, class OutputContainer = List<Type>>

OutputContainer gather	(	const IndirectListBase< Type, Addr > &	sendData,
		const int	tag = UPstream::msgType(),
		UPstream::commsTypes	commsType = UPstream::commsTypes::nonBlocking,
		const label	comm = UPstream::worldComm ) const

nodiscard

Collect data indirectly in processor order on master.

Communication with default/specified communicator, message tag.

Returns: output (master), zero-sized on non-master

Parameters

[in]	sendData	all ranks
	comm	communicator

References UPstream::msgType(), UPstream::nonBlocking, and UPstream::worldComm.

Here is the call graph for this function:

◆ gatherInplace() [3/3]

template<class Type>

void gatherInplace	(	List< Type > &	fld,
		const int	tag = UPstream::msgType(),
		UPstream::commsTypes	commsType = UPstream::commsTypes::nonBlocking,
		const label	comm = UPstream::worldComm ) const

Inplace collect data in processor order on master (in serial: a no-op).

Communication with default/specified communicator, message tag. After the gather, the field is zero-sized on non-master.

Parameters

[in,out]	fld
	comm	communicator

References fld(), UPstream::msgType(), UPstream::nonBlocking, and UPstream::worldComm.

Here is the call graph for this function:

◆ mpiGather() [1/2]

template<class Type, class OutputContainer = List<Type>>

void mpiGather	(	const UList< Type > &	sendData,
		OutputContainer &	allData,
		const label	comm = UPstream::worldComm,
		UPstream::commsTypes	commsType = UPstream::commsTypes::nonBlocking,
		const int	tag = UPstream::msgType() ) const

Use MPI_Gatherv call for contiguous data when possible (in serial: performs a simple copy).

Communication with default/specified communicator.

Attention: The nProcs for globalIndex and communicator must match!!

Parameters

[out]	allData	output on master, zero-sized on non-master
	comm	communicator

References UPstream::msgType(), UPstream::nonBlocking, and UPstream::worldComm.

Referenced by surfaceWriter::mergeFieldTemplate().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ mpiGather() [2/2]

template<class Type, class OutputContainer = List<Type>>

OutputContainer mpiGather	(	const UList< Type > &	sendData,
		const label	comm = UPstream::worldComm,
		UPstream::commsTypes	commsType = UPstream::commsTypes::nonBlocking,
		const int	tag = UPstream::msgType() ) const

nodiscard

Use MPI_Gatherv call for contiguous data when possible (in serial: performs a simple copy).

Communication with default/specified communicator.

Attention: The nProcs for globalIndex and communicator must match!!

Returns: output (master), zero-sized on non-master

Parameters

comm	communicator

References UPstream::msgType(), UPstream::nonBlocking, and UPstream::worldComm.

Here is the call graph for this function:

◆ mpiGatherInplace()

template<class Type>

void mpiGatherInplace	(	List< Type > &	fld,
		const label	comm = UPstream::worldComm,
		UPstream::commsTypes	commsType = UPstream::commsTypes::nonBlocking,
		const int	tag = UPstream::msgType() ) const

Use MPI_Gatherv call to inplace collect contiguous data when possible. (in serial: a no-op).

Communication with default/specified communicator.

Attention: The nProcs for globalIndex and communicator must match!!

After the gather, the field is zero-sized on non-master.

Parameters

[in,out]	fld
	comm	communicator

References fld(), UPstream::msgType(), UPstream::nonBlocking, and UPstream::worldComm.

Here is the call graph for this function:

◆ mpiGatherOp() [1/2]

template<class Type, class OutputContainer = List<Type>>

void mpiGatherOp	(	const UList< Type > &	sendData,
		OutputContainer &	allData,
		const label	comm = UPstream::worldComm,
		UPstream::commsTypes	commsType = UPstream::commsTypes::nonBlocking,
		const int	tag = UPstream::msgType() )

static

Use MPI_Gatherv call to collect contiguous data when possible (in serial: performs a simple copy).

Communication with default/specified communicator.

The allData is output (master), zero-sized on non-master

Parameters

comm	communicator

References UPstream::msgType(), UPstream::nonBlocking, and UPstream::worldComm.

Here is the call graph for this function:

◆ mpiGatherOp() [2/2]

template<class Type, class OutputContainer = List<Type>>

OutputContainer mpiGatherOp	(	const UList< Type > &	sendData,
		const label	comm = UPstream::worldComm,
		UPstream::commsTypes	commsType = UPstream::commsTypes::nonBlocking,
		const int	tag = UPstream::msgType() )

staticnodiscard

Use MPI_Gatherv call to collect contiguous data when possible (in serial: performs a simple copy).

Communication with default/specified communicator.

Returns: output (master), zero-sized on non-master

Parameters

comm	communicator

References UPstream::msgType(), UPstream::nonBlocking, and UPstream::worldComm.

Here is the call graph for this function:

◆ mpiGatherInplaceOp()

template<class Type>

void mpiGatherInplaceOp	(	List< Type > &	fld,
		const label	comm = UPstream::worldComm,
		UPstream::commsTypes	commsType = UPstream::commsTypes::nonBlocking,
		const int	tag = UPstream::msgType() )

static

Use MPI_Gatherv call to inplace collect contiguous data when possible. (in serial: a no-op).

Communication with default/specified communicator.

After the gather, the field is zero-sized on non-master.

Parameters

[in,out]	fld
	comm	communicator

References fld(), UPstream::msgType(), UPstream::nonBlocking, and UPstream::worldComm.

Here is the call graph for this function:

◆ gatherOp() [1/4]

template<class Type>

void gatherOp	(	const UList< Type > &	sendData,
		List< Type > &	allData,
		const int	tag = UPstream::msgType(),
		UPstream::commsTypes	commsType = UPstream::commsTypes::nonBlocking,
		const label	comm = UPstream::worldComm )

static

Collect data in processor order on master (in serial: performs a simple copy).

Communication with default/specified communicator, message tag.

Parameters

[out]	allData	output on master, zero-sized on non-master
	comm	communicator

References UPstream::msgType(), UPstream::nonBlocking, and UPstream::worldComm.

Referenced by coordSet::gatherSort(), and mergedSurf::merge().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ gatherOp() [2/4]

template<class Type, class Addr>

void gatherOp	(	const IndirectListBase< Type, Addr > &	sendData,
		List< Type > &	allData,
		const int	tag = UPstream::msgType(),
		UPstream::commsTypes	commsType = UPstream::commsTypes::nonBlocking,
		const label	comm = UPstream::worldComm )

static

Collect data in processor order on master (in serial: performs a simple copy).

Communication with default/specified communicator, message tag.

Parameters

[out]	allData	output on master, zero-sized on non-master
	comm	communicator

References UPstream::msgType(), UPstream::nonBlocking, and UPstream::worldComm.

Here is the call graph for this function:

◆ gatherOp() [3/4]

template<class Type, class OutputContainer = List<Type>>

OutputContainer gatherOp	(	const UList< Type > &	sendData,
		const int	tag = UPstream::msgType(),
		UPstream::commsTypes	commsType = UPstream::commsTypes::nonBlocking,
		const label	comm = UPstream::worldComm )

staticnodiscard

Collect and return data in processor order on master (in serial: performs a simple copy).

Communication with default/specified communicator, message tag.

Returns: output (master), zero-sized on non-master

Parameters

comm	communicator

References UPstream::msgType(), UPstream::nonBlocking, and UPstream::worldComm.

Here is the call graph for this function:

◆ gatherOp() [4/4]

template<class Type, class Addr, class OutputContainer = List<Type>>

OutputContainer gatherOp	(	const IndirectListBase< Type, Addr > &	sendData,
		const int	tag = UPstream::msgType(),
		UPstream::commsTypes	commsType = UPstream::commsTypes::nonBlocking,
		const label	comm = UPstream::worldComm )

staticnodiscard

Collect and return data in processor order on master (in serial: performs a simple copy).

Communication with default/specified communicator, message tag.

Returns: output (master), zero-sized on non-master

Parameters

comm	communicator

References UPstream::msgType(), UPstream::nonBlocking, and UPstream::worldComm.

Here is the call graph for this function:

◆ gatherInplaceOp()

template<class Type>

void gatherInplaceOp	(	List< Type > &	fld,
		const int	tag = UPstream::msgType(),
		UPstream::commsTypes	commsType = UPstream::commsTypes::nonBlocking,
		const label	comm = UPstream::worldComm )

static

Inplace collect data in processor order on master (in serial: a no-op).

Communication with default/specified communicator, message tag.

After the gather, the field is zero-sized on non-master.

Parameters

[in,out]	fld
	comm	communicator

References fld(), UPstream::msgType(), UPstream::nonBlocking, and UPstream::worldComm.

Here is the call graph for this function:

◆ scatter() [1/4]

template<class ProcIDsContainer, class Type>

void scatter	(	const labelUList &	offsets,
		const label	comm,
		const ProcIDsContainer &	procIDs,
		const UList< Type > &	allFld,
		UList< Type > &	fld,
		const int	tag = UPstream::msgType(),
		UPstream::commsTypes	commsType = UPstream::commsTypes::nonBlocking )

static

Distribute data in processor order.

Requires fld to be correctly sized! Communication with default/specified communicator, message tag.

Parameters

offsets	offsets (master only)
comm	communicator

References fld(), UPstream::msgType(), UPstream::nonBlocking, and offsets().

Referenced by simpleGeomDecomp::decompose(), metisLikeDecomp::decomposeGeneral(), GAMGAgglomeration::prolongField(), GAMGAgglomeration::prolongField(), surfaceNoise::readSurfaceData(), and scatter().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ scatter() [2/4]

template<class ProcIDsContainer, class Type>

void scatter	(	const label	comm,
		const ProcIDsContainer &	procIDs,
		const UList< Type > &	allFld,
		UList< Type > &	fld,
		const int	tag = UPstream::msgType(),
		UPstream::commsTypes	commsType = UPstream::commsTypes::nonBlocking ) const

inline

Distribute data in processor order.

Requires fld to be correctly sized! Communication with default/specified communicator, message tag.

Note: the globalIndex offsets needed on master only.

Parameters

comm	communicator

Definition at line 1356 of file globalIndex.H.

References fld(), UPstream::msgType(), UPstream::nonBlocking, and scatter().

Here is the call graph for this function:

◆ scatter() [3/4]

template<class Type>

void scatter	(	const UList< Type > &	allData,
		UList< Type > &	localData,
		const int	tag = UPstream::msgType(),
		UPstream::commsTypes	commsType = UPstream::commsTypes::nonBlocking,
		const label	comm = UPstream::worldComm ) const

Distribute data in processor order.

Requires fld to be correctly sized! Communication with default/specified communicator, message tag.

Note: the globalIndex offsets needed on master only.

Parameters

comm	communicator

References UPstream::msgType(), UPstream::nonBlocking, and UPstream::worldComm.

Here is the call graph for this function:

◆ scatter() [4/4]

template<class Type, class OutputContainer = List<Type>>

OutputContainer scatter	(	const UList< Type > &	allData,
		const int	tag = UPstream::msgType(),
		UPstream::commsTypes	commsType = UPstream::commsTypes::nonBlocking,
		const label	comm = UPstream::worldComm ) const

nodiscard

Distribute data in processor order (in serial: performs a simple copy).

Communication with default/specified communicator, message tag.

Note: the globalIndex offsets needed on master only.

Parameters

comm	communicator

References UPstream::msgType(), UPstream::nonBlocking, and UPstream::worldComm.

Here is the call graph for this function:

◆ get()

template<class Type, class CombineOp>

void get	(	List< Type > &	allFld,
		const labelUList &	globalIds,
		const CombineOp &	cop,
		const label	comm = UPstream::worldComm,
		const int	tag = UPstream::msgType() ) const

Get (potentially remote) data. Elements required given as global indices.

Communication with default/specified communicator, message tag.

Parameters

comm	communicator

References UPstream::msgType(), and UPstream::worldComm.

Here is the call graph for this function:

◆ operator==()

bool operator== ( const globalIndex & rhs ) const

inline

Compare for equality - uses the offsets.

Definition at line 1428 of file globalIndex.H.

References globalIndex(), offsets(), and Foam::rhs().

Here is the call graph for this function:

◆ operator!=()

bool operator!= ( const globalIndex & rhs ) const

inline

Compare for inequality - uses the offsets.

Definition at line 1436 of file globalIndex.H.

References globalIndex(), and Foam::rhs().

Here is the call graph for this function:

◆ operator<()

bool operator< ( const globalIndex & rhs ) const

inline

Compare for less-than - uses the offsets.

Definition at line 1444 of file globalIndex.H.

References globalIndex(), offsets(), and Foam::rhs().

Here is the call graph for this function:

◆ reset() [7/7]

void reset	(	label	localSize,
		const int	tag,
		const label	comm,
		const bool	parallel )

inline

Reset from local size, using gather/broadcast with default/specified communicator if parallel.

Definition at line 1479 of file globalIndex.H.

References localSize(), and reset().

Here is the call graph for this function:

◆ offset()

label offset ( const label proci ) const

inline

Prefer localStart() to avoid confusing with offsets().

Definition at line 1494 of file globalIndex.H.

References localStart(), and offset().

Referenced by offset().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ operator>>

Istream & operator>>	(	Istream &	is,
		globalIndex &	gi )

friend

References globalIndex().

◆ operator<<

Ostream & operator<<	(	Ostream &	os,
		const globalIndex &	gi )

friend

References globalIndex(), and os().

The documentation for this class was generated from the following files:

src/OpenFOAM/parallel/globalIndex/globalIndex.H
src/OpenFOAM/parallel/globalIndex/globalIndexI.H

Classes

Public Types

Public Member Functions

Static Public Member Functions

Friends

Detailed Description

Member Typedef Documentation

◆ value_type

◆ size_type

Constructor & Destructor Documentation

◆ globalIndex() [1/10]

◆ globalIndex() [2/10]

◆ globalIndex() [3/10]

◆ globalIndex() [4/10]

◆ globalIndex() [5/10]

◆ globalIndex() [6/10]

◆ globalIndex() [7/10]

◆ globalIndex() [8/10]

◆ globalIndex() [9/10]

◆ globalIndex() [10/10]

Member Function Documentation

◆ null()

◆ empty()

◆ length()

◆ size()

◆ span()

◆ totalSize()

◆ sizes()

◆ localStarts()

◆ localSizes()

◆ ranges()

◆ maxSize()

◆ offsets() [1/2]

◆ offsets() [2/2]

◆ single()

◆ nProcs()

◆ allProcs()

◆ subProcs()

◆ begin_value()

◆ end_value()

◆ front()

◆ back()

◆ clear()

◆ resize()

◆ reset() [1/7]

◆ reset() [2/7]

◆ reset() [3/7]

◆ reset() [4/7]

◆ reset() [5/7]

◆ reset() [6/7]

◆ setLocalSize()

◆ contains()

◆ localStart() [1/2]

◆ localEnd() [1/2]

◆ localSize() [1/2]

◆ maxNonLocalSize() [1/2]

◆ range() [1/2]

◆ slice() [1/2]

◆ isLocal() [1/2]

◆ toGlobal() [1/4]

◆ toGlobal() [2/4]

◆ inplaceToGlobal() [1/2]

◆ toLocal() [1/2]

◆ findProc()

◆ findProcAbove()

◆ findProcBelow()

◆ whichProcID() [1/2]

◆ localStart() [2/2]

◆ localEnd() [2/2]

◆ localSize() [2/2]

◆ maxNonLocalSize() [2/2]

◆ range() [2/2]

◆ slice() [2/2]

◆ isLocal() [2/2]

◆ toGlobal() [3/4]

◆ toGlobal() [4/4]

◆ inplaceToGlobal() [2/2]

◆ toLocal() [2/2]

◆ whichProcID() [2/2]

◆ cbegin() [1/2]
