OneResistanceHeatTransferPhaseSystem< BasePhaseSystem > Class Template Reference

Class which models interfacial heat transfer between a number of phases. A single heat transfer model is used for each interface. More...

#include <OneResistanceHeatTransferPhaseSystem.H>

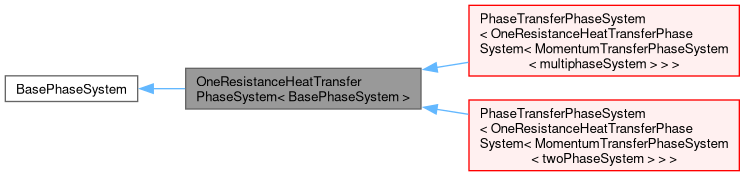

Inheritance diagram for OneResistanceHeatTransferPhaseSystem< BasePhaseSystem >:
Inheritance graph
[legend]

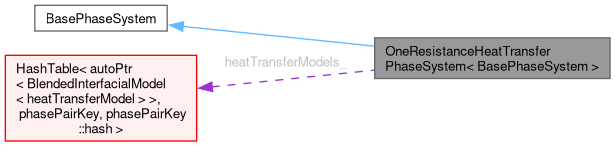

Collaboration diagram for OneResistanceHeatTransferPhaseSystem< BasePhaseSystem >:
Collaboration graph
[legend]

Public Member Functions

 OneResistanceHeatTransferPhaseSystem (const fvMesh &)
 Construct from fvMesh.
virtual ~OneResistanceHeatTransferPhaseSystem ()
 Destructor.
virtual autoPtr< phaseSystem::heatTransferTable > heatTransfer () const
 Return the heat transfer matrices.
virtual bool read ()
 Read base phaseProperties dictionary.

Protected Types

typedef HashTable< autoPtr< BlendedInterfacialModel< heatTransferModel > >, phasePairKey, phasePairKey::hash > heatTransferModelTable

Protected Attributes

heatTransferModelTable heatTransferModels_
 Heat transfer models.

Detailed Description

template<class BasePhaseSystem>
class Foam::OneResistanceHeatTransferPhaseSystem< BasePhaseSystem >

Class which models interfacial heat transfer between a number of phases. A single heat transfer model is used for each interface.

See also
TwoResistanceHeatTransferPhaseSystem
Source files

Definition at line 55 of file OneResistanceHeatTransferPhaseSystem.H.

Member Typedef Documentation

◆ heatTransferModelTable

template<class BasePhaseSystem>
typedef HashTable< autoPtr<BlendedInterfacialModel<heatTransferModel> >, phasePairKey, phasePairKey::hash > heatTransferModelTable
protected

Definition at line 68 of file OneResistanceHeatTransferPhaseSystem.H.

Constructor & Destructor Documentation

◆ OneResistanceHeatTransferPhaseSystem()

template<class BasePhaseSystem>
OneResistanceHeatTransferPhaseSystem ( const fvMesh & mesh)

Construct from fvMesh.

Definition at line 27 of file OneResistanceHeatTransferPhaseSystem.C.

References heatTransferModels_, and mesh.

◆ ~OneResistanceHeatTransferPhaseSystem()

template<class BasePhaseSystem>
~OneResistanceHeatTransferPhaseSystem ( )
virtual

Destructor.

Definition at line 47 of file OneResistanceHeatTransferPhaseSystem.C.

Member Function Documentation

◆ heatTransfer()

template<class BasePhaseSystem>
Foam::autoPtr< Foam::phaseSystem::heatTransferTable > heatTransfer ( ) const
virtual

Return the heat transfer matrices.

Definition at line 56 of file OneResistanceHeatTransferPhaseSystem.C.

References Foam::dimEnergy, Foam::dimTime, forAll, forAllConstIter, he, he2, heatTransferModels_, K1, K2, phase::name(), Foam::negPart(), phasePairKey::ordered(), phaseModel::otherPhase(), phasePair::phase1(), phase1, phasePair::phase2(), phase2, phasei, Foam::posPart(), HashPtrTable< T, Key, Hash >::set(), Foam::fvm::Sp(), GeometricField< Type, PatchField, GeoMesh >::T(), T, and phaseModel::thermo().

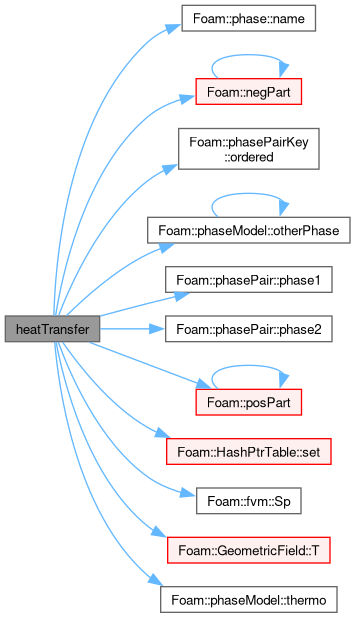

Here is the call graph for this function:

◆ read()

template<class BasePhaseSystem>
bool read ( )
virtual

Read base phaseProperties dictionary.

Reimplemented in PhaseTransferPhaseSystem< OneResistanceHeatTransferPhaseSystem< MomentumTransferPhaseSystem< multiphaseSystem > > >, PhaseTransferPhaseSystem< OneResistanceHeatTransferPhaseSystem< MomentumTransferPhaseSystem< twoPhaseSystem > > >, PopulationBalancePhaseSystem< PhaseTransferPhaseSystem< OneResistanceHeatTransferPhaseSystem< MomentumTransferPhaseSystem< multiphaseSystem > > > >, and PopulationBalancePhaseSystem< PhaseTransferPhaseSystem< OneResistanceHeatTransferPhaseSystem< MomentumTransferPhaseSystem< twoPhaseSystem > > > >.

Definition at line 147 of file OneResistanceHeatTransferPhaseSystem.C.

Member Data Documentation

◆ heatTransferModels_

template<class BasePhaseSystem>
heatTransferModelTable heatTransferModels_
protected

Heat transfer models.

Definition at line 78 of file OneResistanceHeatTransferPhaseSystem.H.

Referenced by heatTransfer(), and OneResistanceHeatTransferPhaseSystem().

The documentation for this class was generated from the following files:
