PopulationBalancePhaseSystem< BasePhaseSystem > Class Template Reference

Class which provides population balance functionality. More...

#include <PopulationBalancePhaseSystem.H>

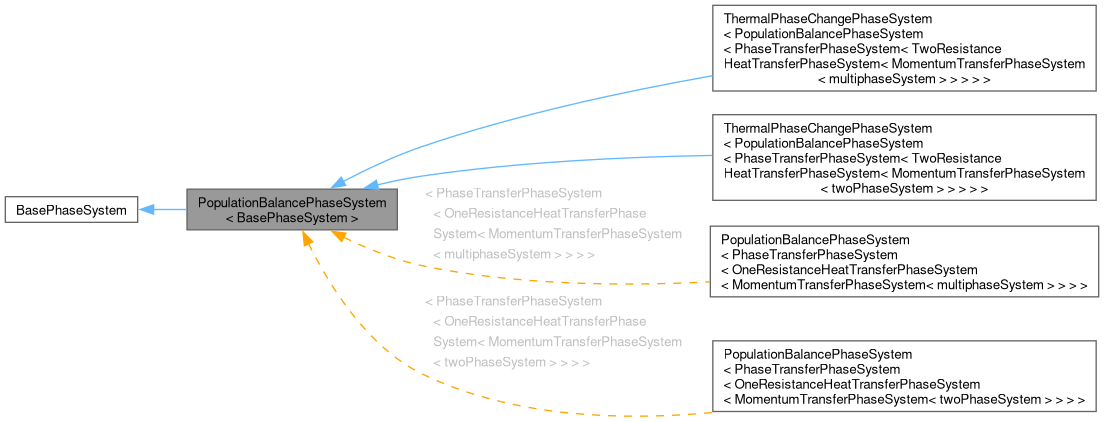

Inheritance diagram for PopulationBalancePhaseSystem< BasePhaseSystem >:
Inheritance graph
[legend]

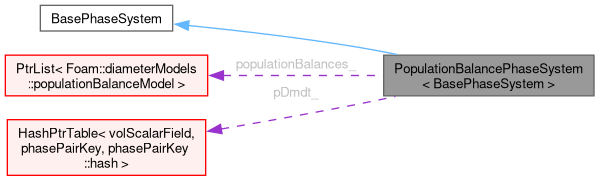

Collaboration diagram for PopulationBalancePhaseSystem< BasePhaseSystem >:
Collaboration graph
[legend]

Public Member Functions

 PopulationBalancePhaseSystem (const fvMesh &)
 Construct from fvMesh.
virtual ~PopulationBalancePhaseSystem ()
 Destructor.
virtual tmp< volScalarField > dmdt (const phasePairKey &key) const
 Return the mass transfer rate for a pair.
virtual PtrList< volScalarField > dmdts () const
 Return the mass transfer rates for each phase.
virtual autoPtr< phaseSystem::massTransferTable > massTransfer () const
 Return the mass transfer matrices.
virtual bool read ()
 Read base phaseProperties dictionary.
virtual void solve ()
 Solve all population balance equations.

Protected Types

typedef HashPtrTable< volScalarField, phasePairKey, phasePairKey::hash > pDmdtTable

Protected Member Functions

virtual tmp< volScalarField > pDmdt (const phasePairKey &key) const
 Return the population balance mass transfer rate.

Protected Attributes

PtrList< diameterModels::populationBalanceModel > populationBalances_
 populationBalanceModels
pDmdtTable pDmdt_
 Interfacial Mass transfer rate.

Detailed Description

template<class BasePhaseSystem>
class Foam::PopulationBalancePhaseSystem< BasePhaseSystem >

Class which provides population balance functionality.

See also
Foam::diameterModels::populationBalanceModel
Source files

Definition at line 51 of file PopulationBalancePhaseSystem.H.

Member Typedef Documentation

◆ pDmdtTable

template<class BasePhaseSystem>
typedef HashPtrTable<volScalarField, phasePairKey, phasePairKey::hash> pDmdtTable
protected

Definition at line 60 of file PopulationBalancePhaseSystem.H.

Constructor & Destructor Documentation

◆ PopulationBalancePhaseSystem()

template<class BasePhaseSystem>
PopulationBalancePhaseSystem ( const fvMesh & mesh)

Construct from fvMesh.

Definition at line 47 of file PopulationBalancePhaseSystem.C.

References IOobjectOption::AUTO_WRITE, Foam::dimDensity, Foam::dimTime, forAll, forAllConstIter, IOobject::groupName(), mesh, phasePair::name(), phasePairKey::ordered(), pDmdt_, populationBalanceModel::phasePairs(), populationBalances_, and IOobjectOption::READ_IF_PRESENT.

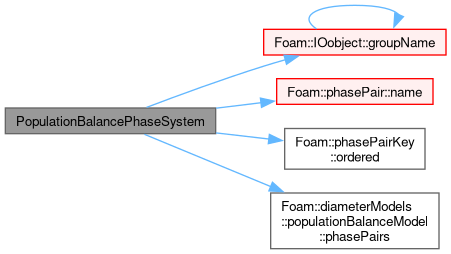

Here is the call graph for this function:

◆ ~PopulationBalancePhaseSystem()

template<class BasePhaseSystem>
~PopulationBalancePhaseSystem ( )
virtual

Destructor.

Definition at line 127 of file PopulationBalancePhaseSystem.C.

Member Function Documentation

◆ pDmdt()

template<class BasePhaseSystem>
Foam::tmp< Foam::volScalarField > pDmdt ( const phasePairKey & key) const
protectedvirtual

Return the population balance mass transfer rate.

Definition at line 28 of file PopulationBalancePhaseSystem.C.

References Pair< T >::compare(), phaseSystem::dmdt(), and pDmdt_.

Referenced by dmdt(), dmdts(), and massTransfer().

Here is the call graph for this function:
Here is the caller graph for this function:

◆ dmdt()

template<class BasePhaseSystem>
Foam::tmp< Foam::volScalarField > dmdt ( const phasePairKey & key) const
virtual

Return the mass transfer rate for a pair.

Reimplemented in ThermalPhaseChangePhaseSystem< PopulationBalancePhaseSystem< PhaseTransferPhaseSystem< TwoResistanceHeatTransferPhaseSystem< MomentumTransferPhaseSystem< multiphaseSystem > > > > >, and ThermalPhaseChangePhaseSystem< PopulationBalancePhaseSystem< PhaseTransferPhaseSystem< TwoResistanceHeatTransferPhaseSystem< MomentumTransferPhaseSystem< twoPhaseSystem > > > > >.

Definition at line 136 of file PopulationBalancePhaseSystem.C.

References pDmdt().

Referenced by massTransfer().

Here is the call graph for this function:
Here is the caller graph for this function:

◆ dmdts()

template<class BasePhaseSystem>
Foam::PtrList< Foam::volScalarField > dmdts ( ) const
virtual

Return the mass transfer rates for each phase.

Reimplemented in ThermalPhaseChangePhaseSystem< PopulationBalancePhaseSystem< PhaseTransferPhaseSystem< TwoResistanceHeatTransferPhaseSystem< MomentumTransferPhaseSystem< multiphaseSystem > > > > >, and ThermalPhaseChangePhaseSystem< PopulationBalancePhaseSystem< PhaseTransferPhaseSystem< TwoResistanceHeatTransferPhaseSystem< MomentumTransferPhaseSystem< twoPhaseSystem > > > > >.

Definition at line 147 of file PopulationBalancePhaseSystem.C.

References dmdts(), forAllConstIter, pDmdt(), pDmdt_, phasePair::phase1(), and phasePair::phase2().

Referenced by dmdts().

Here is the call graph for this function:
Here is the caller graph for this function:

◆ massTransfer()

template<class BasePhaseSystem>
Foam::autoPtr< Foam::phaseSystem::massTransferTable > massTransfer ( ) const
virtual

Return the mass transfer matrices.

Reimplemented in ThermalPhaseChangePhaseSystem< PopulationBalancePhaseSystem< PhaseTransferPhaseSystem< TwoResistanceHeatTransferPhaseSystem< MomentumTransferPhaseSystem< multiphaseSystem > > > > >, and ThermalPhaseChangePhaseSystem< PopulationBalancePhaseSystem< PhaseTransferPhaseSystem< TwoResistanceHeatTransferPhaseSystem< MomentumTransferPhaseSystem< twoPhaseSystem > > > > >.

Definition at line 166 of file PopulationBalancePhaseSystem.C.

References dmdt(), forAll, forAllConstIter, IOobject::groupName(), Foam::name(), phase::name(), phaseModel::name(), name, Foam::negPart(), phasePairKey::ordered(), pDmdt(), phasePair::phase1(), phasePair::phase2(), Foam::posPart(), psi, and Foam::fvm::Sp().

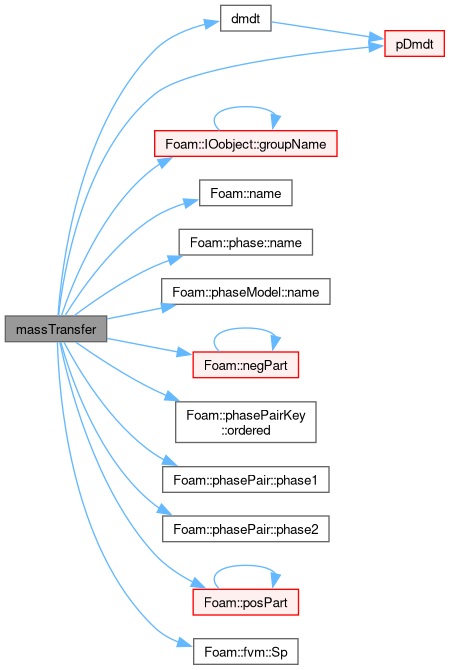

Here is the call graph for this function:

◆ read()

template<class BasePhaseSystem>
bool read ( )
virtual

Read base phaseProperties dictionary.

Reimplemented in ThermalPhaseChangePhaseSystem< PopulationBalancePhaseSystem< PhaseTransferPhaseSystem< TwoResistanceHeatTransferPhaseSystem< MomentumTransferPhaseSystem< multiphaseSystem > > > > >, and ThermalPhaseChangePhaseSystem< PopulationBalancePhaseSystem< PhaseTransferPhaseSystem< TwoResistanceHeatTransferPhaseSystem< MomentumTransferPhaseSystem< twoPhaseSystem > > > > >.

Definition at line 226 of file PopulationBalancePhaseSystem.C.

◆ solve()

template<class BasePhaseSystem>
void solve ( )
virtual

Solve all population balance equations.

Definition at line 244 of file PopulationBalancePhaseSystem.C.

References forAll, and populationBalances_.

Member Data Documentation

◆ populationBalances_

template<class BasePhaseSystem>
PtrList<diameterModels::populationBalanceModel> populationBalances_
protected

populationBalanceModels

Definition at line 68 of file PopulationBalancePhaseSystem.H.

Referenced by PopulationBalancePhaseSystem(), and solve().

◆ pDmdt_

template<class BasePhaseSystem>
pDmdtTable pDmdt_
protected

Interfacial Mass transfer rate.

Definition at line 73 of file PopulationBalancePhaseSystem.H.

Referenced by dmdts(), pDmdt(), and PopulationBalancePhaseSystem().

The documentation for this class was generated from the following files:
