PCICG< Type, DType, LUType > Class Template Reference

Preconditioned conjugate gradient solver for symmetric lduMatrices using a run-time selectable preconditioner. More...

#include <PCICG.H>

Inheritance diagram for PCICG< Type, DType, LUType >:

Collaboration diagram for PCICG< Type, DType, LUType >:

Public Member Functions
	TypeName ("PCICG")
	Runtime type information.
	PCICG (const word &fieldName, const LduMatrix< Type, DType, LUType > &matrix, const dictionary &solverDict)
	Construct from matrix components and solver data dictionary.
virtual	~PCICG ()=default
virtual SolverPerformance< Type >	solve (Field< Type > &psi) const
	Solve the matrix with this solver.
Public Member Functions inherited from LduMatrix< Type, DType, LUType >::solver
virtual const word &	type () const =0
	Runtime type information.
	declareRunTimeSelectionTable (autoPtr, solver, symMatrix,(const word &fieldName, const LduMatrix< Type, DType, LUType > &matrix, const dictionary &solverDict),(fieldName, matrix, solverDict))
	declareRunTimeSelectionTable (autoPtr, solver, asymMatrix,(const word &fieldName, const LduMatrix< Type, DType, LUType > &matrix, const dictionary &solverDict),(fieldName, matrix, solverDict))
	solver (const word &fieldName, const LduMatrix< Type, DType, LUType > &matrix, const dictionary &solverDict)
	Construct for given field name, matrix and controls.
virtual	~solver ()=default
	Destructor.
const word &	fieldName () const noexcept
const LduMatrix< Type, DType, LUType > &	matrix () const noexcept
virtual void	read (const dictionary &)
	Read and reset the solver parameters from the given dictionary.
Type	normFactor (const Field< Type > &psi, const Field< Type > &Apsi, Field< Type > &tmpField, const lduMatrix::normTypes normType) const
	Return the matrix norm using the specified norm method.
Type	normFactor (const Field< Type > &psi, const Field< Type > &Apsi, Field< Type > &tmpField) const
	Return the matrix norm used to normalise the residual for the stopping criterion.

Additional Inherited Members
Static Public Member Functions inherited from LduMatrix< Type, DType, LUType >::solver
static autoPtr< solver >	New (const word &fieldName, const LduMatrix< Type, DType, LUType > &matrix, const dictionary &solverDict)
	Return a new solver.
Protected Member Functions inherited from LduMatrix< Type, DType, LUType >::solver
virtual void	readControls ()
	Read the control parameters from controlDict_.
template<class T>
void	readControl (const dictionary &dict, T &val, const word &key)
	Deprecated(2021-09) Read control parameter from dictionary.
Protected Attributes inherited from LduMatrix< Type, DType, LUType >::solver
word	fieldName_
const LduMatrix< Type, DType, LUType > &	matrix_
dictionary	controlDict_
	Dictionary of solution controls.
int	log_
	Verbosity level for solver output statements.
label	minIter_
	Minimum number of iterations in the solver.
label	maxIter_
	Maximum number of iterations in the solver.
lduMatrix::normTypes	normType_
	The matrix normalisation type.
Type	tolerance_
	Final convergence tolerance.
Type	relTol_
	Convergence tolerance relative to the initial.

Detailed Description

template<class Type, class DType, class LUType>
class Foam::PCICG< Type, DType, LUType >

Preconditioned conjugate gradient solver for symmetric lduMatrices using a run-time selectable preconditioner.

Source files

• PCICG.H
• PCICG.C

Definition at line 49 of file PCICG.H.

Constructor & Destructor Documentation

PCICG()

template<class Type, class DType, class LUType>

PCICG	(	const word &	fieldName,
		const LduMatrix< Type, DType, LUType > &	matrix,
		const dictionary &	solverDict )

Construct from matrix components and solver data dictionary.

Definition at line 27 of file PCICG.C.

References LduMatrix< Type, DType, LUType >::solver::fieldName(), LduMatrix< Type, DType, LUType >::solver::matrix(), and LduMatrix< Type, DType, LUType >::solver::solver().

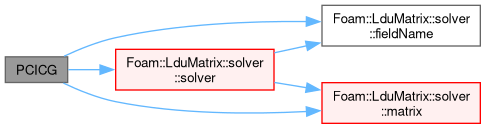

Here is the call graph for this function:

~PCICG()

template<class Type, class DType, class LUType>

virtual ~PCICG ( )

virtualdefault

References psi.

Member Function Documentation

TypeName()

template<class Type, class DType, class LUType>

TypeName

(

"PCICG< Type, DType, LUType >"

)

Runtime type information.

References LduMatrix< Type, DType, LUType >::solver::fieldName(), and LduMatrix< Type, DType, LUType >::solver::matrix().

Here is the call graph for this function:

solve()

template<class Type, class DType, class LUType>

Foam::SolverPerformance< Type > solve ( Field< Type > & psi ) const

virtual

Solve the matrix with this solver.

Implements LduMatrix< Type, DType, LUType >::solver.

Definition at line 47 of file PCICG.C.

References alpha, UList< T >::begin(), beta(), SolverPerformance< Type >::checkConvergence(), SolverPerformance< Type >::checkSingularity(), Foam::cmptDivide(), Foam::cmptMag(), Foam::cmptMultiply(), LduMatrix< Type, DType, LUType >::solver::controlDict_, Foam::endl(), LduMatrix< Type, DType, LUType >::solver::fieldName_, SolverPerformance< Type >::finalResidual(), Foam::GlobalIOList< Tuple2< scalar, vector > >::typeName, SolverPerformance< Type >::great_, Foam::gSumCmptMag(), Foam::gSumCmptProd(), Foam::Info, SolverPerformance< Type >::initialResidual(), LduMatrix< Type, DType, LUType >::solver::log_, LduMatrix< Type, DType, LUType >::solver::matrix_, LduMatrix< Type, DType, LUType >::solver::maxIter_, LduMatrix< Type, DType, LUType >::solver::minIter_, LduMatrix< Type, DType, LUType >::preconditioner::New(), SolverPerformance< Type >::nIterations(), LduMatrix< Type, DType, LUType >::solver::normFactor(), psi, Foam::stabilise(), and SolverPerformance< Type >::vsmall_.

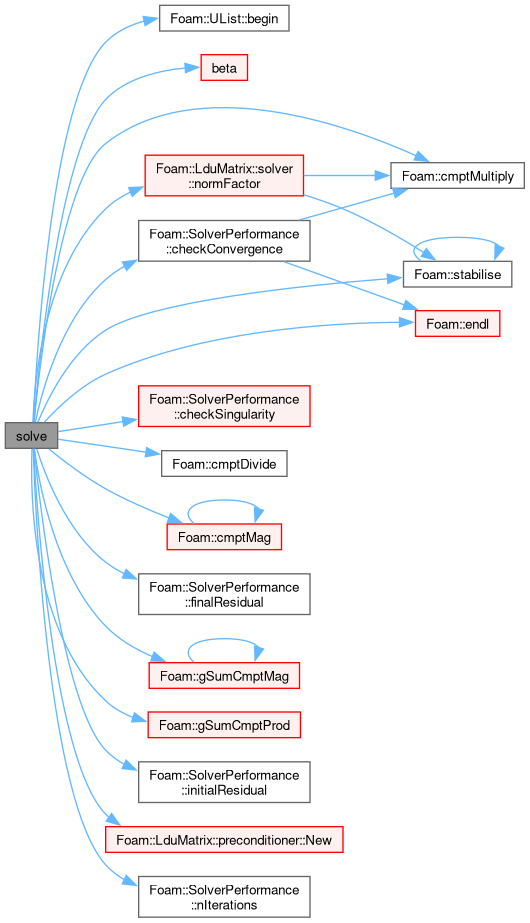

Here is the call graph for this function:

---

The documentation for this class was generated from the following files:

• src/OpenFOAM/matrices/LduMatrix/Solvers/PCICG/PCICG.H
• src/OpenFOAM/matrices/LduMatrix/Solvers/PCICG/PCICG.C
